Sun Blade X4-2B Server Module - Full Components List

Batteries Blade CPU Module Cables Disks Ethernet Memory SCSI Exploded View	Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	150-3993 [C] Buy	3V Lithium Coin Cell Battery	n/a

Blade
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7057654 [F]	Blade Motherboard Assembly w/ BIOS/FRUID/ILOM	n/a
	7049417	Blade Motherboard Assembly	n/a
	150-3993 [C] Buy	3V Lithium Coin Cell Battery	n/a
	530-3888	Hard Disk Drive Power Cable	n/a
	530-3993	HDD Data Cable, 150mm	n/a
	530-4555	HDD Data Cable, 370mm	n/a
	7046538	Blade Motherboard	n/a
	7049231	2-Slot 2.5" Disk Backplane	n/a
n/a	7083444 [F]	Blade Motherboard Assembly w/ BIOS/FRUID/ILOM	n/a
	7083479	Blade Motherboard Assembly	n/a
	150-3993 [C] Buy	3V Lithium Coin Cell Battery	n/a
	530-3888	Hard Disk Drive Power Cable	n/a
	530-3993	HDD Data Cable, 150mm	n/a
	530-4555	HDD Data Cable, 370mm	n/a
	7049231	2-Slot 2.5" Disk Backplane	n/a
	7083442	Blade Motherboard	n/a

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7020774 [F]	Pre-Greased CPU Heatsink	n/a
n/a	7026168	CPU Installation/Removal Tool	n/a
n/a	7069232 [F]	2.7GHz 12-Core Intel Xeon E5-2697 v2, 130W	n/a
n/a	7069239 [F]	3.0GHz 10-Core Intel Xeon E5-2690 v2, 130W	n/a
n/a	7069240 [F]	2.6GHz 8-Core Intel Xeon E5-2650 v2, 95W	n/a
n/a	7069242 [F]	2.6GHz 6-Core Intel Xeon E5-2630 v2, 80W	n/a
n/a	7069243 [F]	2.5GHz 4-Core Intel Xeon E5-2609 v2, 80W	n/a
n/a	7082521	CPU Installation/Removal Tool	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
X4622A-N [S]	Dongle II Cable Assembly for Universal Connector Port (UCP) with three connectors: 1 VGA HD15, 1 RJ45, 2×USB, and 1 DB9 to RJ45 Adapter
	530-3100	RJ45F to DB9F Adapter	n/a
	7046680 [C]	USB/VGA/RJ45 Dongle Cable Adapter	n/a
n/a	7014989 [C]	Mini SAS Cable, SFF-8643 to SFF-8643, .5M	n/a
n/a	7048611 [C]	Cable Kit	n/a
	530-3888	Hard Disk Drive Power Cable	n/a
	530-3993	HDD Data Cable, 150mm	n/a
	530-4555	HDD Data Cable, 370mm	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
7106617 [S]	7045850 [C]	1.2TB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7045846	Hitachi HUC101212CSS600 [H101212SESUN1.2T] (1.2TB - 10000 RPM - SAS Disk)	n/a
	7082883	Hitachi HUC101212CSS600 [H101212SESUN1.2T] (1.2TB - 10000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
7107550 [S]	7077233 [C]	400GB Solid State SATA Drive Assembly	n/a
	7076379	400GB 2.5" SATA-3 Solid State Drive Intel SSDSC2BA400G3S [ITVSC2BA3SUN400G]	n/a
	541-2123	Marlin 2.5" Bracket	n/a
XRA-SS2CF-600G10K2 [S]	542-0287 [C] Buy	600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks;	n/a
	390-0491	Seagate ST9600205SS [ST960005SSUN600G](600GB 10000 RPM SAS Disk)	n/a
	7045228	Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
XRB-SS2CF-300G10K2 [S]	542-0388 [C] Buy	300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7045226	Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB - 10000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
7100633 [S]	7041170 [C]	PCI Express Pass Through Fabric Expansion Module (FEM)	n/a
X4871A-Z-N [S]	7051229 [C]	Dual 10Gbps Ethernet Fabric Expansion Module (FEM)	375-3648 [C]
n/a	375-3648 [C]	Dual 10-Gigabit Ethernet Fabric Expansion Module (FEM)	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
7100790 [S]	7020486 [C]	8GB DDR3-1600 DIMM, 1.35V	n/a
7100794 [S]	7018701 [C]	16GB DDR3-1600 DIMM, 1.35V	n/a
7106548 [S]	7071891 [C]	32GB DDR3L-1600 1.35V Load Reduced DIMM	n/a
n/a	7038488 [C]	4GB USB 2.0 Flash Drive	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
SGX-SAS6-R-REM-Z [S]	7047851 [C]	6Gbps SAS-2 RAID Expansion Module (REM), B4 ASIC	n/a
	7050794	6Gbps SAS-2 RAID PCI Battery Module, BBU08	n/a
SGX-SAS6-REM-Z [S]	7047855 [C]	6Gbps SAS-2 RAID Expansion Module (REM)	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

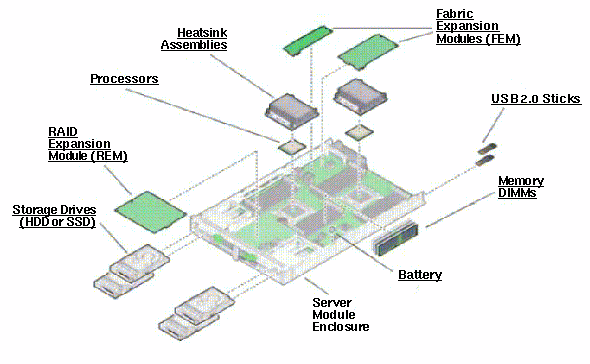

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
NS	541-2629	2.5" Disk Drive Filler Panel
NS	330-4577	Disk Filler Bezel
