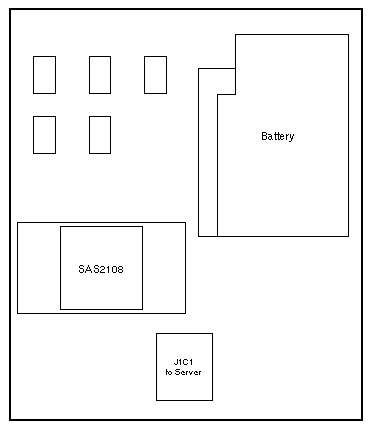

6Gbps SAS-2 RAID Expansion Module

Codename: Niwot-REM

Option SGX-SAS6-R-REM-Z

371-4746	371-4982	7050794
Lithium Ion Battery BBU07 August 2009	Lithium Ion Battery BBU08 September 2010	Lithium Ion Battery BBU08 >30% Charge August 2012

375-3647-01	375-3647-02	375-3647-03	7047851
LSI L3-25241-xx B4 Liberator ASIC March 2010	LSI L3-25241-xx B2 Liberator ASIC June 2010	LSI L3-25241-xx B4 Liberator ASIC September 2010	LSI L3-25241-xx B4 Liberator ASIC August 2012

Additional Information & Views

Notes

1. The minimum Solaris OS is Solaris 10 10/09 per 820-7888-10 of July 2010.
2. The recommended minimum Solaris OS is Solaris 10 01/13 per E22411-05 of September 2013.
3. For the latest recommended OS support levels, see the Installation Guide.
4. 8-Port SAS REM supports RAID Levels 0, 1, 5, 6, 10, 50, and 60.
5. The 8-Port SAS REM was released in March 2010. (WO_42793)
6. The REM changed from 375-3647-02 to 375-3647-03,
   and the battery changed from 371-4746 to 371-4982 in September 2010. (WO_43637)
   Battery 371-4982 allows the operational range of the REM to increase from 45C to 55C.
7. The SB6000 CMM requires SW 3.2.1 when T6320, T6340, or X6270 M2 are
   used with REM 375-3647 and SB6000 Storage Module M2.
8. PCI Identifiers are Vendor ID 0x1000, Device ID 0x0079, and Subsystem ID 0x9262.
9. Vital Product Data VPD=PN is 375-3647 for both part numbers.

SAS Connectivity Matrix

References

1. Sun Storage 6 Gb SAS REM RAID HBA Documentation.

Notes

1. The minimum Solaris OS is Solaris 10 10/09 per 820-7892-10 of June 2010.
2. The recommended minimum Solaris OS is Solaris 10 01/13 per E22495-05 of September 2013.
3. For the latest recommended OS support levels, see the Installation Guide.
4. 8-Port SAS REM supports RAID Levels 0, 1, and 10.
5. The 8-Port SAS REM was released in March 2010. (WO_42751)
6. The SB6000 CMM requires SW 3.2.1 when T6320 or T6340 are
   used with REM 375-3643 or 7047855 and SB6000 Storage Module M2.
7. The X6270 M2 requires SW 3.2.2 when used with REM 375-3643.
8. PCI Identifiers are Vendor ID 0x1000, Device ID 0x0072, and Subsystem ID 0x3180.
9. Vital Product Data VPD=PN is 375-3643 for both part numbers.

SAS Connectivity Matrix

References

1. Sun Storage 6 Gb SAS REM HBA Documentation.
