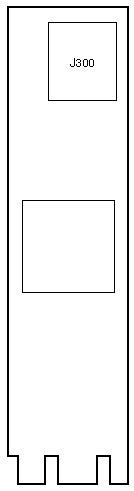

Dual 10-Gigabit Ethernet Fabric Expansion Module

Codename: Foxxy

Option X1029A-Z

501-7961

Additional Information & Views

Notes

  1. The minimum Solaris operating systems is Solaris 10 8/07.
  2. The Dual 10GbE Fabric Expansion Module supports two 10-Gigabit Ethernet interfaces with Multi-Fabric Network Express Module Option X4236A.
  3. The minimum version of the Sun Blade X6250 is 540-7254-04 (375-3501-05).
  4. About 180 Sun Blade X6250 boards built on 06/09/08 were relabeled to the new part number but were not reworked.
    The changes required to support the Dual 10GbE Fabric Expansion Module are on 540-7254-05 (375-3501-06).

Blade Notes

  1. Sun Blade X6450 540-7595 (X6450-AA) is not supported.
    Sun Blade X6450 540-7821 (X6450-AB) is required.

10Gigabit Ethernet (10GbE) Connectivity Matrix

System Requires FEM for 10GbE
Connectivity
to NEM
Sun Blade T6340 X1029A-Z X4236A
Sun Blade X6250 X1029A-Z X4236A
Sun Blade X6450 X1029A-Z X4236A

References

  1. Sun Dual 10GbE Fabric Expansion Module Documentation.

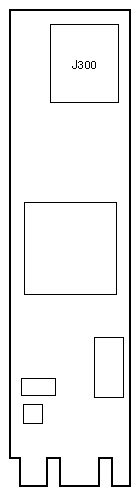

Dual 10-Gigabit Ethernet Fabric Expansion Module

Codename: Niantic

Option X4871A-Z
Option X4871A-Z-N

375-3648 7051229
Intel Sunshine Key
Product Code 3753648		 Intel Sunshine Key
Product Code 3753648

Additional Information & Views

Notes

  1. The minimum Solaris operating systems is Solaris 10 5/09.
  2. The Solaris device driver is bundled in Solaris 10 10/09.
  3. Documentation is not included.
  4. PCI Identifiers are Vendor ID 0x8086, Device ID 0x1507, and Sub Device IS 0x7b12.
  5. Vital Product Data VPD=PN is not documented.

10Gigabit Ethernet (10GbE) Connectivity Matrix

System Requires FEM for 10GbE
Connectivity
to NEM
Sun Blade T6320 X4822A or
X4871A-Z		 X2073A
Sun Blade T6340 X4871A-Z X2073A
Sun Blade X6270 X4871A-Z X2073A
Sun Blade X6270 M2 X4871A-Z X2073A
SPARC T3-1B X4871A-Z or
X5735A		 X4236A
SPARC T4-1B X4871A-Z X2073A
SPARC T5-1B X4871A-Z X2073A
Netra X6270 M2 X4871A-Z X2073A
Netra SPARC T3-1B X4871A-Z or
X5735A		 X2073A
Netra SPARC T4-1B X4871A-Z X2073A
Sun Blade X3-2B
(Sun Blade X6270 M3)		 X4871A-Z X2073A
Sun Blade X4-2B X4871A-Z X2073A
Netra Blade X3-2B
(Netra X6270 M3)		 X4871A-Z X2073A
Netra Blade X4-2B X4871A-Z X2073A

References

  1. Sun Dual 10GbE PCIe 2.0 Fabric Expansion Module Documentation.
