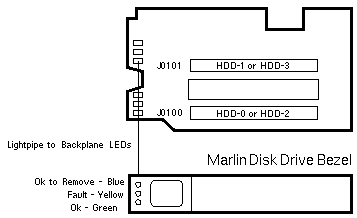

2-Slot SAS Backplane

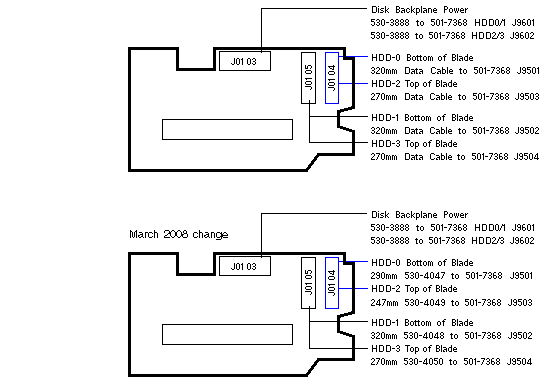

Sun Blade T6320 Notes

1. Disk Backplane 501-7843 is not a Sun Blade T6320 FRU.
2. SAS Cables 530-3931 and 530-3932 are not FRUs.
3. SAS Cables 530-4047, 530-4048, 530-4049, and 530-4050 are not FRUs.
4. Cable 530-3931 is one blue and one black 320mm cable for HDD0 and HDD1.
   Cable 530-3931 was replaced by 530-4047 and 530-4048 in March 2008. (WO_38757)
5. Cable 530-3932 is one blue and one black 270mm cable for HDD2 and HDD3.
   Cable 530-3932 was replaced by 530-4049 and 530-4050 in March 2008. (WO_38757)
6. Sun Blade T6300 Cable Kit 541-2491 includes Backplane Power Cable 530-3888.

References

1. Sun Blade T6320 Documentation.

---

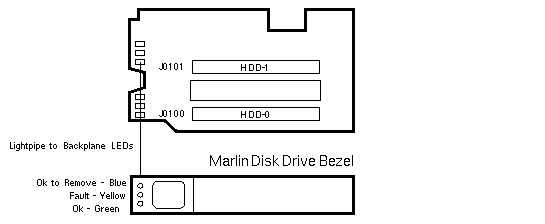

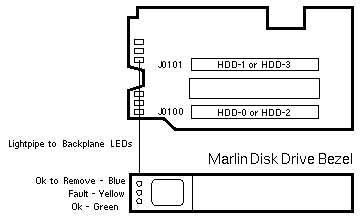

Internal T6340 View (501-7843 only) External T6340 View

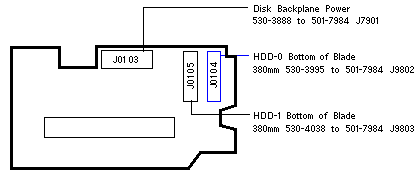

Sun Blade T6340 Notes

1. Disk Backplane 501-7843 is not a Sun Blade T6340 FRU.
2. Cables 530-3995 and 530-4038 are not FRUs.

References

1. Sun Blade T6340 Documentation.

---

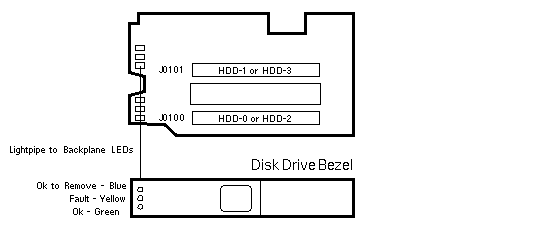

Internal X6270 View External X6270 View

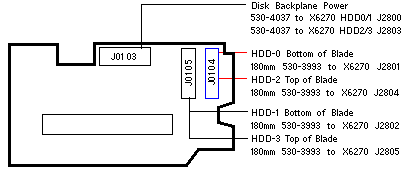

Sun Blade X6270 Notes

1. Disk Backplane 501-7843 is not a Sun Blade X6270 FRU.
2. Cable 530-4037 is not available as a FRU.

References

1. Sun Blade X6270 Documentation.

---

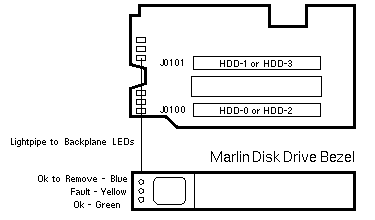

Internal X6270 M2 View External X6270 M2 View

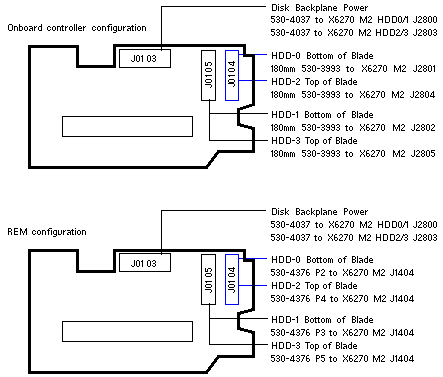

Sun Blade X6270 M2 Notes

1. Disk Backplane 501-7843 is not a Sun Blade X6270 M2 FRU.
2. ATO Option 4859A includes four 530-3993 SATA data cables.
3. ATO Option 4860A includes one 530-4376 SAS data cable.
4. Cable Kit 542-0376 includes four 530-3993 and one 530-4376.
5. Cable 530-4376 has one SFF-8087 to four SATA connectors.
6. Onboard controller configurations use cable 530-3993.
7. REM configurations use cable 530-4376.

References

1. Sun Blade X6270 M2 Documentation.

---

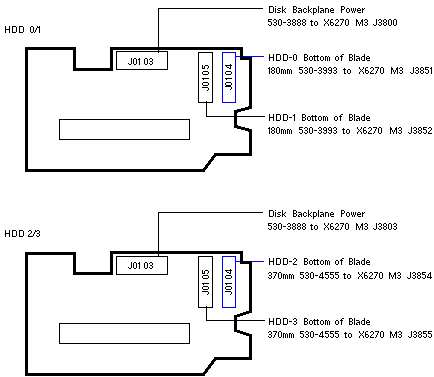

Sun Blade X3-2B (X6270 M3) Netra Blade X3-2B (Netra X6270 M3) Internal View External View

Sun Blade X3-2B (X6270 M3) and Netra Blade X3-2B (X6270 M3) Notes

1. The Disk Backplane is not a Sun Blade X6270 M3 or Netra X6270 M3 CRU/FRU.
2. The Disk Backplane can not be removed without removing the blade from the tray.
3. Cable Kit 7048611 includes one 530-3888, one 530-3993, and one 530-4555.

References

1. Sun Blade X3-2B Documentation.
2. Netra Blade X3-2B Documentation.
