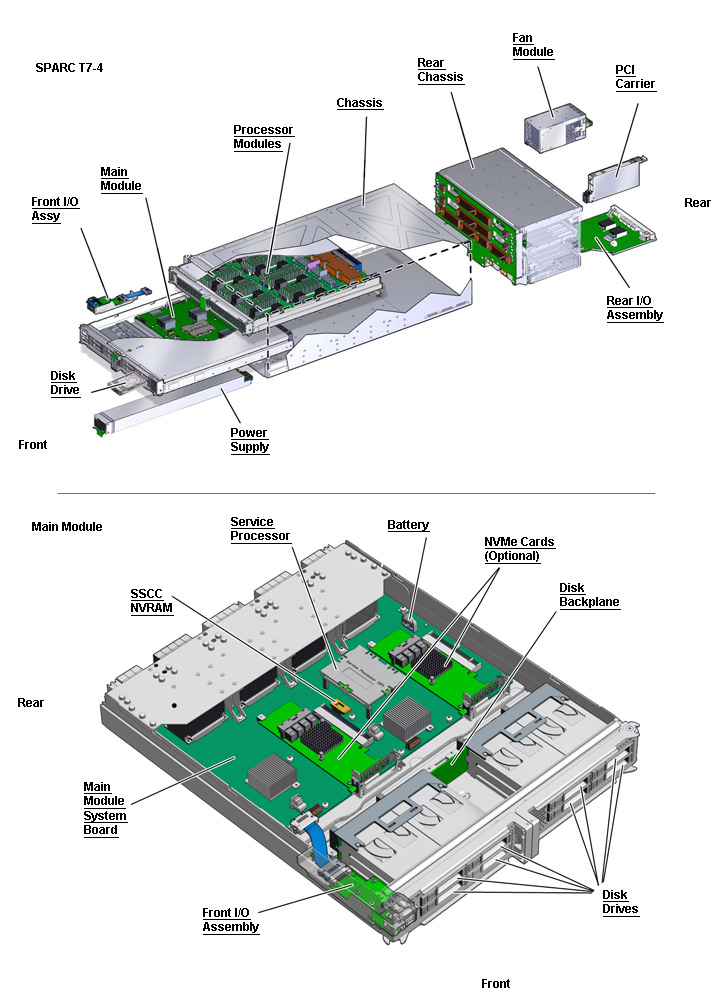

SPARC T7-4 - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Batteries
Option #
Manufacturing
Description
Previous
n/a
371-2210
[C] Buy
3V Lithium Coin Cell Battery
n/a
CPU Module
Option #
Manufacturing
Description
Previous
7107460
7310594 [F]
Dual 32-Core 4.133GHz Processor Module Assembly
n/a
n/a
n/a
32-Core 4.133GHz CPU Mezzanine n/a
n/a
n/a
n/a
7300449
[F]
Dual 32-Core 4.133GHz Processor Module Assembly
n/a
n/a
32-Core 4.133GHz CPU Mezzanine n/a
n/a
n/a
7310242 [F]
Dual 32-Core 4.133GHz Processor Module Assembly
7300449
[F]
n/a
32-Core 4.133GHz CPU Mezzanine n/a
n/a
n/a
7310778 [C]
Processor Module Filler Assembly
n/a
n/a
n/a
n/a
n/a
7342216 3
[F]
Dual 32-Core 4.133GHZ Processor Module Assembly
7310594 [F]
n/a
n/a
32-Core 4.133GHz CPU Mezzanine n/a
n/a
n/a
32-Core 4.133GHz CPU Mezzanine n/a
n/a
7354319 4
[F]
Dual 32-Core 4.133GHZ Processor Module Assembly
n/a
n/a
n/a
32-Core 4.133GHz CPU Mezzanine n/a
n/a
7361487 [C]
Processor Module Filler Assembly
n/a
n/a
n/a
n/a
3 7342216 is a reworked 7310594 per E0032643 and Purge GSAP 6874.4 The Interposer was changed from 7096087 to 7346461 by E0036410.
Cables
Option #
Manufacturing
Description
Previous
7102870 Buy
7039999 [C]
MPO to MPO High Bandwidth QSFP Optical Cable, 20M
n/a
7102871 Buy
7040001 [C]
MPO to MPO High Bandwidth QSFP Optical Cable, 50M
n/a
7105206 Buy
7063852 [C]
InfiniBand Cable, QSFP, Optical, MPO to MPO, 100M
n/a
7114369 Buy
7308821 [C]
MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 10M
n/a
7114370 Buy
7308822 [C]
MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 20M
n/a
7114371 Buy
7308823 [C]
MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 50M
n/a
X2121A-1M-N Buy
530-4444 [C]
10Gbps QSFP to QSFP Cable, 1m
n/a
X2121A-3M-N Buy
530-4445 [C]
10Gbps QSFP to QSFP Cable, 3m
n/a
X2121A-5M-N Buy
530-4446 [C]
10Gbps QSFP to QSFP Cable, 5m
n/a
X2125A-1M-N Buy
530-4450 [C]
QSFP to 4× SFP+ Splitter Cable, 1m
n/a
X2125A-3M-N Buy
530-4451 [C]
QSFP to 4× SFP+ Splitter Cable, 3m
n/a
X2125A-5M-N Buy
530-4452 [C]
QSFP to 4× SFP+ Splitter Cable, 5m
n/a
X2130A-3M-N Buy
530-4442 [C]
10Gbps SFP+ TwinX Cable, 3m
n/a
X2130A-5M-N Buy
530-4443 [C]
10Gbps SFP+ TwinX Cable, 5m
n/a
n/a
7308812 [C]
Dual Mini SAS-3 HD8i Cable Assembly (NVMe)
n/a
72-Pin SFF-8643 Mini SAS HD to 90° SFF-8087, 330mm n/a
72-Pin SFF-8643 Mini SAS HD to 90° SFF-8087, 300mm n/a
n/a
7314617 [F]
Cable Kit
n/a
Backplane to System Board Power Cable, 208mm n/a
n/a
n/a
Disk Backplane to Motherboard Data Cable, 100mm n/a
Disk Backplane to Motherboard Data Cable, 170mm n/a
Chassis
Option #
Manufacturing
Description
Previous
n/a
7093418 [F]
Rear Chassis Assembly
n/a
n/a
n/a
n/a
n/a
n/a
Lower Fan Board to Midplane Cable n/a
n/a
n/a
n/a
n/a
PCI Express Express Module Backplane n/a
n/a
7095617
T7-4 L3 Chassis Assembly
n/a
n/a
n/a
n/a
n/a
Communication
Option #
Manufacturing
Description
Previous
7104074 Buy
7092757
[C]
Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3
7046442
[C]
n/a
7046442
[C]
Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3
n/a
Disks
Option #
Manufacturing
Description
Previous
7110933 Buy
7094132 [C]
400GB Solid State SAS Drive Assembly
n/a
400GB SAS Solid State Drive [HSCAC2DA4SUN400G] n/a
n/a
7111103 Buy
7093015 [C]
600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Hitachi HUC101860CSS200 [H101860SFSUN600G] (600.0GB - 10000 RPM SAS Disk) n/a
n/a
7111108 Buy
7093037 [C]
1.2TB - 10000 RPM SAS SFF Disk Assembly w 1 bracket and 1 of the following disks:
n/a
Hitachi HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB - 10000 RPM - SAS DISK) n/a
n/a
7115079 Buy
7330686 [C]
800GB SAS3 Solid State Drive Assembly
n/a
HGST HUSMM3280ASS20 [HBCAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS3 Disk) n/a
n/a
7115457
7340035 [C]
6.4TB NVMe Solid State Drive Assembly
n/a
Intel SSDPE2KE064T7 [ICDPC2DD2ORA6.4T] (6.4TB - 2.5" Solid State - NVMe Disk, x4 PCI Express Gen 3) n/a
n/a
7118670
7350766 [C]
1.2TB - 10000 RPM SAS Disk Assembly without Encryption (EAEU part - see note below)
n/a
HGST HUC101812CSS204 [H1018124FSUN1.2T] (1.2TB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below) n/a
n/a
7118672
7352257 [C]
600GB - 10000 RPM SAS Disk Drive Assembly without Encryption (EAEU part - see note below)
n/a
HGST HUC101860CSS204 [H1018604FSUN600G] (600GB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below) n/a
n/a
7118709
7350749 [C]
800GB SAS3 Solid State Disk Assembly without Encryption (EAEU part - see note below)
n/a
HGST HUSMM3280ASS204 [HBSAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS3 Disk without Encryption) (EAEU part - see note below) n/a
n/a
7110927
[S]
7302552 [C]
1.6TB Solid State NVMe Drive Assembly
n/a
Intel SSDPE2ME016T4SP [SSDPE2ME016T4S] (1.6TB - 2.5" eMLC NVMe Solid State Drive) n/a
n/a
7113805
[S]
7317908 [C]
3.2TB NVMe Solid State Drive Assembly
n/a
Samsung MZWLK3T2HCJL-000U3 [MS1PC2DD3ORA3.2T] (3.2TB - 2.5" Solid State - NVMe Disk) n/a
n/a
Ethernet
Option #
Manufacturing
Description
Previous
7100477 Buy
7070195
[C]
Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP
n/a
7100481 Buy
7070202
[C]
Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF
n/a
7100488 Buy
7070006
[C]
Dual 10-Gigabit Base-T PCI Express Gen2
n/a
7114094 Buy
7305556
[C]
40GbE Long Wave QSFP+ Transceiver
n/a
7114134 Buy
7319817
[C]
Quad 10-Gigabit or Dual 40-Gigabit Ethernet QSFP+
n/a
X1109A-Z Buy
7051223
[C]
Dual 10-Gigabit PCI Express Ethernet SFP+ LP
n/a
X2124A-N Buy
7326504
[C]
10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver
135-1204
[C]
X2129A-N Buy
530-4449
[C]
10Gb/Sec Short Wave SFP+ Transceiver
n/a
X5562A-Z Buy
135-1205
[C]
10Gb/Sec Long Wave SFP+ Transceiver
n/a
n/a
135-1204
[C]
10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver
n/a
Fan
Option #
Manufacturing
Description
Previous
n/a
7024216 [C]
Fan Module
n/a
Dual Counter Rotating Fan, 80x80x80mm, 12000/10500 RPM n/a
Fibre Channel
Option #
Manufacturing
Description
Previous
7101674 Buy
7023303
[C]
Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic
n/a
7101676 Buy
7023325
[C]
Pair of 16Gbps Short Wave SFP+
n/a
16Gb/Sec Short Wave SFP+ Transceiver, QLogic n/a
7101678 Buy
7023315
[C]
Pair of 10Gbps Short Wave SFP+
n/a
10Gb/Sec Short Wave SFP+ Transceiver, QLogic n/a
7101684 Buy
7023036
[C]
Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex
n/a
7101686 Buy
7023059
[C]
Pair of 16Gbps Short Wave SFP+
n/a
16Gb/Sec Short Wave SFP+ Transceiver, Emulex n/a
7106958
[S]
7076907
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter, Qlogic
n/a
SG-XPCIE2FC-EM8-N
[S]
7053434
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex
n/a
I/O
Option #
Manufacturing
Description
Previous
7111493 Buy
7064634 [C]
8-Port PCI Express Switch
n/a
PCI Express Switch w/o Bracket or Heatsink n/a
7107461
[S]
7089613
[C]
x16 PCI Express Carrier Assembly
n/a
x16 PCI Express Carrier Board n/a
PCI Express Carrier Enclosure n/a
n/a
7045172
Front I/O Assembly
n/a
n/a
n/a
n/a
n/a
7090121 [C]
Rear I/O Assembly
n/a
n/a
n/a
USB T10 Torx Thumbscrew, M3 0.5 x 6mm n/a
n/a
7360352 [F]
x16 PCI Express Carrier Assembly with Bumper
n/a
PCI Express Carrier Enclosure n/a
x16 PCI Express Carrier Board n/a
Memory
Option #
Manufacturing
Description
Previous
7113004 Buy
7317930
[C]
32GB Registered DDR4-2400 DIMM (runs at 2133MHz)
n/a
7114652 Buy
7326376
[C]
64GB Load Reduced DDR4-2400 DIMM (runs at 2133MHz)
n/a
7107207
[S]
7082850
[C]
16GB Registered DDR4-2133/2400 DIMM
n/a
7107209
[S]
7082851
[C]
32GB Load Reduced DDR4-2133 DIMM
n/a
n/a
7074618
[C]
2GB Embedded USB
n/a
n/a
7092877
USB T10 Torx Thumbscrew, M3 0.5 x 6mm
n/a
Power
Option #
Manufacturing
Description
Previous
n/a
7092055
[C]
Type A261 3000 Watt AC Input Power Supply
n/a
n/a
7302922
[C]
Type A261 3000 Watt AC Input Power Supply
7092055
[C]
n/a
7335848
[C]
Type A261 3000 Watt AC Input Power Supply - India ISI Mark
7302922
[C]
+
n/a
7352331 [C]
Type A261 3000W AC Input Power Supply
n/a
Rack
Option #
Manufacturing
Description
Previous
n/a
7069793 [C]
Cable Management Assembly
n/a
Cable Management Adapter Bracket n/a
Cable Management Assembly n/a
n/a
7096048 [C]
Rack Mount Kit
n/a
n/a
10-32 x 1/4" Shoulder Screw (x12) n/a
10-32 x 7/16" SEMS Screw (x12) n/a
Rack Mount Bracket, Tapped Holes n/a
Shipping Bracket Shear Pin (x2) n/a
Right Top Rear Shipping Bracket n/a
Left Top Rear Shipping Bracket n/a
Shipping Bracket Assembly n/a
Shipping Bracket Top Guide Pin (x2) n/a
M6 x 1.0 x 16mm T-30 Pan Head Double Washer Screw (x16) n/a
M6 x 1.0 x 12mm T-30 Pan Head Double Washer Screw (x16) n/a
n/a
Universal Rack Mount Bracket, M6 Holes n/a
n/a
n/a
SCSI
Option #
Manufacturing
Description
Previous
7110119 Buy
7085208
[C]
8-Port 12Gbps SAS-3 HBA (External)
n/a
7113826 Buy
7317693
[C]
3.2TB Flash Accelerator F320 NVMe Card
n/a
7115455
7335943
[C]
6.4TB Flash Accelerator F640 NVMe Card
n/a
7110865
[S]
7307468
[C]
1.6TB Flash Accelerator F160 NVMe Card w/ LP Bracket (B1 Silicon)
n/a
System Board
Option #
Manufacturing
Description
Previous
n/a
7314622 [F]
Main Module Assembly
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
3V Lithium Coin Cell Battery
n/a
n/a
n/a
n/a
Backplane to System Board Power Cable, 208mm n/a
n/a
Disk Backplane to Motherboard Data Cable, 100mm n/a
Disk Backplane to Motherboard Data Cable, 170mm n/a
n/a
7342622
32-Core 4.133GHz CPU Mezzanine
n/a
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
Code
Manufacturing Part#
Description
NS
541-2629
2.5" Disk Drive Filler Panel
NS
