Bel Power A261
3000 Watt Power Supply
| 7092055 |
AC Input Power Supply
Specification 7015949
UL 60950-1 2nd Edition
EN 60950-1 2nd Edition
S. Korea KCC Mark |

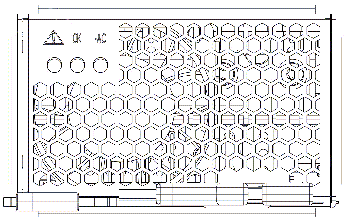

Front View
AC Input
| 200-277Vac |
50-60Hz |
16A RMS Max |
DC Output
| +12.3V |
244A |
3000W |
| +12.0Vsb |
5A |
60W |
Efficiency
| 200-240V |
5% Load |
87.0% Efficiency |
Power Factor 0.800 |
| 10% Load |
90.0% Efficiency |
Power Factor 0.800 |
| 20% Load |
93.0% Efficiency |
Power Factor 0.900 |
| 50% Load |
94.5% Efficiency |
Power Factor 0.950 |
| 100% Load |
93.0% Efficiency |
Power Factor 0.980 |
Notes
- Power Supply Efficiency affects the current draw in AC Watts from the
branch circuit. As efficiency increases, the current draw in AC Watts
decreases.
- To calculate maximum theoretical current draw in AC Watts, multiply the
maximum power supply output in DC Watts by the reciprocal of the power
supply efficiency.
- Theoretical values are typically higher than published values which are
based on measured outputs under controlled test conditions.
|
