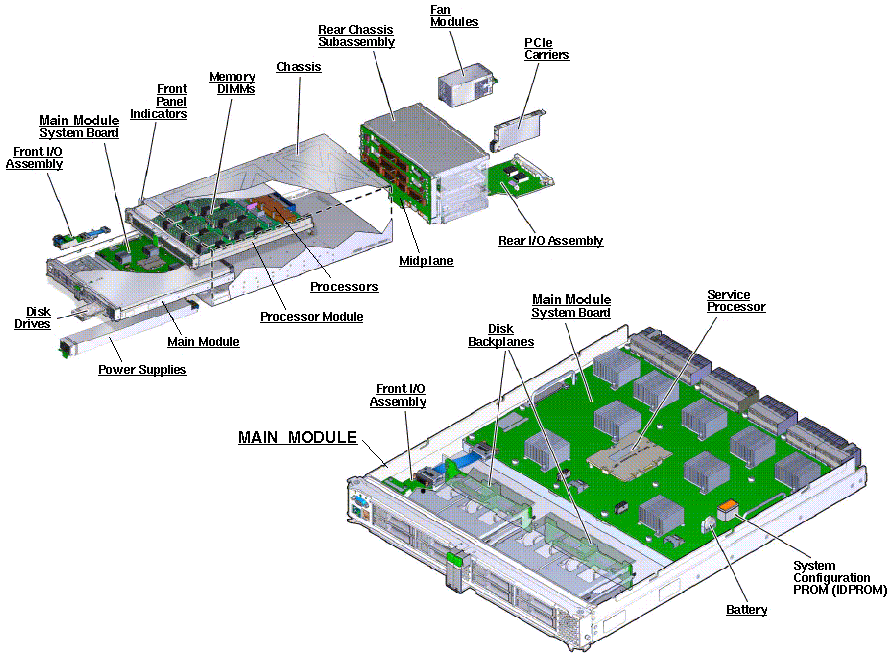

SPARC T5-4 - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Batteries
Option #
Manufacturing
Description
Previous
n/a
371-2210
[C] Buy
3V Lithium Coin Cell Battery
n/a
CPU Module
Option #
Manufacturing
Description
Previous
7104195
[S]
7340500 [F]
16-Core 3.6GHz Processor Module Assembly
n/a
n/a
n/a
n/a
n/a
n/a
16-Core 3.6GHz T5 CPU Mezzanine n/a
n/a
7049988 [C]
Processor Module Filler Panel
n/a
n/a
7300806 1
[F]
16-Core 3.6GHz Processor Module Assembly (reworked 7056873)
n/a
n/a
n/a
n/a
n/a
16-Core 3.6GHz T5 CPU Mezzanine n/a
n/a
16-Core 3.6GHz T5 CPU Mezzanine n/a
16-Core 3.6GHz T5 CPU Mezzanine n/a
n/a
7303729 [F]
16-Core 3.6GHz Processor Module Assembly
7056873 [F]
[S]
n/a
n/a
n/a
n/a
n/a
16-Core 3.6GHz T5 CPU Mezzanine n/a
n/a
7340495 3
[F]
16-Core 3.6GHz Processor Module Assembly (reworked 7300806)
7300806 2
[F]
n/a
n/a
n/a
n/a
16-Core 3.6GHz T5 CPU Mezzanine n/a
n/a
16-Core 3.6GHz T5 CPU Mezzanine n/a
16-Core 3.6GHz T5 CPU Mezzanine n/a
n/a
7340498 4
[F]
16-Core 3.6GHz Processor Module Assembly (reworked 7303729)
7303729 [F]
+
7056873 [F]
[S]
n/a
n/a
n/a
n/a
16-Core 3.6GHz T5 CPU Mezzanine n/a
n/a
16-Core 3.6GHz T5 CPU Mezzanine n/a
n/a
7357721 [F]
16-Core 3.6GHz Processor Module Assembly (reworked 7340495)
n/a
n/a
n/a
n/a
n/a
16-Core 3.6GHz T5 CPU Mezzanine n/a
n/a
16-Core 3.6GHz T5 CPU Mezzanine n/a
16-Core 3.6GHz T5 CPU Mezzanine n/a
n/a
7357723 [F]
16-Core 3.6GHz Processor Module Assembly (reworked 7340498)
n/a
n/a
n/a
n/a
n/a
n/a
16-Core 3.6GHz T5 CPU Mezzanine n/a
n/a
7056873 [F]
[S]
16-Core 3.6GHz Processor Module Assembly
n/a
n/a
n/a
n/a
n/a
16-Core 3.6GHz T5 CPU Mezzanine n/a
n/a
16-Core 3.6GHz T5 CPU Mezzanine n/a
16-Core 3.6GHz T5 CPU Mezzanine n/a
1 7300806 is a reworked 7056873 per E0025128 and Rework GSAP 6363.A.2 7300806 is a reworked 7056873 per E0025128 and Rework GSAP 6363.A.3 7340495 is a reworked 7300806 per E0032090 and Rework GSAP 6832.4 7340498 is a reworked 7303729 per E0032179 and Rework GSAP 6843.
Cables
Option #
Manufacturing
Description
Previous
X2121A-1M-N Buy
530-4444 [C]
10Gbps QSFP to QSFP Cable, 1m
n/a
X2121A-3M-N Buy
530-4445 [C]
10Gbps QSFP to QSFP Cable, 3m
n/a
X2121A-5M-N Buy
530-4446 [C]
10Gbps QSFP to QSFP Cable, 5m
n/a
X2130A-1M-N Buy
530-4441 [C]
10Gbps SFP+ TwinX Cable, 1m
n/a
X2130A-3M-N Buy
530-4442 [C]
10Gbps SFP+ TwinX Cable, 3m
n/a
X2130A-5M-N Buy
530-4443 [C]
10Gbps SFP+ TwinX Cable, 5m
n/a
n/a
530-4399
Backplane to System Board Power Cable, 208mm
n/a
Chassis
Option #
Manufacturing
Description
Previous
n/a
7059891
T5-4 L3 Chassis Assembly
n/a
n/a
n/a
n/a
n/a
n/a
7060304 [F]
Rear Chassis Subassembly (RCSA)
n/a
n/a
n/a
n/a
n/a
Lower Fan Board to Midplane Cable n/a
PCI Express ExpressModule Backplane n/a
n/a
n/a
n/a
n/a
n/a
n/a
7077597 [F]
Rear Chassis Subassembly (RCSA)
7060304 [F]
n/a
n/a
n/a
n/a
n/a
Lower Fan Board to Midplane Cable n/a
PCI Express ExpressModule Backplane n/a
n/a
n/a
n/a
n/a
Communication
Option #
Manufacturing
Description
Previous
7104074 8 Buy
7092757 7
[C]
Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3
7046442 6
[C]
X4242A
[S]
7092767
[C]
Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter
375-3696
[C]
X6000A-N
[S]
375-3424
[C]
PCI Express Sun Crypto Accelerator 6000
n/a
n/a
375-3696
[C]
Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter
n/a
n/a
7046442 5
[C]
Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3
n/a
Disk Backplane
Option #
Manufacturing
Description
Previous
n/a
7064535
[F]
Storage Backplane Assembly
n/a
Backplane to System Board Power Cable, 208mm n/a
Disk Backplane to System Board Signal Cable n/a
n/a
Disks
Option #
Manufacturing
Description
Previous
7111103 Buy
7093015 [C]
600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Hitachi HUC101860CSS200 [H101860SFSUN600G] (600.0GB - 10000 RPM SAS Disk) n/a
n/a
7101423
[S]
7017183 [C]
100GB Solid State SATA Drive Assembly
n/a
Intel SSDSA2BZ100G3 [Inquiry Unknown] (100GB - 2.5" Solid State - SATA Disk) n/a
n/a
7101469
[S]
7017184 [C]
300GB Solid State SATA Drive Assembly
n/a
Intel SSDSA2BZ300G3 [Inquiry Unknown] (300GB - 2.5" Solid State - SATA Disk) n/a
n/a
7105212
[S]
7064133 [C]
300GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB - 10000 RPM - SAS Disk) n/a
n/a
7105214
[S]
7064135 [C]
600GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk) n/a
n/a
7107550
[S]
7077233 [C]
400GB Solid State SATA Drive Assembly
n/a
400GB 2.5" SATA-3 Solid State Drive Intel SSDSC2BA400G3S [ITVSC2BA3SUN400G] n/a
n/a
n/a
7352257 [C]
[A]
600GB - 10000 RPM SAS Disk Drive Assembly without Encryption (EAEU part - see note below)
n/a
HGST HUC101860CSS204 [H1018604FSUN600G] (600GB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below) n/a
n/a
Ethernet
Option #
Manufacturing
Description
Previous
7100477 Buy
7070195
[C]
Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP
7048474
[C]
7100481 Buy
7070202
[C]
Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF
7014747
[C]
7100488 Buy
7070006
[C]
Dual 10-Gigabit Base-T PCI Express Gen2
7014776
[C]
X1109A-Z Buy
7051223
[C]
Dual 10-Gigabit PCI Express Ethernet SFP+ LP
n/a
X2124A-N Buy
7326504
[C]
10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver
135-1204
[C]
X2129A-N Buy
530-4449
[C]
10Gb/Sec Short Wave SFP+ Transceiver
n/a
X5562A-Z Buy
135-1205
[C]
10Gb/Sec Long Wave SFP+ Transceiver
n/a
7105381
[S]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
7053422
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
n/a
7105382
[S]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
7053423
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
n/a
n/a
135-1204
[C]
10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver
n/a
n/a
7014747
[C]
Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF
n/a
n/a
7014776
[C]
Dual 10-Gigabit Base-T PCI Express Gen2
n/a
n/a
7048474
[C]
Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP
n/a
Fan
Option #
Manufacturing
Description
Previous
n/a
7024216 [C]
Fan Module
n/a
Fibre Channel
Option #
Manufacturing
Description
Previous
7101674 Buy
7023303
[C]
Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic
n/a
7101676 Buy
7023325
[C]
Pair of 16Gbps Short Wave SFP+
n/a
16Gb/Sec Short Wave SFP+ Transceiver, QLogic n/a
7101678 Buy
7023315
[C]
Pair of 10Gbps Short Wave SFP+
n/a
10Gb/Sec Short Wave SFP+ Transceiver, QLogic n/a
7101684 Buy
7023036
[C]
Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex
n/a
7101686 Buy
7023059
[C]
Pair of 16Gbps Short Wave SFP+
n/a
16Gb/Sec Short Wave SFP+ Transceiver, Emulex n/a
7101688
[S]
7023057
[C]
Pair of 10Gbps Short Wave SFP+
n/a
10Gb/Sec Short Wave SFP+ Transceiver, Emulex n/a
7106958
[S]
7076907
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter, Qlogic
n/a
SG-XPCIE2FC-EM8-N
[S]
7053434
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex
n/a
SG-XPCIE2FC-QF8-N 12
[N]
371-4325
[C]
[N]
8Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
SG-XPCIE2FC-QF8-Z 14
[N]
371-4325
[C]
[N]
8Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
12 SG-XPCIE2FC-QF8-N is no longer supported, use 7106958 instead.14 SG-XPCI2FC-QF8-Z is no longer supported, use 7106958 instead.
I/O
Option #
Manufacturing
Description
Previous
7107171
[S]
7068503
PCI Express Carrier Extension Assembly
n/a
PCI Express Carrier Extension n/a
n/a
7045172 [F]
Front I/O Assembly
n/a
n/a
n/a
n/a
n/a
7062052 [C]
Rear I/O Assembly
n/a
n/a
n/a
n/a
7069814 [C]
PCI Express Carrier Assembly
n/a
PCI Express Carrier Board n/a
PCI Express Carrier Enclosure n/a
PCI Express Filler Panel, Low Profile n/a
n/a
7078249 [C]
Rear I/O Assembly
7062052 [C]
n/a
n/a
n/a
7086746 [C]
PCI Express Carrier Assembly
7069814 [C]
PCI Express Carrier Board n/a
PCI Express Carrier Enclosure n/a
PCI Express Filler Panel, Low Profile n/a
n/a
7089095 [C]
PCI Express Carrier Enclosure
n/a
PCI Express Filler Panel, Low Profile n/a
PCI Express Carrier Board n/a
PCI Express Carrier Board n/a
PCI Express Carrier Enclosure n/a
n/a
7314411 [C]
PCI Express Carrier Assembly
7089095 [C]
PCI Express Carrier Board n/a
PCI Express Carrier Board n/a
PCI Express Carrier Enclosure n/a
PCI Express Carrier Enclosure n/a
PCI Express Filler Panel, Low Profile n/a
PCI Express Carrier Enclosure n/a
n/a
7315331 [C]
PCI Filler Panel Kit, 16 Low Profile Filler Panels [SKU]
n/a
PCI Express Filler Panel, Low Profile n/a
n/a
7357732 [C]
Rear I/O Assembly (reworked 7078249)
n/a
n/a
n/a
Memory
Option #
Manufacturing
Description
Previous
7104201 Buy
32GB Memory Expansion (1 × 32GB) Option
7042211
[C]
32GB DDR3L-1066/DDR3L-1333 DIMM
n/a
7104199
[S]
16GB Memory Expansion (1 × 16GB) Option
7042210
[C]
16GB DDR3L-1600/PC3L-12800 DIMM (runs at 1066 MHz)
n/a
Power
Option #
Manufacturing
Description
Previous
n/a
7068817
[C]
Type A261 3000 Watt AC Input Power Supply
n/a
n/a
7081596
[C]
Type A261 3000 Watt AC Input Power Supply
n/a
n/a
7302922
[C]
Type A261 3000 Watt AC Input Power Supply
7081596
[C]
Rack
Option #
Manufacturing
Description
Previous
n/a
350-1662 [C]
Rack Mount Kit
n/a
Left Rear Bracket (two screw holes) n/a
Right Rear Bracket (two screw holes) n/a
Universal Rack Mount Bracket, M6 Holes n/a
Rack Mount Bracket, Tapped Holes n/a
n/a
n/a
n/a
7069640 [C]
Mounting Rail Kit
n/a
n/a
7069793 [C]
Cable Management Assembly
n/a
Cable Management Adapter Bracket n/a
Cable Management Assembly n/a
n/a
7041990 [S]
Cable Management Assembly
n/a
SCSI
Option #
Manufacturing
Description
Previous
7104482
[S]
7070787
[C]
Flash Accelerator F40 400GB Solid State Memory
7026993
[C]
7105387
[S]
8-Port 6Gbps SAS-2 PCI Express HBA
7047853
[C]
8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
n/a
7107092
[S]
7069200
[C]
800GB PCI Express Flash Accelerator F80 SAS HBA
n/a
n/a
7026993
[C]
Flash Accelerator F40 400GB Solid State Memory
n/a
n/a
7077047
PCIe hot plug carrier extension
n/a
NOTE: When F40 or F80 Flash Accelerator cards are installed, each card requires an additional PCIe hot-plug carrier extension (Option 7107171) for adequate air flow and cooling. The PCIe carrier extension will occupy an additional, adjacent PCIe slot within the chassis. With factory assembled orders, one PCIe hot-plug carrier extension is automatically included for each Flash Accelerator. However, the field installation of a Flash Accelerator in a SPARC T5-4 or T5-8 server requires including the PCIe hot-plug carrier extension with the order.
System Board
Option #
Manufacturing
Description
Previous
n/a
7305706 [F]
Motherboard Assembly
7070931 [F]
[S]
n/a
n/a
3V Lithium Coin Cell Battery
n/a
n/a
n/a
7357725 [F]
Motherboard Assembly
n/a
n/a
n/a
3V Lithium Coin Cell Battery
n/a
n/a
n/a
7070931 [F]
[S]
Motherboard Assembly
n/a
n/a
3V Lithium Coin Cell Battery
n/a
n/a
n/a
n/a
3V Lithium Coin Cell Battery
n/a
n/a
System Service Processor
Option #
Manufacturing
Description
Previous
n/a
7066335 [C]
Service Processor Assembly
n/a
n/a
n/a
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
Code
Manufacturing Part#
Description
NS
350-1288
DIMM Slot Filler
