Oracle System Handbook - ISO 7.0 May 2018 Internal/Partner Edition

Disk Backplane Assembly

<a href="../../Systems/SupportHeaders/BKPL_SPARC_T5_4_8_Stg_Bkpl.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

7064532 7064535

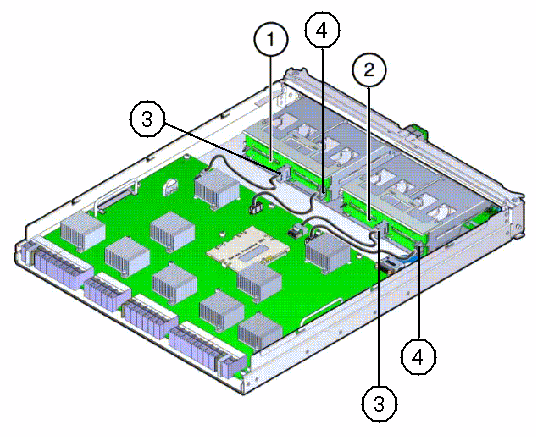

Disk Backplane Disk Backplane Assembly/FRU

1 7064532 Storage backplane - Drives 4 through 7

2 7064532 Storage backplane - Drives 0 through 3

3 7024275 Backplane to System Board Data Cable

4 530-4399 Backplane to System Board Power Cable
