Sun Fire E2900 (post July 2006) - Full Components List

Backplane/Centerplane Cables Card/Reader Disks Ethernet Fibre Channel I/O Memory Miscellaneous Power Removable Media System Board Exploded View	Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Backplane/Centerplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-1382 [F]	Baseplane Assembly	n/a
	501-7327	3-Slot Baseplane	n/a
	501-7331	Fan Tray Mating Board	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
X321L [S]	North America/Asia Power Cords 4-Pack
	180-2023	IEC 320 C13 to NEMA 6-15P - 10A/250V 4.0M Black	n/a
X322L [S]	Continental Europe Power Cords 4-pack
	180-2024	IEC 320 C13 to CEE 7/7 10A/250V 4.0M Black	n/a
X323L [S]	180-2029	IEC 320 C13 to Asfnit 107 4.0M Black	n/a
X324L [S]	180-2027	IEC 320 C13 to SEV 1011 10A/250V 4.0M Black	n/a
X325L [S]	180-2028	IEC 320 C13 to CEI.23-16-VII 10A/250V 4.0M Black	n/a
X326L [S]	180-2025	IEC 320 C13 to AS 3112 10A/250V 4.0M Black	n/a
X327L [S]	180-2026	IEC 320 C13 to BS 1363 10A/250V 4.0M Black	n/a
X328L [S]	China Power Cords 4-Pack
	180-1982 [C]	IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M	n/a
X333A-40-10-IL [S]	Localized Power Cord Kit Israel
	180-2293 [C]	IEC 320 C13 to SI-32, 10A/250V, 4.0M	n/a
X333F-40-15-JP [S]	Localized Power Cord Kit Japan
	180-2294 [C]	IEC 320 C13 to PSE 6-15P, 15A/250V, 4.0M	n/a
X335L [S]	180-2030	IEC 320 C13 to IRAM 2073 10A/250V 4.0M Black	n/a
X336L [S]	U.S. Power Cords 4-Pack
	180-2070 [C]	NEMA L6-20P to IEC 320 C13 - 4.0M	n/a
X337L [S]	International Power Cords 4-Pack
	180-2071 [C]	Blue 16A IEC 309 to IEC 320 C13 International 4.0M	n/a
X338L [S]	U.S. Watertight Power Cords 4-Pack
	180-2072 [C]	Blue 20A Watertight IEC 309 to IEC 320 C13, 4.0M	n/a
X339L [S]	International Watertight Power Cords 4-Pack
	180-2073 [C] [S]	Blue 16A Watertight IEC 309 to IEC 320 C13 4.0M	n/a
n/a	530-3100	RJ45F to DB9F Adapter	n/a

Card/Reader
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-0795 [F]	System Configuration Card with 10 MAC Addresses	n/a
n/a	371-3551 [F]	System Configuration Card with 10 MAC Addresses, Polycarbonate	n/a
n/a	541-1386 [F]	System Configuration Card Reader Assembly	n/a
	341-2589	SCC Reader EMI Cover	n/a
	501-7332	System Configuration Card Reader	n/a
	530-3570	Non-removable SCCR Cable	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
X5268A [S]	540-6602 1 [C]	146.8GB - 10000 RPM, Disk Assembly with 1 bracket, 1 plate and 1 of the following disks	n/a
	341-1986	Plate	n/a
	390-0253	Fujitsu MAW3147NC [MAW3147NCSUN146G] (146GB - 10000 RPM - SCSI Disk)	n/a
	390-0266	Hitachi HUS103014FL3800 [HUS10143ASUN146G] (146GB - 10000 RPM - SCSI Disk)	n/a
	390-0276	Seagate ST3146707LC [ST314670LSUN146G] (146GB - 10000 RPM - SCSI Disk)	n/a
	540-3024	1" SPUD Bracket	n/a
XRA-SC1CB-146G15KZ [S]	540-6461 [C]	146.8GB - 15000 RPM, Disk Assembly with 1 bracket, 1 plate and 1 of the following disks	n/a
	341-1986	Plate	n/a
	390-0205	Seagate ST3146854LC [ST314685LSUN146G] (146GB - 15000 RPM - SCSI Disk)	n/a
	390-0207	Hitachi HUS151414VL3800 [HUS15143ASUN146G] (146GB - 15000 RPM - SCSI Disk)	n/a
	390-0261	Fujitsu MAX3147NC [MAX3147NCSUN146G] (146GB - 15000 RPM - SCSI Disk)	n/a
	390-0327	Seagate ST3146855LC [ST314655LSUN146G] (146GB - 15000 RPM - SCSI Disk)	n/a
	390-0361	Hitachi HUS153014VL3800 [HUS15143BSUN146G] (146GB - 15000 RPM - SCSI Disk)	n/a
	540-3024	1" SPUD Bracket	n/a
n/a	540-6600 [C]	73.4GB - 10000 RPM, Disk Assembly with 1 bracket, 1 plate and 1 of the following disks	n/a
	341-1986	Plate	n/a
	390-0252	Fujitsu MAW3073NC [MAW3073NCSUN73G] (73.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0265	Hitachi HUS103073FL3800 [HUS10733ASUN72] (73.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0275	Seagate ST373207LC [ST373207LSUN72G] (73.4GB - 10000 RPM - SCSI Disk)	n/a
	540-3024	1" SPUD Bracket	n/a

1 Effective 7-Jan-2006, this assembly ships with option X5268A.

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
X4445A [S]	501-6738 [F]	Quad GigaSwift PCI-X Ethernet (QGE-X)	n/a
X5544A-4 [S]	10Gb PCI-X Ethernet Adapter, no transceiver
	501-7413 [F]	10Gb PCI-X Ethernet Adapter	n/a
	370-7665	Bracket Standard 10Gb PCI-X Ethernet	n/a
	370-7792	Bracket Low-Profile 10Gb PCI-X Ethernet	n/a
X7285A [S]	371-0911 [F]	Low Profile PCI-X Dual Gigabit Ethernet UTP	n/a
X7286A [S]	371-0912 [F]	Low Profile PCI-X Single Gigabit Ethernet MMF	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCI1FC-EM4-Z [S]	375-3398 [F]	4Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI1FC-QL2 [S]	375-3383 [F]	2Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI2FC-EM4-Z [S]	7058528 [F]	4Gb PCI-X Dual FC Host Adapter	375-3399 [F]
SG-XPCI2FC-QF2-Z [S]	375-3363 [F]	2Gb PCI/PCI-X Dual FC Host Adapter	n/a
SG-XPCI2FC-QF4 [S]	7060890 [F]	4Gb PCI-X Dual FC Host Adapter	375-3294 [F]
n/a	375-3294 [F]	4Gb PCI-X Dual FC Host Adapter	n/a
n/a	375-3399 [F]	4Gb PCI-X Dual FC Host Adapter	n/a

I/O
Option #	Manufacturing Part #	Description	Previous Part #
X2766A-Z	541-1486 [F]	PCI-X I/O Assembly	n/a
X2765A-Z [S]	541-1503 [F]	PCI+ I/O Board and System Controller	n/a
n/a	541-1388 [F]	PCI I/O and System Controller Board	n/a
	540-6818 [F]	I/O Fan Assembly	n/a

NOTE: 1.8GHz US IV+ Uniboards, PCI-X I/O Assembly and 2GB DIMMs require OBP 5.20.1 or higher

Memory
Option #	Manufacturing Part #	Description	Previous Part #
X7058A-Z [S]	8 GB (4 × 2GB SDRAM DIMMs) Memory Option
	540-6489 [F]	2GB SDRAM DIMM Assembly	n/a
	501-6242	2GB SDRAM DIMM	n/a
n/a	F511-1030 2 [F]	Package of 25 × 512MB SDRAM DIMMs [SKU]	n/a
	501-7385 [F]	512MB SDRAM DIMM	n/a
n/a	F511-1031 3 [F]	Package of 25 × 1GB SDRAM DIMMs [SKU]	n/a
	501-7386 [F]	1GB SDRAM DIMM	n/a

2 See FAB article1000920.1 (formerly 201233) for details. 3 See FAB article1000920.1 (formerly 201233) for details. NOTE: 1.8GHz US IV+ Uniboards, PCI-X I/O Assembly and 2GB DIMMs require OBP 5.20.1 or higher

Miscellaneous
Option #	Manufacturing Part #	Description	Previous Part #
X1209A-Z [S]	370-5410	Cable Management Arm (CMA-Lite)	n/a
X6808A-Z [S]	370-5966	23" 2-post Hendry Rack Mount Kit	n/a
XE2900-USIV+KIT-Z [S]	594-3416	UltraSPARC IV+ 1.8GHz Power Upgrade Kit	n/a
	300-1833 4 [F]	Type A209N 1500/1970 Watt AC Input Power Supply	n/a
n/a	541-1384 [F]	Level 2 Repeater Board Assembly	n/a
	501-7335	L2 Repeater Board	n/a

4 Required for 1.8GHz and 1.95GHz US IV+ Uniboards

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	300-1833 5 [F]	Type A209N 1500/1970 Watt AC Input Power Supply	n/a
n/a	300-1882 [F]	Type A166 1500 Watt AC Input Power Supply	n/a
n/a	300-1884 [F]	AC/DC Input DC Power Distribution Board	n/a
n/a	300-1885 [F]	DC Input Connector Assembly	n/a

5 Required for 1.8GHz and 1.95GHz US IV+ Uniboards

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-1504	Slimline DVD	n/a
	341-2730	Retaining Clip	n/a
	371-1789 [F]	Slimline 8X DVD-ROM / 24X CD-ROM	n/a

System Board
Option #	Manufacturing Part #	Description	Previous Part #
XCPU1280442-1200-Z	540-6865	CPU/Memory UniBoard w/ 4× US III Cu 1.2GHz, 8GB	n/a
XCPU1280482-1200-Z	540-6866	CPU/Memory UniBoard w/ 4× US III Cu 1.2GHz, 16GB	n/a
XCPU1280484-1200-Z	540-6867	CPU/Memory UniBoard w/ 4× US III Cu 1.2GHz, 32GB	n/a
XE29BRD482-1050-Z	541-1529	CPU/Memory UniBoard w/ 4× US IV 1.05GHz, 16GB	n/a
XE29BRD482-1200-Z	541-1516	CPU/Memory UniBoard w/ 4× US IV 1.2GHz, 16GB	n/a
XE29BRD482-1200C-Z	Capacity On Demand CPU/Memory UniBoard w/ 4× unlicensed US IV 1.2GHz, 16GB
	541-1516	CPU/Memory UniBoard w/ 4× US IV 1.2GHz, 16GB	n/a
XE29BRD484-1050-Z	541-1530	CPU/Memory UniBoard w/ 4× US IV 1.05GHz, 32GB	n/a
XE29BRD484-1200-Z	541-1531	CPU/Memory UniBoard w/ 4× US IV 1.2GHz, 32GB	n/a
XE29BRD484-1200C-Z	Capacity On Demand CPU/Memory UniBoard w/ 4× unlicensed US IV 1.2GHz, 32GB
	541-1531	CPU/Memory UniBoard w/ 4× US IV 1.2GHz, 32GB	n/a
XE29BRD482-1350-Z [S]	541-1514	CPU/Memory UniBoard w/ 4× US IV 1.35GHz, 16GB	n/a
XE29BRD482-1350C-Z [S]	Capacity On Demand CPU/Memory UniBoard w/ 4× unlicensed US IV 1.35GHz, 16GB
	541-1514	CPU/Memory UniBoard w/ 4× US IV 1.35GHz, 16GB	n/a
XE29BRD482-1500-Z [S]	541-1532	CPU/Memory Uniboard w/ 4× US IV+ 1.5GHz, 16GB	n/a
XE29BRD482-1500C-Z [S]	Capacity On Demand CPU/Memory UniBoard w/ 4× unlicensed US IV+ 1.5GHz, 16GB
	541-1532	CPU/Memory Uniboard w/ 4× US IV+ 1.5GHz, 16GB	n/a
XE29BRD482-1800-Z [S]	541-1758	CPU/Memory UniBoard w/ 4× US IV+ 1.8GHz, 16GB	n/a
XE29BRD482-1800C-Z [S]	Capacity On Demand CPU/Memory UniBoard w/ 4× unlicensed US IV+ 1.8GHz, 16GB
	541-1758	CPU/Memory UniBoard w/ 4× US IV+ 1.8GHz, 16GB	n/a
XE29BRD482-1950-Z [S]	540-7171	CPU/Memory UniBoard w/ 4× US IV+ 1.95GHz, 16GB	n/a
XE29BRD484-1350-Z [S]	541-1515	CPU/Memory UniBoard w/ 4× US IV 1.35GHz, 32GB	n/a
XE29BRD484-1350C-Z [S]	Capacity On Demand CPU/Memory UniBoard w/ 4× unlicensed US IV 1.35GHz, 32GB
	541-1515	CPU/Memory UniBoard w/ 4× US IV 1.35GHz, 32GB	n/a
XE29BRD484-1500-Z [S]	541-1533	CPU/Memory Uniboard w/ 4× US IV+ 1.5GHz, 32GB	n/a
XE29BRD484-1500C-Z [S]	Capacity On Demand CPU/Memory UniBoard w/ 4× unlicensed US IV+ 1.5GHz, 32GB
	541-1533	CPU/Memory Uniboard w/ 4× US IV+ 1.5GHz, 32GB	n/a
XE29BRD484-1800-Z [S]	541-1759	CPU/Memory UniBoard w/ 4× US IV+ 1.8GHz, 32GB	n/a
XE29BRD484-1800C-Z [S]	Capacity On Demand CPU/Memory UniBoard w/ 4× unlicensed US IV+ 1.8GHz, 32GB
	541-1759	CPU/Memory UniBoard w/ 4× US IV+ 1.8GHz, 32GB	n/a
XE29BRD484-1950-Z [S]	540-7172	CPU/Memory UniBoard w/ 4× US IV+ 1.95GHz, 32GB	n/a
XE29BRD488-1350-Z [S]	541-1943	CPU/Memory UniBoard w/ 4× US IV 1.35GHz, 64GB	n/a
XE29BRD488-1350C-Z [S]	Capacity On Demand CPU/Memory UniBoard w/ 4× unlicensed US IV 1.35GHz, 64GB
	541-1943	CPU/Memory UniBoard w/ 4× US IV 1.35GHz, 64GB	n/a
XE29BRD488-1500-Z [S]	541-1944	CPU/Memory UniBoard w/ 4× US IV+ 1.5GHz, 64GB	n/a
XE29BRD488-1500C-Z [S]	Capacity On Demand CPU/Memory UniBoard w/ 4× unlicensed US IV+ 1.5GHz, 64GB
	541-1944	CPU/Memory UniBoard w/ 4× US IV+ 1.5GHz, 64GB	n/a
XE29BRD488-1800-Z [S]	541-1760	CPU/Memory UniBoard w/ 4× US IV+ 1.8GHz, 64GB	n/a
XE29BRD488-1800C-Z [S]	Capacity On Demand CPU/Memory UniBoard w/ 4× unlicensed US IV+ 1.8GHz, 64GB
	541-1760	CPU/Memory UniBoard w/ 4× US IV+ 1.8GHz, 64GB	n/a
XE29BRD488-1950-Z [S]	540-7173	CPU/Memory UniBoard w/ 4× US IV+ 1.95GHz, 64GB	n/a
n/a	330-3610 [F]	91-Tooth Rack	n/a
n/a	540-6348 [F]	CPU/Memory UniBoard w/ 4× US III 1.2GHz, 0MB	n/a
n/a	540-6664 [F]	CPU/Memory UniBoard w/ 4× US IV 1.35GHz, 0MB	n/a
n/a	540-6680 [F]	CPU/Memory UniBoard w/ 4× US IV+ 1.5GHz, 0MB	n/a
n/a	540-6757 [F]	CPU/Memory UniBoard w/ 4× US IV+ 1.8GHz, 0MB	n/a
n/a	540-6864 [F]	CPU/Memory UniBoard w/ 4× US IV 1.05GHz, 0MB	n/a
n/a	540-6880 [F]	CPU/Memory UniBoard w/ 4× US IV 1.2GHz, 0MB	n/a
n/a	540-7126 [F]	CPU/Memory UniBoard w/ 4× US IV+ 1.95GHz, 0MB	n/a
n/a	540-7531 [F]	CPU/Memory UniBoard w/ 4× US IV+ 1.8GHz, 0MB	n/a

NOTE: 1.8GHz US IV+ Uniboards, PCI-X I/O Assembly and 2GB DIMMs require OBP 5.20.1 or higher NOTE: 1.95GHz US IV+ Uniboards require OBP 5.20.4 or higher

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

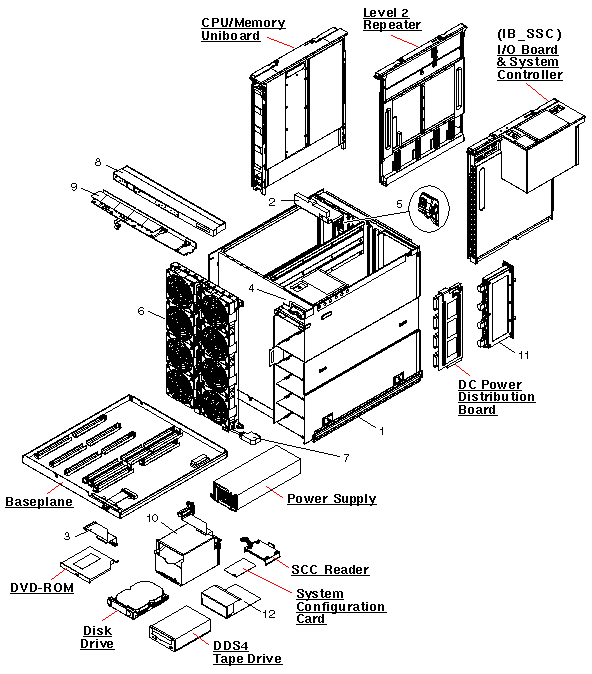

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
NS	594-3436	CPU/Memory Filler Panel (Option X1092A-Z)
-	540-6804	CPU/Memory Filler Panel (Option X1092A-Z)
12	540-6806	Tape Drive Filler Panel (Option X1093A-Z)
NS	594-3432	Air Filter (option X6806A-Z)
-	540-5412	Right Door Air Filter
-	540-5413	Left Door Air Filter
1	540-6813	Chassis Subassembly
1	341-2476	Chassis
4	330-3278	System Configuration Card Inlet
5	F560-2827 [S]	Clutch Kit [SKU]
-	370-4856	CPU/Memory Slot Clutched Pinion
-	370-4857	L2 Repeater Slot Clutched Pinion
-	370-4858	I/O System Controller Slot Clutched Pinion
5	F560-2962	CPU Clutch Kit (Qty 3)
5	560-2962 [F]	CPU Clutch Kit (Qty 3)
-	370-4856	CPU/Memory Slot Clutched Pinion
2	F371-1639 [F]	CD-ROM Paddleboard and Cable
-	371-1639 [F]	CD/DVD Paddleboard and Cable
3	530-3699	DVD Data/Power Cable
6	541-1383 [F]	8-Fan Tray Assembly
-	501-7329	Fan Tray Board
-	540-6815	8-Fan Tray Subassembly
-	340-7282	Lower Cable Clip
-	340-7555	Upper Cable Clip
-	541-1527 [F]	Single Fan Assembly
7	530-3573	Fan Tray to Baseplane Cable
10	541-1381 [F]	Disk Drive/Removable Media Bay Assy/FRU
-	501-7328	SCSI Disk Backplane
-	530-3571	Non-removable SCSI Data Cable
-	530-3697	DDS Power Cable
-	530-3698	SCSI Disk Power Cable
-	540-6884	SCSI LED Assembly
-	501-7333	SCSI LED Board
11	300-1886 [F]	AC Input Connector Assembly
8/9	F560-2831 [F]	Front Bezel [SKU]
8	540-6821	Upper Plastic
9	541-1387	Lower Plastic with Board and Cable
-	501-7330	LED/Switch Board
-	530-3696	Front Bezel to Fan Tray Cable
NS	130-5147	YAV6C-L2TC10-FX-90 DC Ground Connector Lug
NS	250-1695	8 mm Wrench
NS	250-1696	13 mm Wrench
NS	263-1898	Sun Fire E2900 Nameplate
NS	340-7283	DDS-4 Bracket
NS	340-7411	PCI Gasket for IB_SSC (×2)
NS	371-1443	PCI Filler Panel
NS	530-3096	Power Cord IEC 320-C13 to IEC 320 Sheet E 2.5M
NS	530-3570	Non-removable SCCR Cable
NS	530-3695 [F]	RJ45 to DB25 Serial Port Adapter
NS	560-2707	CMA-800 Cable Management Arm T-Bracket Kit
-	370-5695	Left T-Bracket
-	370-5696	Right T-Bracket
NS	560-2708	CMA-800 Cable Management Arm Kit
-	370-5411	Lower Arm
-	370-5698	Upper Arm
NS	560-2709	Rack Slide Kit
-	370-5408 [F]	Inner/Outer Rack Slide (×2)
NS	596-6134	Front Door Assembly
-	541-0649	Right Door Assembly
-	540-5412	Right Door Air Filter
-	541-0630	Right door
-	541-1043	Left door Assembly
-	540-5413	Left Door Air Filter
-	541-0628	Left Door
NS	F560-2714 [F]	CMA-800 Cable Management [SKU]
-	370-5411	Lower Arm
-	370-5695	Left T-Bracket
-	370-5696	Right T-Bracket
-	370-5698	Upper Arm
NS	F560-2826 6 [F]	Cable Kit [SKU]
-	530-3697	DDS Power Cable
-	530-3698	SCSI Disk Power Cable
3	530-3699	DVD Data/Power Cable
7	530-3476	Fan Tray Cable Assembly
7	530-3573	Fan Tray to Baseplane Cable
NS	F560-2828 [F]	Front Bezel [SKU]
NS	F560-2847 [F]	Left Door and Hinge Kit [SKU]
-	541-1777	Left Door Assembly
-	540-5413	Left Door Air Filter
-	540-6809	Left Door
NS	540-6808	Left Door Handle
NS	F560-2848 [F]	Right Door & Hinge Kit [SKU]
-	540-6807	Right Door Handle
-	541-1773	Right Door Assembly
-	540-5412	Right Door Air Filter
-	541-1774	Right Door

6 In June 2007, 530-3573 became a manufacturing substitute for the new primary part 530-3476. (WO_36894)
