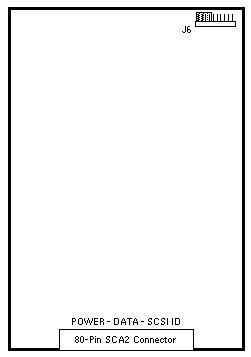

Seagate ST3146707LC (146.8GB)

3 1/2" 10000 RPM Low Voltage Differential Ultra-320 SCSI

Options 5268 / 5269
Option XTA-3310-146GB-10K
Option XRA-SC1CA-146G10K
Option XRB-SC1CA-146G10K
Option XRA-SC1CB-146G10K
Option XTA-SC1NC-146G10K

390-0177
Cheetah 10K.7
1" Height
8X2006-050
370-6905 540-5735 540-6058
V20z/V40z FRU
1" Bracket
9257A		 3300 Series FRU
1" 3300 Bracket
XTA-3310-146GB-10K		 3100 Series FRU
1" 3100 Bracket
XTA-SC1NC-146G10K
02/06/04 - 10/26/05
540-6065 540-6227 540-6369
Spud Bracket FRU
1" Bracket 540-3024
XRA-SC1CA-146G10K		 V60x/V65x FRU
5210 NAS FRU
Bracket 330-3696		 Spud Bracket FRU
1" Bracket 540-3024
XRB-SC1CA-146G10K
540-6064 540-6123
StorEdge D240
Center FRU
Spud Bracket FRU
1" Bracket 540-3024
Plate 340-7269		 StorEdge D240
Left/Right FRU
Drive Assembly 540-6065
Bracket 340-6476

Notes

  1. Drive 390-0177 was released in March 2005. (WO_30780)
  2. The ST3146707LC was added as an alternate source for 370-6905-02 in March 2005.
  3. Drive 390-0177 was added to 540-6227 in June 2005. (WO_31072)
  4. Drive 390-0177 was added to 540-6369 in November 2005. (WO_31953)
  5. XTA-3310-146GB-10K changed from 540-5735 to 540-6450 in October 2006. (WO_34374)
  6. The ST3146707LC was removed from 370-6905-03 in November 2006. (WO_34550)
  7. The ST3146707LC on Solaris 10 3/05 x86 requires Patch 119375. (see 819-2501-10)


Seagate ST3146707LC (146.8GB)

3 1/2" 10000 RPM Low Voltage Differential Ultra-320 SCSI

Options 5268 / 5269 / 9257A-Z
Option XTA-3310-146GB-10K
Option XTA-SC1NC-146G10K
Option XRA-SC1CA-146G10K
Option XRB-SC1CA-146G10K
Option XRA-SC1CB-146G10K
Option XRA-SC1CC-146G10K

390-0276
Cheetah 10K.7
1" Height
9X2006-150
370-6905 371-1454 540-5735 540-6058
V20z/V40z FRU
1" Bracket
9257A		 V20z/V40z FRU
1" Bracket
9257A-Z		 3300 Series FRU
1" 3300 Bracket
XTA-3310-146GB-10K		 3100 Series FRU
1" 3100 Bracket
XTA-SC1NC-146G10K
02/06/04 - 10/26/05
540-6065 540-6227 540-6369
Spud Bracket FRU
1" Bracket 540-3024
XRA-SC1CA-146G10K		 V60x/V65x FRU
5210 NAS FRU
Bracket 330-3696		 Spud Bracket FRU
1" Bracket 540-3024
XRB-SC1CA-146G10K
540-6450 540-6601 540-6602
3120/3310/3320 FRU
1" Bracket
XTA-SC1NC-146G10K
(From 10/26/05)
XTA-3310-146GB-10K		 Spud Bracket FRU
1" Bracket 540-3024		 Spud Bracket FRU
1" Bracket 540-3024
Plate 341-1986
540-6064 540-6123
StorEdge D240
Center FRU
Spud Bracket FRU
1" Bracket 540-3024
Plate 340-7269
or Plate 341-1986		 StorEdge D240
Left/Right FRU
Drive Assembly 540-6065
Bracket 340-6476

Notes

  1. Drive 390-0276 was released in September 2005. (WO_31694)
  2. Assembly 540-6450 with 390-0276 was released in October 2005. (WO_31708)
  3. XTA-SC1NC-146G10K changed from 540-6058 to 540-6450 in October 2005. (WO_31505)
  4. Drive 390-0276 was added to 540-5735, 540-6058, 540-6064, 540-6065, 540-6227, and 540-6369 in November 2005. (WO_31953)
  5. Assembly 540-6601 with 390-0276 was released in December 2005. (WO_31926)
  6. Assembly 540-6602 with 390-0276 was released in December 2005. (WO_31926)
  7. Option 5268 changed from 540-6065 to 540-6601 in January 2006. (WO_32023)
  8. XRA-SC1CA-146G10K changed from 540-6065 to 540-6601 in January 2006. (WO_32023)
  9. XTA-3310-146GB-10K changed from 540-5735 to 540-6450 in October 2006. (WO_34374)
  10. The ST3146707LC was removed from 370-6905-03 in November 2006. (WO_34550)
