Oracle Server X6-2 - Full Components List

Batteries CPU Module Cables Chassis Communication Disk Backplane Disks Ethernet Fan Fibre Channel I/O Memory Power Rack Removable Media SCSI System Board Exploded View Wiring Diagram	Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	370-5621	3V Coin Cell Battery	n/a

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7067728 [F]	Pre-Greased 1U CPU Heatsink	n/a
n/a	7080240	CPU Installation/Removal Tool	n/a
n/a	7313670 [F]	22-Core 2.2GHz Intel E5-2699 v4, 145W	n/a
n/a	7313671 [F]	14-Core 2.6GHz Intel E5-2690 v4, 135W	n/a
n/a	7313672 [F]	6-Core 3.4GHz Intel E5-2643 v4, 135W	n/a
n/a	7313673 [F]	10-Core 2.2GHz Intel E5-2630 v4, 85W	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
7102869 Buy	7039990 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 10M	n/a
7102870 Buy	7039999 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 20M	n/a
7102871 Buy	7040001 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 50M	n/a
7105199 Buy	7063849 [C]	InfiniBand Cable, QSFP, Optical, MPO to MPO, 5M	n/a
7105206 Buy	7063852 [C]	InfiniBand Cable, QSFP, Optical, MPO to MPO, 100M	n/a
X2121A-1M-N Buy	530-4444 [C]	10Gbps QSFP to QSFP Cable, 1m	n/a
X2121A-2M Buy	530-4567 [C]	10Gbps QSFP to QSFP Cable, 2m	n/a
X2121A-3M-N Buy	530-4445 [C]	10Gbps QSFP to QSFP Cable, 3m	n/a
X2121A-5M-N Buy	530-4446 [C]	10Gbps QSFP to QSFP Cable, 5m	n/a
X2125A-1M-N Buy	530-4450 [C]	QSFP to 4× SFP+ Splitter Cable, 1m	n/a
X2125A-3M-N Buy	530-4451 [C]	QSFP to 4× SFP+ Splitter Cable, 3m	n/a
X2125A-5M-N Buy	530-4452 [C]	QSFP to 4× SFP+ Splitter Cable, 5m	n/a
X2127A-10M Buy	530-4480 [C]	MPO to 4x LC Duplex Splitter Cable, 10m	n/a
X2127A-20M Buy	530-4481 [C]	MPO to 4x LC Duplex Splitter Cable, 20m	n/a
X2127A-50M Buy	530-4482 [C]	MPO to 4x LC Duplex Splitter Cable, 50m	n/a
X2130A-1M-N Buy	530-4441 [C]	10Gbps SFP+ TwinX Cable, 1m	n/a
X2130A-3M-N Buy	530-4442 [C]	10Gbps SFP+ TwinX Cable, 3m	n/a
X2130A-5M-N Buy	530-4443 [C]	10Gbps SFP+ TwinX Cable, 5m	n/a
n/a	7014226 [C]	Interlock Cable, 125mm	n/a
n/a	7089783 [C]	Two Cable Bundle, 8-Slot NVMe, PCI Express, 2xHD8i to 2x68P	n/a
	n/a	72-Pin SFF-8643 to 90° SFF-8087 Cable, 2 and 3 to A, 465mm	n/a
	n/a	72-Pin SFF-8643 to 90° SFF-8087 Cable, 0 and 1 to B, 500mm	n/a
n/a	7094264 [F]	Cable Kit	n/a
	7064123	Left Indicator Module Ribbon Cable, 368mm	n/a
	7064125	8-Pin Dc Power Cable, 394mm	n/a
	7064127	26-Pin Ribbon Data Cable, 280mm	n/a
	7064128	DVD Data and Power Cable, 600mm/75mm	n/a
	7076125	SFF-8643 to SFF-8087 to 90° SFF-8087 Cable, 550mm/770mm	n/a

Chassis
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7066885	Chassis Assembly	n/a
	7067539	Midwall Subassembly	n/a
	7082804	Bottom Chassis Subassembly	n/a
	7082996	Top Cover	n/a
	150-4065	Interlock Switch Magnet	n/a
	7330666	Bottom Chassis Subassembly	n/a
n/a	7090250	1U Air Baffle	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
7104074 Buy	7092757 [C]	Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3	7046442 [C]
n/a	7046442 [C]	Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3	n/a

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7091380	Right Indicator Assembly	n/a
n/a	7323221	8-Slot 2.5" Disk Cage Assembly	n/a
	7064123	Left Indicator Module Ribbon Cable, 368mm	n/a
	7066815	8-Slot Disk Cage	n/a
	7310474	Right Indicator Assembly	n/a
	7097205 [F]	8-Slot Backplane	n/a
	7300399 [F]	Left Indicator Assembly	n/a
	7096183	Left Indicator w/o Button or Lightpipe	n/a
	7323220	Fan Door Cover without Spacer 7300151	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
7110933 Buy	7094132 [C]	400GB Solid State SAS Drive Assembly	n/a
	7093645	400GB SAS Solid State Drive [HSCAC2DA4SUN400G]	n/a
	541-2123	Marlin 2.5" Bracket	n/a
7111103 Buy	7093015 [C]	600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7093013	Hitachi HUC101860CSS200 [H101860SFSUN600G] (600.0GB - 10000 RPM SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
7111108 Buy	7093037 [C]	1.2TB - 10000 RPM SAS SFF Disk Assembly w 1 bracket and 1 of the following disks:	n/a
	7093035	Hitachi HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB - 10000 RPM - SAS DISK)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
7113805 [S]	7317908 [C]	3.2TB NVMe Solid State Drive Assembly	n/a
	7314250	Samsung MZWLK3T2HCJL-000U3 [MS1PC2DD3ORA3.2T] (3.2TB - 2.5" Solid State - NVMe Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
n/a	7350749 [C]	800GB SAS3 Solid State Disk Assembly without Encryption (EAEU part - see note below)	n/a
	7350742	HGST HUSMM3280ASS204 [HBSAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS3 Disk without Encryption) (EAEU part - see note below)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
n/a	7350766 [C]	1.2TB - 10000 RPM SAS Disk Assembly without Encryption (EAEU part - see note below)	n/a
	7350764	HGST HUC101812CSS204 [H1018124FSUN1.2T] (1.2TB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
n/a	7352257 [C]	600GB - 10000 RPM SAS Disk Drive Assembly without Encryption (EAEU part - see note below)	n/a
	7352258	HGST HUC101860CSS204 [H1018604FSUN600G] (600GB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
n/a	7330686 [C] [A]	800GB SAS3 Solid State Drive Assembly	n/a
	7330684	HGST HUSMM3280ASS20 [HBCAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS3 Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
7100477 Buy	7070195 [C]	Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP	n/a
7100488 Buy	7070006 [C]	Dual 10-Gigabit Base-T PCI Express Gen2	n/a
7111181	7096675 [C]	Quad 10-Gigabit Base-T Ethernet	n/a
7114134 Buy	7319817 [C]	Quad 10-Gigabit or Dual 40-Gigabit Ethernet QSFP+	n/a
X1109A-Z Buy	7051223 [C]	Dual 10-Gigabit PCI Express Ethernet SFP+ LP	n/a
X2124A-N Buy	7326504 [C]	10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver	135-1204 [C]
X2129A-N Buy	530-4449 [C]	10Gb/Sec Short Wave SFP+ Transceiver	n/a
X5562A-Z Buy	135-1205 [C]	10Gb/Sec Long Wave SFP+ Transceiver	n/a
X2124A [S]	7326504 [C]	10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver	135-1204 [C]
n/a	135-1204 [C]	10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7089073 [C]	Fan Module	n/a
	7089072	40×56mm Dual Counter Rotating Fan	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
7101674 Buy	7023303 [C]	Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic	n/a
7101676 Buy	7023325 [C]	Pair of 16Gbps Short Wave SFP+	n/a
7101678 Buy	7023315 [C]	Pair of 10Gbps Short Wave SFP+	n/a
	7023316	10Gb/Sec Short Wave SFP+ Transceiver, QLogic	n/a
7101680 Buy	7023066 [C]	Pair of 16Gbps Long Wave SFP+	n/a
	7023064	16Gb/Sec Long Wave SFP+ Transceiver, QLogic	n/a
7101684 Buy	7023036 [C]	Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex	n/a
7101686 Buy	7023059 [C]	Pair of 16Gbps Short Wave SFP+	n/a
	7023053	16Gb/Sec Short Wave SFP+ Transceiver, Emulex	n/a

I/O
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7064634 [C]	8-Port PCI Express Switch	n/a
	7096186	PCI Express Switch w/o Bracket or Heatsink	n/a
n/a	7083430 [C]	1-Slot PCI Express Riser Assembly	n/a
	7081071	1-Slot PCI Express Riser	n/a
	7083428	1-Slot Riser Bracket	n/a
n/a	7083433 [C]	2-Slot PCI Express Riser Assembly	n/a
	7077680	2-Slot PCI Express Riser	n/a
	7083434	2-Slot Riser Bracket	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
7113396	7310244 [C]	16GB DDR4-2400 Registered DIMM	n/a
7113397	7310210 [C]	32GB DDR4-2400 DIMM	n/a
7113398	7315709 [C]	64GB DDR4-2400 Load Reduced DIMM	n/a
n/a	7090170 [C]	8GB USB Stick	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7079395 [C]	Type A256 600 Watt AC Input Power Supply	n/a
n/a	7335841 [C]	Type A256 600 Watt AC Input Power Supply	7079395 [C]
n/a	7352197 [C]	Type A256 600 Watt AC Input Power Supply	n/a

Rack
Option #	Manufacturing Part #	Description	Previous Part #
XSR-JUMP-1MC13-N Buy	7015399 [C]	10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M	n/a
XSR-JUMP-2MC13-N Buy	7015400 [C]	10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M	n/a
n/a	350-1719 [C]	1U/2U Snap-In Slide Rail Rackmount Kit	n/a
n/a	7042273 [C]	1U/2U Cable Management Arm (Snap-in)	n/a
n/a	7098533	Cable Tray Shipping Bracket	n/a

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7096422	DVD Filler Panel	n/a
n/a	7319315 [F]	Tray-Load DVD Assembly	n/a
	7096434	Mounting Tray	n/a
	7309891	8x Tray-Load DVD-ROM/24x CD-ROM Writer (Gen6)	n/a
	7318288	DVD Bezel	n/a
	7089494	Filler	n/a
	7336333	8x Tray-Load DVD-ROM/24-x CD-ROM Writer (Gen7)	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
7110119 Buy	7085208 [C]	8-Port 12Gbps SAS-3 HBA (External)	n/a
n/a	7085211	Internal RAID HBA Assembly	n/a
	7070402	Double Sided Fastener, 1"x5"	n/a
	7085209 [F]	8-Port 12Gbps SAS3 Internal RAID HBA	n/a
	7086345 [F]	13.5V 6.4F Super Capacitor	n/a
	7086346 [F]	Super Capacitor Cable	n/a

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7306774 [F]	System Board Assembly	n/a
	7014226 [C]	Interlock Cable, 125mm	n/a
	7077529	System Board Tray	n/a
	7092031	System Board	n/a
	370-5621	3V Coin Cell Battery	n/a
	7317945	System Board	n/a
	370-5621	3V Coin Cell Battery	n/a
	7345178	System Board	n/a
	370-5621	3V Coin Cell Battery	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

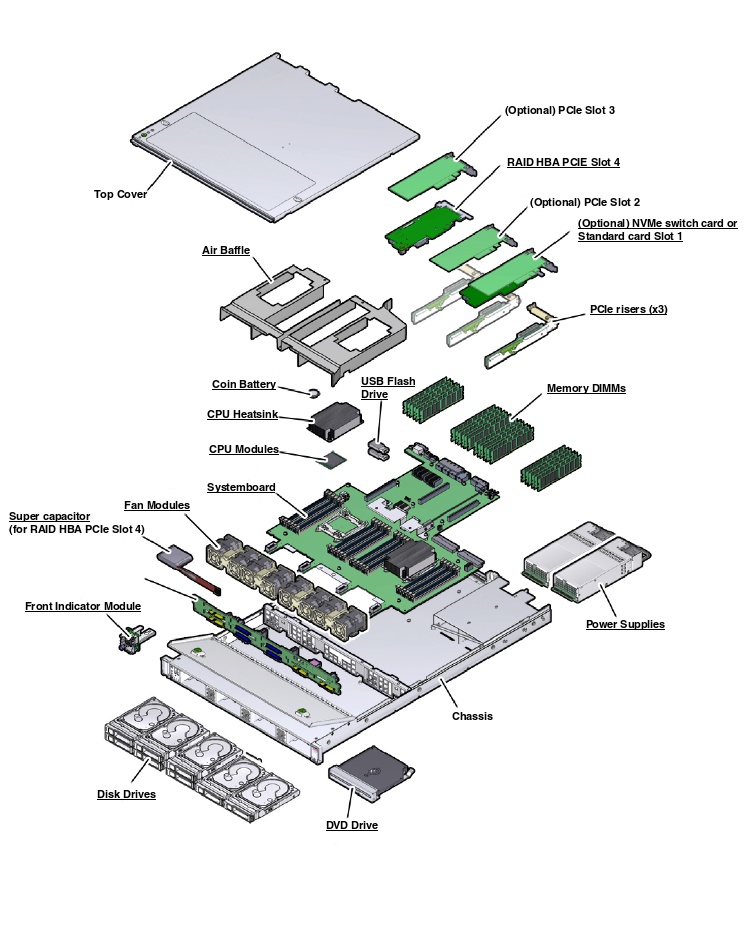

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
-	240-4674	PCI Express Filler Panel
NS	150-4065	Interlock Switch Magnet
NS	541-2629	2.5" Disk Drive Filler Panel
NS	330-4577	Disk Filler Bezel
