Oracle Server X6-2

7306774

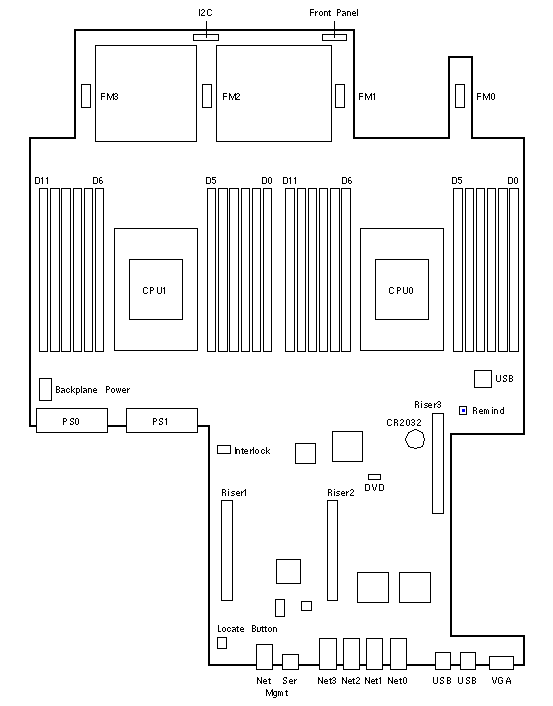

Assembly/FRU System Board 7098505 System Board 7317947 Cable 7014226 Tray 7077529

Notes

1. The X6-2 System Board is made from the X5-2 System Board.
   Firmware is different.
2. The X5-2 System Board 7098505 was inactivated in November 2015. [E0027185]
3. System Board 7098505 was used to build the X6-2 System Board under D0003833, D0003840, and D0003896 until April 2016.
4. For component installation guidelines, refer to the Service Manual and CAPs.
