Oracle Server X5-4 - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Batteries
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 150-3993 [C] Buy 3V Lithium Coin Cell Battery n/a
CPU Module
Option # Manufacturing
Part #		 Description Previous
Part #
7111362 [S] 7302593 [F] 18-Core 2.6GHz Intel E7-8895 v3, 175W n/a
n/a 7070792 [F] CPU Heatsink (Brickland) n/a
n/a 7080240 CPU Installation/Removal Tool n/a
Cables
Option # Manufacturing
Part #		 Description Previous
Part #
7102869 Buy 7039990 [C] MPO to MPO High Bandwidth QSFP Optical Cable, 10M n/a
7102870 Buy 7039999 [C] MPO to MPO High Bandwidth QSFP Optical Cable, 20M n/a
7102871 Buy 7040001 [C] MPO to MPO High Bandwidth QSFP Optical Cable, 50M n/a
X2121A-1M-N Buy 530-4444 [C] 10Gbps QSFP to QSFP Cable, 1m n/a
X2121A-2M Buy 530-4567 [C] 10Gbps QSFP to QSFP Cable, 2m n/a
X2121A-3M-N Buy 530-4445 [C] 10Gbps QSFP to QSFP Cable, 3m n/a
X2121A-5M-N Buy 530-4446 [C] 10Gbps QSFP to QSFP Cable, 5m n/a
X2125A-1M-N Buy 530-4450 [C] QSFP to 4× SFP+ Splitter Cable, 1m n/a
X2125A-3M-N Buy 530-4451 [C] QSFP to 4× SFP+ Splitter Cable, 3m n/a
X2125A-5M-N Buy 530-4452 [C] QSFP to 4× SFP+ Splitter Cable, 5m n/a
X2127A-10M Buy 530-4480 [C] MPO to 4x LC Duplex Splitter Cable, 10m n/a
X2127A-20M Buy 530-4481 [C] MPO to 4x LC Duplex Splitter Cable, 20m n/a
X2127A-50M Buy 530-4482 [C] MPO to 4x LC Duplex Splitter Cable, 50m n/a
n/a 530-3100 RJ45F to DB9F Adapter n/a
n/a 7096693 [F] X5-4 Cable Kit n/a
  • LED Flex Circuit
 n/a
  • 7091364
  • System Board to Disk Backplane Signal Cable
 n/a
  • 7094741
  • SFF-8643 to SFF-8643 to SATA Cable, 510mm/545mm
 n/a
  • 530-4287
  • Fan Board to System Board Signal Cable
 n/a
  • 530-4288
  • Fan Board to System Board Power Cable
 n/a
  • 530-4289
  • System Board to PDB Cable
 n/a
  • 530-4291
  • System Board to Disk Backplane Power Cable
 n/a
  • 530-4348
  • System Board to Rear I/O Board Signal Cable
 n/a
n/a 7098473 [F] 38-Pin Mini SAS-3 Cable, SFF-8643 to SFF-8643, 460mm n/a
Chassis
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7303163 G3N Chassis Subassembly n/a
  • 341-5805
  • Rack Mount Ear
 n/a
  • 541-3539 [C]
  • 92mm Fan Module
 n/a
  • 7068043
  • Power Distribution Board Cover
 n/a
  • 7089112
  • Front Bezel
 n/a
  • 7091225
  • G3N Chassis
 n/a
  • 7092810
  • Top Cover
 n/a
    • 150-4065
    • Interlock Switch Magnet
 n/a
  • 7096096 [F]
  • 6-Slot NVMe Backplane
 n/a
  • 7303158 [F]
  • Fan Cage Assembly
 n/a
    • LED Flex Circuit
 n/a
    • 7303154
    • Fan Board with USB and VGA
 n/a
  • Power Distribution Assembly
 n/a
    • 371-4446
    • Bus Bar
 n/a
    • Power Distribution Board / Power Supply Backplane
 n/a
  • 341-6188
  • Power Supply Chassis Cable Cover
 n/a
  • 530-4356
  • AC Input Line Filter with Cable
 n/a
n/a 7304514 Air Divider with Fault Remind Button n/a
Communication
Option # Manufacturing
Part #		 Description Previous
Part #
7104074 Buy 7092757 [C] Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3 7046442 [C]
n/a 7046442 [C] Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3 n/a
Disk Backplane
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7096096 [F] 6-Slot NVMe Backplane n/a
Disks
Option # Manufacturing
Part #		 Description Previous
Part #
7110933 Buy 7094132 [C] 400GB Solid State SAS Drive Assembly n/a
  • 400GB SAS Solid State Drive [HSCAC2DA4SUN400G]
 n/a
  • Marlin 2.5" Bracket
 n/a
7111103 Buy 7093015 [C] 600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Hitachi HUC101860CSS200 [H101860SFSUN600G] (600.0GB - 10000 RPM SAS Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
7111108 Buy 7093037 [C] 1.2TB - 10000 RPM SAS SFF Disk Assembly w 1 bracket and 1 of the following disks: n/a
  • Hitachi HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB - 10000 RPM - SAS DISK)
n/a
  • Marlin 2.5" Bracket
 n/a
7110927 [S] 7302552 [C] 1.6TB Solid State NVMe Drive Assembly n/a
  • Intel SSDPE2ME016T4SP [SSDPE2ME016T4S] (1.6TB - 2.5" eMLC NVMe Solid State Drive)
 n/a
  • Marlin 2.5" Bracket
 n/a
7113805 [S] 7317908 [C] 3.2TB NVMe Solid State Drive Assembly n/a
  • Samsung MZWLK3T2HCJL-000U3 [MS1PC2DD3ORA3.2T] (3.2TB - 2.5" Solid State - NVMe Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
n/a 7350749 [C] 800GB SAS3 Solid State Disk Assembly without Encryption (EAEU part - see note below) n/a
  • HGST HUSMM3280ASS204 [HBSAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS3 Disk without Encryption) (EAEU part - see note below)
 n/a
  • Marlin 2.5" Bracket
 n/a
n/a 7350766 [C] 1.2TB - 10000 RPM SAS Disk Assembly without Encryption (EAEU part - see note below) n/a
  • HGST HUC101812CSS204 [H1018124FSUN1.2T] (1.2TB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below)
 n/a
  • Marlin 2.5" Bracket
 n/a
n/a 7352257 [C] 600GB - 10000 RPM SAS Disk Drive Assembly without Encryption (EAEU part - see note below) n/a
  • HGST HUC101860CSS204 [H1018604FSUN600G] (600GB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below)
 n/a
  • Marlin 2.5" Bracket
 n/a
Ethernet
Option # Manufacturing
Part #		 Description Previous
Part #
7100477 Buy 7070195 [C] Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP n/a
7100488 Buy 7070006 [C] Dual 10-Gigabit Base-T PCI Express Gen2 n/a
7111181 7096675 [C] Quad 10-Gigabit Base-T Ethernet n/a
7114134 Buy 7319817 [C] Quad 10-Gigabit or Dual 40-Gigabit Ethernet QSFP+ n/a
X1109A-Z Buy 7051223 [C] Dual 10-Gigabit PCI Express Ethernet SFP+ LP n/a
X2124A-N Buy 7326504 [C] 10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver 135-1204 [C]
X2129A-N Buy 530-4449 [C] 10Gb/Sec Short Wave SFP+ Transceiver n/a
X5562A-Z Buy 135-1205 [C] 10Gb/Sec Long Wave SFP+ Transceiver n/a
n/a 135-1204 [C] 10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver n/a
Fan
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 541-3539 [C] 92mm Fan Module n/a
n/a 7303158 [F] Fan Cage Assembly n/a
  • LED Flex Circuit
 n/a
  • 7303154
  • Fan Board with USB and VGA
 n/a
Fibre Channel
Option # Manufacturing
Part #		 Description Previous
Part #
7101674 Buy 7023303 [C] Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic n/a
7101676 Buy 7023325 [C] Pair of 16Gbps Short Wave SFP+ n/a
  • 16Gb/Sec Short Wave SFP+ Transceiver, QLogic
 n/a
7101678 Buy 7023315 [C] Pair of 10Gbps Short Wave SFP+ n/a
  • 10Gb/Sec Short Wave SFP+ Transceiver, QLogic
 n/a
7101680 Buy 7023066 [C] Pair of 16Gbps Long Wave SFP+ n/a
  • 16Gb/Sec Long Wave SFP+ Transceiver, QLogic
 n/a
7101684 Buy 7023036 [C] Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex n/a
7101686 Buy 7023059 [C] Pair of 16Gbps Short Wave SFP+ n/a
  • 16Gb/Sec Short Wave SFP+ Transceiver, Emulex
 n/a
7101688 [S] 7023057 [C] Pair of 10Gbps Short Wave SFP+ n/a
  • 10Gb/Sec Short Wave SFP+ Transceiver, Emulex
 n/a
I/O
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7064634 [C] 8-Port PCI Express Switch n/a
  • PCI Express Switch w/o Bracket or Heatsink
 n/a
Memory
Option # Manufacturing
Part #		 Description Previous
Part #
7111365 [S] 7095790 [C] 16GB DDR3L-1600 1.35V Registered DIMM n/a
7111372 [S] 7095791 [C] 32GB DDR3L-1600 1.35V Load Reduced DIMM n/a
n/a 7090170 [C] 8GB USB Stick n/a

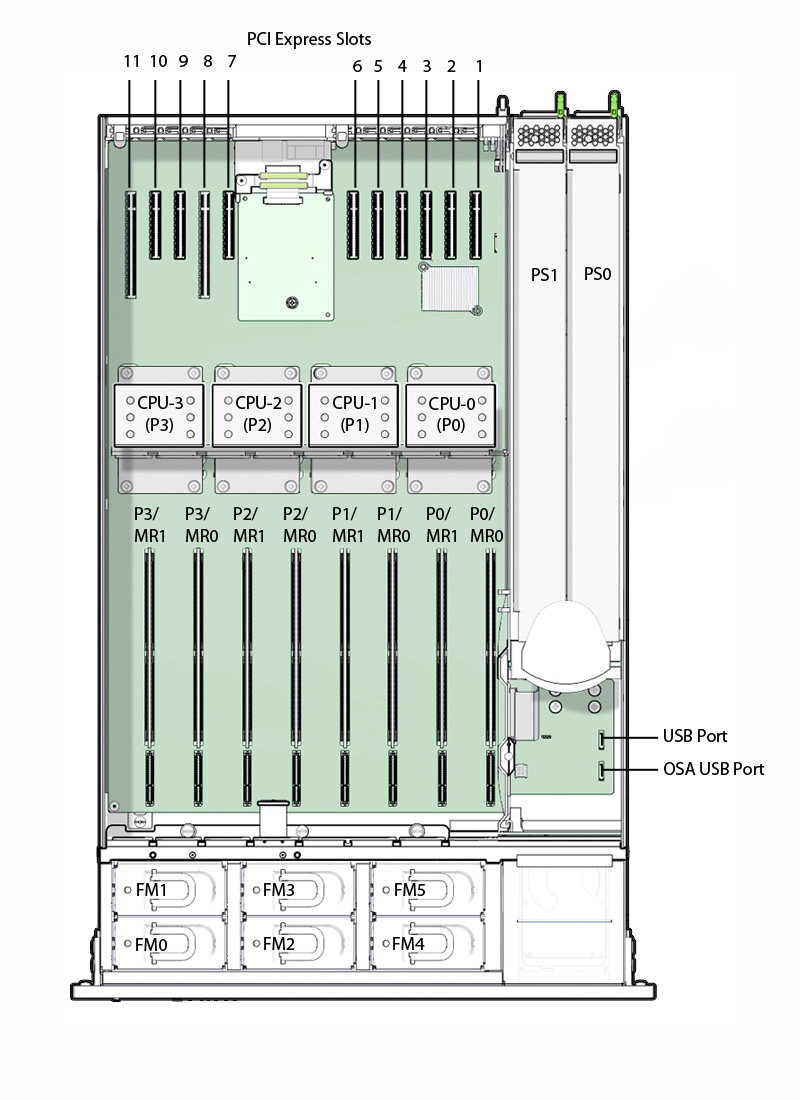

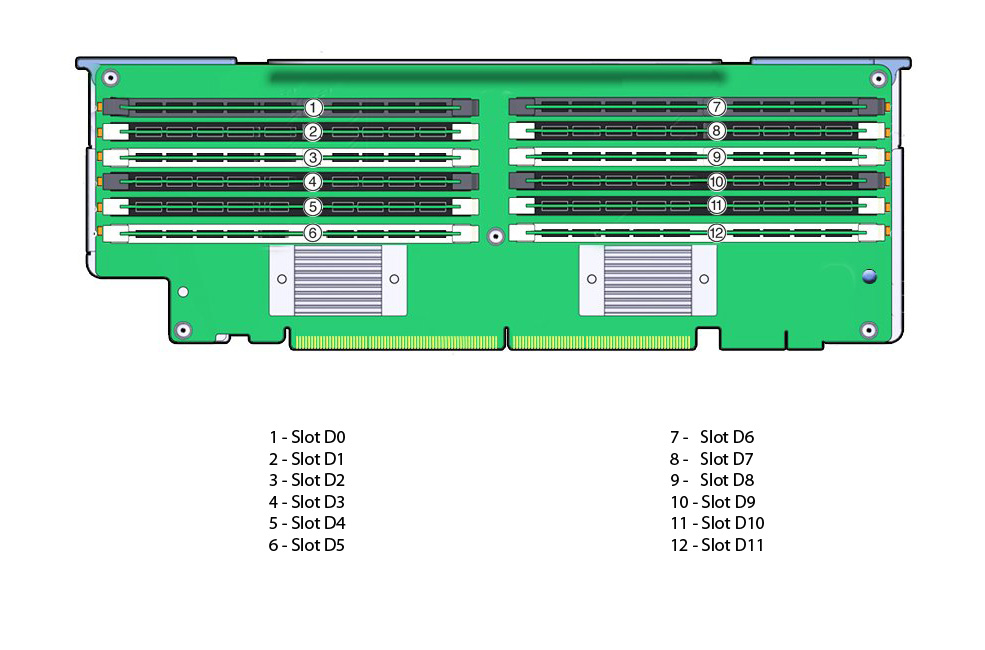

n/a 7090451 [C] 12-Slot Memory Riser Assembly n/a
  • 7066592
  • Memory Riser Tray
 n/a
  • 7098067
  • Memory Riser Board
 n/a
Power
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7049297 [C] Type A263 2000W AC Input Power Supply n/a
n/a 7303476 [F] Power Distribution Assembly n/a
  • 371-4446
  • Bus Bar
 n/a
  • Power Distribution Board / Power Supply Backplane
 n/a
n/a 7317317 [F] Power Distribution Assembly n/a
  • 371-4446
  • Bus Bar
 n/a
  • Power Distribution Board / Power Supply Backplane
 n/a
  • 7317311
  • High Potential (Hipot) Test Passed Label
 n/a
n/a 7317843 [C] Type A263 2000W AC Input Power Supply - India ISI Mark 7049297 [C]
Rack
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 371-4791 [C] Buy Tool-less Slide Rail Rack Mount Kit n/a
n/a 371-4812 [C] Buy Cable Management Arm n/a
Removable Media
Option # Manufacturing
Part #		 Description Previous
Part #
7111389 [S] 7302240 [C] Tray-Load SATA DVD-Writer/CD-Writer n/a
  • 7089963
  • 8x Tray-Load DVD-ROM/24-x CD-ROM Writer (Gen5)
 n/a
  • 7094095
  • DVD Carrier
 n/a
  • 7318289
  • DVD Bezel
 n/a
  • 7318304
  • Bezel Liner
 n/a
n/a 7079028 DVD Bezel n/a
n/a 7089203 DVD Liner n/a
n/a 7304331 DVD Filler n/a
n/a 7314403 [F] Tray-Load DVD Assembly n/a
  • 7094095
  • DVD Carrier
 n/a
  • 7309891
  • 8x Tray-Load DVD-ROM/24x CD-ROM Writer (Gen6)
 n/a
  • 7318289
  • DVD Bezel
 n/a
  • 7318304
  • Bezel Liner
 n/a
  • 7336333
  • 8x Tray-Load DVD-ROM/24-x CD-ROM Writer (Gen7)
 n/a
SCSI
Option # Manufacturing
Part #		 Description Previous
Part #
7110119 Buy 7085208 [C] 8-Port 12Gbps SAS-3 HBA (External) n/a
7113826 Buy 7317693 [C] 3.2TB Flash Accelerator F320 NVMe Card n/a
n/a 7085211 Internal RAID HBA Assembly n/a
  • 7070402
  • Double Sided Fastener, 1"x5"
 n/a
  • 8-Port 12Gbps SAS3 Internal RAID HBA
 n/a
  • 13.5V 6.4F Super Capacitor
 n/a
  • Super Capacitor Cable
 n/a
System Board
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7095086 [F] System Board Assembly n/a
  • 7051520
  • Rear I/O Board
 n/a
  • 7079794
  • System Board Tray
 n/a
  • 7303526
  • System Board
 n/a
    • 3V Lithium Coin Cell Battery
n/a
  • 530-3510
  • Interlock Switch Cable
 n/a
  • 530-4348
  • System Board to Rear I/O Board Signal Cable
 n/a
n/a 7310781 [F] System Board Assembly n/a
  • 7051520
  • Rear I/O Board
 n/a
  • 7079794
  • System Board Tray
 n/a
  • 7308358
  • System Board
 n/a
    • 3V Lithium Coin Cell Battery
n/a
  • 530-3510
  • Interlock Switch Cable
 n/a
  • 530-4348
  • System Board to Rear I/O Board Signal Cable
 n/a
System Service Processor
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7094476 [C] Service Processor n/a

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

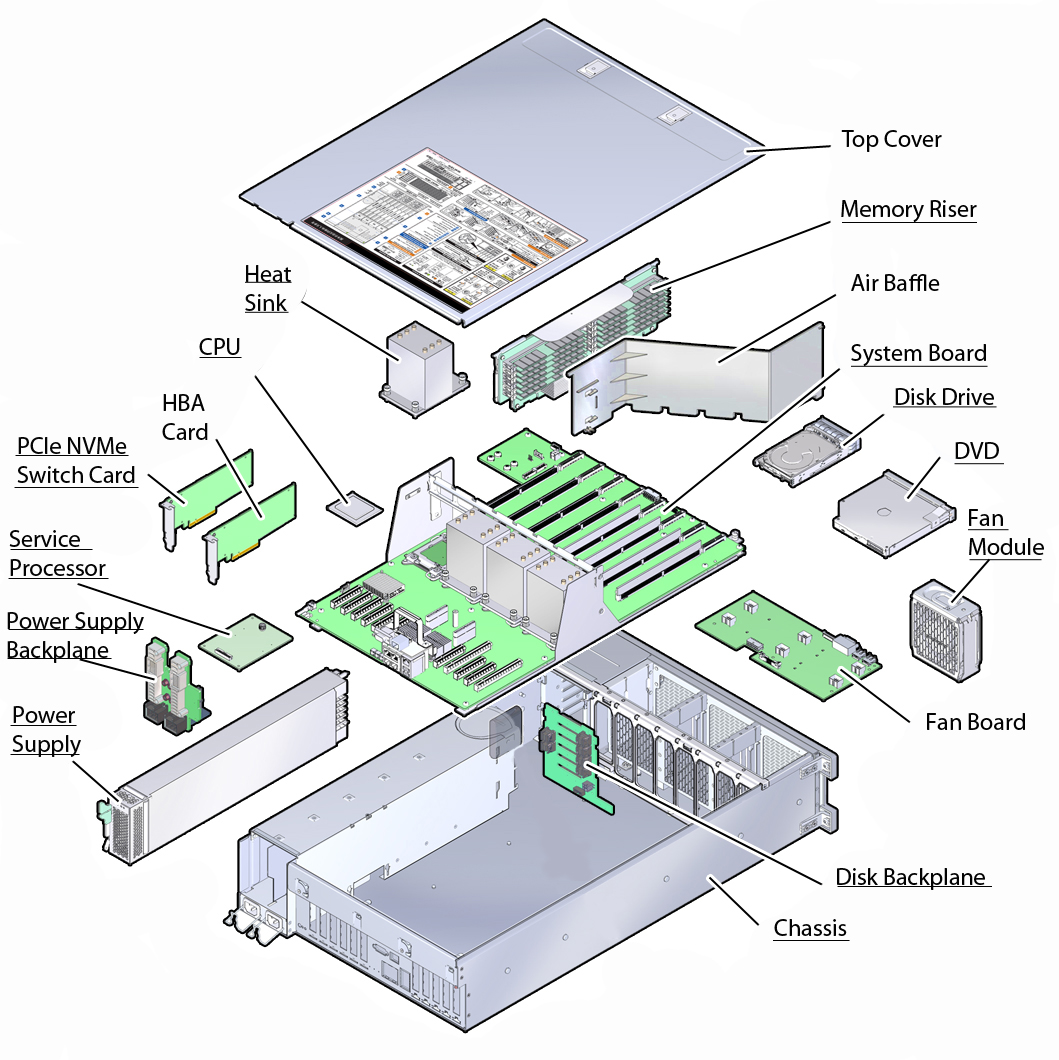

Exploded View

Oracle Server X5-4 Exploded View
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown

Code Manufacturing Part# Description
NS 150-4065 Interlock Switch Magnet
NS 341-6188 Power Supply Chassis Cable Cover
NS 350-1585 Top Cover Air Baffle
NS 530-3510 Interlock Switch Cable
NS 530-4287 Fan Board to System Board Signal Cable
NS 530-4288 Fan Board to System Board Power Cable
NS 530-4289 System Board to PDB Cable
NS 530-4291 System Board to Disk Backplane Power Cable
NS 530-4348 System Board to Rear I/O Board Signal Cable
NS 530-4356 AC Input Line Filter with Cable
NS 541-2629 2.5" Disk Drive Filler Panel
NS
  • 330-4577
  • Disk Filler Bezel
  Copyright © 2018 Oracle and/or its affiliates.  All rights reserved.
 Feedback
