Sun StorEdge 3320 - Full Components List

Array Controller
Backplane/Centerplane
Cables
Disks
Power
SCSI
Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Array Controller
Option #	Manufacturing Part #	Description	Previous Part #
XTA-3320-CTRL-512M [S]	370-7714 [F]	512MB RAID Controller (with battery)	n/a
n/a	370-7655 [F]	Ultra-320 RAID SCSI I/O Module	n/a
n/a	370-7713 [F]	Ultra-320 JBOD SCSI I/O Module	n/a
n/a	371-0107 [F]	Event Monitoring Unit	n/a
n/a	371-0110 ¹ [F]	Internal Terminator LVD Module	n/a
n/a	371-0111 [F]	Battery (for RAID controller)	n/a

¹ For SCSI termination on Controller and/or I/O Module. Remove controller modules to access the internal terminator card.

Backplane/Centerplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-0105 [F]	JBOD Chassis with Midplane Assembly/FRU	n/a
n/a	371-0106 [F]	RAID Chassis with Midplane Assembly/FRU	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
X1132A-Z [S]	530-3624 [F]	External SCSI Cable, HD68 to VHDCI, 0.8M	n/a
X1136A-Z [S]	530-3629 [F]	Ultra-3 SCSI cable, VHDCI/VHDCI, 0.8M	n/a
X1138A-Z [S]	530-3630 [F]	Ultra-3 SCSI cable, VHDCI/VHDCI, 2M	n/a
X3830A-Z [S]	530-3626 [C]	External SCSI Cable, HD68 to VHDC, 4M	n/a
X3830B-Z [S]	530-3631 [F]	Ultra-3 SCSI cable, VHDCI/VHDCI, 4M	n/a
X3831A-Z [S]	530-3627 [F]	External SCSI Cable, HD68 to VHDC, 10M	n/a
X3831B-Z [S]	530-3632 [F]	Ultra-3 SCSI cable, VHDCI/VHDCI, 10M	n/a
X3832A-Z [S]	530-3625 [C]	External SCSI Cable, HD68 to VHDCI, 2M	n/a
XTA-3320-SC-TERM [S]	371-0826	VHDCI-68 LVD SCSI Terminator Board	n/a
n/a	371-0303 [F]	Single Bus SCSI Cable, .3M	n/a
n/a	371-0304 [F]	RAID to JBOD SCSI Cable, .45M	n/a
n/a	371-0305 [F]	DB-9M to DB-9F Serial Cable, 1.8M	n/a
n/a	371-0306 [F]	Ethernet Cable	n/a
n/a	371-0307 [F]	DC Input Power Cable	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
XTA-SC1NC-146G10K [S]	540-6450 [F]	146.8GB - 10000 RPM, Disk Assembly with one of the following disks	n/a
	390-0253	Fujitsu MAW3147NC [MAW3147NCSUN146G] (146GB - 10000 RPM - SCSI Disk)	n/a
	390-0266	Hitachi HUS103014FL3800 [HUS10143ASUN146G] (146GB - 10000 RPM - SCSI Disk)	n/a
	390-0276	Seagate ST3146707LC [ST314670LSUN146G] (146GB - 10000 RPM - SCSI Disk)	n/a
XTA-SC1NC-146G15K [S]	540-6494 [F]	146.8GB - 15000 RPM, Disk Assembly with one of the following disks	n/a
	390-0205	Seagate ST3146854LC [ST314685LSUN146G] (146GB - 15000 RPM - SCSI Disk)	n/a
	390-0207	Hitachi HUS151414VL3800 [HUS15143ASUN146G] (146GB - 15000 RPM - SCSI Disk)	n/a
	390-0261	Fujitsu MAX3147NC [MAX3147NCSUN146G] (146GB - 15000 RPM - SCSI Disk)	n/a
	390-0327	Seagate ST3146855LC [ST314655LSUN146G] (146GB - 15000 RPM - SCSI Disk)	n/a
	390-0361	Hitachi HUS153014VL3800 [HUS15143BSUN146G] (146GB - 15000 RPM - SCSI Disk)	n/a
XTA-SC1NC-300G10K [S]	540-6132 [F]	300.0GB - 10000 RPM, Disk Assembly with one of the following disks	n/a
	390-0254	Fujitsu MAW3300NC [MAW3300NCSUN300G] (300GB - 10000 RPM - SCSI Disk)	n/a
	390-0277	Seagate ST3300007LC [ST330000LSUN300G] (300GB - 10000 RPM - SCSI Disk)	n/a
XTA-SC1NC-300G15K [S]	540-7160 [F]	300GB - 15000 RPM, Disk Assembly with one of the following disks	n/a
	390-0329	Seagate ST3300655LC [ST330055LSUN300G] (300GB - 15000 RPM - SCSI Disk)	n/a
	390-0362	Hitachi HUS153030VL3800 [HUS15303BSUN300G] (300GB - 15000 RPM - SCSI Disk)	n/a
XTA-SC1NC-73G10K [S]	540-6448 [F]	73.4GB - 10000 RPM, Disk Assembly with one of the following disks	n/a
	390-0252	Fujitsu MAW3073NC [MAW3073NCSUN73G] (73.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0265	Hitachi HUS103073FL3800 [HUS10733ASUN72] (73.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0275	Seagate ST373207LC [ST373207LSUN72G] (73.4GB - 10000 RPM - SCSI Disk)	n/a
XTA-SC1NC-73G15K [S]	540-6449 [F]	73.4GB - 15000 RPM, Disk Assembly with one of the following disks	n/a
	390-0202	Seagate ST373454LC [ST373454LSUN72G] (73.4GB - 15000 RPM - SCSI Disk)	n/a
	390-0204	Hitachi HUS151473VL3800 [HUS15733ASUN72G] (73.4GB - 15000 RPM - SCSI Disk)	n/a
	390-0260	Fujitsu MAX3073NC [MAX3073NCSUN72G] (73.4GB - 15000 RPM - SCSI Disk)	n/a
	390-0325	Seagate ST373455LC [ST373455LSUN72G] (73.4GB - 15000 RPM - SCSI Disk)	n/a
	390-0360	Hitachi HUS153073VL3800 [HUS15733BSUN72G] (73.4GB - 15000 RPM - SCSI Disk)	n/a
n/a	540-6915 [F]	(Lucent only FRU) 73.4GB - 15000 RPM, Disk Assembly with one of the following disks:	n/a
	390-0202	Seagate ST373454LC [ST373454LSUN72G] (73.4GB - 15000 RPM - SCSI Disk)	n/a
	390-0260	Fujitsu MAX3073NC [MAX3073NCSUN72G] (73.4GB - 15000 RPM - SCSI Disk)	n/a
	390-0325	Seagate ST373455LC [ST373455LSUN72G] (73.4GB - 15000 RPM - SCSI Disk)	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
XTA-3000-2UAC-KIT [S]	371-0108 [F]	420 Watt AC Input Power Supply	n/a
XTA-3000-2UDC-KIT [S]	371-0109 [F]	420 Watt DC Input Power Supply	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCI1SCSI-LM320 [S]	375-3255	PCI/PCI-X Single Ultra320 SCSI Adapter	n/a
SG-XPCI2SCSI-LM320 [S]	375-3191	PCI/PCI-X Dual Ultra320 SCSI Adapter	n/a
SG-XPCIE2SCSIU320Z [S]	7050790	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	375-3357
SGXPCI1SCSILM320-Z [S]	375-3366	PCI/PCI-X Single Ultra320 SCSI Adapter	n/a
X2222A [S]	501-5727	Dual FastEthernet / Dual SCSI PCI Adapter	n/a
X4422A [S]	501-6635	Dual GigabitEthernet / Dual SCSI PCI Adapter	n/a
X6758A [S]	375-3057 ²	PCI Dual Ultra3 SCSI Host Adapter (LVD)	n/a
X9265A [S]	370-6682	Dual Ultra-320 SCSI/RAID	n/a
n/a	375-3357	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	n/a
n/a	501-7490	Dual GigabitEthernet / Dual SCSI PCI Adapter	n/a

² The necessary drivers (SUNWqus, SUNWqusu, SUNWqusx, & SUNWqusux) and patches for this product are not included in Solaris 8 or 9, but must be downloaded. Please see How To article 1018123.1 for details.
NOTE: For FRU/CRU status, see host system's Full Components List.
NOTE: Direct attachment of a host bus adapter (HBA) to the Ultra-320 RAID SCSI I/O Module is not supported.

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

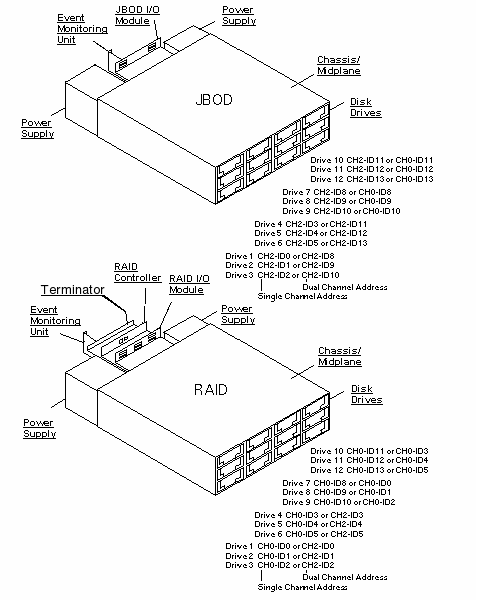

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
NS	371-0112 [F]	LED/Reset Switch Board
