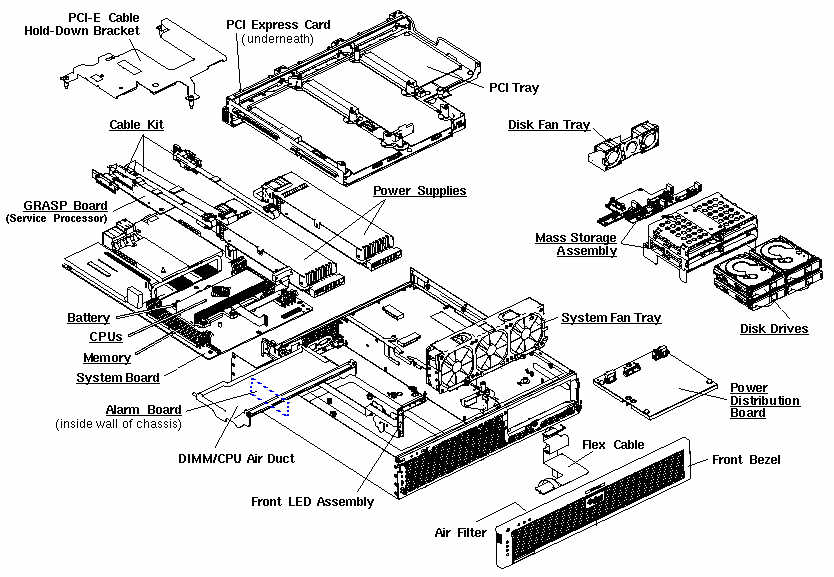

Netra X4200 M2 - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Batteries
Option #
Manufacturing
Description
Previous
n/a
150-3993
[C] Buy
3V Lithium Coin Cell Battery
n/a
CPU Module
Option #
Manufacturing
Description
Previous
4232A-Z
[S]
310-0102
Heatsink
n/a
371-2481
HyperTransport Termination Adapter
n/a
X4351A-Z
[S]
371-2630
[C]
2.2GHz CPU, Next-Generation AMD Opteron 2214HE, F3 Stepping, 68W
n/a
G751 Thermal Grease Syringe - 0.5gm (approximately 0.25 - 0.30cc) n/a
X5339A-Z
[S]
310-0049
G751 Thermal Grease Syringe - 0.5gm (approximately 0.25 - 0.30cc)
n/a
371-4305
[C]
1.8GHz CPU, AMD Opteron Quad-Core 23HF HE, B3 Stepping, 79W
n/a
Cables
Option #
Manufacturing
Description
Previous
X311L
[S]
Localized Power Cord Kit - North America/Asia
180-1097
[C] Buy
IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black
n/a
X312E
[S]
Localized Power Code Kit - China
180-1982
[C]
IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M
n/a
X312F
[S]
Localized Power Cord Kit - Argentina
180-1999
[C]
IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black
n/a
X312G
[S]
Localized Power Cord Kit - Korea
180-1662
[C] Buy
IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black
n/a
X312L
[S]
Localized Power Cord Kit - Continental Europe
180-1993
[C]
IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black
n/a
X314L
[S]
Localized Power Cord Kit - Swiss
7049124 [C]
IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black
180-1994
[C]
X317L
[S]
Localized Power Cord Kit - U.K.
180-1997
[C] Buy
IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black
n/a
X332A
[S]
Localized Power Cord Kit - Taiwan
180-2121
[C]
IEC 320 C13 to NEMA 5-15P - 10A/125V 2.5M Black
n/a
X383L
[S]
Localized Power Cord Kit - Danish
180-1995
[C]
IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black
n/a
X384L
[S]
Localized Power Cord Kit - Italian
180-1996
[C]
IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black
n/a
X386L
[S]
Localized Power Cord Kit - Australian
180-1998
[C]
IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black
n/a
n/a
180-1994
[C]
IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black
n/a
n/a
371-2638 [C]
PCI Express Cable Kit Assembly
n/a
21 pin,X4,PCIe-Strip Cable n/a
21 pin,X4,PCIe-RA (Right Angle) Cable n/a
41 pin,X8,PCIe-Straight Cable n/a
n/a
530-3100
RJ45F to DB9F Adapter
n/a
Communication
Option #
Manufacturing
Description
Previous
X1333A-4
[S]
375-3418
[C]
Infiniband PCI-X Card
n/a
X6000A 1
[S]
375-3424
[C]
PCI Express Sun Crypto Accelerator 6000
n/a
n/a
371-2877 [C]
Telco Alarm Board
n/a
1 Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec acceleration
Disk Backplane
Option #
Manufacturing
Description
Previous
n/a
371-2556 [C]
2 Disk Slot Mass Storage Assembly with Flex Cable
n/a
Disk Backplane Board Assembly (HDD 0/1) n/a
n/a
n/a
n/a
371-2558 [C]
4 Disk Slot Mass Storage Assembly with Flex Cable
n/a
Disk Backplane Board Assembly (HDD 0/1) n/a
Disk Backplane Board Assembly (HDD 2/3) n/a
n/a
n/a
371-4728 [C]
2 Disk Slot SATA Mass Storage Assembly with Flex Cable
n/a
Disk Backplane Board Assembly (HDD 0/1) n/a
n/a
SATA DVD/CD Interface Board n/a
NOTE: A two-disk Netra X4200 M2 configuration with DVD-ROM (or w/out DVD-ROM) cannot be field converted to a four-disk Netra X4200 M2, or vice versa.
Disks
Option #
Manufacturing
Description
Previous
XRA-SS2ND-146G10KZ
[S]
540-7152 [C]
146GB - 10000 RPM SAS, Disk Assembly with 1 of the following disks and brackets
n/a
Seagate ST9146802SS [ST914602SSUN146G] n/a
Hitachi HUC101414CSS300 [H101414SCSUN146G] n/a
n/a
Nemo Bracket with Insulator
n/a
XRA-SS2ND-300G10K
[S]
540-7867 [C]
300GB - 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Seagate ST9300603SS [ST930003SSUN300G] n/a
Nemo Bracket with Insulator
n/a
XRB-SS2ND-146G10K
[S]
540-7866 [C]
146GB - 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Hitachi HUC101414CSS300 [H101414SCSUN146G] n/a
Seagate ST9146803SS [ST914603SSUN146G] n/a
Nemo Bracket with Insulator
n/a
Ethernet
Option #
Manufacturing
Description
Previous
X1027A-Z
[S]
7054890
[C]
PCI Express Dual 10-Gigabit Ethernet Fiber
501-7283
[C]
X4151A-2
[S]
501-7430
[C]
GigaSwift Ethernet MMF (GFS)
n/a
X4445A
[S]
501-6738
[C]
Quad GigaSwift PCI-X Ethernet (QGE-X)
n/a
X4447A-Z
[S]
371-2348
Bracket Standard
n/a
7055021
[C]
Quad Port GbE PCI Express, UTP
511-1422
[C]
+
n/a
X7280A-2 2
[S]
371-0905
[C]
PCI Express Dual Gigabit Ethernet UTP
n/a
X7281A-2
[S]
7056733
[C]
PCI Express Dual Gigabit Ethernet MMF
371-0904
[C]
X7285A
[S]
371-0911
[C]
Low Profile PCI-X Dual Gigabit Ethernet UTP
n/a
X7286A
[S]
371-0912
[C]
Low Profile PCI-X Single Gigabit Ethernet MMF
n/a
n/a
371-0904
[C]
PCI Express Dual Gigabit Ethernet MMF
n/a
n/a
375-3481
[C]
PCI Express Quad Gigabit Ethernet UTP
n/a
n/a
501-7283
[C]
PCI Express Dual 10-Gigabit Ethernet Fiber
n/a
n/a
501-7606
[C]
PCI Express Quad Gigabit Ethernet UTP
n/a
n/a
n/a
n/a
511-1422
[C]
Quad Port GbE PCI Express, UTP
501-7606
[C]
n/a
n/a
7054739
[C]
PCI Express Quad Gigabit Ethernet UTP
375-3481
[C]
2 Requires a shielded cable to pass ESD discharge requirements at 8KV.
Fan
Option #
Manufacturing
Description
Previous
n/a
371-1955 [C]
HDD Fan Tray Assembly
n/a
n/a
371-2736 [C]
System Fans Assembly
n/a
Fibre Channel
Option #
Manufacturing
Description
Previous
SG-XPCI2FC-EM4-Z
[S]
7058528
[C]
4Gb PCI-X Dual FC Host Adapter
375-3399
[C]
SG-XPCI2FC-QF2-Z
[S]
375-3363
[C]
2Gb PCI/PCI-X Dual FC Host Adapter
n/a
n/a
SG-XPCI2FC-QF4
[S]
7060890
[C]
4Gb PCI-X Dual FC Host Adapter
375-3294
[C]
n/a
375-3294
[C]
4Gb PCI-X Dual FC Host Adapter
n/a
n/a
375-3399
[C]
4Gb PCI-X Dual FC Host Adapter
n/a
I/O
Option #
Manufacturing
Description
Previous
n/a
F371-2368 [C]
PCI Assembly
n/a
n/a
n/a
Memory
Option #
Manufacturing
Description
Previous
X4225A-Z
[S]
2GB (2 × 1GB DDR2-667 DIMM) Option
371-1919
1GB DDR2-667 DIMM
n/a
X4226A-C
[S]
4GB (2 × 2GB DDR2-667 DIMM), Memory Kit
371-4158
2GB DDR2-667 Registered DIMM, 1-Rank/512 Mbit SDRAM
n/a
X4226A-Z
[S]
4GB (2 × 2GB DDR2-667 DIMM) Option
371-1920
2GB DDR2-667 DIMM
n/a
X4227A-Z
[S]
8GB (2 × 4GB DDR2-667 DIMM) Option
371-2205
4GB DDR2-667 DIMM
n/a
X4233A
[S]
8GB (2 × 4GB DDR2-667 DIMM) Option for Dual-Core and Quad-Core CPUs
371-4322
4GB DDR2-667 DIMM
n/a
n/a
F540-7116 [C]
2GB (2 × 1GB DDR2-667 DIMM) [SKU]
n/a
n/a
n/a
F540-7117 [C]
4GB (2 × 2GB DDR2-667 DIMM) [SKU]
n/a
n/a
n/a
F540-7118 [C]
8GB (2 × 4GB DDR2-667 DIMM) [SKU]
n/a
n/a
n/a
F540-7795 [C]
8GB (2 × 4GB DDR2-667 DIMM) for Quad-Core CPUs [SKU]
n/a
n/a
n/a
F540-7849 [C]
4GB (2 × 2GB DDR2-667 DIMM) [SKU]
n/a
2GB DDR2-667 Registered DIMM, 1-Rank/512 Mbit SDRAM
n/a
Miscellaneous
Option #
Manufacturing
Description
Previous
X4234A-Z
[S]
594-3954
Air Filter 10-Pack
n/a
n/a
X4353A-Z
[S]
594-4536
Air Filter for 4 Hard Disk Drive Chassis
n/a
Air Filter for 4 Hard Disk Drive Chassis n/a
X949A-4
[S]
594-2682
Wago DC Connector Set (10 pack)
n/a
n/a
Wago DC Connector Strain Relief n/a
Wago DC Connector Opening Lever n/a
n/a
130-4361
DC Connector
n/a
n/a
230-1708
DC Connector Strain Relief
n/a
n/a
230-1711
DC Connector Opening Lever
n/a
n/a
7317766 [C]
Air Filter Media, 2U, 2 HDD, 10 pack
n/a
n/a
7317767 [C]
Air Filter Media, 2U, 4 HDD, 10 pack
n/a
Power
Option #
Manufacturing
Description
Previous
X8051A-Z
[S]
300-2006
[C]
Type D193 550 Watt DC Input Power Supply
n/a
X8052A-Z
[S]
300-1848
[C]
Type A214 550 Watt AC Input Power Supply
n/a
n/a
300-2306
[C]
Type A214 550 Watt AC Input Power Supply
n/a
n/a
371-1098
[C]
Power Distribution Board
n/a
Rack
Option #
Manufacturing
Description
Previous
SG-XARY030A
[S]
595-4706
72 inch Sun StorEdge Expansion Cabinet
n/a
X2089A
[S]
350-1387
19" 2-post Slide Rail Kit
n/a
X7901A-4
[S]
371-1478
19" 2-post Rackmount Kit
n/a
X7902A-4
[S]
371-1481
23" 2-post Rackmount Kit
n/a
X7904A-4
[S]
371-1479
600mm x 600mm Rackmount Kit
n/a
X8099A-4
[S]
371-1480
19" 4-post Slide Mount Kit
n/a
Removable Media
Option #
Manufacturing
Description
Previous
X4352A-Z 3
[S]
8× Slimline DVD-RW Drive Assembly
390-0337
[C]
8x PATA DVD-Writer/24x CD-Writer
n/a
X4356A-Z
[S]
DVD-Writer/CD-Writer
371-2261
DVD-ROM / CD-ROM Drive Bezel
n/a
540-7563
[C]
DVD-Writer/CD-Writer, PATA
n/a
8x PATA DVD-Writer/24x CD-Writer n/a
8x PATA DVD-Writer / 24x CD-Writer n/a
X4358A-Z
[S]
SATA DVD-Writer/CD-Writer
390-0486
[C]
8x Slot-Load SATA DVD-Writer/24x CD-Writer
390-0443
[C]
7045772
8x Slot-Load SATA DVD-Writer/24x CD-Writer
n/a
3 Option X4352A-Z includes the DVD Bezel (PN#541-0325)NOTE: DVD-ROM support requires the two-disk Netra X4200 M2 configuration.
SCSI
Option #
Manufacturing
Description
Previous
SG-XPCI8SAS-E-Z
[S]
7050791
[C]
3Gb PCI-X SAS 8-Port Host Adapter
375-3488
[C]
SG-XPCIE8SAS-E-Z
[S]
7050793
[C]
PCI Express 8-Port Host Adapter
375-3487
[C]
SGXPCI1SCSILM320-Z
[S]
375-3366
[C]
PCI/PCI-X Single Ultra320 SCSI Adapter
n/a
SGXPCI2SCSILM320-Z
[S]
7050788
[C]
PCI/PCI-X Dual Ultra320 SCSI Adapter
375-3365
5
[C]
n/a
375-3365
4
[C]
PCI/PCI-X Dual Ultra320 SCSI Adapter
n/a
n/a
375-3487
[C]
PCI Express 8-Port Host Adapter
n/a
n/a
375-3488
[C]
3Gb PCI-X SAS 8-Port Host Adapter
n/a
4 Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50.
See Problem article 1013105.1 .5 Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50.
See Problem article 1013105.1 .
System Board
Option #
Manufacturing
Description
Previous
n/a
501-7590
[C]
System Board
n/a
3V Lithium Coin Cell Battery
n/a
n/a
501-7989
[C]
System Board
n/a
3V Lithium Coin Cell Battery
n/a
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
Code
Manufacturing Part#
Description
NS
330-3968
Lightpipe
NS
330-4032
Service Processor Bracket
NS
370-6110
19" 4-Post Rackmount Kit
NS
Front 350×30 mm + Rear 87×445 mm + Flange 30×40 mm
NS
371-1103
DVD/CD Interface Board
NS
371-1905
Blank DVD Filler Panel
NS
371-1958 6
[F]
LED Assembly
NS
NS
371-4260 8
[F]
LED Assembly
NS
NS
541-0605 [F]
Blank Disk Drive Filler
NS
565-1882
Wago DC Connector Assembly Kit
DC Connector Strain Relief
DC Connector Opening Lever
6 Replaced by LED Assembly 371-4260 on Netra X4200 M2 in May 2008.
(WO_39081)
7 Replaced LED Board 371-1104 in October 2008.
(WO_39867)
8 LED Assembly 371-4260 replaced 371-1958 on Netra X4200 M2 in May 2008.
(WO_39081)
