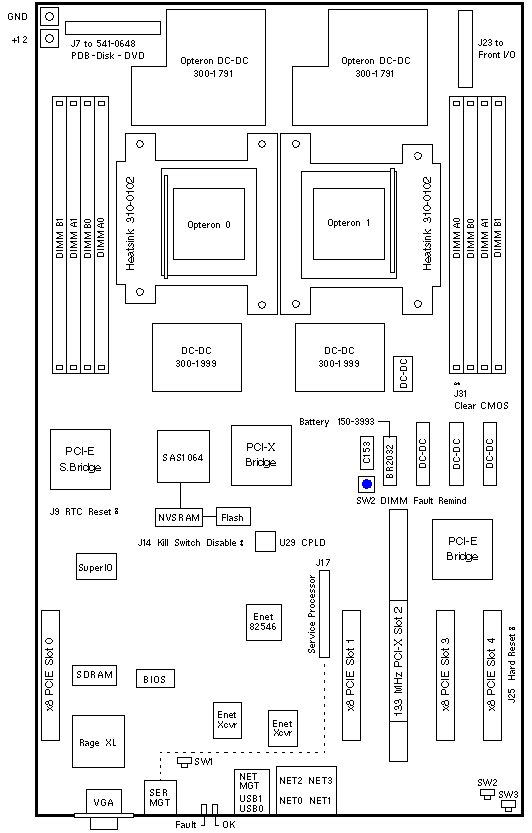

501-7590	501-7989
FAB 270-7590-02 September 2006	FAB 270-7590-03 September 2007

Netra X4200 M2 Codename: Draco Sun Fire X4200 M2 Codename: Galaxy 2F

Notes

1. The minimum Sun Fire X4200 M2 Solaris operating system is Solaris 10 6/06 (U2) x64.
2. The minimum Netra X4200 M2 Solaris operating system is Solaris 10 11/06 (U3) x64.
3. The System Board FRU includes two 310-0049 Thermal Grease Syringes.
4. Cable kit 565-1963 is required to program the CPLD.
5. The 501-7590-04 and 501-7989-02 include the CPLD change for BugID 15438380 [SUNBT6629455].
6. CPLD code was changed to allow a 25ms waiting period upon an AC power fault to both AC Input power supplies. The change does not apply to systems with DC Input power supplies which have a 10ms holdup time. Reference WO_38378 of January 2008.
7. Each CPU requires one pair of DIMMs.
8. Install HyperTransport Terminator 371-2481 when only one processor is installed.
9. Install DIMMs in pairs beginning with DIMM A1 and B1 then DIMM A0 and B0.

Netra X4200 M2 References

1. Sun Netra X4200 M2 Server Documentation.

Sun Fire X4200 M2 References

1. Sun Fire X4200 M2 Server Documentation.
