Sun Netra 6000 Modular System - Full Components List

Backplane/Centerplane Cables Ethernet Fan Fibre Channel Power SCSI System Service Processor Exploded View	Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Backplane/Centerplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-4289 [F]	PCI Express 2.0 Midplane Assembly (Netra 6000 AC)	n/a
	541-3789 [F]	PCI Express 2.0 Midplane Assembly	n/a
	330-4398	Busbar Bolt Cover	n/a
	330-4399	Busbar Cover	n/a
	341-2337	Busbar	n/a
	341-3592	Busbar Spacer	n/a
	511-1298	PCI Express 2.0 Midplane	n/a
n/a	541-4393 [F]	PCI Express 2.0 Midplane Assembly (Netra 6000 DC)	n/a
	541-4239	PCI Express 2.0 Midplane Assembly	n/a
	330-4398	Busbar Bolt Cover	n/a
	330-4399	Busbar Cover	n/a
	341-2337	Busbar	n/a
	341-3592	Busbar Spacer	n/a
	511-1487	PCI Express 2.0 Midplane	n/a
n/a	541-4711 [F]	PCI Express 2.0 Midplane Assembly (Netra 6000 M2, AC)	n/a
	541-4239	PCI Express 2.0 Midplane Assembly	n/a
	330-4398	Busbar Bolt Cover	n/a
	330-4399	Busbar Cover	n/a
	341-2337	Busbar	n/a
	341-3592	Busbar Spacer	n/a
	511-1487	PCI Express 2.0 Midplane	n/a
n/a	541-4712 [F]	PCI Express 2.0 Midplane Assembly (Netra 6000 M2, DC)	n/a
	541-4239	PCI Express 2.0 Midplane Assembly	n/a
	330-4398	Busbar Bolt Cover	n/a
	330-4399	Busbar Cover	n/a
	341-2337	Busbar	n/a
	341-3592	Busbar Spacer	n/a
	511-1487	PCI Express 2.0 Midplane	n/a
n/a	7057555 [F]	PCI Express 2.0 Midplane Assembly (Netra 6000 M2, AC)	n/a
	7045529	PCI Express 2.0 Midplane Assembly	n/a
	330-4398	Busbar Bolt Cover	n/a
	330-4399	Busbar Cover	n/a
	341-2337	Busbar	n/a
	341-3592	Busbar Spacer	n/a
	7045532	PCI Express 2.0 Midplane	n/a
n/a	7057637 [F]	PCI Express 2.0 Midplane Assembly (Netra 6000 M2, DC)	n/a
	7045529	PCI Express 2.0 Midplane Assembly	n/a
	330-4398	Busbar Bolt Cover	n/a
	330-4399	Busbar Cover	n/a
	341-2337	Busbar	n/a
	341-3592	Busbar Spacer	n/a
	7045532	PCI Express 2.0 Midplane	n/a
n/a	7068388 [F]	PCI Express 2.0 Midplane Assembly (Netra 6000 M2, AC)	n/a
	7045529	PCI Express 2.0 Midplane Assembly	n/a
	330-4398	Busbar Bolt Cover	n/a
	330-4399	Busbar Cover	n/a
	341-2337	Busbar	n/a
	341-3592	Busbar Spacer	n/a
	7045532	PCI Express 2.0 Midplane	n/a
n/a	7068395 [F]	PCI Express 2.0 Midplane Assembly (Netra 6000 M2, DC)	n/a
	7045529	PCI Express 2.0 Midplane Assembly	n/a
	330-4398	Busbar Bolt Cover	n/a
	330-4399	Busbar Cover	n/a
	341-2337	Busbar	n/a
	341-3592	Busbar Spacer	n/a
	7045532	PCI Express 2.0 Midplane	n/a

NOTE: The Netra 6000 AC and Netra 6000 DC have a Last Order Date of November 30, 2011.

Cables
Option #	Manufacturing Part #	Description	Previous Part #
7102869 Buy	7039990 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 10M	n/a
7102870 Buy	7039999 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 20M	n/a
7102871 Buy	7040001 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 50M	n/a
X2121A-1M-N Buy	530-4444 [C]	10Gbps QSFP to QSFP Cable, 1m	n/a
X2121A-3M-N Buy	530-4445 [C]	10Gbps QSFP to QSFP Cable, 3m	n/a
X2121A-5M-N Buy	530-4446 [C]	10Gbps QSFP to QSFP Cable, 5m	n/a
X2127A-10M Buy	530-4480 [C]	MPO to 4x LC Duplex Splitter Cable, 10m	n/a
X2127A-20M Buy	530-4481 [C]	MPO to 4x LC Duplex Splitter Cable, 20m	n/a
X2127A-50M Buy	530-4482 [C]	MPO to 4x LC Duplex Splitter Cable, 50m	n/a
X2130A-10M-N	530-4454 [C]	10Gbps SFP+ TwinX Cable, 10m	n/a
X2130A-1M-N Buy	530-4441 [F]	10Gbps SFP+ TwinX Cable, 1m	n/a
X2130A-3M-N Buy	530-4442 [C]	10Gbps SFP+ TwinX Cable, 3m	n/a
X2130A-5M-N Buy	530-4443 [C]	10Gbps SFP+ TwinX Cable, 5m	n/a
XSR-JUMP-1MC19-N Buy	7015420 [C]	16A/250V 90° IEC 320 Sheet I to IEC 320 C19 Cord, 1M	180-2382 [C]
XSR-JUMP-2MC19-N Buy	7015419 [C]	16A/250V 90° IEC 320 Sheet I to IEC 320 C19 Cord, 2M	180-2381 [C]
X4622A 1 [S]	Dongle II Cable Assembly for Universal Connector Port (UCP) with three connectors: 1 VGA HD15, 1 RJ45, 2×USB, and 1 DB9 to RJ45 Adapter
	530-3100	RJ45F to DB9F Adapter	n/a
	7046680 [C]	USB/VGA/RJ45 Dongle Cable Adapter	530-3936 [C]
X4622A-N [S]	Dongle II Cable Assembly for Universal Connector Port (UCP) with three connectors: 1 VGA HD15, 1 RJ45, 2×USB, and 1 DB9 to RJ45 Adapter
	530-3100	RJ45F to DB9F Adapter	n/a
	7046680 [C]	USB/VGA/RJ45 Dongle Cable Adapter	530-3936 [C]
X5044A-Z [S]	6 AC Input Power Cords, 20A, Americas Domestic, NEMA L6-20P to IEC320-C19, 4m
	180-2005 [C] Buy	AC Input Power Cord, 16A, Americas, NEMA L6-20P to IEC320-C19, 4M	n/a
X5074A-Z [S]	4 AC Input Power Cords, 20A, Americas Domestic, NEMA L6-20P to IEC320
	180-2005 [C] Buy	AC Input Power Cord, 16A, Americas, NEMA L6-20P to IEC320-C19, 4M	n/a
X5075A-Z [S]	4 AC Input Power Cords, 16A, International, IEC309 to IEC320-C19, 4m
	180-2004 [C]	AC Input Power Cord, 16A, International, IEC309 to IEC320-C19, 4M	n/a
X5077A-Z [S]	4 Power Cords, 20A, (IEC 320-C19 to IEC 320, 2.0 M)
	180-2096 [C]	Power Cord, 20A, (IEC 320-C19 to IEC 320, 2.0 M)	n/a
X5915A [S]	2 AC Power Cords and Adapters, 30A, NEMA L6-20R to L6-30P, 4M
	7055057 [C]	Cable Assembly, Americas, NEMA L6-20R to L6-30P, 4M	375-3493 [C]
n/a	180-2381 [C]	20A/250V 90° IEC 320 Sheet I to IEC 320 C19 Cord, 2M	n/a
n/a	180-2382 [C]	20A/250V 90° IEC 320 Sheet I to IEC 320 C19 Cord, 1M	n/a
n/a	375-3493 [C]	Cable Assembly, Americas, NEMA L6-20R to L6-30P, 4M	n/a
n/a	530-3936 [C]	USB/VGA/RJ45 Dongle Cable Adapter	n/a
n/a	7040688 [C]	Power Cord, 16A, (IEC 320-C19 to IEC 320, 2.0 M)	180-2096 [C]
n/a	7040702 [C]	AC Input Power Cord, 16A, International, IEC309 to IEC320-C19, 4m	180-2004 [C]

1 X4622A is not a NEBS qualified product. The dongle cable is for debug purposes. NOTE: Power cords are required for the AC system. The DC system is a lug and post design, where the cabling is provided by the customer. Please see the Sun Netra 6000 Modular System Installation Guide (821-0930) for details on DC system power cabling.

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
7100090	7052308 [C]	Virtualized 40-Gigabit Ethernet Network Express Module	7020536 [C]
X2124A-N Buy	7326504 [C]	10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver	135-1204 [C]
X2129A-N Buy	530-4449 [C]	10Gb/Sec Short Wave SFP+ Transceiver	n/a
X5562A-Z Buy	135-1205 [C]	10Gb/Sec Long Wave SFP+ Transceiver	n/a
7100483 [S]	7070211 [C]	Quad Port GbE PCI Express 2.0 ExpressModule, UTP	7048479 [C]  + 7014759 [C]
7100486 [S]	7048478 [C]	Quad Port GbE PCI Express 2.0 ExpressModule, MMF	7014763 [C]
7100490 [S]	7014780 [C]	Dual 10-Gigabit Base-T PCIe 2.0 ExpressModule	n/a
7105397 [S]	10-port, GbE, Pass-Thru Network Express (NEM) Module
	7068169 [C]	10-port, GbE, Pass-Thru Network Express (NEM) Module	n/a
X1110A-Z [S]	7051227 [C]	Dual 10-Gigabit SFP+ Ethernet ExpressModule	375-3616 [C]
X2073A [S]	7092924 [C]	24-Port 10-Gigabit Ethernet Switched Network Express Module (NEM)	7078195 [C]  + 7053929 [C] 541-3770 [C]
X2123A [S]	135-1203 [C]	1.25Gb/Sec Copper SFP Transceiver	n/a
X4250A [S]	371-1451 [C]	10-port, GbE, Pass-Thru Network Express (NEM) Module	n/a
	7068165 [C]	10-port, GbE, Pass-Thru Network Express (NEM) Module	n/a
X7284A-Z [S]	7055026 [C]	x4 PCI Express Quad Gigabit Ethernet UTP ExpressModule	375-3498 [C]
n/a	135-1204 [C]	10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver	n/a
n/a	375-3498 [C]	x4 PCI Express Quad Gigabit Ethernet UTP ExpressModule	n/a
n/a	375-3616 [C]	Dual 10-Gigabit SFP+ Ethernet ExpressModule	n/a
n/a	541-3770 [C]	24-Port 10-Gigabit Ethernet Switched Network Express Module (NEM)	n/a
n/a	7014759 [C]	Quad Port GbE PCI Express 2.0 ExpressModule, UTP	n/a
n/a	7020536 [C]	Virtualized 40-Gigabit Ethernet Network Express Module	n/a
	7020535	NEM Board	n/a
n/a	7048479 [C]	Quad Port GbE PCI Express 2.0 ExpressModule, UTP	7014759 [C]
n/a	7053929 [C]	24-Port 10-Gigabit Ethernet Switched Network Express Module (NEM)	541-3770 [C]
n/a	7069995 [C]	Dual 10-Gigabit Base-T PCIe 2.0 ExpressModule	n/a
n/a	7070206 [C]	Quad Port GbE PCI Express 2.0 ExpressModule, MMF	n/a
n/a	7078195 [C]	24-Port 10-Gigabit Ethernet Switched Network Express Module (NEM)	7053929 [C]  + 541-3770 [C]

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-1446 [C]	Rear Fan Controller Assembly	n/a
	501-7377	Rear Fan Controller Board	n/a
n/a	371-1450 4 [C]	Rear Fan Module (RFM)	n/a
n/a	371-4753 5 [C]	Rear Fan Module (RFM)	n/a
n/a	7068168 [C]	Rear Fan Controller Assembly	371-1446 [C]
	501-7377	Rear Fan Controller Board	n/a

4 Supported in Netra 6000 AC & Netra 6000 DC. 5 Supported in Netra 6000 M2 & Netra 6000 M2 DC.

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
7101676 Buy	7023325 [C]	Pair of 16Gbps Short Wave SFP+	n/a
	7023324	16Gb/Sec Short Wave SFP+ Transceiver, QLogic	n/a
7101678 Buy	7023315 [C]	Pair of 10Gbps Short Wave SFP+	n/a
	7023316	10Gb/Sec Short Wave SFP+ Transceiver, QLogic	n/a
7101682 [S]	7023304 6 [C]	Dual 16Gbps Fibre Channel / 10Gbps FCoE HBA Module, QLogic	n/a
7105393 [S]	7053435 [C]	8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, Emulex	n/a
SG-XPCIEFCGBE-E8-N [S]	371-4666 7 [C]	8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, Emulex	n/a
SG-XPCIEFCGBE-E8-Z [S]	371-4666 8 [C]	8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, Emulex	n/a
SG-XPCIEFCGBE-Q8-N [S]	371-4522 9 [C]	8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, QLogic	n/a
SG-XPCIEFCGBE-Q8-Z [S]	371-4522 10 [C]	8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, QLogic	n/a
n/a	7023043 [C]	Sun Storage Dual 16 Gb Fibre Channel ExpressModule Universal HBA, Emulex	n/a
n/a	7023059 [C]	Pair of 16Gbps Short Wave SFP+	n/a

6 See component page for more information regarding SFPs. 7 Two SFPs are included, see component page for more information. 8 Two SFPs are included, see component page for more information. 9 Two SFPs are included, see component page for more information. 10 Two SFPs are included, see component page for more information.

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	300-2190 11 [C]	Type A206 5600 Watt AC Input Power Supply	n/a
	371-4208 [C]	Power Supply Fan Tray	n/a
n/a	300-2259 12 [C]	Type A251 5740 Watt AC Input Power Supply	n/a
	371-4653	Power Supply Fan Tray	n/a
n/a	300-2263 [C]	Type D223 2500 Watt DC Input Power Supply (Netra 6000 DC & Netra 6000 M2 DC)	n/a
n/a	371-4823 [C]	Power Supply Adapter Assembly (Netra 6000 DC)	n/a
n/a	371-4964 [F]	DC Input Unit, Power Plenum	n/a
	511-1550	LED Board	n/a
	263-4502	Netra 6000 DC Nameplate	n/a
n/a	530-4491 [F]	PSU Input Power Cables	n/a
n/a	530-4492	LED Cable	n/a
n/a	7060590 [C]	Type A251 5740 Watt AC Input Power Supply	300-2259 13 [C]
	371-4653	Power Supply Fan Tray	n/a
n/a	7081582 [C]	Type A251 5740 Watt AC Input Power Supply	n/a
	371-4653	Power Supply Fan Tray	n/a
n/a	7336465 [C]	Type A251 5740 Watt AC Input Power Supply	n/a
	371-4653	Power Supply Fan Tray	n/a

11 Supported in Netra 6000 AC. 12 Supported in Netra 6000 M2 AC. 13 Supported in Netra 6000 M2 AC.

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
7105388 [S]	Sun Storage 8-Port 6Gbps SAS HBA PCI Express ExpressModule
	7047854 [C]	Sun Storage 8-Port 6Gbps SAS HBA PCI Express ExpressModule	n/a
SG-XPCIE8SAS-EB-Z [S]	375-3486 [C]	Sun StorageTek SAS Host Bus Adapter PCI Express ExpressModule	n/a
SGX-SAS6-EM-Z [S]	7047854 [C]	Sun Storage 8-Port 6Gbps SAS HBA PCI Express ExpressModule	n/a
n/a	375-3642 [C]	Sun Storage 8-Port 6Gbps SAS HBA PCI Express ExpressModule	n/a

System Service Processor
Option #	Manufacturing Part #	Description	Previous Part #
X4626A [S]	371-1447 14 [C]	Chassis Management Module (CMM) Assembly	n/a
	501-7379	Chassis Management Module (CMM) Board	n/a
	501-7985 [F]	Chassis Management Module (CMM) Assembly	501-7516 [C]
n/a	501-7516 [C]	Chassis Management Module (CMM) Assembly	n/a
n/a	7026736 [F]	Chassis Management Module Assembly (Netra 6000 M2 AC & Netra 6000 M2 DC)	7014261 [S]
	7019286 [F]	Chassis Management Module (CMM) Assembly	541-4340
	511-1531	Chassis Management Module (CMM) Board	n/a
n/a	7057559 [F]	Chassis Management Module Assembly (Netra 6000 M2 AC & Netra 6000 M2 DC)	7026736 [F]  + 7014261 [S]
	7045545 [F]	Chassis Management Module (CMM) Assembly	n/a
	7045547	Chassis Management Module (CMM) Board	n/a
n/a	7068397 [F]	Chassis Management Module Assembly (Netra 6000 M2 AC & Netra 6000 M2 DC)	n/a
	7068170 [F]	Chassis Management Module (CMM) Assembly	n/a
	7045547	Chassis Management Module (CMM) Board	n/a

14 Supported in Netra 6000 DC & Netra 6000 AC.

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

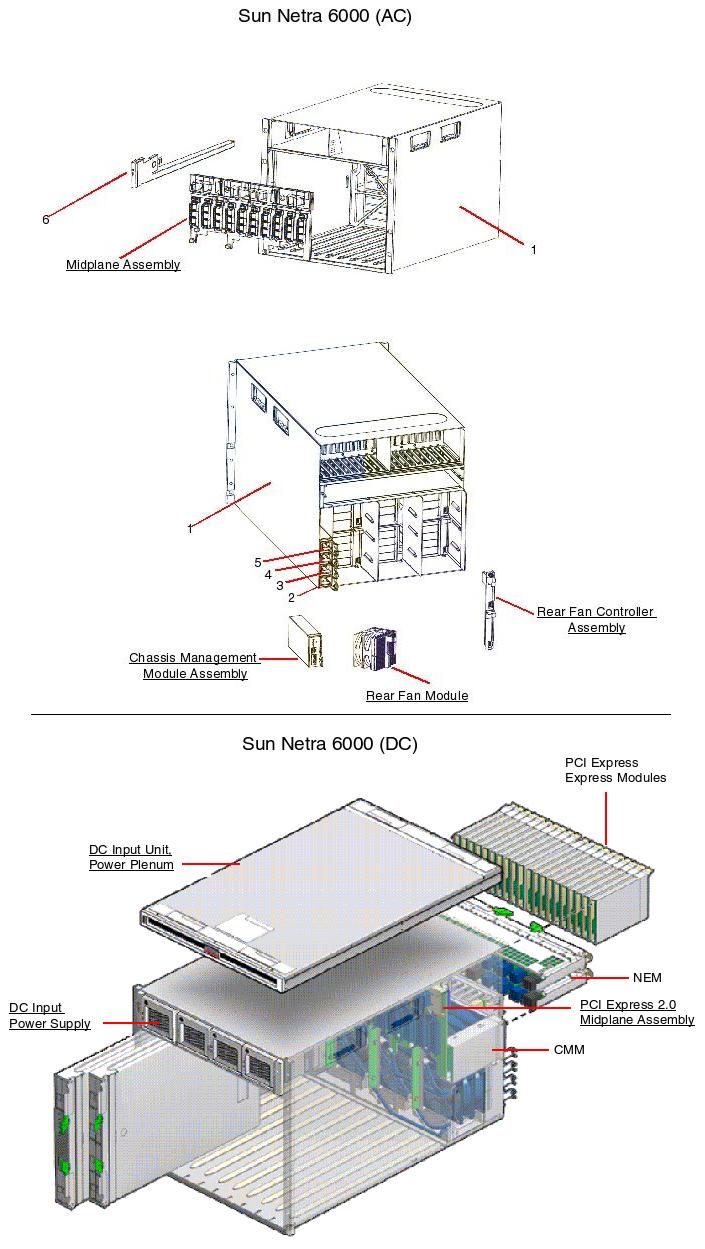

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
-	594-6892	N6000-DC M2 System Assembly
	371-4964 [F]	DC Input Unit, Power Plenum
	511-1550	LED Board
NS	263-4502	Netra 6000 DC Nameplate
-	530-4493	Power Supply Adapter Signal Cable
-	541-4686	DC Chassis Assembly
-	371-1448 [C]	Front Indicator Module
-	501-7378	LED Board Assembly
-	371-4963	DC Chassis Subassembly
NS	330-4342	Midplane Air Baffle
-	7057530	N6000-DC M2 System Assembly
	371-4964 [F]	DC Input Unit, Power Plenum
	511-1550	LED Board
NS	263-4502	Netra 6000 DC Nameplate
-	7057550	DC Chassis Assembly
-	371-1448 [C]	Front Indicator Module
-	501-7378	LED Board Assembly
-	371-4963	DC Chassis Subassembly
-	530-4493	Power Supply Adapter Signal Cable
NS	330-4342	Midplane Air Baffle
-	7068385	N6000-DC M2 System Assembly
	371-4964 [F]	DC Input Unit, Power Plenum
	511-1550	LED Board
NS	263-4502	Netra 6000 DC Nameplate
-	7068399	DC Chassis Assembly
1	7068166 [C]	Front Indicator Module
-	371-1448 [C]	Front Indicator Module
-	501-7378	LED Board Assembly
1	594-6438	N6000-AC System Assembly
1	541-4254	Chassis Assembly
-	263-4228	Netra 6000 Nameplate
-	350-1689 15	Chassis Subassembly
-	371-1448 [C]	Front Indicator Module
-	501-7378	LED Board Assembly
2	371-1449	AC1/PS0-AC0 Internal Power Cord, 802mm
3	371-1610	AC2/PS0-AC1 Internal Power Cord, 665mm
4	371-1611	AC3/PS1-AC0 Internal Power Cord, 584mm
5	371-1612	AC4/PS1-AC1 Internal Power Cord, 498mm
NS	330-4342	Midplane Air Baffle
NS	n/a	AC Input Line Filter, Schurter C20F
1	594-6893	N6000-AC M2 System Assembly
1	541-4687	Chassis Assembly
-	263-4228	Netra 6000 Nameplate
-	371-1448 [C]	Front Indicator Module
-	501-7378	LED Board Assembly
2	371-1449	AC1/PS0-AC0 Internal Power Cord, 802mm
3	371-1610	AC2/PS0-AC1 Internal Power Cord, 665mm
4	371-1611	AC3/PS1-AC0 Internal Power Cord, 584mm
5	371-1612	AC4/PS1-AC1 Internal Power Cord, 498mm
NS	330-4342	Midplane Air Baffle
NS	371-3244	Chassis Subassembly
NS	n/a	AC Input Line Filter, Schurter C20F
1	7057529	N6000-AC M2 System Assembly
1	7057547	Chassis Assembly
-	263-4228	Netra 6000 Nameplate
-	371-1448 [C]	Front Indicator Module
-	501-7378	LED Board Assembly
2	371-1449	AC1/PS0-AC0 Internal Power Cord, 802mm
3	371-1610	AC2/PS0-AC1 Internal Power Cord, 665mm
4	371-1611	AC3/PS1-AC0 Internal Power Cord, 584mm
5	371-1612	AC4/PS1-AC1 Internal Power Cord, 498mm
NS	330-4342	Midplane Air Baffle
NS	371-3244	Chassis Subassembly
1	7068384	N6000-AC M2 System Assembly
1	7068398	Chassis Assembly
1	7068166 [C]	Front Indicator Module
-	371-1448 [C]	Front Indicator Module
-	501-7378	LED Board Assembly
NS	263-4502	Netra 6000 DC Nameplate
NS	371-1737	Network Express Module (NEM) Filler Panel
NS	371-1738	Blade Filler Panel, [X4460A] [S]
NS	371-3245	Mounting Rail Kit
NS	371-3610	Shipping Bracket Kit
NS	541-0729	PCI Express Express Module Filler Panel
NS	341-1810	PCI Express Filler
NS	594-6726	N6000-DC System Assembly
NS	541-4381	Chassis Assembly
	371-4964 [F]	DC Input Unit, Power Plenum
	511-1550	LED Board
NS	263-4502	Netra 6000 DC Nameplate
-	371-4963	DC Chassis Subassembly
NS	330-4342	Midplane Air Baffle

15 350-1689 replaced 371-3244 in the 541-4254 chassis assembly in January 2011.
