Delta D223A
2500 Watt Power Supply

300-2263 371-4823
Type D223
DC Input Power Supply
Drawing 386-5418		 Power Supply Adapter
Drawing 382-4308

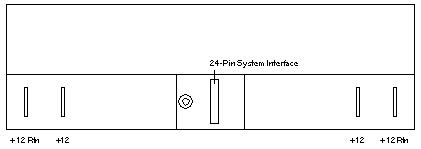

Front View Power Supply 300-2263

Rear View Power Supply Adapter 371-4823

DC Output

A B C
+12.3V +12.3V +3.3V

Notes

  1. The upper input power connector plugs into Power Plenum 371-4964.
  2. The lower output power connector plugs into Power Supply Adapter 371-4823.
  3. The Power Supply Adapter plugs into the Midplane.
  4. Cable 530-4493 connects to both Power Supply Adapters.
  5. Remove Power Plenum 371-4964 to access Cable 530-4493.
  6. Remove Cable 530-4493 prior to removing a Power Supply Adapter
