StorageTek VSM Console - Full Components List

Batteries CPU Module Cables Chassis Disk Backplane Disks Fan Memory Power Rack Removable Media System Board System Service Processor Exploded View Wiring Diagram	Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7086927	16-Core 3.6GHz T5 CPU Mezzanine	n/a
n/a	7306299	16-Core 3.6GHz T5 CPU Mezzanine	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
n/a	530-3100 [C]	RJ45F to DB9F Adapter	n/a
n/a	7070388 [C]	Cable Kit	n/a
	7024007 [C]	SAS Cable, SFF-8087 to SFF-8087, 215mm (x2)	n/a
	530-3895	4x Mini SAS Cable, SFF-8087 to SFF-8087, 530mm	n/a
	530-4287	Fan Board to System Board Signal Cable	n/a
	530-4288	Fan Board to System Board Power Cable	n/a
	530-4289	System Board to PDB Cable	n/a
	530-4290	System Board to Disk Backplane Signal Cable	n/a
	530-4291	System Board to Disk Backplane Power Cable	n/a

Chassis
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7059209	Top Cover Baffle	n/a
n/a	7074704	Chassis Subassembly	n/a
	341-5805	Rack Mount Ear	n/a
	541-3539 [C]	92mm Fan Module	n/a
	7039459 [F]	6-Slot Disk Backplane	n/a
	7057262 [F]	Fan Cage Assembly	n/a
	530-4349 Buy	LED Flex Circuit	n/a
	7057260	Fan Board with USB and VGA	n/a
	7068043	Power Distribution Board Cover	n/a
	7075160	Chassis	n/a
	7300803 [F]	Power Supply Backplane Assembly	n/a
	371-4446	Bus Bar	n/a
	7052430	Power Distribution Board / Power Supply Backplane	n/a
	341-6188	Power Supply Chassis Cable Cover	n/a
	350-1383	Top Cover	n/a
	150-4065	Interlock Switch Magnet	n/a
	350-1392	Front Bezel	n/a
	530-4356	AC Input Line Filter with Cable	n/a

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7039459 [F]	6-Slot Disk Backplane	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7064135 [C]	600GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7045228	Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk)	n/a
	7066795	Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-3539 [C]	92mm Fan Module	n/a
n/a	7057262 [F]	Fan Cage Assembly	n/a
	530-4349 Buy	LED Flex Circuit	n/a
	7057260	Fan Board with USB and VGA	n/a
n/a	7093647	Grey Plastic Air Divider w/ Fault Remind Button	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7042210 [C]	16GB DDR3L-1600/PC3L-12800 DIMM (runs at 1066 MHz)	n/a
n/a	7048299	Single Socket System Board Memory Connector Thermal Baffle	n/a
n/a	7306028 [C]	Memory Riser Assembly	n/a
	7049156	Riser Carrier	n/a
	7306029	Memory Riser	n/a
n/a	7357728 [C]	Memory Riser Assembly (reworked 7306028)	n/a
	7049156	Riser Carrier	n/a
	7306029	Memory Riser	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7081064 [C]	Type A239A 2000 Watt AC Input Power Supply	n/a
n/a	7300803 [F]	Power Supply Backplane Assembly	n/a
	371-4446	Bus Bar	n/a
	7052430	Power Distribution Board / Power Supply Backplane	n/a
n/a	7317314 [F]	Power Supply Backplane Assembly	n/a
	371-4446	Bus Bar	n/a
	7052430	Power Distribution Board / Power Supply Backplane	n/a
	7317311	High Potential (Hipot) Test Passed Label	n/a

Rack
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-4791 [C] Buy	Tool-less Slide Rail Rack Mount Kit	n/a
n/a	371-4812 [C] Buy	Cable Management Arm	n/a
n/a	7015399 [C]	10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M	n/a

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7314403 [C]	Tray-Load DVD Assembly	n/a
	7094095	DVD Carrier	n/a
	7309891	8x Tray-Load DVD-ROM/24x CD-ROM Writer (Gen6)	n/a
	7318289	DVD Bezel	n/a
	7318304	Bezel Liner	n/a
	7336333	8x Tray-Load DVD-ROM/24-x CD-ROM Writer (Gen7)	n/a

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7302921 [F]	Single 16-Core 3.6GHz System Board	n/a
	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a
	7051520	Rear I/O Board	n/a
	7063305	Mounting Tray	n/a
	7086927	16-Core 3.6GHz T5 CPU Mezzanine	n/a
	7302919	System Board	n/a
	525-2146 [F]	SSCC NVRAM	n/a
	7306299	16-Core 3.6GHz T5 CPU Mezzanine	n/a
	530-3510	Interlock Switch Cable	n/a
	530-4348	System Board to Rear I/O Board Signal Cable	n/a
n/a	7340484 1 [F]	Single 16-Core 3.6GHz System Board (reworked 7302921)	n/a
	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a
	7051520	Rear I/O Board	n/a
	7063305	Mounting Tray	n/a
	7086927	16-Core 3.6GHz T5 CPU Mezzanine	n/a
	7302919	System Board	n/a
	525-2146 [F]	SSCC NVRAM	n/a
	7306299	16-Core 3.6GHz T5 CPU Mezzanine	n/a
	530-3510	Interlock Switch Cable	n/a
	530-4348	System Board to Rear I/O Board Signal Cable	n/a
n/a	7340486 2 [F]	Single 16-Core 3.6GHz System Board	n/a
	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a
	7051520	Rear I/O Board	n/a
	7063305	Mounting Tray	n/a
	7302919	System Board	n/a
	525-2146 [F]	SSCC NVRAM	n/a
	7306299	16-Core 3.6GHz T5 CPU Mezzanine	n/a
	530-3510	Interlock Switch Cable	n/a
	530-4348	System Board to Rear I/O Board Signal Cable	n/a
n/a	7357710 [F]	Single 16-Core 3.6GHz System Board (reworked 7340484)	n/a
	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a
	7051520	Rear I/O Board	n/a
	7063305	Mounting Tray	n/a
	7086927	16-Core 3.6GHz T5 CPU Mezzanine	n/a
	7302919	System Board	n/a
	525-2146 [F]	SSCC NVRAM	n/a
	7306299	16-Core 3.6GHz T5 CPU Mezzanine	n/a
	530-3510	Interlock Switch Cable	n/a
	530-4348	System Board to Rear I/O Board Signal Cable	n/a

1 7340484 is a reworked 7302921 per E0032179 and Rework GSAP 6844. 2 System Board with SP 7303405 was updated from 7302921 to 7340486 by E0032532.

System Service Processor
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7066335 [C]	Service Processor Assembly	n/a
	350-1614	Service Processor Cover	n/a
	7066333	Service Processor	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

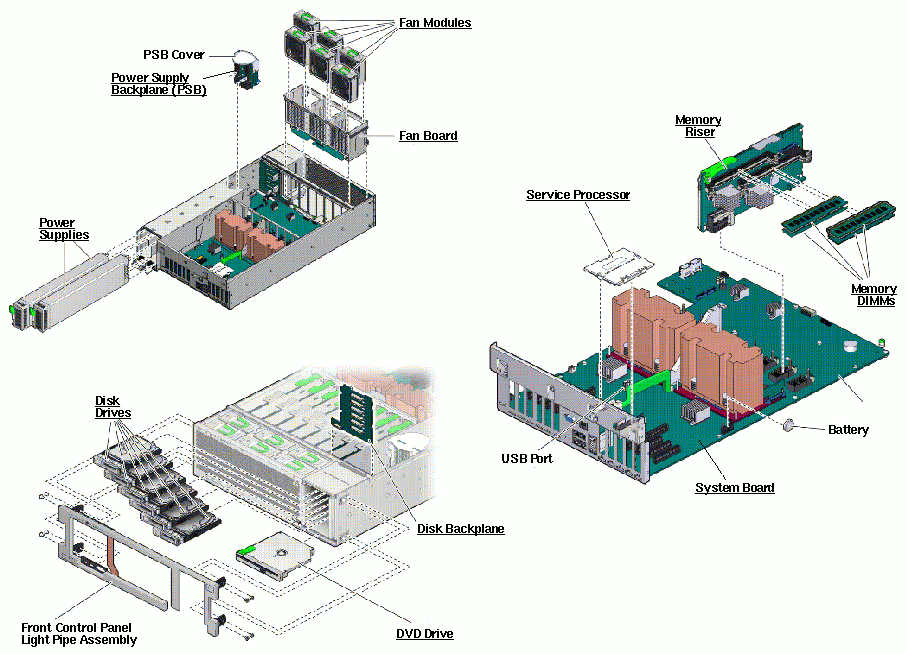

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
-	341-2610	PCI Filler Panel
NS	341-6188	Power Supply Chassis Cable Cover
NS	350-1288	DIMM Slot Filler
NS	350-1383	Top Cover
NS	150-4065	Interlock Switch Magnet
NS	350-1392	Front Bezel
NS	530-3510	Interlock Switch Cable
NS	530-3895	4x Mini SAS Cable, SFF-8087 to SFF-8087, 530mm
NS	530-4287	Fan Board to System Board Signal Cable
NS	530-4288	Fan Board to System Board Power Cable
NS	530-4289	System Board to PDB Cable
NS	530-4290	System Board to Disk Backplane Signal Cable
NS	530-4291	System Board to Disk Backplane Power Cable
NS	530-4348	System Board to Rear I/O Board Signal Cable
NS	530-4356	AC Input Line Filter with Cable
