Sun Server X4-8 - Full Components List

Backplane/Centerplane
Batteries
CPU Module
Cables
Chassis
Communication
Disks

Ethernet
Fan
Fibre Channel
I/O
Memory
Power
Rack

SCSI
System Board
Exploded View
Wiring Diagram

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Backplane/Centerplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7054513 [F]	Busbar/Midplane Assembly	n/a
	7064783	Busbar Subassembly	n/a
	7064025	Busbar	n/a
	7077135	Midplane Subassembly	n/a
	7073864	Midplane	n/a

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	150-3993 [C] Buy	3V Lithium Coin Cell Battery	n/a

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7080100 [F]	CPU Heatsink	n/a
n/a	7080240	CPU Installation/Removal Tool	n/a
n/a	7083528 [F]	2.8GHz 15-Core Intel Xeon E7-8895 v2, 155W	n/a
n/a	7084469 [F]	CPU/Memory Compute Module Assembly (CMOD)	n/a
	7084467	CMOD Chassis	n/a
	7084468	CPU/Memory Board Assembly	n/a
	7084601	CPU/Memory Board	n/a
n/a	7094599 [F]	CPU/Memory Compute Module Assembly (CMOD)	7084469 [F]
	7084467	CMOD Chassis	n/a
	7094598	CPU/Memory Board Assembly	n/a
	7092009	CPU/Memory Board	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
7102869 Buy	7039990 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 10M	n/a
7102870 Buy	7039999 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 20M	n/a
7102871 Buy	7040001 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 50M	n/a
X2121A-1M-N Buy	530-4444 [C]	10Gbps QSFP to QSFP Cable, 1m	n/a
X2121A-2M Buy	530-4567 [C]	10Gbps QSFP to QSFP Cable, 2m	n/a
X2121A-3M-N Buy	530-4445 [C]	10Gbps QSFP to QSFP Cable, 3m	n/a
X2121A-5M-N Buy	530-4446 [C]	10Gbps QSFP to QSFP Cable, 5m	n/a
X2130A-1M-N Buy	530-4441 [C]	10Gbps SFP+ TwinX Cable, 1m	n/a
X2130A-3M-N Buy	530-4442 [C]	10Gbps SFP+ TwinX Cable, 3m	n/a
X2130A-5M-N Buy	530-4443 [C]	10Gbps SFP+ TwinX Cable, 5m	n/a
n/a	530-3100 [C]	RJ45F to DB9F Adapter	n/a
n/a	7064767 ¹ [C]	4x Mini SAS Cable, SFF-8087 to 90 SFF-8087, 280mm	n/a
n/a	7084503 [C]	Cable Kit	n/a
	7064165	AC LED to Midplane Cable	n/a
	7075257	AC LED Board	n/a
	7073884	AC OK LED Board	n/a

¹ Cable 7064767 is used in the standard configuration of the SMOD. It connects the RAID HBA to the SMOD Controller.

Chassis
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7076547	Chassis Assembly	n/a
	7054505	Chassis Subassembly	n/a
	7025969	20A AC Input Line Filter	n/a
	7060153	AC Ground Cable	n/a
	7063266	Chassis	n/a
	7075019	Power Supply Cable Assembly	n/a
	7059728	Power Supply Cable	n/a
	7076663	Bracket	n/a
	7075285	Top Cover	n/a
	7064165	AC LED to Midplane Cable	n/a
	7075257	AC LED Board	n/a
	7073884	AC OK LED Board	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
7104074 Buy	7092757 [C]	Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3	7046442 [C]
n/a	7046442 [C]	Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
7105214 [S]	7064135 [C]	600GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7045228	Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk)	n/a
	7066795	Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
7106617 [S]	7045850 [C]	1.2TB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7045846	Hitachi HUC101212CSS600 [H101212SESUN1.2T] (1.2TB - 10000 RPM - SAS Disk)	n/a
	7082883	Hitachi HUC101212CSS600 [H101212SESUN1.2T] (1.2TB - 10000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
7107550 [S]	7077233 [C]	400GB Solid State SATA Drive Assembly	n/a
	7076379	400GB 2.5" SATA-3 Solid State Drive Intel SSDSC2BA400G3S [ITVSC2BA3SUN400G]	n/a
	541-2123	Marlin 2.5" Bracket	n/a
n/a	542-0287 [C] Buy	600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks;	n/a
	390-0488	Hitachi HUC106060CSS600 [H106060SDSUN600G] (600GB - 10000 RPM - SAS Disk)	n/a
	390-0491	Seagate ST9600205SS [ST960005SSUN600G](600GB 10000 RPM SAS Disk)	n/a
	7045228	Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
7100477 Buy	7070195 [C]	Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP	n/a
7100488 Buy	7070006 [C]	Dual 10-Gigabit Base-T PCI Express Gen2	n/a
X1109A-Z Buy	7051223 [C]	Dual 10-Gigabit PCI Express Ethernet SFP+ LP	n/a
X2129A-N Buy	530-4449 [C]	10Gb/Sec Short Wave SFP+ Transceiver	n/a
X5562A-Z Buy	135-1205 [C]	10Gb/Sec Long Wave SFP+ Transceiver	n/a
X2124A [S]	7326504 [C]	10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver	135-1204 [C]
n/a	135-1204 [C]	10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7083755	Fan Module, 80x76mm, 13000 RPM	n/a
n/a	7084119	Fan Frame	n/a
n/a	7091709	Fan Frame	7084119
n/a	7091860 [C]	Fan Module, 80x76mm, 13000 RPM	7083755
n/a	7083743	80x76mm Dual Counter Rotating Fan, 13500/11600 RPM	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
7101674 Buy	7023303 [C]	Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic	n/a
7101676 Buy	7023325 [C]	Pair of 16Gbps Short Wave SFP+	n/a
7101676 Buy	7023324	16Gb/Sec Short Wave SFP+ Transceiver, QLogic	n/a
7101678 Buy	7023315 [C]	Pair of 10Gbps Short Wave SFP+	n/a
7101678 Buy	7023316	10Gb/Sec Short Wave SFP+ Transceiver, QLogic	n/a
7101680 Buy	7023066 [C]	Pair of 16Gbps Long Wave SFP+	n/a
7101684 Buy	7023036 [C]	Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex	n/a
7101686 Buy	7023059 [C]	Pair of 16Gbps Short Wave SFP+	n/a
7101688 [S]	7023057 [C]	Pair of 10Gbps Short Wave SFP+	n/a
7101688 [S]	7023046	10Gb/Sec Short Wave SFP+ Transceiver, Emulex	n/a
SG-XPCIE2FC-EM8-N [S]	7053434 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex	n/a
SG-XPCIE2FC-QF8-N [S]	371-4325 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a

I/O
Option #	Manufacturing Part #	Description	Previous Part #
n/a	351-0009	PCI Express Filler Panel, Low Profile	n/a
n/a	7084488 [F]	Front Indicator Module (FIM)	n/a
	7057505	Front Circuit Board	n/a
	7074700	Ribbon Cable, 460mm	n/a
	7084487	Rear Circuit Board	n/a
	7082596	Front Circuit Board, FIM1	n/a
	7084756	FIM Chassis Assembly	n/a
	7098638	Rear Circuit Board	n/a
	7082596	Front Circuit Board, FIM1	n/a
n/a	7094766 [C]	Dual PCI Express Card Carriers (DPCC)	n/a
	7073880	Dual PCI Express Board	n/a
	7094765	DPCC Chassis	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
7106840 [S]	7076173 [C]	16GB 1.35V DDR3L-1600 DIMM	n/a
7106841 [S]	7073781 [C]	32GB 1.35V DDR3L-1600 Load Reduced DIMM	n/a
n/a	7038488 [C]	4GB USB 2.0 Flash Drive	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7081596 [C]	Type A261 3000 Watt AC Input Power Supply	n/a

Rack
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7090552 [C]	Rackmount Kit	n/a
	7090551	Spacer Kit	n/a
	7090644	Rail Kit	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
7107092 [S]	7069200 [C]	800GB PCI Express Flash Accelerator F80 SAS HBA	n/a
n/a	7047503 [C]	8-Port 6Gbps SAS-2 RAID PCI Express HBA, B4 ASIC	n/a
n/a	7050794 [C]	6Gbps SAS-2 RAID PCI Battery Module, BBU08	n/a

NOTE: RAID HBA and BBU part numbers 7047503 and 7050794 support internal disks within the SMOD.

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7084582 [F]	System Module Assembly (SMOD)	n/a
	7078321	4-Slot Disk Cage Assembly	n/a
	7064572	4-Slot Disk Cage	n/a
	7073882	4-Slot Disk Backplane	n/a
	7082586	System Module Controller Subassembly	n/a
	7057962	System Module PCI Express Riser	n/a
	7083566	System Module Controller	n/a
	150-3993 [C] Buy	3V Lithium Coin Cell Battery	n/a
	7084581	SMOD Chassis Assembly	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Exploded View

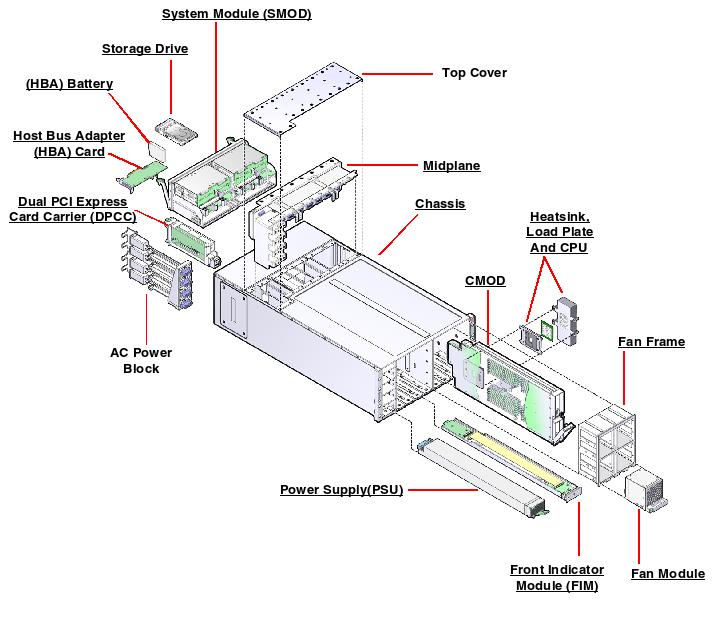

Sun Server X4-8 Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
NS	541-2629	2.5" Disk Drive Filler Panel
NS	330-4577	Disk Filler Bezel
