Sun Fire V890 2100 - Full Components List

Backplane/Centerplane
Cables
Communication
Disks
Ethernet
Fan
Fibre Channel

I/O
Memory
Power
Rack
Removable Media
System Board
Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Backplane/Centerplane
Option #	Manufacturing Part #	Description	Previous Part #
X6885A-Z [S]	594-3779	Storage Expansion Kit, includes a backplane, cables and 6 of the following disks:	n/a
	501-7235 [F]	6-Slot FC-AL Disk Backplane - Loop B	n/a
	530-3774 [F]	Disk 6-11 Power and ID Cable	n/a
	530-4250 [F]	35cm FC-AL Cable 6-11 A/B ro 0-5 F/E	530-3730 [F]
	530-4251 [F]	70cm FC-AL Cable 6-11 C/D to 0-5 F/E	530-3731 [F]
	540-6487 [C]	146GB - 15000 RPM FC-AL, Disk Assembly with one of the following disks:	n/a
	341-1986	Plate	n/a
	390-0196	Seagate ST3146854FC [ST314685FSUN146G] (146GB - 15000 RPM - FC-AL Disk)	n/a
	390-0264	Fujitsu MAX3147FC [MAX3147FCSUN146G] (146GB - 15000 RPM - FC-AL Disk)	n/a
	390-0328	Seagate ST3146855FC [ST314655FSUN146G] (146GB - 15000 RPM - FC-AL Disk)	n/a
	390-0365	Hitachi HUS153014VLF400 [HUS1514FBSUN146G] (146.8GB - 15000 RPM - FC-AL Disk)	n/a
	540-3024	1" SPUD Bracket	n/a
X7858A-Z [S]	594-3315	FC-AL Backplane Assembly - no disk drives	n/a
	501-7235 [F]	6-Slot FC-AL Disk Backplane - Loop B	n/a
	530-3774 [F]	Disk 6-11 Power and ID Cable	n/a
	530-4250 [F]	35cm FC-AL Cable 6-11 A/B ro 0-5 F/E	530-3730 [F]
	530-4251 [F]	70cm FC-AL Cable 6-11 C/D to 0-5 F/E	530-3731 [F]
n/a	530-3731 [F]	70cm FC-AL Cable 6-11 C/D to 0-5 F/E	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
X312L [S]	Localized Power Cord Kit - Continental Europe
X312L [S]	180-1993 [C]	IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black	n/a
X314L [S]	Localized Power Cord Kit - Swiss
X314L [S]	7049124 [C]	IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black	180-1994 [C]
X317L [S]	Localized Power Cord Kit - U.K.
X317L [S]	180-1997 [C] Buy	IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black	n/a
X320A [S]	Localized Power Cord Kit - North America/Asia
X320A [S]	180-2164 [C] Buy	IEC 320 C13 to NEMA 6-15P - 10A/250V 2.0M Black	n/a
X332T [S]	International Power Cord Kit
X332T [S]	180-2071 [C]	Blue 16A IEC 309 to IEC 320 C13 International 4.0M	n/a
X336L [S]	U.S. Power Cords 4-Pack
X336L [S]	180-2070 [C]	NEMA L6-20P to IEC 320 C13 - 4.0M	n/a
X337L [S]	International Power Cords 4-Pack
X337L [S]	180-2071 [C]	Blue 16A IEC 309 to IEC 320 C13 International 4.0M	n/a
X338L [S]	U.S. Watertight Power Cords 4-Pack
X338L [S]	180-2072 [C]	Blue 20A Watertight IEC 309 to IEC 320 C13, 4.0M	n/a
X339L [S]	International Watertight Power Cords 4-Pack
X339L [S]	180-2073 [C] [S]	Blue 16A Watertight IEC 309 to IEC 320 C13 4.0M	n/a
X340L [S]	Power Kit for North America, L6-20 20A Twist Lock Plug
X340L [S]	180-2070 [C]	NEMA L6-20P to IEC 320 C13 - 4.0M	n/a
X383L [S]	Localized Power Cord Kit - Danish
X383L [S]	180-1995 [C]	IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black	n/a
X384L [S]	Localized Power Cord Kit - Italian
X384L [S]	180-1996 [C]	IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black	n/a
X386L [S]	Localized Power Cord Kit - Australian
X386L [S]	180-1998 [C]	IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black	n/a
n/a	180-1994 [C]	IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black	n/a
n/a	530-3594 [F]	Serial Port Adapter (Y-Splitter) Cable, 50 cm	n/a
n/a	530-3730 [F]	35cm FC-AL Cable 6-11 A/B ro 0-5 F/E	n/a
n/a	530-3774 [F]	Disk 6-11 Power and ID Cable	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-7314 [F]	Advanced Lights Out Management (ALOM) Plus Card	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
XRA-FC1CB-146G15KZ [S]	540-6487 [C]	146GB - 15000 RPM FC-AL, Disk Assembly with one of the following disks:	n/a
	341-1986	Plate	n/a
	390-0196	Seagate ST3146854FC [ST314685FSUN146G] (146GB - 15000 RPM - FC-AL Disk)	n/a
	390-0264	Fujitsu MAX3147FC [MAX3147FCSUN146G] (146GB - 15000 RPM - FC-AL Disk)	n/a
	390-0328	Seagate ST3146855FC [ST314655FSUN146G] (146GB - 15000 RPM - FC-AL Disk)	n/a
	390-0365	Hitachi HUS153014VLF400 [HUS1514FBSUN146G] (146.8GB - 15000 RPM - FC-AL Disk)	n/a
	540-3024	1" SPUD Bracket	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
X4445A [S]	501-6738 [C]	Quad GigaSwift PCI-X Ethernet (QGE-X)	n/a
X7285A [S]	371-0911 [F]	Low Profile PCI-X Dual Gigabit Ethernet UTP	n/a
X7286A [S]	371-0912 [C]	Low Profile PCI-X Single Gigabit Ethernet MMF	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-1076 [F]	PCI I/O Fan Tray	n/a
n/a	541-1081 [F]	80MM Motherboard Fan Assembly	n/a
n/a	541-1106 [F]	CPU Fan Tray	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCI1FC-EM2 [S]	375-3304 [F]	2Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI1FC-EM4-Z [S]	375-3398 [F]	4Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI1FC-QF4 [S]	375-3354 [F]	4Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI1FC-QL2 [S]	375-3383 [F]	2Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI2FC-EM2 [S]	375-3305 [F]	2Gb PCI-X Dual FC Host Adapter	n/a
SG-XPCI2FC-EM4-Z [S]	7058528 [F]	4Gb PCI-X Dual FC Host Adapter	375-3399 [F]
SG-XPCI2FC-QF2-Z [S]	375-3363 [F]	2Gb PCI/PCI-X Dual FC Host Adapter	n/a
SG-XPCI2FC-QF2-Z [S]	240-4839	Low Profile Bracket	n/a
SG-XPCI2FC-QF4 [S]	7060890 [F]	4Gb PCI-X Dual FC Host Adapter	375-3294 [F]
X6727A [S]	375-3030 [F]	PCI Dual FC Host Adapter+	n/a
n/a	375-3294 [F]	4Gb PCI-X Dual FC Host Adapter	n/a
n/a	375-3399 [F]	4Gb PCI-X Dual FC Host Adapter	n/a

I/O
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-7707 [F]	I/O Board	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
X7051A-Z [S]	2 GB (4 × 512MB SDRAM DIMMs) Memory Option
X7051A-Z [S]	501-7385 [F]	512MB SDRAM DIMM	n/a
X7056A-Z [S]	4 GB (4 × 1GB SDRAM DIMMs)
X7056A-Z [S]	501-7386 [F]	1GB SDRAM DIMM	n/a
X7058A-Z [S]	8 GB (4 × 2GB SDRAM DIMMs) Memory Option
	540-6489 [F]	2GB SDRAM DIMM Assembly	n/a
	501-6242	2GB SDRAM DIMM	n/a
n/a	F511-1030 ¹ [F]	Package of 25 × 512MB SDRAM DIMMs [SKU]	n/a
n/a	501-7385 [F]	512MB SDRAM DIMM	n/a
n/a	F511-1031 ² [F]	Package of 25 × 1GB SDRAM DIMMs [SKU]	n/a
n/a	501-7386 [F]	1GB SDRAM DIMM	n/a

¹ See FAB article1000920.1 (formerly 201233) for details.
² See FAB article1000920.1 (formerly 201233) for details.

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	300-2017 [F]	Type A186A 1708 Watt AC Input Power Supply	n/a
n/a	375-3480 [F]	Power Distribution Board	n/a

Rack
Option #	Manufacturing Part #	Description	Previous Part #
X9628A-Z [S]	594-3317	Rack Mount Kit	n/a
	330-3200 [F]	Handle	n/a
	340-7486	Short Left Bracket	n/a
	340-7487	Short Right Bracket	n/a
	540-4828	Cable Routing Kit	n/a
	540-5092	Left Bracket Assembly	n/a
	540-5093	Right Bracket Assembly	n/a
	541-1823	Rack Rail and Tray Kit	n/a
	530-3096	Power Cord IEC 320-C13 to IEC 320 Sheet E 2.5M	n/a
X9638A-Z [S]	594-3821	Rack Mount Kit for Sun Rack 900	n/a
	340-6888	Left Front Rail Bracket	n/a
	340-6889	Left Rear Rail Bracket	n/a
	340-6890	Right Front Rail Bracket	n/a
	340-6891	Right Rear Rail Bracket	n/a
	540-4792	Rack Tray Kit	n/a
	530-3096	Power Cord IEC 320-C13 to IEC 320 Sheet E 2.5M	n/a

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
SG-XTAPDAT72-5F-2 [S]	380-1324 [F]	DAT 72 Internal Tape Drive, 5.25 inch/68 pin SCSI	n/a
n/a	390-0346 [F]	16x ATAPI DVD-ROM	n/a
n/a	541-2478	DVD-ROM Assembly	n/a
n/a	390-0405 [F]	16x ATAPI DVD-ROM	390-0346 [F]

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-7227 [F]	Motherboard	n/a
n/a	501-7713 [F]	CPU/Memory Board w/2 × USIV+ 2.1GHz, 0MB	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

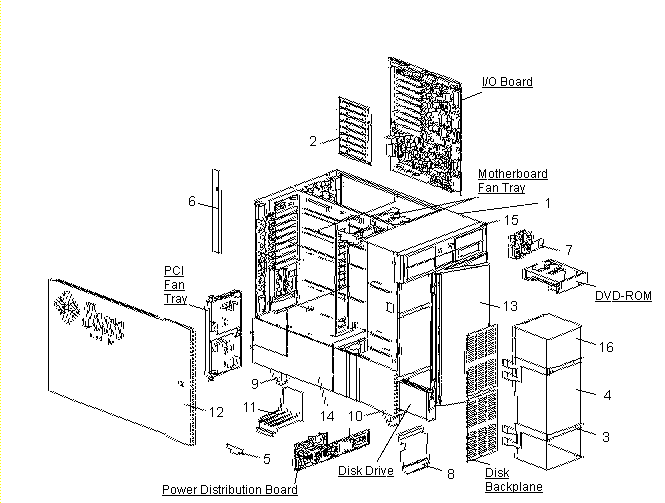

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
1	541-2171	V890 Base 2100 Chassis Assembly
15	541-1118	Removable Media Bezel
-	330-2399 [F]	5 1/4" Device External Filler Panel
-	330-2400 [F]	3 1/2" Device External Filler Panel
NS	541-1097	Removable Media Mounting Bracket
1	541-2172	Chassis Sub Assembly
NS	341-3165 ³	Power Supply Keying Block
	375-3480 [F]	Power Distribution Board
	501-7227 [F]	Motherboard
	501-7235 [F]	6-Slot FC-AL Disk Backplane - Loop B
2	330-3020	PCI Divider Base
3	370-3957	Lower Disk LED Flex Circuit
4	370-3958	Upper Disk LED Flex Circuit
5	370-3962 [F]	I/O Fan LED Flex Circuit
6	370-3964 [F]	PCI Internal LED Flex Circuit
7	541-1077 [F]	Keyswitch/Status Panel
8	540-4480	PCI Air Deflector
13	541-1099	Front Chassis Door - Purple
15	541-1118	Removable Media Bezel
-	330-2399 [F]	5 1/4" Device External Filler Panel
-	330-2400 [F]	3 1/2" Device External Filler Panel
NS	330-2919	PCI Slot Divider
NS	330-3835	CPU Slot C Air Diverter
NS	370-3963 [F]	PCI External LED Flex Circuit
NS	530-2548 [F]	RME Power Cable
NS	530-2746 [F]	I/O Signal Cable
NS	530-2835 [F]	PCI Internal Status Cable
NS	530-2836 [F]	PCI External Status Cable
NS	530-2837 [F]	CPU/Memory Board Status Assembly Cable
NS	530-2838 [F]	PCI/CPU/SCHIZO Fan Status Cable
NS	530-2839 [F]	I/O Board to Keyswitch/Status Panel Cable
NS	530-3596 [F]	Lower Disk (0-5) Power Cable
NS	530-3709 [F]	Fan Power Cable
NS	530-3711 [F]	Motherboard Power Cable
NS	530-3773 [F]	I2C Serial Data Cable
NS	530-3806 [F]	I/O Board Remote Sense Cable
NS	530-3807 [F]	I/O Board Power Cable
NS	530-3856 ⁴ [F]	ATAPI Data Cable to DVD-ROM
NS	530-4252 [F]	FC-AL Data Cable 85 cm
NS	530-3708 [F]	FC-AL Data Cable 85 cm
NS	541-1092 [F]	CPU Fan Status Panel
NS	541-1093	Schizo Fan Status Panel Assembly
NS	370-3960 [F]	Motherboard Fan Status Flex Circuit
NS	541-1103 [F]	CPU Status and Switch Panel
1	541-2223	Chassis Base Sub Assembly
1	541-2224 ⁵	Right CPU/Memory Mounting Bracket
1	541-2225	Left CPU/Memory Mounting Bracket
9	240-4063	Swivel Lock Caster
10	330-2793	Lower Side Skin
11	330-2874	PCI Fan Bracket
14	541-1083	Lower Side Chassis Panel
16	541-1095	Disk Drive Enclosure w/o Status Panels
18	541-1108	Left Side Chassis Panel
NS	341-2012	GBIC Filler Panel for Unused Slot Below ALOM
NS	341-2037	5 1/4" Device Internal Filler Panel
NS	341-2038	3 1/2" Device Internal Filler Panel
NS	341-2056	PCI Filler Panel
NS	341-2057	Front Flex Circuit Ground Filler Panel
NS	541-0129	CPU Filler Panel
NS	541-1080	Power Bay
NS	541-1084	I/O Board GBIC Canister
NS	541-1088	I/O Board Bottom Filler Panel
NS	541-1096	Video Option Filler Panel
NS	541-1107	Right Side Chassis Panel
NS	330-3797	AC Power Key / Door Key
NS	530-3096	Power Cord IEC 320-C13 to IEC 320 Sheet E 2.5M
NS	530-3707	RJ45 to RJ45 Category 5 Ethernet Cable - 4M
NS	530-3708 [F]	FC-AL Data Cable 85 cm

³ The A186A power supply is mechanically keyed to only fit in 541-2171 chassis.
⁴ Labeled 530-3523 in systems manufactured prior to approximately September 2006
⁵ Mounting brackets are keyed to prevent installation of USIV and USIV+ 1.5/1.8GHz CPUs
