Sun Fire T1000 - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Batteries
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 150-1204 1 [C] 3V Lithium Coin Cell Battery n/a
1 Field Engineers should stock this part and not have them shipped from Oracle stocking locations. See Global Systems TSC communication dated 10/12/12
Cables
Option # Manufacturing
Part #		 Description Previous
Part #
X311L [S] Localized Power Cord Kit - North America/Asia
180-1097 [C] Buy IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black n/a
X312E [S] Localized Power Code Kit - China
180-1982 [C] IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M n/a
X312F [S] Localized Power Cord Kit - Argentina
180-1999 [C] IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black n/a
X312G [S] Localized Power Cord Kit - Korea
180-1662 [C] Buy IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black n/a
X312L [S] Localized Power Cord Kit - Continental Europe
180-1993 [C] IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black n/a
X314L [S] Localized Power Cord Kit - Swiss
7049124 [C] IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black 180-1994 [C]
X317L [S] Localized Power Cord Kit - U.K.
180-1997 [C] Buy IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black n/a
X332T [S] International Power Cord Kit
180-2071 [C] Blue 16A IEC 309 to IEC 320 C13 International 4.0M n/a
X333A-25-10-IL [S] Localized Power Cord Kit Israel
180-2130 [C] Buy IEC 320 C13 to SI-32, 10A/250V, 2.5M, Black n/a
X333A-25-15-JP [S] Localized Power Cord Kit Japan
180-2243 [C] Buy IEC 320 C13 to PSE 5-15P, 10A/125V, 2.5M, Black n/a
X340L [S] Power Kit for North America, L6-20 20A Twist Lock Plug
180-2070 [C] NEMA L6-20P to IEC 320 C13 - 4.0M n/a
X383L [S] Localized Power Cord Kit - Danish
180-1995 [C] IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black n/a
X384L [S] Localized Power Cord Kit - Italian
180-1996 [C] IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black n/a
X386L [S] Localized Power Cord Kit - Australian
180-1998 [C] IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black n/a
n/a 180-1994 [C] IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black n/a
n/a 180-2121 [C] IEC 320 C13 to NEMA 5-15P - 10A/125V 2.5M Black n/a
n/a 530-3100 RJ45F to DB9F Adapter n/a
Communication
Option # Manufacturing
Part #		 Description Previous
Part #
X6000A 2 [S] 375-3424 [C] PCI Express Sun Crypto Accelerator 6000 n/a
2 Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec acceleration
Disks
Option # Manufacturing
Part #		 Description Previous
Part #
XRA-SS2CG-146G10KZ [S] 146GB - 10000 RPM SAS Disk Assembly option with 1 cable, 1 bracket and 1 (2 Disks) Assembly:
341-2929 Drive Mounting Bracket n/a
530-3810 [C] Two Disk Cable n/a
541-2291 [C] 146GB - 10000 RPM SAS Disk Assembly with 1 of the following disks: n/a
  • Seagate ST9146802SS [ST914602SSUN146G]
    (146GB - 10000 RPM - SAS Disk)
 n/a
  • Fujitsu MBB2147RC [MBB2147RCSUN146G]
    (146GB - 10000 RPM - SAS Disk)
 n/a
  • Hitachi HUC101414CSS300 [H101414SCSUN146G]
    (146GB - 10000 RPM - SAS Disk)
 n/a
XRA-SS2CG-73G10KZ [S] Two 73GB SAS 10000 RPM Disk Assembly with 1 bracket, 1 cable and 2 of the following disks:
341-2929 Drive Mounting Bracket n/a
530-3810 [C] Two Disk Cable n/a
541-1959 [C] 73GB SAS 10000 RPM Disk n/a
  • Seagate ST973401SS [ST973401SSUN72G]
    (73GB - 10000 RPM - SAS Disk)
 n/a
  • Fujitsu MAY2073RC [MAY2073RCSUN72G]
    (73GB - 10000 RPM - SAS Disk)
 n/a
  • Seagate ST973402SS [ST973402SSUN72G]
    (73GB - 10000 RPM - SAS Disk)
 n/a
  • Fujitsu MBB2073RC [MBB2073RCSUN72G]
    (73.4GB - 10000 RPM - SAS Disk)
 n/a
  • Hitachi HUC101473CSS300 [H101473SCSUN72G]
    (73.4GB - 10000 RPM - SAS Disk)
 n/a
XRA-ST1CG-160G7K [S] 541-2286 [C] 160GB SATA 7200 RPM Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Hitachi HDT721616PLA380 [HDS7216SBSUN160G]
    (160GB - 7200 RPM - SATA Disk)
 n/a
  • 341-1136
  • Drive Mounting Bracket
 n/a
XRA-ST1CG-80G7K [S] 541-1428 3 [C] 80GB SATA 7200 RPM Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Hitachi HDS728080PLA380 [HDS7280SASUN80G]
    (80GB - 7200 RPM - SATA Disk)
 n/a
  • 341-1136
  • Drive Mounting Bracket
 n/a
n/a 540-7727 [C] 250GB SATA 7200 RPM Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Seagate ST3250310NS [ST32502NSSUN250G]
    (250GB - 7200 RPM - SATA Disk)
 n/a
  • 530-3810 [C]
  • Two Disk Cable
 n/a
  • 341-1136
  • Drive Mounting Bracket
 n/a
n/a 541-3004 Nemo Bracket with Insulator n/a
3 Disk Assembly 541-1428 shipped with disk drive 390-0296 in pre-production systems.
NOTE: The Sun Fire T1000 server supports a diskless configuration.
Ethernet
Option # Manufacturing
Part #		 Description Previous
Part #
X1027A-Z [S] 7054890 [C] PCI Express Dual 10-Gigabit Ethernet Fiber 501-7283 [C]
X4447A-Z [S] 371-2348 Bracket Standard n/a
7055021 [C] Quad Port GbE PCI Express, UTP 511-1422 [C]
  • 371-2207
  • Bracket Low-Profile
 n/a
X7280A-2 [S] 371-0905 [C] PCI Express Dual Gigabit Ethernet UTP n/a
X7281A-2 [S] 7056733 [C] PCI Express Dual Gigabit Ethernet MMF 371-0904 [C]
n/a 371-0904 [C] PCI Express Dual Gigabit Ethernet MMF n/a
n/a 501-7283 [C] PCI Express Dual 10-Gigabit Ethernet Fiber n/a
n/a 501-7606 [C] PCI Express Quad Gigabit Ethernet UTP n/a
  • 371-2207
  • Bracket Low-Profile
 n/a
  • 371-2348
  • Bracket Standard
 n/a
n/a 511-1422 [C] Quad Port GbE PCI Express, UTP 501-7606 [C]
  • 371-2207
  • Bracket Low-Profile
 n/a
Fan
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 541-0582 [C] Fan Assembly n/a
Fibre Channel
Option # Manufacturing
Part #		 Description Previous
Part #
SG-XPCIE1FC-EM4 [S] 375-3396 [C] 4Gigabit/Sec PCI Express Single FC Host Adapter n/a
7053428 [C] 4Gigabit/Sec PCI Express Single FC Host Adapter n/a
SG-XPCIE1FC-QF4 [S] 375-3355 [C] 4Gigabit/Sec PCI Express Single FC Host Adapter n/a
SG-XPCIE2FC-EM4 [S] 375-3397 [C] 4Gigabit/Sec PCI Express Dual FC Host Adapter n/a
7053427 [C] 4Gigabit/Sec PCI Express Dual FC Host Adapter n/a
SG-XPCIE2FC-QF4 [S] 375-3356 [C] 4Gigabit/Sec PCI Express Dual FC Host Adapter n/a
I/O
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 541-0584 PCI Express Riser Assembly n/a
  • 341-1140
  • Riser Bracket
 n/a
  • 501-7128
  • PCI Express Riser Board
 n/a
NOTE:
  • SPARC Platforms (Sun Fire T1000/T2000) Device Path Information (article 1005907.1)
    		•
    Memory
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    X7800A [S] 1GB (2 × 512MB DDR2) Memory Expansion Kit
    370-6207 [C] 512MB DDR2 DIMM, 533 MHz n/a
    X7801A [S] 2GB (2 × 1GB DDR2) Memory Expansion Kit
    370-6208 [C] 1GB DDR2 DIMM, 533 MHz n/a
    X7802A [S] 4GB (2 × 2GB DDR2) Memory Expansion Kit
    370-6209 [C] 2GB DDR2 DIMM, 533 MHz n/a
    X7803A [S] 8GB (2 × 4GB DDR2) Memory Expansion Kit
    370-6210 [C] 4GB DDR2 DIMM n/a
    NOTE: Memory DIMMs must be installed four at a time (with one pair on each controller). All DIMMs must have identical capacity. Two basic memory configurations are supported: 4-DIMM or 8-DIMM.
    Power
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 300-1799 [C] Type A207 300 Watt AC Input Power Supply n/a
    Rack
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 371-0098 [F] Slide Rail Kit w/Spacing Tool n/a
    n/a 371-0722 Cable Management Bracket n/a
    SCSI
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    SG-XPCIE2SCSIU320Z [S] 7050790 [C] Dual-Channel Ultra320 LVD SCSI PCI Express Adapter 375-3357 [C]
    SG-XPCIE8SAS-E-Z [S] 7050793 [C] PCI Express 8-Port Host Adapter 375-3487 [C]
    SGXPCIESAS-R-EXT-Z [S] 371-3253 [C] Lithium Ion Battery Module n/a
    375-3537 [C] 8-Port SAS RAID External HBA n/a
    n/a 375-3357 [C] Dual-Channel Ultra320 LVD SCSI PCI Express Adapter n/a
    n/a 375-3487 [C] PCI Express 8-Port Host Adapter n/a
    System Board
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 541-1035 8-Core UltraSPARC T1 0MB/1.0GHz System Board n/a
    • System Board
    		 n/a
      • 3V Lithium Coin Cell Battery
    		n/a
      • 525-2146 [F]
      • SSCC NVRAM
    		 n/a
    n/a 541-1037 6-Core UltraSPARC T1 0MB/1.0GHz System Board n/a
    • System Board
    		 n/a
      • 3V Lithium Coin Cell Battery
    		n/a
      • 525-2146 [F]
      • SSCC NVRAM
    		 n/a
    n/a 541-2134 6-Core UltraSPARC T1 0MB/1.0GHz System Board n/a
    • System Board
    		 n/a
      • 3V Lithium Coin Cell Battery
    		n/a
      • 525-2146 [F]
      • SSCC NVRAM
    		 n/a
    n/a 541-2160 8-Core UltraSPARC T1 0MB/1.0GHz System Board n/a
    • System Board
    		 n/a
      • 3V Lithium Coin Cell Battery
    		n/a
      • 525-2146 [F]
      • SSCC NVRAM
    		 n/a
    4 Field Engineers should stock this part and not have them shipped from Oracle stocking locations. See Global Systems TSC communication dated 10/12/12
    5 Field Engineers should stock this part and not have them shipped from Oracle stocking locations. See Global Systems TSC communication dated 10/12/12
    6 Field Engineers should stock this part and not have them shipped from Oracle stocking locations. See Global Systems TSC communication dated 10/12/12
    7 Field Engineers should stock this part and not have them shipped from Oracle stocking locations. See Global Systems TSC communication dated 10/12/12
    Whole System FRU
    Option # Manufacturing
    Part #    		 Description Previous
    Part #
    n/a 541-1230 [C] 6-Core 1.0GHz Chassis Assembly w/o Power Supply n/a
    • 530-3411
    • Disk Drive Data/Power Cable
    		 n/a
    • 6-Core UltraSPARC T1 0MB/1.0GHz System Board
    		 n/a
      • System Board
    		 n/a
        • 3V Lithium Coin Cell Battery
    		n/a
        • 525-2146 [F]
        • SSCC NVRAM
    		 n/a
    n/a 541-1231 [C] 8-Core 1.0GHz Chassis Assembly w/o Power Supply n/a
    • 530-3411
    • Disk Drive Data/Power Cable
    		 n/a
    • 8-Core UltraSPARC T1 0MB/1.0GHz System Board
    		 n/a
      • System Board
    		 n/a
        • 3V Lithium Coin Cell Battery
    		n/a
        • 525-2146 [F]
        • SSCC NVRAM
    		 n/a
    n/a 541-2024 11 [C] 6-Core 1.0GHz Chassis Assembly w/o Power Supply n/a
    • 6-Core UltraSPARC T1 0MB/1.0GHz System Board
    		 n/a
      • System Board
    		 n/a
        • 3V Lithium Coin Cell Battery
    		n/a
        • 525-2146 [F]
        • SSCC NVRAM
    		 n/a
    n/a 541-2025 13 [C] 8-Core 1.0GHz Chassis Assembly w/o Power Supply n/a
    • 8-Core UltraSPARC T1 0MB/1.0GHz System Board
    		 n/a
      • System Board
    		 n/a
        • 3V Lithium Coin Cell Battery
    		n/a
        • 525-2146 [F]
        • SSCC NVRAM
    		 n/a
    n/a 541-2132 [C] 6-Core 1.0GHz Chassis Assembly w/o Power Supply n/a
    • 6-Core UltraSPARC T1 0MB/1.0GHz System Board
    		 n/a
      • System Board
    		 n/a
        • 3V Lithium Coin Cell Battery
    		n/a
        • 525-2146 [F]
        • SSCC NVRAM
    		 n/a
    n/a 541-2133 [C] 8-Core 1.0GHz Chassis Assembly w/o Power Supply n/a
    • 8-Core UltraSPARC T1 0MB/1.0GHz System Board
    		 n/a
      • System Board
    		 n/a
        • 3V Lithium Coin Cell Battery
    		n/a
        • 525-2146 [F]
        • SSCC NVRAM
    		 n/a
    8 Field Engineers should stock this part and not have them shipped from Oracle stocking locations. See Global Systems TSC communication dated 10/12/12
    9 Field Engineers should stock this part and not have them shipped from Oracle stocking locations. See Global Systems TSC communication dated 10/12/12
    10 Field Engineers should stock this part and not have them shipped from Oracle stocking locations. See Global Systems TSC communication dated 10/12/12
    11 541-2024 is backward compatible with F541-1230
    12 Field Engineers should stock this part and not have them shipped from Oracle stocking locations. See Global Systems TSC communication dated 10/12/12
    13 541-2025 is backward compatible with F541-1231
    14 Field Engineers should stock this part and not have them shipped from Oracle stocking locations. See Global Systems TSC communication dated 10/12/12
    15 Field Engineers should stock this part and not have them shipped from Oracle stocking locations. See Global Systems TSC communication dated 10/12/12

    Table Legend
    [F] = Field Replaceable Unit (FRU)
    [C] = Customer Replaceable Unit (CRU)
    [A] = Alternate, can be used in system; wasn't used during production
    [S] = Supported, but can no longer be ordered with this system
    [N] = No longer supported for this system
    Price = Price this Part

    Exploded View

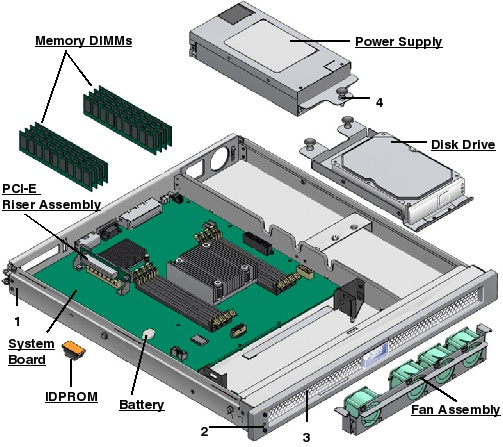

    Sun Fire T1000 Exploded View
    Table Legend
    [F] = Field Replaceable Unit (FRU)
    [C] = Customer Replaceable Unit (CRU)
    [A] = Alternate, can be used in system; wasn't used during production
    [S] = Supported, but can no longer be ordered with this system
    [N] = No longer supported for this system
    Price = Price this Part
    NS = Not Shown

    Code Manufacturing Part# Description
    1 541-0579 Chassis Subassembly
    1
    • 541-0581
    • Chassis
    2
    • Front LED Assembly
    2
      • 330-3968
      • Lightpipe
    2
      • 501-7304
      • LED Board
    NS
    • 530-3486
    • System Board to LED Board Cable
    • 541-0582 [C]
    • Fan Assembly
    NS
    • 541-1874 [C]
    • Top Cover w/Label
    NS
      • 263-2106
      • Service Label
    NS
      • 541-0606
      • Top Cover
    3 541-0607 Front Bezel
    4 341-1167 Rear Power Supply Bracket
    NS 240-4647 PCI filler panel
    NS 330-4013 Sun Logo
    NS 330-4046 Sun Fire T1000 Nameplate
    NS 341-2304 Sun 72" Rack Adapter Bracket
    NS 530-2889 RJ45 to DB25 Serial Port Adapter
    NS 530-3411 Disk Drive Data/Power Cable
    NS 530-3623 [C] Shielded RJ45 to RJ45 Cable, 4M
      Copyright © 2018 Oracle and/or its affiliates.  All rights reserved.
     Feedback
