Sun Fire T1000

501-7302 541-1035 541-1037 0MB w/o CPU FAB 270-7014 0MB Assembly UltraSPARC T1 8-Core 1.0GHz 0MB Assembly UltraSPARC T1 6-Core 1.0GHz

541-1230 541-1231 0MB System FRU 6-Core 1.0GHz 0MB System FRU 8-Core 1.0GHz 541-2024 541-2025 0MB System FRU 6-Core 1.0GHz 0MB System FRU 8-Core 1.0GHz

Headers and Jumpers

LOCATION	PINS	SETTING	DESCRIPTION
J0201	2	n/a	Unknown (header not installed)
J2003	2	n/a	Unknown (header not installed)
J5304	2	Out	Unknown
J5901	10	Out	Unknown
J6301	2	Out	Unknown
J6852	2	Out	Unknown
J6853	10	Out	Unknown
J6867	2	In	Unknown

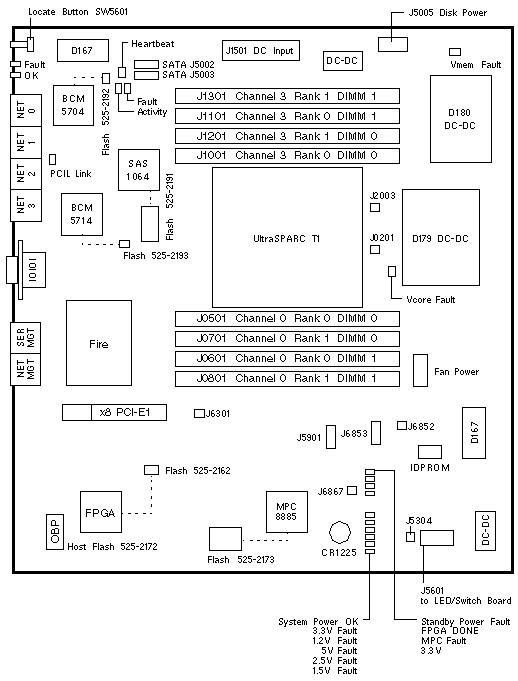

Sun Fire T1000 Codename: Erie

Notes

1. The Sun Fire T1000 assembly 541-1230 and 541-1231 codename is Erie.
2. The Sun Fire T1000 assembly 541-2024 and 541-2025 codename is Erie+.
3. The minimum operating system is Solaris 10 1/06.
4. The minimum T1000 memory requirement is four Rank 0 DIMMs.
5. An example error message from the DIMM in J1301 is MB/CMP0/CH3/R1/D1 .

References

1. Sun Fire T1000 Server Documentation.

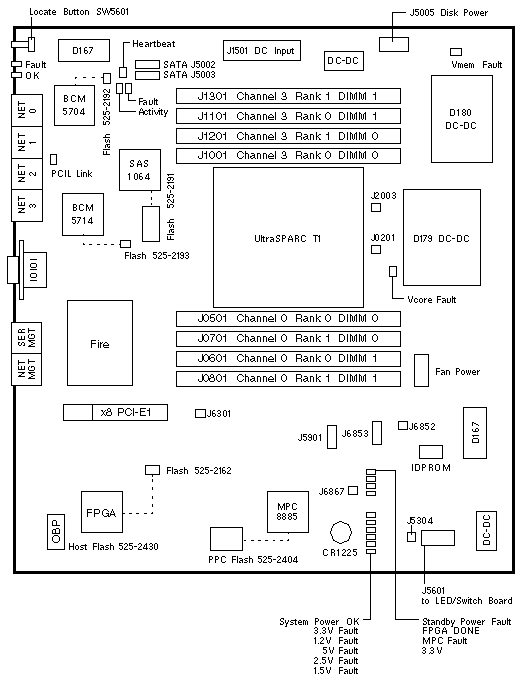

Sun Fire T1000 Codename: Erie

Notes

1. The Sun Fire T1000 assembly 541-2132 and 541-2133 codename is Erie++ or Erie3.
2. The minimum operating system is Solaris 10 1/06.
3. The minimum T1000 memory requirement is four Rank 0 DIMMs.
4. An example error message from the DIMM in J1301 is MB/CMP0/CH3/R1/D1 .

References

1. Sun Fire T1000 Server Documentation.
