SPARC T8-2 - Full Components List
|
|
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
|
|
|
|
Batteries
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
371-2210
[C]  Buy
|
3V Lithium Coin Cell Battery
|
n/a |
|
Cables
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| 7102869 Buy
|
7039990 [C]
|
MPO to MPO High Bandwidth QSFP Optical Cable, 10M |
n/a |
| 7102870 Buy
|
7039999 [C]
|
MPO to MPO High Bandwidth QSFP Optical Cable, 20M |
n/a |
| 7102871 Buy
|
7040001 [C]
|
MPO to MPO High Bandwidth QSFP Optical Cable, 50M |
n/a |
| 7105148 |
CBL-SFP-2M [C]
|
SFP+ Passive Copper Cable, 2M [SKU] |
n/a |
| 7105199 Buy
|
7063849 [C]
|
InfiniBand Cable, QSFP, Optical, MPO to MPO, 5M |
n/a |
| 7105206 Buy
|
7063852 [C]
|
InfiniBand Cable, QSFP, Optical, MPO to MPO, 100M |
n/a |
| 7114369 Buy
|
7308821 [C]
|
MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 10M |
n/a |
| 7114370 Buy
|
7308822 [C]
|
MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 20M |
n/a |
| 7114371 Buy
|
7308823 [C]
|
MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 50M |
n/a |
| X2121A-1M-N Buy
|
530-4444 [C]
|
10Gbps QSFP to QSFP Cable, 1m |
n/a |
| X2121A-2M Buy
|
530-4567 [C]
|
10Gbps QSFP to QSFP Cable, 2m |
n/a |
| X2121A-3M-N Buy
|
530-4445 [C]
|
10Gbps QSFP to QSFP Cable, 3m |
n/a |
| X2121A-5M-N Buy
|
530-4446 [C]
|
10Gbps QSFP to QSFP Cable, 5m |
n/a |
| X2125A-1M-N Buy
|
530-4450 [C]
|
QSFP to 4× SFP+ Splitter Cable, 1m |
n/a |
| X2125A-3M-N Buy
|
530-4451 [C]
|
QSFP to 4× SFP+ Splitter Cable, 3m |
n/a |
| X2125A-5M-N Buy
|
530-4452 [C]
|
QSFP to 4× SFP+ Splitter Cable, 5m |
n/a |
| X2127A-10M Buy
|
530-4480 [C]
|
MPO to 4x LC Duplex Splitter Cable, 10m |
n/a |
| X2127A-20M Buy
|
530-4481 [C]
|
MPO to 4x LC Duplex Splitter Cable, 20m |
n/a |
| X2127A-50M Buy
|
530-4482 [C]
|
MPO to 4x LC Duplex Splitter Cable, 50m |
n/a |
| X2130A-1M-N Buy
|
530-4441 [C]
|
10Gbps SFP+ TwinX Cable, 1m |
n/a |
| X2130A-3M-N Buy
|
530-4442 [C]
|
10Gbps SFP+ TwinX Cable, 3m |
n/a |
| X2130A-5M-N Buy
|
530-4443 [C]
|
10Gbps SFP+ TwinX Cable, 5m |
n/a |
| n/a |
7089783 [C]
|
Two Cable Bundle, 8-Slot NVMe, PCI Express, 2xHD8i to 2x68P |
n/a |
|
- 72-Pin SFF-8643 to 90° SFF-8087 Cable, 2 and 3 to A, 465mm
|
n/a |
|
- 72-Pin SFF-8643 to 90° SFF-8087 Cable, 0 and 1 to B, 500mm
|
n/a |
| n/a |
7345868 [F]
|
Cable Kit [SKU] |
n/a |
|
- System Board to Disk Backplane Signal Cable
|
n/a |
|
- 36-Pin Mini SAS-3 Cable, SFF-8643 To SFF-8643, 175mm
|
n/a |
|
- Fan Board to System Board Signal Cable
|
n/a |
|
- Fan Board to System Board Power Cable
|
n/a |
|
- System Board to PDB Cable
|
n/a |
|
- System Board to Disk Backplane Power Cable
|
n/a |
|
Chassis
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
7351431 |
T8-2 Base Chassis Assembly |
n/a |
|
|
n/a |
|
- Power Distribution Board Cover
|
n/a |
|
|
n/a |
|
|
n/a |
|
|
n/a |
|
|
n/a |
|
|
n/a |
|
|
n/a |
|
- Fan Board with USB and VGA
|
n/a |
|
- Power Distribution Assembly
|
n/a |
|
|
n/a |
|
- Power Distribution Board / Power Supply Backplane
|
n/a |
|
- High Potential (Hipot) Test Passed Label
|
n/a |
|
- AC Input Line Filter with Cable
|
n/a |
|
|
n/a |
|
|
n/a |
|
Communication
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| 7104074 Buy
|
7092757
[C]
|
Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3 |
7046442
[C]
|
| n/a |
7046442
[C]
|
Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3 |
n/a |
|
Disk Backplane
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
7096096 [F]
|
6-Slot NVMe Backplane |
n/a |
|
Disks
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| 7111103 Buy
|
7093015 [C]
|
600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: |
n/a |
|
- Hitachi HUC101860CSS200 [H101860SFSUN600G] (600.0GB - 10000 RPM SAS Disk)
|
n/a |
|
|
n/a |
| 7111108 Buy
|
7093037 [C]
|
1.2TB - 10000 RPM SAS SFF Disk Assembly w 1 bracket and 1 of the following disks: |
n/a |
|
- Hitachi HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB - 10000 RPM - SAS DISK)
|
n/a |
|
|
n/a |
| 7115079 Buy
|
7330686 [C]
|
800GB SAS3 Solid State Drive Assembly |
n/a |
|
- HGST HUSMM3280ASS20 [HBCAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS3 Disk)
|
n/a |
|
|
n/a |
| 7115457 |
7340035 [C]
|
6.4TB NVMe Solid State Drive Assembly |
n/a |
|
- Intel SSDPE2KE064T7 [ICDPC2DD2ORA6.4T] (6.4TB - 2.5" Solid State - NVMe Disk, x4 PCI Express Gen 3)
|
n/a |
|
|
n/a |
| 7118670 |
7350766 [C]
|
1.2TB - 10000 RPM SAS Disk Assembly without Encryption (EAEU part - see note below) |
n/a |
|
- HGST HUC101812CSS204 [H1018124FSUN1.2T] (1.2TB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below)
|
n/a |
|
|
n/a |
| 7118672 |
7352257 [C]
|
600GB - 10000 RPM SAS Disk Drive Assembly without Encryption (EAEU part - see note below) |
n/a |
|
- HGST HUC101860CSS204 [H1018604FSUN600G] (600GB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below)
|
n/a |
|
|
n/a |
| 7118709 |
7350749 [C]
|
800GB SAS3 Solid State Disk Assembly without Encryption (EAEU part - see note below) |
n/a |
|
- HGST HUSMM3280ASS204 [HBSAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS3 Disk without Encryption) (EAEU part - see note below)
|
n/a |
|
|
n/a |
|
Ethernet
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| 7100477 Buy
|
7070195
[C]
|
Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP |
n/a |
| 7111181 |
7096675
[C]
|
Quad 10-Gigabit Base-T Ethernet |
n/a |
| 7114094 Buy
|
7305556
[C]
|
40GbE Long Wave QSFP+ Transceiver |
n/a |
| 7114134 Buy
|
7319817
[C]
|
Quad 10-Gigabit or Dual 40-Gigabit Ethernet QSFP+ |
n/a |
| X1109A-Z Buy
|
7051223
[C]
|
Dual 10-Gigabit PCI Express Ethernet SFP+ LP |
n/a |
| X2124A-N Buy
|
7326504
[C]
|
10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver |
n/a |
| X2129A-N Buy
|
530-4449
[C]
|
10Gb/Sec Short Wave SFP+ Transceiver |
n/a |
| X5562A-Z Buy
|
135-1205
[C]
|
10Gb/Sec Long Wave SFP+ Transceiver |
n/a |
| n/a |
7070006
[C]
|
Dual 10-Gigabit Base-T PCI Express Gen2 |
n/a |
| n/a |
7070202
[C]
|
Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF |
n/a |
|
Fan
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
7093647 |
Grey Plastic Air Divider w/ Fault Remind Button |
n/a |
| n/a |
7303158 [F]
|
Fan Cage Assembly |
n/a |
|
|
n/a |
|
- Fan Board with USB and VGA
|
n/a |
| n/a |
7336566 [C]
|
92x76mm Fan Module |
n/a |
|
Fibre Channel
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| 7101674 Buy
|
7023303
[C]
|
Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic |
n/a |
| 7101676 Buy
|
7023325
[C]
|
Pair of 16Gbps Short Wave SFP+ |
n/a |
|
- 16Gb/Sec Short Wave SFP+ Transceiver, QLogic
|
n/a |
| 7101678 Buy
|
7023315
[C]
|
Pair of 10Gbps Short Wave SFP+ |
n/a |
|
- 10Gb/Sec Short Wave SFP+ Transceiver, QLogic
|
n/a |
| 7101684 Buy
|
7023036
[C]
|
Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex |
n/a |
| 7101686 Buy
|
7023059
[C]
|
Pair of 16Gbps Short Wave SFP+ |
n/a |
|
- 16Gb/Sec Short Wave SFP+ Transceiver, Emulex
|
n/a |
| 7115461 |
7335907 1
[C]
|
Dual 32Gbps Fibre Channel Host Adapter |
n/a |
|
- Emulex Dual Port 32Gbps Fibre HBA
|
n/a |
|
- Pair of Emulex 32Gbps Short Wave SFP+ Transceivers
|
n/a |
|
- Emulex 32Gbps Short Wave SFP+ Transceiver
|
n/a |
| 7115462 |
7335902 2
[C]
|
QLogic Dual Port 32Gbps Fibre HBA |
n/a |
|
- QLogic Dual Port 32Gbps Fibre HBA
|
n/a |
|
- Pair of QLogic 32Gbps Short Wave SFP+ Transceivers
|
n/a |
|
- QLogic 32Gbps Short Wave SFP+ Transceiver
|
n/a |
1 7335907a-c are not a real Oracle part numbers. These physical parts do not have an Oracle part number. 7335907a-c are being used to help relate this non-part numbered part to the parent part that has a real Oracle part number.
2 7335902a is not a real Oracle part number. This physical part does not have an Oracle part number. 7335902a is being used to help relate this non-part numbered part to its parent part that has a real Oracle part number.
|
|
I/O
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
7064634 [C]
|
8-Port PCI Express Switch |
n/a |
|
- PCI Express Switch w/o Bracket or Heatsink
|
n/a |
|
Memory
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| 7118204 |
7325771
[C]
|
16GB DDR4-2400 Registered DIMM |
n/a |
| 7118205 |
7325772
[C]
|
32GB DDR4-2400 Registered DIMM |
n/a |
| 7118206 |
7325773
[C]
|
64GB DDR4-2400 Load Reduced DIMM |
n/a |
| 7119479 |
7358667
[C]
|
16GB DDR4-2666 Single Rank Registered DIMM (runs at 2400MHz) |
n/a |
| n/a |
7074618
[C]
|
2GB Embedded USB |
n/a |
| n/a |
7345330 [C]
|
Memory Riser Assembly |
n/a |
|
|
n/a |
|
- Memory Riser Board (fruid 7345331)
|
n/a |
|
Power
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
7317317 [F]
|
Power Distribution Assembly |
n/a |
|
|
n/a |
|
- Power Distribution Board / Power Supply Backplane
|
n/a |
|
- High Potential (Hipot) Test Passed Label
|
n/a |
| n/a |
7317843
[C]
|
Type A263 2000W AC Input Power Supply - India ISI Mark |
n/a |
| n/a |
7350779
[C]
|
Type A263 2000W AC Input Power Supply - Taiwan RoHS |
7317843
[C]
|
|
Rack
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
371-4791 [F] Buy
|
Tool-less Slide Rail Rack Mount Kit |
n/a |
| n/a |
371-4812 [F] Buy
|
Cable Management Arm |
n/a |
|
Removable Media
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| 7111911 3 Buy
|
7093727 |
External USB DVD Assembly |
n/a |
|
- USB DVD w/o AC adapter, USB cable, power cable,V2
|
n/a |
| 7093728 |
USB DVD AC Adapter & Cable Kit |
n/a |
|
|
n/a |
|
- USB DVD Adapter w/o Power Cable
|
n/a |
| n/a |
7304331 |
DVD Filler |
n/a |
3 In Japan, order X-Option 7111912.
|
|
SCSI
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| 7110119 Buy
|
7085208
[C]
|
8-Port 12Gbps SAS-3 HBA (External) |
n/a |
| 7115455 |
7335943
[C]
|
6.4TB Flash Accelerator F640 NVMe Card |
n/a |
|
System Board
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
7346999 [F]
|
System Board |
n/a |
|
|
n/a |
|
|
n/a |
|
- 32-Core 5.000HZ CPU Mezzanine (With CPU 7335419)
|
n/a |
|
- System Board (fruid 7346992)
|
n/a |
|
- 3V Lithium Coin Cell Battery
|
n/a |
|
|
n/a |
|
|
n/a |
|
- System Board to Rear I/O Board Signal Cable
|
n/a |
|
System Service Processor
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
7343771 [C]
|
Service Processor Assembly |
n/a |
|
|
n/a |
|
- Service Processor (Fruid 7343772)
|
n/a |
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
|

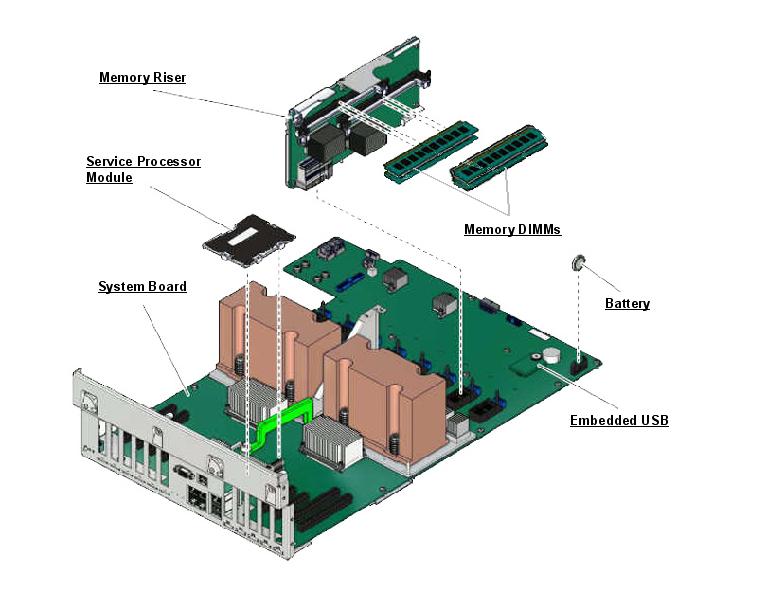

| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
|
| Code |
Manufacturing Part# |
Description |
| - |
150-4065 |
Interlock Switch Magnet |
| - |
341-2610 |
PCI Filler Panel |
| - |
530-3510 |
Interlock Switch Cable |
| - |
530-4287 |
Fan Board to System Board Signal Cable |
| - |
530-4288 |
Fan Board to System Board Power Cable |
| - |
530-4289 |
System Board to PDB Cable |
| - |
530-4291 |
System Board to Disk Backplane Power Cable |
| - |
530-4348 |
System Board to Rear I/O Board Signal Cable |
| - |
530-4356 |
AC Input Line Filter with Cable |
| - |
541-2629 |
2.5" Disk Drive Filler Panel |
| - |
|
|
|
