Oracle Server X6-2L for Communications - Full Components List

Batteries CPU Module Cables Chassis Disk Backplane Disks Ethernet Fan Memory Power Rack Removable Media SCSI System Board Exploded View	Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	370-5621	3V Coin Cell Battery	n/a

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7064884 [F]	Pre-Greased 2U CPU Heatsink	n/a
n/a	7080240	CPU Installation/Removal Tool	n/a
n/a	7313670 [F]	22-Core 2.2GHz Intel E5-2699 v4, 145W	n/a
n/a	7313671 [F]	14-Core 2.6GHz Intel E5-2690 v4, 135W	n/a
n/a	7313673 [F]	10-Core 2.2GHz Intel E5-2630 v4, 85W	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
n/a	530-4037	2-Slot 10-Pin Disk Backplane Power Cable	n/a
n/a	7014226 [C]	Interlock Cable, 125mm	n/a
n/a	7094267 1 [F]	24-Slot Backplane Cable Kit	n/a
	7064122	Left Indicator Ribbon Cable	n/a
	7064124	Right Indicator Ribbon Cable	n/a
	7064125	8-Pin Dc Power Cable, 394mm	n/a
	7064129	SFF-8087 to SATA to SATA Cable, 600mm/700mm	n/a
	7079291	26-Pin Ribbon Data Cable, 127mm	n/a
	7098662	8-Pin DC Power Cable, 322mm	n/a
	7301456	SFF-8643 to SFF-8087 to SFF-8087 Cable, 550mm/550mm	n/a

1 Use the 24-SlotCable Kit to repair 12-Slot NVMe Backplane cables.

Chassis
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7073297	2U Air Baffle	n/a
n/a	7073525	Chassis Assembly	n/a
	7061427	Midwall Subassembly	n/a
	7082078	Chassis Subassembly	n/a
	7303490	Rear Cover Assembly	n/a
	150-4065	Interlock Switch Magnet	n/a

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-4674	2-Slot Rear Disk Cage Assembly	n/a
	7012767	Rear Disk Cage	n/a
	7023515 2 [C]	2-Slot Backplane	n/a
n/a	7061283	24-Slot 2.5" Disk Cage Assembly	n/a
	341-7139	Right Ear Cover	n/a
	341-7140	Left Ear Cover	n/a
	7017231 [F]	Disk Backplane Right LED Indicator Module	n/a
	7023333	Right Indicator	n/a
	7064122	Left Indicator Ribbon Cable	n/a
	7064124	Right Indicator Ribbon Cable	n/a
	7069338 [F]	24-Slot Backplane and SAS Expander Assembly	n/a
	7063607	SAS Expander Assembly	n/a
	7064883	Heatsink	n/a
	7086648	SAS Expander	n/a
	7096411	24-Slot Backplane	n/a
	7096185 [F]	Left Indicator Assembly	n/a
	7096184	Left Indicator w/o Button or Lightpipe	n/a

2 Packaged FRU 7019623 includes 7023515 plus cables 7014930, 7014931, and 530-4037.

Disks
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7093037 [C]	1.2TB - 10000 RPM SAS SFF Disk Assembly w 1 bracket and 1 of the following disks:	n/a
	7093035	Hitachi HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB - 10000 RPM - SAS DISK)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
n/a	7330686 [C]	800GB SAS3 Solid State Drive Assembly	n/a
	7330684	HGST HUSMM3280ASS20 [HBCAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS3 Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
n/a	7350766 [C]	1.2TB - 10000 RPM SAS Disk Assembly without Encryption (EAEU part - see note below)	n/a
	7350764	HGST HUC101812CSS204 [H1018124FSUN1.2T] (1.2TB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below)	n/a
	541-2123	Marlin 2.5" Bracket	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
n/a	135-1205 [C]	10Gb/Sec Long Wave SFP+ Transceiver	n/a
n/a	530-4449 [C] Buy	10Gb/Sec Short Wave SFP+ Transceiver	n/a
n/a	7051223 [C]	Dual 10-Gigabit PCI Express Ethernet SFP+ LP	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7045042 [C]	Dual Counter Rotating Fan Module	n/a
	7045041	80×80mm Counter Rotating Fan	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7310244 [C]	16GB DDR4-2400 Registered DIMM	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7044130 [C]	Type A258 1000 Watt AC Input Power Supply	n/a
n/a	7335737 [C]	Type A258 1000 Watt AC Input Power Supply	7044130 [C]
n/a	7352200 [C]	Type A258 1000 Watt AC Input Power Supply	7335737 [C]  + 7044130 [C]

Rack
Option #	Manufacturing Part #	Description	Previous Part #
n/a	350-1719 [C]	1U/2U Snap-In Slide Rail Rackmount Kit	n/a
n/a	7042273 [C]	1U/2U Cable Management Arm (Snap-in)	n/a

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7096422	DVD Filler Panel	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7085211	Internal RAID HBA Assembly	n/a
	7070402	Double Sided Fastener, 1"x5"	n/a
	7085209 [F]	8-Port 12Gbps SAS3 Internal RAID HBA	n/a
	7086345 [F]	13.5V 6.4F Super Capacitor	n/a
	7086346 [F]	Super Capacitor Cable	n/a

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7306782 [F]	System Board Assembly	n/a
	7058900	Rear I/O Board	n/a
	7061401	System Board Tray	n/a
	7317946	System Board	n/a
	370-5621	3V Coin Cell Battery	n/a
	7345166	System Board	n/a
	370-5621	3V Coin Cell Battery	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

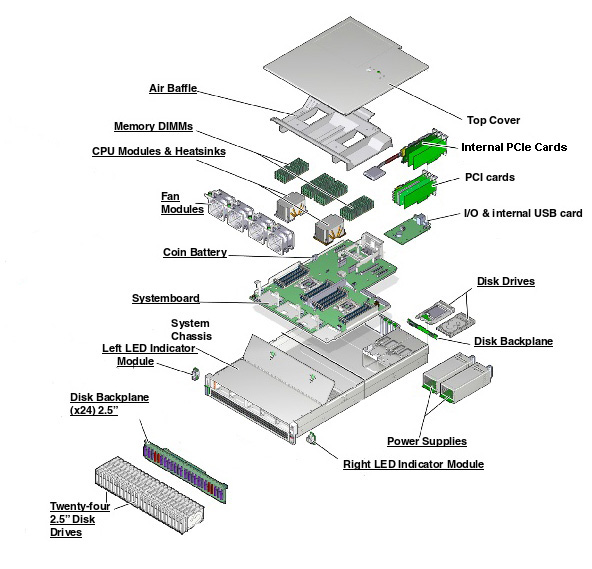

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
-	240-4674	PCI Express Filler Panel
NS	150-4065	Interlock Switch Magnet
NS	541-2629	2.5" Disk Drive Filler Panel
NS	330-4577	Disk Filler Bezel
NS	7012293 [F]	Fan Door for 12-Slot 2.5" Disk Configuration
NS	350-1812	Fan Door
NS	7015225	Top Cover Door Extender
NS	7014216	Rear Disk Filler Panel
