Oracle Exalytics In-Memory Machine X4-4 - Full Components List

Batteries CPU Module Cables Chassis Communication Disk Backplane Disks Ethernet Fan Fibre Channel Memory Power Rack SCSI System Board System Service Processor Exploded View	Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part
System Notes: This product is based on the Sun Server X4-4, but uses specialized components. Only use parts listed in the Exalytics In-Memory Machine X4-4 Full Components List to service this product.

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	150-3993 [F] Buy	3V Lithium Coin Cell Battery	n/a

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7070792 [F]	CPU Heatsink (Brickland)	n/a
n/a	7083528 [F]	2.8GHz 15-Core Intel Xeon E7-8895 v2, 155W	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
n/a	530-3100	RJ45F to DB9F Adapter	n/a
n/a	7085487 [F]	X4-4 Cable Kit	n/a
	530-4349 [F] Buy	LED Flex Circuit	n/a
	7044137	SFF-8087 to 90 SFF-8087 SAS Cable, 510mm	n/a
	7044138	SFF-8087 to 90 SFF-8087 DVD SAS Cable, 510mm/530mm	n/a
	530-4287	Fan Board to System Board Signal Cable	n/a
	530-4288	Fan Board to System Board Power Cable	n/a
	530-4289	System Board to PDB Cable	n/a
	530-4290	System Board to Disk Backplane Signal Cable	n/a
	530-4291	System Board to Disk Backplane Power Cable	n/a
	530-4348	System Board to Rear I/O Board Signal Cable	n/a

Chassis
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7052037	Air Divider with Fault Remind Button	n/a
n/a	7074704	Chassis Subassembly	n/a
	341-5805	Rack Mount Ear	n/a
	541-3539 [F]	92mm Fan Module	n/a
	7039459 [F]	6-Slot Disk Backplane	n/a
	7057262 [F]	Fan Cage Assembly	n/a
	530-4349 [F] Buy	LED Flex Circuit	n/a
	7057260	Fan Board with USB and VGA	n/a
	7068043	Power Distribution Board Cover	n/a
	7075160	Chassis	n/a
	7300803 [F]	Power Supply Backplane Assembly	7052431 [F]
	371-4446	Bus Bar	n/a
	7052430	Power Distribution Board / Power Supply Backplane	n/a
	341-6188	Power Supply Chassis Cable Cover	n/a
	350-1383	Top Cover	n/a
	150-4065	Interlock Switch Magnet	n/a
	350-1392	Front Bezel	n/a
	530-4356	AC Input Line Filter with Cable	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7046442 [F]	Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3	n/a
n/a	7092757 [F]	Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3	7046442 [F]

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7039459 [F]	6-Slot Disk Backplane	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7045850 [F]	1.2TB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7045846	Hitachi HUC101212CSS600 [H101212SESUN1.2T] (1.2TB - 10000 RPM - SAS Disk)	n/a
	7082883	Hitachi HUC101212CSS600 [H101212SESUN1.2T] (1.2TB - 10000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
X1109A-Z Buy	7051223 [F]	Dual 10-Gigabit PCI Express Ethernet SFP+ LP	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-3539 [F]	92mm Fan Module	n/a
n/a	7057262 [F]	Fan Cage Assembly	n/a
	530-4349 [F] Buy	LED Flex Circuit	n/a
	7057260	Fan Board with USB and VGA	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7023066 [F]	Pair of 16Gbps Long Wave SFP+	n/a
	7023064	16Gb/Sec Long Wave SFP+ Transceiver, QLogic	n/a
n/a	7023303 [F]	Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic	n/a
n/a	7023315 [F]	Pair of 10Gbps Short Wave SFP+	n/a
	7023316	10Gb/Sec Short Wave SFP+ Transceiver, QLogic	n/a
n/a	7023325 [F]	Pair of 16Gbps Short Wave SFP+	n/a
	7023324	16Gb/Sec Short Wave SFP+ Transceiver, QLogic	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7073781 [F]	32GB 1.35V DDR3L-1600 Load Reduced DIMM	n/a
n/a	7084609 [F]	Memory Riser Assembly	n/a
	7066592	Memory Riser Tray	n/a
	7084605	Memory Riser Board	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7052431 [F]	Power Distribution Board / Power Supply Backplane	n/a
	371-4446	Bus Bar	n/a
	7052430	Power Distribution Board / Power Supply Backplane	n/a
n/a	7060596 [F]	Type A239E 2000 Watt AC Input Power Supply	n/a
n/a	7081064 [F]	Type A239A 2000 Watt AC Input Power Supply	7060596 [F]
n/a	7300803 [F]	Power Supply Backplane Assembly	7052431 [F]
	371-4446	Bus Bar	n/a
	7052430	Power Distribution Board / Power Supply Backplane	n/a
n/a	7317314 2 [F]	Power Supply Backplane Assembly	n/a
	371-4446	Bus Bar	n/a
	7052430	Power Distribution Board / Power Supply Backplane	n/a
	7317311	High Potential (Hipot) Test Passed Label	n/a

2 Not structured to the X4-4 build by E0027000. Used as FRU 7300813 under D0003795, D0003832, and D0003880.

Rack
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-4791 [F] Buy	Tool-less Slide Rail Rack Mount Kit	n/a
n/a	371-4812 [F] Buy	Cable Management Arm	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7047503 [F]	8-Port 6Gbps SAS-2 RAID PCI Express HBA, B4 ASIC	n/a
n/a	7050794 [F]	6Gbps SAS-2 RAID PCI Battery Module, BBU08	n/a
n/a	7069200 [F]	800GB PCI Express Flash Accelerator F80 SAS HBA	n/a

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7066596 [F]	System Board Assembly	n/a
	7051520	Rear I/O Board	n/a
	7079088	System Board	n/a
	150-3993 [F] Buy	3V Lithium Coin Cell Battery	n/a
	7079794	System Board Tray	n/a
	530-3510	Interlock Switch Cable	n/a
	530-4348	System Board to Rear I/O Board Signal Cable	n/a

System Service Processor
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7067268 [F]	Service Processor	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

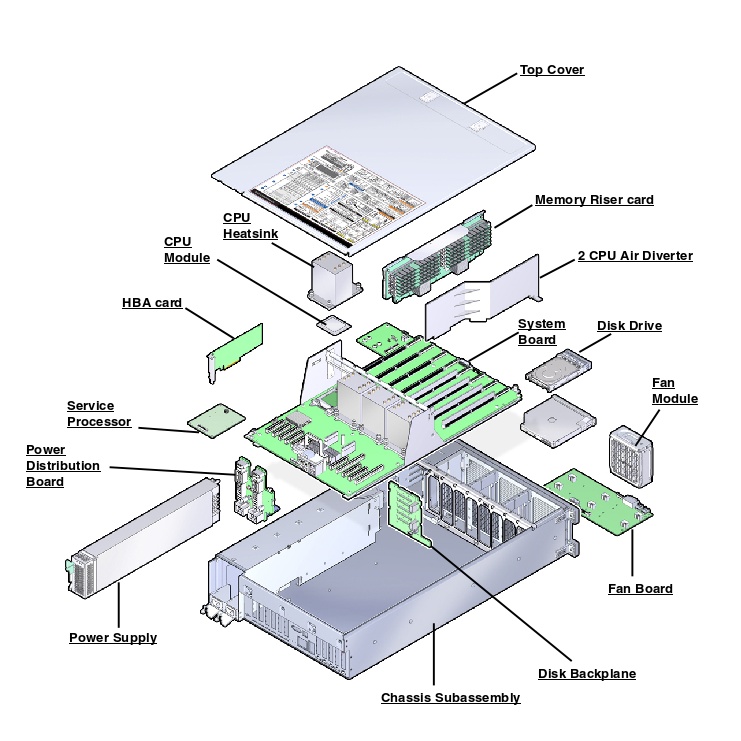

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
NS	341-2610	PCI Filler Panel
NS	341-6188	Power Supply Chassis Cable Cover
NS	350-1383	Top Cover
NS	150-4065	Interlock Switch Magnet
NS	350-1392	Front Bezel
NS	350-1585	Top Cover Air Baffle
NS	530-3510	Interlock Switch Cable
NS	530-4287	Fan Board to System Board Signal Cable
NS	530-4288	Fan Board to System Board Power Cable
NS	530-4289	System Board to PDB Cable
NS	530-4290	System Board to Disk Backplane Signal Cable
NS	530-4291	System Board to Disk Backplane Power Cable
NS	530-4348	System Board to Rear I/O Board Signal Cable
NS	530-4356	AC Input Line Filter with Cable
NS	541-4348	DVD Filler Panel
