Sun StorEdge A3500 Array - Full Components List

Array Controller
Cables
Disks
Fan
Power
Rack
SCSI
Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Array Controller
Option #	Manufacturing Part #	Description	Previous Part #
X6537A [S]	540-3083 [F]	A3500 Differential SCSI Array Controller with Memory	n/a
X7020A [S]	370-2439 [F]	32 MB RPA SIMM	n/a
n/a	370-2431 [F]	Empty Sonoma Enclosure with Backplane	n/a
n/a	370-2433 [F]	SCSI Array Controller Fan Assembly	n/a
n/a	370-2438 [F]	8MB Processor Memory SIMM	n/a
n/a	380-0083	A3000/A3500 Dual RAID Controller	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
X320A [S]	Localized Power Cord Kit - North America/Asia
X320A [S]	180-2164 [C] Buy	IEC 320 C13 to NEMA 6-15P - 10A/250V 2.0M Black	530-1351 [C]
X3830A [S]	530-2454 [F]	External SCSI Cable (Drive to Host HBA), HD68 to VHDC, 4M	n/a
X3831A [S]	530-2455 [F]	External SCSI Cable (Drive to Host HBA), HD68 to VHDC, 10M	n/a
X3858A [S]	AC Power Cord, Han 6HsB to NEMA L6-30P (US) 4M
X3858A [S]	180-1954 [C]	Han 6HsB to NEMA L6-30P,4M (US)	530-2674 ¹ [F]
X3859A [S]	Han 6HsB to Blue 32A IEC309 (Intl)
X3859A [S]	180-1955 [C]	Han 6HsB to Blue 32A IEC309 (INTL)	530-2675 ²
X901A [S]	530-1884 [F] [S]	External SCSI Cable, HD68 to HD68, 80cm	n/a
X902A [S]	530-1885 [F] [S]	External SCSI Cable, HD68 to HD68, 2M	n/a
X979A [S]	530-1886 [F] [S]	External SCSI Cable, HD68 to HD68, 12M	n/a
n/a	150-1890 [F]	HD68 Wide Differential Terminator with LED	n/a
n/a	530-1351 [C]	IEC 320 C13 to NEMA 6-15 - 10A/250V 2.0M Black	n/a
n/a	530-1883 [F]	External SCSI Cable, HD68 to HD68, 20cm	n/a
n/a	565-1397 [F]	Cable FRU Kit	n/a
	370-2724	Ribbon Cable, Battery to Backplane	n/a
	370-2870	Power Supply Interface Cable	n/a
	370-2871	Power Supply DC Power Cable	n/a

¹ This cable not supported after 10/01
² This cable not supported after 10/01

Disks
Option #	Manufacturing Part #	Description	Previous Part #
X5243A	540-4520 [F]	36.4GB - 10000 RPM, Disk Assembly with 1 bracket, 1 of the following plates, and 1 of the following disks:	n/a
	340-4288	Plate	n/a
	340-5928	Plate	n/a
	340-6640	Plate	n/a
	340-7269	Plate	n/a
	390-0050	Seagate ST336704LC [ST336704LSUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0051	Fujitsu MAJ3364MC [MAJ3364M SUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0052	IBM DDYS-T36950 [DDYST3695SUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0065	Fujitsu MAN3367MC [MAN3367M SUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0069	Seagate ST336605LC [ST336605LSUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0109	Seagate ST336607LC [ST336607LSUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0110	Fujitsu MAP3367NC [MAP3367N SUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0111	Hitachi DK32EJ-36NC [DK32EJ36NFSUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	540-3024	1" SPUD Bracket	n/a
X5230A [S]	540-3720 [F]	9.1GB - 7200 RPM, Disk Assembly (D1000) with 1 bracket, 1 plate, and 1 of the following disks:	n/a
	340-4288	Plate	n/a
	340-5928	Plate	n/a
	340-6640	Plate	n/a
	340-7269	Plate	n/a
	370-3404	IBM DDRS-39130 (9.1GB - 7200 RPM - SCSI Disk)	n/a
	370-3413	Fujitsu MAB3091SC [MAB3091S SUN9.0G] (9.1GB - 7200 RPM - SCSI Disk)	n/a
	370-3595	Seagate ST39173WC (9.1GB - 7200 RPM - SCSI Disk)	n/a
	390-0004	Fujitsu MAE3091LC [MAE3091L SUN9.1GB] (9.1GB - 7200 RPM - SCSI Disk)	n/a
	540-3024	1" SPUD Bracket	n/a
X5233A [S]	540-3721 [F]	18.2GB - 7200 RPM, Disk Assembly (D1000) with 1 bracket, 1 of the following plates, and 1 of the following disks:	n/a
	340-4288	Plate	n/a
	340-5928	Plate	n/a
	340-6640	Plate	n/a
	340-7269	Plate	n/a
	370-3414	Fujitsu MAA3182SC (18.2GB - 7200 RPM - SCSI Disk)	n/a
	370-3716	IBM DGHS-18Y [DGHS18Y SUN18G] (18.2GB - 7200 RPM - SCSI Disk)	n/a
	540-3025	1.6" SPUD bracket	n/a
	540-3925	1.6" Bracket	n/a
X5235A [S]	540-3966 [F]	9.1GB - 10000 RPM, Disk Assembly with 1 bracket, 1 of the following plates, and 1 of the following disks:	n/a
	340-4288	Plate	n/a
	340-5928	Plate	n/a
	340-6640	Plate	n/a
	340-7269	Plate	n/a
	370-3649	Seagate ST39102LC [ST39102LCSUN9.0G] (9.1GB - 10000 RPM - SCSI Disk)	n/a
	390-0005	Fujitsu MAG3091LC [MAG3091L SUN9.0G] (9.1GB - 10000 RPM - SCSI Disk)	n/a
	390-0009	Seagate ST39103LC [ST39103LCSUN9.0G] (9.1GB - 10000 RPM - SCSI Disk)	n/a
	390-0037	Seagate ST39204LC [ST39204LCSUN9.0G] (9.1GB - 10000 RPM - SCSI Disk)	n/a
	540-3024	1" SPUD Bracket	n/a
X5238A [S]	540-4178 [F]	18.2GB - 10000 RPM, Disk Assembly with 1 bracket, 1 of the following plates, and 1 of the following disks:	n/a
	340-4288	Plate	n/a
	340-5928	Plate	n/a
	340-6640	Plate	n/a
	340-7269	Plate	n/a
	390-0002	Seagate ST318203LC [ST318203LSUN18G] (18.2GB - 10000 RPM - SCSI Disk)	n/a
	390-0006	Fujitsu MAG3182LC [MAG3182L SUN18G] (18.2GB - 10000 RPM - SCSI-Disk)	n/a
	390-0038	Seagate ST318404LC [ST318404LCSUN18G] (18.2GB - 10000 RPM - SCSI Disk)	n/a
	390-0043	Fujitsu MAJ3182MC [MAJ3182M SUN18G] (18.2GB - 10000 RPM - SCSI Disk)	n/a
	390-0048	IBM DDYS-T18350 [DDYST1835SUN18G] (18.2GB - 10000 RPM - SCSI Disk)	n/a
	390-0066	Fujitsu MAN3184MC [MAN3184M SUN18G] (18.2GB - 10000 RPM - SCSI Disk)	n/a
	390-0085	Seagate ST318305LC [ST318305LSUN18G] (18.2GB - 10000 RPM - SCSI Disk)	n/a
	540-3024	1" SPUD Bracket	n/a
X5240A [S]	540-4263 [F]	36.4GB - 10000 RPM, Disk Assembly with 1 bracket, 1 of the following plates, and 1 of the following disks:	n/a
	340-4288	Plate	n/a
	340-5928	Plate	n/a
	340-6640	Plate	n/a
	340-7269	Plate	n/a
	390-0014	Fujitsu MAF3364LC [MAF3364L SUN36G] (36.4GB - 10000 RPM - FC-AL Disk)	n/a
	390-0020	Seagate ST136403LC [ST136403LSUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	540-3025	1.6" SPUD bracket	n/a
n/a	540-3760	Sun StorEdge D1000 12-Drive Chassis with Rackmount Tray	n/a
n/a	540-3761	Sun StorEdge D1000 8-Drive Chassis with Rack Mount Tray	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	540-3323 [F]	Fan Canister	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	300-1340 [F]	Type A124 360 Watt AC Input Power Supply	n/a
n/a	300-1393 [F]	230V AC Power Sequencer	n/a
n/a	370-2432 [F]	Power Supply Fan Assembly	n/a
n/a	370-2434 [F]	Battery Assembly	n/a
n/a	370-2436 [F]	Symbios 150 Watt Power Supply	n/a

NOTE: Click here to see the various AC Plug Types

Rack
Option #	Manufacturing Part #	Description	Previous Part #
SG-XARY030A [S]	595-4706	72 inch Sun StorEdge Expansion Cabinet	n/a
X9818A [S]	595-4999	72 inch StorEdge Expansion Cabinet Front Door Kit	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
X1065A [S]	370-2443	Differential Ultra/Wide SCSI Host Adapter (UDWIS/S) (HVD)	n/a
X6541A [S]	375-0006	Dual Differential Ultra/Wide SCSI (UDWIS/P)(HVD)	n/a

NOTE: For FRU/CRU status, see host system's Full Components List.

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

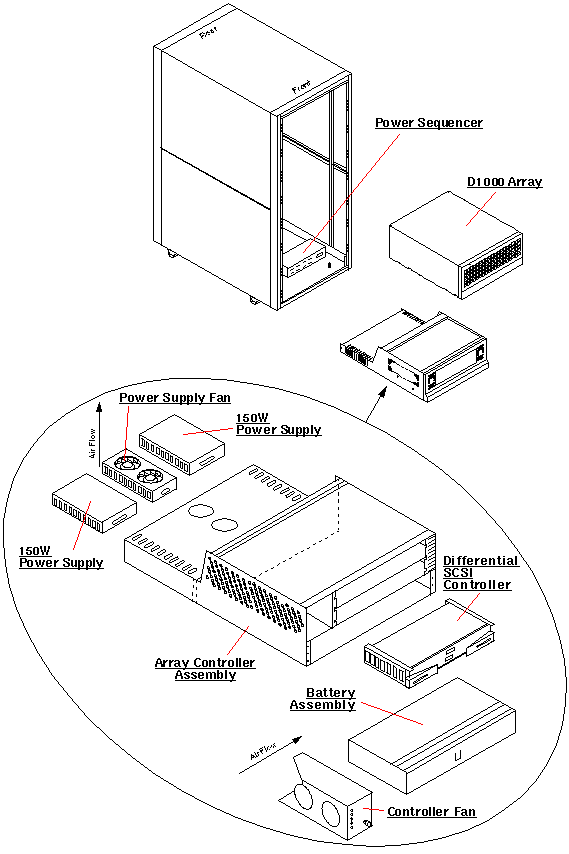

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
NS	370-2437 [F]	Mounting Rail Set (370-2437-02 recommended)
NS	370-2869 [F]	Power Supply Chassis Assembly
NS	370-3290	Empty 1.0" Disk Drive Slot Filler
NS	370-3291	Empty 1.6" Disk Drive Slot Filler
NS	530-1343 [F]	230V AC Power Cord, IEC-320 to NEMA 6-15
NS	530-2197 [F]	AC Power Cord, AMP Mate-N-Lok to IEC-320
NS	530-2264 [F]	AC Power Cord, AMP Mate-N-Lok to Y IEC-320
NS	530-1619 [F] [S]	Grounding Cable
