Sun StorageTek 6140 - Full Components List

Array Controller
Backplane/Centerplane
Cables
Disks
Fibre Channel
Power
Rack

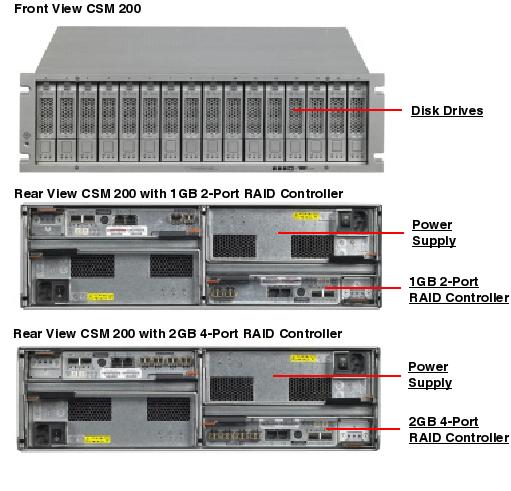

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Array Controller
Option #	Manufacturing Part #	Description	Previous Part #
XTA6140-2GBCTRL-FC [S]	594-2082	RAID Fibre Channel Controller, 2GB memory, 4 host ports	n/a
	371-0717 ³ [C]	Battery Backup Unit [13695-07]	n/a
	371-1799 [F]	4Gb/Sec Short Wave SFP Transceiver	n/a
	375-3581 [F]	RAID Fibre Channel Controller with SOC422 EEPROM, 2GB memory, 4 host ports, 133MHz PCI	375-3335 [F]
XTA6180-2G4PCTL-FC ⁵ [S]	594-6219	(UPGRADE ONLY) 6140 to 6180 Upgrade Kit. RAID Fibre Channel Controller, 2GB memory, 4 × 8Gb host ports, X-Option	n/a
	371-4582 [F]	8Gb/Sec Short Wave SFP Transceiver	7048866 [S] 371-1799 [F]
	371-4676 ⁴	6180 Battery Backup Unit	n/a
	375-3631	RAID Fibre Channel Controller, 2GB memory, 4 host ports	n/a
XTACSM2-IOM [S]	375-3336 [F]	FC Expansion I/O Module	n/a
XTB6180-2G2PCTL-FC ⁷ [S]	594-6218	(UPGRADE ONLY) 6140 to 6180 Upgrade Kit. RAID Fibre Channel Controller, 2GB memory, 2 × 8Gb host ports, X-Option	n/a
	371-4582 [F]	8Gb/Sec Short Wave SFP Transceiver	7048866 [S] 371-1799 [F]
	371-4676 ⁶	6180 Battery Backup Unit	n/a
	375-3630	RAID Fibre Channel Controller, 2GB memory, 2 host ports	n/a
n/a	375-3335 [F]	RAID Fibre Channel Controller, 2GB memory, 4 host ports, 133MHz PCI	n/a
n/a	375-3375 ¹ [F]	RAID Fibre Channel Controller, 1GB memory, 2 host ports, 100 MHz PCI	n/a
n/a	375-3582 ² [F]	RAID Fibre Channel Controller with SOC422 EEPROM, 1GB memory, 2 host ports, 100 MHz PCI	n/a

¹ This controller is only installed in StorageTek 6140 ATO TB6140R11A2-0 (596-6019) after February/March 2008..
² This controller is only installed in StorageTek 6140 ATO TB6140R11A2-0 (596-6019) before February/March 2008.
³ Order 371-4676 only for 6180 or 6140 units that have been upgraded to a 6180. Use 371-0717 only for 6140 units.
⁴ Order 371-4676 only for 6180 or 6140 units that have been upgraded to a 6180. Use 371-0717 only for 6140 units.
⁵ Use to upgrade 2GB/4 Port or 4GB/8 Port StorageTek 6140 to a 2GB/8 or 4GB/8 6180.
⁶ Order 371-4676 only for 6180 or 6140 units that have been upgraded to a 6180. Use 371-0717 only for 6140 units.
⁷ Use to upgrade 2GB/4 Port StorageTek 6140 to a 4GB/2 Port 6180.

Backplane/Centerplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	540-6545 [F]	Drive Cage Midplane	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
X9722A-Z [S]	537-1088 [F]	Fibre Channel Optical Cable LC/SC, 2M	n/a
X9723A-Z [S]	537-1089 [F]	Fibre Channel Optical Cable LC/SC, 5M	n/a
X9724A-Z [S]	537-1090 [F]	Fibre Channel Optical Cable LC/SC, 15M	n/a
X9730A-Z [S]	537-1080 [F]	Fibre Channel Optical Cable LC/LC, 0.8M	n/a
X9732A-Z [S]	537-1081 [F]	Fibre Channel Optical Cable LC/LC, 2.0M	n/a
X9733A-Z [S]	537-1082 [F]	Fibre Channel Optical Cable LC/LC, 5M	n/a
X9734A-Z [S]	537-1083 [F]	Fibre Channel Optical Cable LC/LC, 15M	n/a
X9736A-Z [S]	537-1084 [F]	Fibre Channel Optical Cable LC/LC, 25M	n/a
X9737A-Z [S]	537-1092 [F]	Fibre Channel Optical Cable LC/SC, 50M	n/a
X9738A-Z [S]	537-1085 [F]	Fibre Channel Optical Cable LC/LC, 50M	n/a
X9740A-Z [S]	537-1093 [F]	Fibre Channel Optical Cable LC/LC, 100M	n/a
n/a	530-3100	RJ45F to DB9F Adapter	n/a
n/a	530-3544 [F]	PS2 6-pin DIN to RJ-45 Cable (2M)	n/a
n/a	530-3569 [F]	CSM200 Cable (2m, HSSDC2)	n/a
n/a	530-3794 ⁸ [F]	Shielded RJ45 to RJ45 Cable, 6M	n/a
n/a	530-3880 [F]	RJ45 to RJ45 Shielded Ethernet Cable, CAT5, 6M	530-3794 ⁹ [F]

⁸ Discontinued and replaced by 530-3880 in December 2006. (WO_34466)
⁹ Discontinued and replaced by 530-3880 in December 2006. (WO_34466)

Disks
Option #	Manufacturing Part #	Description	Previous Part #
XTA-FC1CF-146G10K [S]	540-6549 [C]	146GB - 10000 RPM FC-AL, Disk Assembly with one of the following disks:	n/a
	390-0257 [S]	Fujitsu MAW3147FC [MAW3147FCSUN146G] (146GB - 10000 RPM - FC-AL Disk)	n/a
	390-0270	Hitachi HUS1014FA [HUS1014FASUN146G] (146GB - 10000 RPM - FC-AL Disk)	n/a
	390-0280	Seagate ST3146707FC [ST314670FSUN146G] (146GB - 10000 RPM - FC-AL Disk)	n/a
	541-0882	Drive Mounting Bracket (HDD Carrier)	n/a
XTA-FC1CF-146G15K [S]	540-6550 [C]	146GB - 15000 RPM FC-AL, Disk Assembly with one of the following disks:	n/a
	390-0299	Seagate ST3146954FC [ST314695FSUN146G] (146GB - 15000 RPM - FC-AL Disk)	n/a
	390-0313	Fujitsu MAX3147FD [MAX3147FDSUN146G] (146GB - 15000 RPM - FC-AL Disk)	n/a
	390-0328	Seagate ST3146855FC [ST314655FSUN146G] (146GB - 15000 RPM - FC-AL Disk)	n/a
	390-0419	Seagate ST3146356FC [ST314656FSUN146G] (146GB - 15000 RPM - FC-AL Disk)	n/a
	541-0882	Drive Mounting Bracket (HDD Carrier)	n/a
XTA-FC1CF-300G10K [S]	540-6551 [C]	300GB - 10000 RPM FC-AL, Disk Assembly with one of the following disks:	n/a
	390-0271	Hitachi HUS1030FA [HUS1030FASUN300G] (300GB - 10000 RPM - FC-AL Disk)	390-0258
	390-0281	Seagate ST3300007FC [ST330000FSUN300G] (300GB - 10000 RPM - FC-AL Disk)	n/a
	541-0882	Drive Mounting Bracket (HDD Carrier)	n/a
XTA-FC1CF-73G15K [S]	540-6548 [C]	73GB - 15000 RPM FC-AL, Disk Assembly with one of the following disks:	n/a
	390-0300	Seagate ST373554FC [ST373554FSUN72G] (73GB - 15000 RPM - FC-AL Disk)	n/a
	390-0312	Fujitsu MAX3073FD [MAX3073FDSUN72G] (73GB - 15000 RPM - FC-AL Disk)	n/a
	390-0326	Seagate ST373455FC [ST373455FSUN72G] (73.4GB - 15000 RPM - FC-AL Disk)	n/a
	541-0882	Drive Mounting Bracket (HDD Carrier)	n/a
XTA-ST1CF-500G7K [S]	540-6635 [C]	500GB - 7200 RPM SATA, Disk Assembly with one of the following disks:	n/a
	390-0247	Hitachi HDS725050KLA360 [HDS7250SASUN500G] (500GB - 7200 RPM - SATA Disk)	n/a
	390-0355	Seagate ST3500630NS [ST35000NSSUN500G] (500GB - 7200 RPM - SATA Disk)	n/a
	390-0383	Hitachi HUA721050KLA330 [HUA7250SBSUN500G] (500GB - 7200 RPM - SATA Disk)	n/a
	541-1406	Drive Mounting Bracket (SATA HDD Carrier)	n/a
XTC-FC1CF-146G15KZ [S]	540-6550 [C]	146GB - 15000 RPM FC-AL, Disk Assembly with one of the following disks:	n/a
	390-0299	Seagate ST3146954FC [ST314695FSUN146G] (146GB - 15000 RPM - FC-AL Disk)	n/a
	390-0313	Fujitsu MAX3147FD [MAX3147FDSUN146G] (146GB - 15000 RPM - FC-AL Disk)	n/a
	390-0328	Seagate ST3146855FC [ST314655FSUN146G] (146GB - 15000 RPM - FC-AL Disk)	n/a
	390-0419	Seagate ST3146356FC [ST314656FSUN146G] (146GB - 15000 RPM - FC-AL Disk)	n/a
	541-0882	Drive Mounting Bracket (HDD Carrier)	n/a
XTC-FC1CF-300G10KZ [S]	540-6551 [C]	300GB - 10000 RPM FC-AL, Disk Assembly with one of the following disks:	n/a
	390-0271	Hitachi HUS1030FA [HUS1030FASUN300G] (300GB - 10000 RPM - FC-AL Disk)	390-0258
	390-0281	Seagate ST3300007FC [ST330000FSUN300G] (300GB - 10000 RPM - FC-AL Disk)	n/a
	541-0882	Drive Mounting Bracket (HDD Carrier)	n/a
XTC-FC1CF-300G15KZ [S]	540-7156 [C]	300GB - 15000 RPM FC-AL Disk Assembly with one of the following disks:	n/a
	390-0330	Seagate ST3300655FC [ST330055FSUN300G] (300GB - 15000 RPM - FC-AL Disk)	n/a
	390-0420	Seagate ST3300656FC [ST330056FSUN300G] (300GB - 15000 RPM - FC-AL Disk)	n/a
	390-0462	Seagate ST3300657FC [ST330057FSUN300G] (300GB - 15000 RPM - FC-AL Disk)	n/a
	390-0482	Hitachi HUS156030VLF400 [HUS1530FCSUN300G] (300GB - 15000 RPM - FC-AL Disk)	n/a
	7010283	Seagate ST3300655FC [ST330055FSUN300G] (300GB - 15000 RPM - FC-AL Disk)	n/a
	541-0882	Drive Mounting Bracket (HDD Carrier)	n/a
XTC-FC1CF-400G10KZ [S]	540-7379 [C]	400GB - 10000 RPM FC-AL Disk Assembly	n/a
	390-0396	Seagate ST3400755FC [ST340008FSUN0.4T] (400GB - 10000 RPM - FC-AL Disk)	n/a
	541-0882	Drive Mounting Bracket (HDD Carrier)	n/a
XTC-FC1CF-450G15K [S]	540-7674 [C]	450GB - 15000 RPM FC-AL, Disk Assembly with one of the following disks:	n/a
	390-0421	Seagate ST3450856FC [ST345056FSUN450G] (450GB - 15000 RPM - FC-AL Disk)	n/a
	541-0882	Drive Mounting Bracket (HDD Carrier)	n/a
XTC-FC1CF-600G15K [S]	542-0163 [C]	600GB - 15000 RPM FC-AL, Disk Assembly with one of the following disks and brackets:	n/a
	390-0477	Seagate ST3600957FC [ST360957FSUN600G] (600GB - 15000 RPM FC-AL)	n/a
	390-0484	Hitachi HUS156060VLF401 [HUS1561FCSUN600G] (600GB - 15000 RPM FC-AL)	n/a
	541-0882	Drive Mounting Bracket (HDD Carrier)	n/a
XTC-FC1CF-73G15KZ [S]	540-6548 [C]	73GB - 15000 RPM FC-AL, Disk Assembly with one of the following disks:	n/a
	390-0300	Seagate ST373554FC [ST373554FSUN72G] (73GB - 15000 RPM - FC-AL Disk)	n/a
	390-0312	Fujitsu MAX3073FD [MAX3073FDSUN72G] (73GB - 15000 RPM - FC-AL Disk)	n/a
	390-0326	Seagate ST373455FC [ST373455FSUN72G] (73.4GB - 15000 RPM - FC-AL Disk)	n/a
	541-0882	Drive Mounting Bracket (HDD Carrier)	n/a
XTC-ST1CF-1TB7KZ [S]	540-7590 [C]	1TB - 7200 RPM SATA, Disk Assembly with one of the following disks:	n/a
	390-0381	Hitachi HUA721010KLA330 [HUA7210SASUN1.0T] (1TB - 7200 RPM - SATA Disk)	n/a
	390-0414 ¹² [S]	Seagate ST31000340NS [ST31000NSSUN1.0T] (1TB - 7200 RPM - SATA Disk)	n/a
	390-0473	Seagate ST31000524NS [ST31001NSSUN1.0T] (1TB - 7200 RPM - SATA Disk)	n/a
	7045979	Seagate ST1000NM0011 [ST1000NM0011](1TB - 7200 RPM - SATA Disk)	n/a
	541-1406	Drive Mounting Bracket (SATA HDD Carrier)	n/a
XTC-ST1CF-2TB7K [S]	542-0164 [C]	2TB - 7200 RPM, Disk Assembly with 1 bracket and 1 disk:	n/a
	390-0467	Hitachi H7220AA30 [H7220AA30SUN2.0T] (2TB - 7200 RPM - SATA Disk)	n/a
	390-0474	Seagate ST32000644NS [ST32000NSSUN2.0T] (2TB - 7200 RPM - SATA Disk)	n/a
	7045982	Seagate ST2000NM0011 [ST2000NM0011] (2TB - 7200 RPM - SATA Disk)	n/a
	541-1406	Drive Mounting Bracket (SATA HDD Carrier)	n/a
XTC-ST1CF-500G7KZ [S]	540-6635 [C]	500GB - 7200 RPM SATA, Disk Assembly with one of the following disks:	n/a
	390-0247	Hitachi HDS725050KLA360 [HDS7250SASUN500G] (500GB - 7200 RPM - SATA Disk)	n/a
	390-0355	Seagate ST3500630NS [ST35000NSSUN500G] (500GB - 7200 RPM - SATA Disk)	n/a
	390-0383	Hitachi HUA721050KLA330 [HUA7250SBSUN500G] (500GB - 7200 RPM - SATA Disk)	n/a
	541-1406	Drive Mounting Bracket (SATA HDD Carrier)	n/a
XTC-ST1CF-750G7KZ [S]	540-7245 [C]	750GB - 7200 RPM SATA Disk Assembly with one of the following disks	n/a
	390-0356	Seagate ST3750640NS [ST37500NSSUN750G] (750GB - 7200 RPM - SATA Disk)	n/a
	390-0379	Hitachi HUA721075KLA330 [HUA7275SASUN750G] (750GB - 7200 RPM - SATA Disk)	n/a
	541-1406	Drive Mounting Bracket (SATA HDD Carrier)	n/a
n/a	541-1407	Empty Disk Drive Slot Filler	n/a
n/a	541-3899 ¹⁰	Disk Drive Filler Panel	n/a

¹⁰ replaces 541-1407 per WO_42251
¹² 390-0414 was removed from 540-7590 per EC E0012085 in August 2012

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCI1FC-EM2 [S]	375-3304	2Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI1FC-QF4 [S]	375-3354	4Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI2FC-EM2 [S]	375-3305	2Gb PCI-X Dual FC Host Adapter	n/a
SG-XPCI2FC-QF2-Z [S]	375-3363	2Gb PCI/PCI-X Dual FC Host Adapter	n/a
SG-XPCI2FC-QF4 [S]	7060890	4Gb PCI-X Dual FC Host Adapter	375-3294
SG-XPCIE1FC-EM4 [S]	375-3396	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-EM4 [S]	7053428	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-QF4 [S]	375-3355	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE2FC-ATCA-Z [S]	371-3264	4Gb PCI Express Dual Port FC ATCA Host Adapter	n/a
SG-XPCIE2FC-EM4 [S]	375-3397	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FC-EM4 [S]	7053427	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FC-QF4 [S]	375-3356	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FCGBE-E-Z [S]	371-4018	4Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet ExpressModule Host Adapter, Emulex	n/a
SG-XPCIE2FCGBE-Q-Z [S]	371-4017	4Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet ExpressModule Host Adapter, QLogic	n/a
SG-XPCIEFCGBE-E8-Z [S]	371-4666 ¹³	8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, Emulex	n/a
SG-XPCIEFCGBE-Q8-Z [S]	371-4522 ¹⁴	8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, QLogic	n/a
n/a	371-0294 [F]	4Gb/Sec Short Wave SFP Transceiver	n/a
n/a	371-1799 [F]	4Gb/Sec Short Wave SFP Transceiver	n/a
n/a	371-4582 [F]	8Gb/Sec Short Wave SFP Transceiver	7048866 [S] 371-1799 [F]
n/a	375-3294	4Gb PCI-X Dual FC Host Adapter	n/a
n/a	7053435	8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, Emulex	n/a
n/a	7048866 [S]	4Gb/Sec Short Wave SFP Transceiver	371-1799 [F]

¹³ Two SFPs are included, see component page for more information.
¹⁴ Two SFPs are included, see component page for more information.
NOTE: For FRU/CRU status, see host system's Full Components List.

Power
Option #	Manufacturing Part #	Description	Previous Part #
XTACSM2-AC-KITZ [S]	Sun StorageTek 6000 (CSM200) AC Power Supply Kit Option
XTACSM2-AC-KITZ [S]	300-2319 [C]	620 Watt AC Input Power Supply (CSM200)	300-2055 [C] 300-1826 [C]
XTACSM2-DC-KITZ ¹⁵ [S]	Sun StorageTek 6140 or CSM200 DC Power Supply Kit Option
	180-2194 [F]	DC Power Cable	n/a
	300-2012 [C]	620 Watt DC Input Power Supply (CSM200)	n/a
n/a	300-1826 [C]	620 Watt AC Input Power Supply (CSM200)	n/a
n/a	300-2055 [C]	620 Watt AC Input Power Supply (CSM200)	300-1826 [C]

¹⁵ Contains 4 180-2194 DC Power Cables

Rack
Option #	Manufacturing Part #	Description	Previous Part #
XTA6000-RK2-RAIL [S]	594-5885	Rack Rail Kit for Sun Rack II	n/a
	540-7796	Mounting Rail Kit	n/a
	341-4881	Mounting Rail	n/a
XTA6X80CTRL-RK2-RL [S]	542-0150	Fixed Rail Mounting Kit	n/a
	341-4882	Mounting Rail	n/a
	341-4883	Mounting Rail	n/a
XTACSM2-RK-3RU-19U [S]	540-6598	3U Rack Rail Kit for Standard 19-inch System Cabinets	n/a
XTCCSM2-RK-19UZ [S]	540-6598	3U Rack Rail Kit for Standard 19-inch System Cabinets	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
NS	540-6546 [F]	Chassis
