Sun Blade 8000 P - Full Components List

Batteries Blade Cables Communication Ethernet Fan Fibre Channel I/O Power System Service Processor Exploded View Wiring Diagram	Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part
System Notes: Memory, CPU and Disk part information are found on the Blade Server Module Components page. Blade references.

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	150-1204 2 [C]	3V Lithium Coin Cell Battery	n/a

2 Field Engineers should stock this part and not have them shipped from Oracle stocking locations. See Global Systems TSC communication dated 10/12/12

Blade
Option #	Manufacturing Part #	Description	Previous Part #
X5049A-Z [S]	560-2819	Cat Door Actuator Upgrade Kit for Sun Blade X8400 Server Modules in the Sun Blade 8000 P, Qty=10	n/a
	330-4511	Opteron Socket Blade Cat Door Opener	n/a

NOTE: Supported Server Modules are the: Sun Blade X8400, Sun Blade X8420 and Sun Blade X8440.

Cables
Option #	Manufacturing Part #	Description	Previous Part #
X5042A-Z [S]	Sun Rack 1000-42 Cable Management Basket
	371-1915	Sun Blade 8400 Cable Management Basket	n/a
X5043A-Z [S]	530-3813	DB9F to RJ45F, DCE Adapter	n/a
X5074A-Z [S]	4 AC Input Power Cords, 20A, Americas Domestic, NEMA L6-20P to IEC320
	180-2005 [C] Buy	AC Input Power Cord, 16A, Americas, NEMA L6-20P to IEC320-C19, 4M	n/a
X5075A-Z [S]	4 AC Input Power Cords, 16A, International, IEC309 to IEC320-C19, 4m
	180-2004 [C]	AC Input Power Cord, 16A, International, IEC309 to IEC320-C19, 4M	n/a
X5076A-Z [S]	4 Power Cords, 20A, (IEC 320-C19 to IEC 320, 1.5 M)
	180-2095	Power Cord, 16A, (IEC 320-C19 to IEC 320, 1.5 M)	n/a
X5077A-Z [S]	4 Power Cords, 20A, (IEC 320-C19 to IEC 320, 2.0 M)
	180-2096 [C]	Power Cord, 20A, (IEC 320-C19 to IEC 320, 2.0 M)	n/a
X5915A [S]	2 AC Power Cords and Adapters, 30A, NEMA L6-20R to L6-30P, 4M
	7055057 [C]	Cable Assembly, Americas, NEMA L6-20R to L6-30P, 4M	375-3493 [C]
n/a	375-3493 [C]	Cable Assembly, Americas, NEMA L6-20R to L6-30P, 4M	n/a
n/a	7040686 [C]	Power Cord, 16A, (IEC 320-C19 to IEC 320, 1.5 M)	180-2095
n/a	7040688 [C]	Power Cord, 16A, (IEC 320-C19 to IEC 320, 2.0 M)	180-2096 [C]
n/a	7040702 [C]	AC Input Power Cord, 16A, International, IEC309 to IEC320-C19, 4m	180-2004 [C]

Communication
Option #	Manufacturing Part #	Description	Previous Part #
X1289A-Z [S]	541-1376 [C]	Sun 10-Port 4x DDR InfiniBand Network Express (NEM) Module Assembly	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
X5040A-Z [S]	541-0389 [C]	20-port Gigabit Ethernet Network Express Module (NEM)	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	370-7767	Front Indicator Module (FIM)	n/a
n/a	541-0385 [C]	Rear Fan Module (RFM)	n/a
n/a	541-2220 [F]	Rear Fan Tray Assembly	n/a
	501-7762	Rear Fan/Board Module (RFM)	n/a
	541-0383	Rear Fan Cage	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCIE20FC-NEM-Z [S]	375-3385 [C]	Sun StorageTek 4Gb 20-Port FC Network Express Module (NEM) Host Bus Adapter	n/a
SG-XPCIE2FCGBE-E-Z [S]	371-4018 [C]	4Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet ExpressModule Host Adapter, Emulex	n/a
SG-XPCIE2FCGBE-Q-Z [S]	371-4017 [C]	4Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet ExpressModule Host Adapter, QLogic	n/a

I/O
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-1548 [F]	I/O Chassis	n/a
	501-7519	Centerplane	n/a
	530-3782	Line Filter to Backplane AC Power Cable	n/a
	530-3790	Rear Indicator Module Cable	n/a
	530-3799	AC Ground Cable	n/a
	541-1551	Rear Interface Assembly	n/a
	371-2139	Rear Interface Module (RIM)	n/a
	371-0308	IEC320 C20 Line Filter	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	300-1912 [C]	Type A218 3048 Watt AC Input Power Supply	n/a

System Service Processor
Option #	Manufacturing Part #	Description	Previous Part #
X5041A-Z [S]	541-0388 [C]	Chassis Monitoring Module (CMM)	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

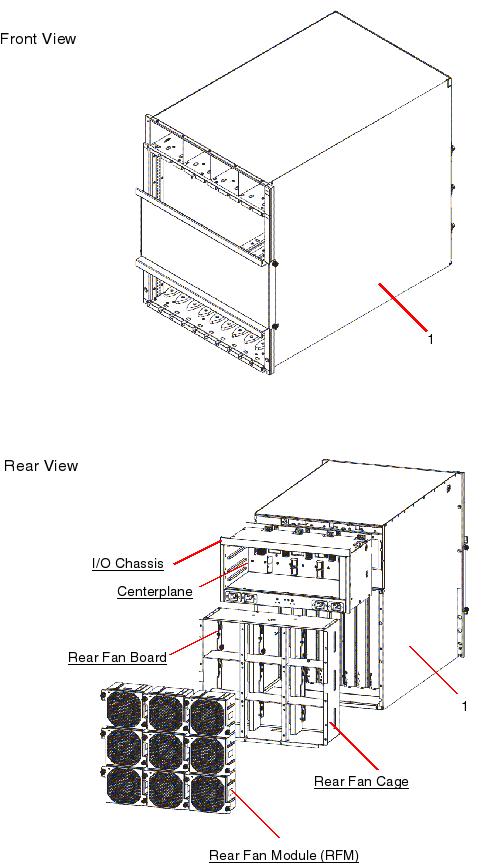

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
1	541-1542	Base Chassis Assembly
	541-0385 [C]	Rear Fan Module (RFM)
NS	541-1543	Chassis Subassembly
NS	530-3789	Rear Fan Board Cable
NS	541-1552	Front Indicator Assembly
	370-7767	Front Indicator Module (FIM)
NS	530-3788	Front Indicator Module Cable
NS	371-0308	IEC320 C20 Line Filter
NS	541-0726	NEM Filler Panel
NS	541-0727	CMM Filler Panel
NS	541-0728	Blade Filler Panel
NS	541-1262	Left Rack Rail
NS	541-1265	Right Rack Rail
NS	541-1326	Left Slide Rail
NS	541-1327	Right Slide Rail
