10-Slot Centerplane

501-7519 541-1548
Centerplane I/O Assembly/FRU
Centerplane Assembly
Cables 530-3782 + 530-3790 + 530-3799
IEC320 C20 Line Filter 371-0308
Rear Interface Module 541-1551

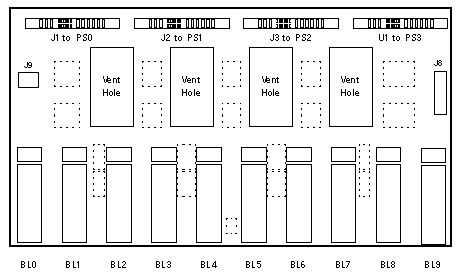

Front View

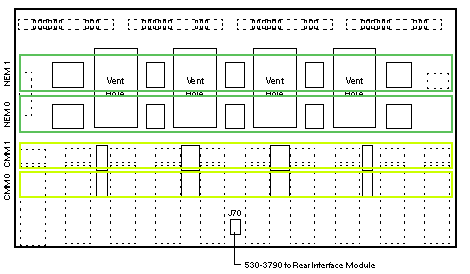

Rear View

Sun Blade 8000 P Codename: Andromeda 14

Notes

  1. J8 connects to the three Rear Fan Boards with cable 530-3789.
  2. J9 connects to the Front Interface Module with cable 530-3788.
  3. The I/O Chassis is stamped GR and BR to show proper AC cable connection.
  4. The Backplane does not include a FRUID SEEPROM.
  5. Assembly 541-1548 includes the System Serial Number and MAC Address label.
  6. The Serial Number and MAC Address label is attached to Side Panel 541-1550.
  7. Unfasten four screws from the right side of the I/O Assembly to remove 541-1550.

References

  1. Sun Blade 8000 P Modular System Documentation.
