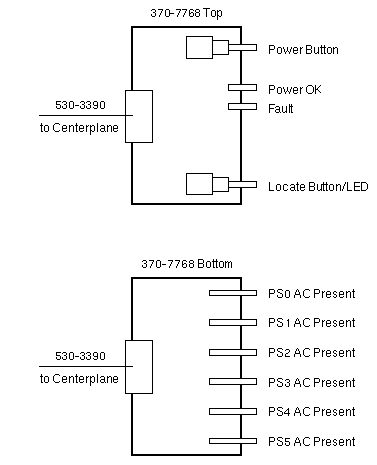

Rear Interface Module

370-7768 541-0419 541-0821
Rear Interface Module Rear Interface Assembly
370-7768 + Bracket 341-0804		 I/O Assembly/FRU

Notes

  1. The Rear Interface Module is not field replaceable.
  2. The Rear Interface Assembly is not field replaceable.
  3. I/O Assembly/FRU 541-0821 includes Rear Interface Assembly 541-0373.

References

  1. Sun Blade 8000 Modular System Documentation.

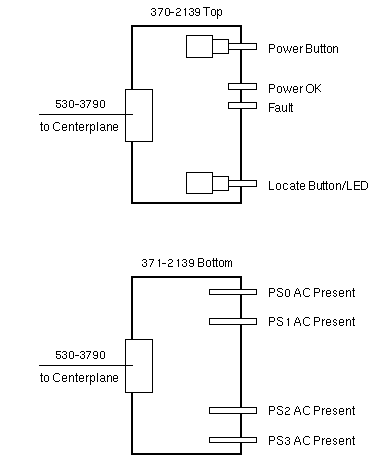

Rear Interface Module

371-2139 541-1551 541-1548
Rear Interface Module Rear Interface Assembly
371-2139 + Bracket 341-0804		 I/O Assembly/FRU

Notes

  1. The Rear Interface Module is not field replaceable.
  2. The Rear Interface Assembly is not field replaceable.
  3. I/O Assembly/FRU 541-1548 includes Rear Interface Assembly 541-1551.

References

  1. Sun Blade 8000 Modular System Documentation.
