Front Interface Module

<a href="../../Systems/SupportHeaders/MISC_SB8000_Front_Interface.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

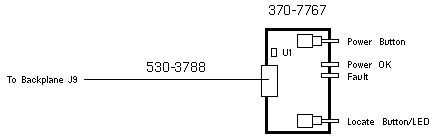

370-7767 541-1552

Front Indicator Module Front Interface Assy/FRU

Notes

Front Interface Module is also described as Front Indicator Module.
Serial EEPROM U1 includes FRUID data and the system serial number.
Assembly 541-1552 includes Bracket 341-2765, Cable 530-3788, FIM 370-7767, and Front Trim Panel 341-2766.

References

Sun Blade 8000 Modular System Documentation.
