Rear Fan Tray

501-7123 541-0824 541-2220
Rear Fan Module Rear Fan Tray
SB8000 FRU		 Rear Fan Tray
SB8000P FRU

Notes

  1. Part number 501-7123 is described in Oracle as Assy, Rear Fan Module (RFM).
  2. Part number 541-0385 is described in Oracle as Assy, Rear Fan Module.

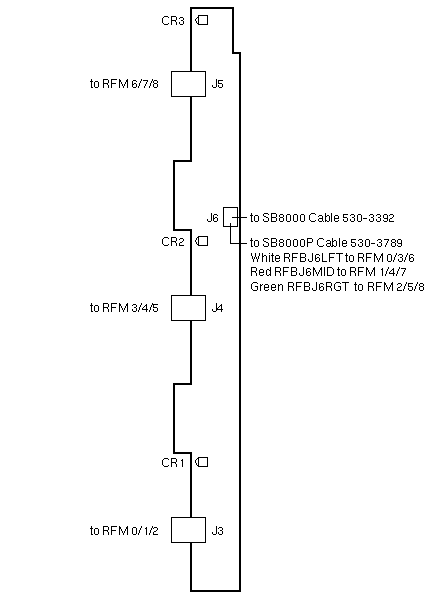

  3. Rear Fan Module 501-7123 is the fan control board. Three are installed.
  4. Rear Fan Module 541-0385 is the rear fan assembly. Nine are installed.
  5. One Fan Cable 530-3392 powers and monitors three 501-7123 Rear Fan Modules.
  6. One Fan Cable 530-3789 powers and monitors three 501-7123 Rear Fan Modules.

References

  1. Sun Blade 8000 Modular System Documentation.
