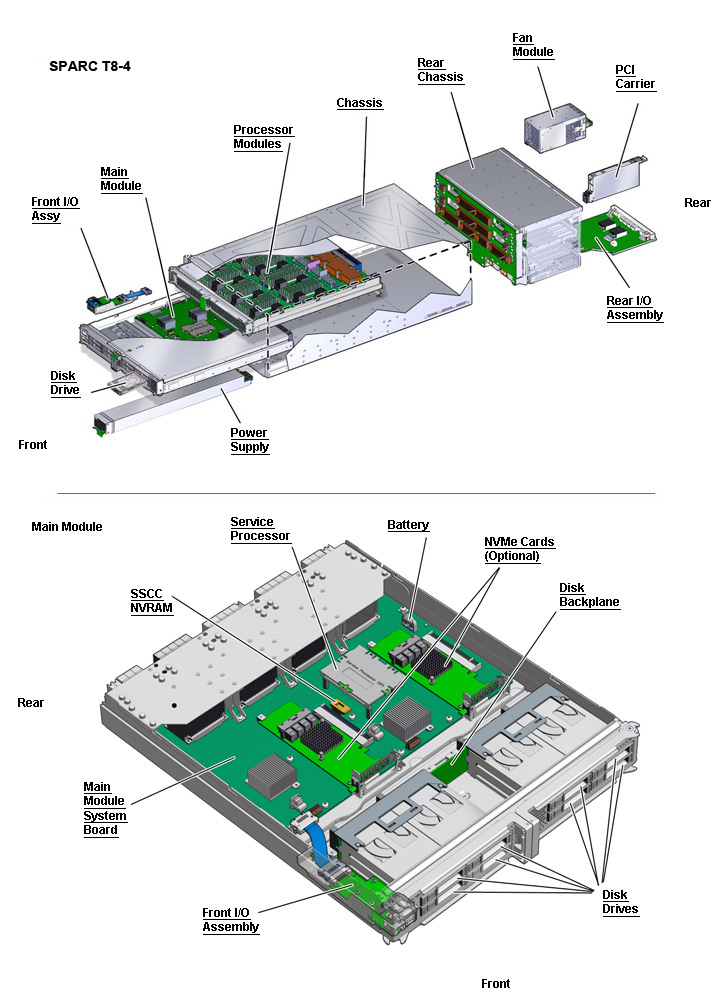

SPARC T8-4 - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Batteries
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 371-2210 [C] Buy 3V Lithium Coin Cell Battery n/a
CPU Module
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7348967 [C] Processor Filler Module Assembly n/a
  • 7337061
  • Processor Filler Module LED Flex Cable
 n/a
  • 7347636
  • Enclosure
 n/a
  • 7348966
  • Processor Filler Module (fruid 7348966)
 n/a
n/a 7353482 [F] Dual 32-Core 5.000GHZ Processor Module Assembly n/a
  • 7346957
  • 32-Core 5.000HZ CPU Mezzanine (With CPU 7335419)
 n/a
  • 7348964
  • CPU/Memory Module (fruid 7348964)
 n/a
  • 7353483
  • Enclosure
 n/a
Cables
Option # Manufacturing
Part #		 Description Previous
Part #
7102869 Buy 7039990 [C] MPO to MPO High Bandwidth QSFP Optical Cable, 10M n/a
7102870 Buy 7039999 [C] MPO to MPO High Bandwidth QSFP Optical Cable, 20M n/a
7102871 Buy 7040001 [C] MPO to MPO High Bandwidth QSFP Optical Cable, 50M n/a
7105148 CBL-SFP-2M [C] SFP+ Passive Copper Cable, 2M [SKU] n/a
7105199 Buy 7063849 [C] InfiniBand Cable, QSFP, Optical, MPO to MPO, 5M n/a
7105206 Buy 7063852 [C] InfiniBand Cable, QSFP, Optical, MPO to MPO, 100M n/a
7114369 Buy 7308821 [C] MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 10M n/a
7114370 Buy 7308822 [C] MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 20M n/a
7114371 Buy 7308823 [C] MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 50M n/a
X2121A-1M-N Buy 530-4444 [C] 10Gbps QSFP to QSFP Cable, 1m n/a
X2121A-2M Buy 530-4567 [C] 10Gbps QSFP to QSFP Cable, 2m n/a
X2121A-3M-N Buy 530-4445 [C] 10Gbps QSFP to QSFP Cable, 3m n/a
X2121A-5M-N Buy 530-4446 [C] 10Gbps QSFP to QSFP Cable, 5m n/a
X2125A-1M-N Buy 530-4450 [C] QSFP to 4× SFP+ Splitter Cable, 1m n/a
X2125A-3M-N Buy 530-4451 [C] QSFP to 4× SFP+ Splitter Cable, 3m n/a
X2125A-5M-N Buy 530-4452 [C] QSFP to 4× SFP+ Splitter Cable, 5m n/a
X2127A-10M Buy 530-4480 [C] MPO to 4x LC Duplex Splitter Cable, 10m n/a
X2127A-20M Buy 530-4481 [C] MPO to 4x LC Duplex Splitter Cable, 20m n/a
X2127A-50M Buy 530-4482 [C] MPO to 4x LC Duplex Splitter Cable, 50m n/a
X2130A-1M-N Buy 530-4441 [C] 10Gbps SFP+ TwinX Cable, 1m n/a
X2130A-3M-N Buy 530-4442 [C] 10Gbps SFP+ TwinX Cable, 3m n/a
X2130A-5M-N Buy 530-4443 [C] 10Gbps SFP+ TwinX Cable, 5m n/a
n/a 530-3623 Shielded RJ45 to RJ45 Cable, 4M n/a
n/a 7308812 [C] Dual Mini SAS-3 HD8i Cable Assembly (NVMe) n/a
  • n/a
  • 72-Pin SFF-8643 Mini SAS HD to 90° SFF-8087, 330mm
 n/a
  • n/a
  • 72-Pin SFF-8643 Mini SAS HD to 90° SFF-8087, 300mm
 n/a
n/a 7341507 [F] Cable Kit [SKU] n/a
  • 530-4399
  • Backplane to System Board Power Cable, 208mm
 n/a
  • 7024616
  • Front I/O Cable
 n/a
  • 7096396
  • 36-Pin 90° to 90° SFF-8643 Mini SAS HD Cable, 170mm
 n/a
  • 7096397
  • 36-Pin 90° to 90° SFF-8643 Mini SAS HD Cable, 100mm
 n/a
  • 7337047
  • Processor Module LED Flex Cable
 n/a
  • 7337061
  • Processor Filler Module LED Flex Cable
 n/a
Chassis
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7345888 T8-4 L3 Chassis Assembly n/a
  • 7039012
  • Front LED Assembly
 n/a
    • 7026425
    • LED Board
 n/a
    • 7039033
    • Flex Cable
 n/a
    • 7045102
    • Jumper Cable
 n/a
n/a 7348780 [F] T8-4 Rear Chassis Subassembly (RSCA) (fruid 7047329) n/a
  • 7025951
  • AC Ground Wire
 n/a
  • 7025969
  • 20A AC Input Line Filter
n/a
  • 7329552
  • Rear Chassis Subassembly
 n/a
  • 7348778
  • Midplane Assembly
 n/a
    • 7047329
    • Fan Board
 n/a
    • 7066366
    • Internal AC Power Cable
 n/a
    • 7067678
    • Bus Bar
 n/a
    • 7081485
    • PCI Express Express Module Backplane
 n/a
    • 7314566
    • Midplane
 n/a
    • 7316591
    • Lower Fan Board to Midplane Cable
 n/a
    • 7352776
    • Fan Power Cable
 n/a
Communication
Option # Manufacturing
Part #		 Description Previous
Part #
7104074 Buy 7092757 [C] Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3 7046442 [C]
n/a 7046442 [C] Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3 n/a
Disk Backplane
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7314591 Disk Backplane Assembly n/a
  • 530-4399
  • Backplane to System Board Power Cable, 208mm
 n/a
  • 7096396
  • 36-Pin 90° to 90° SFF-8643 Mini SAS HD Cable, 170mm
 n/a
  • 7096397
  • 36-Pin 90° to 90° SFF-8643 Mini SAS HD Cable, 100mm
 n/a
  • 7303515
  • 8-Slot Disk Backplane
 n/a
Disks
Option # Manufacturing
Part #		 Description Previous
Part #
7111103 Buy 7093015 [C] 600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Hitachi HUC101860CSS200 [H101860SFSUN600G] (600.0GB - 10000 RPM SAS Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
7111108 Buy 7093037 [C] 1.2TB - 10000 RPM SAS SFF Disk Assembly w 1 bracket and 1 of the following disks: n/a
  • Hitachi HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB - 10000 RPM - SAS DISK)
n/a
  • Marlin 2.5" Bracket
 n/a
7115079 Buy 7330686 [C] 800GB SAS3 Solid State Drive Assembly n/a
  • HGST HUSMM3280ASS20 [HBCAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS3 Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
7115457 7340035 [C] 6.4TB NVMe Solid State Drive Assembly n/a
  • Intel SSDPE2KE064T7 [ICDPC2DD2ORA6.4T] (6.4TB - 2.5" Solid State - NVMe Disk, x4 PCI Express Gen 3)
 n/a
  • Marlin 2.5" Bracket
 n/a
7118670 7350766 [C] 1.2TB - 10000 RPM SAS Disk Assembly without Encryption (EAEU part - see note below) n/a
  • HGST HUC101812CSS204 [H1018124FSUN1.2T] (1.2TB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below)
 n/a
  • Marlin 2.5" Bracket
 n/a
7118672 7352257 [C] 600GB - 10000 RPM SAS Disk Drive Assembly without Encryption (EAEU part - see note below) n/a
  • HGST HUC101860CSS204 [H1018604FSUN600G] (600GB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below)
 n/a
  • Marlin 2.5" Bracket
 n/a
7118709 7350749 [C] 800GB SAS3 Solid State Disk Assembly without Encryption (EAEU part - see note below) n/a
  • HGST HUSMM3280ASS204 [HBSAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS3 Disk without Encryption) (EAEU part - see note below)
 n/a
  • Marlin 2.5" Bracket
 n/a
Ethernet
Option # Manufacturing
Part #		 Description Previous
Part #
7100477 Buy 7070195 [C] Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP n/a
7111181 7096675 [C] Quad 10-Gigabit Base-T Ethernet n/a
7114094 Buy 7305556 [C] 40GbE Long Wave QSFP+ Transceiver n/a
7114134 Buy 7319817 [C] Quad 10-Gigabit or Dual 40-Gigabit Ethernet QSFP+ n/a
X1109A-Z Buy 7051223 [C] Dual 10-Gigabit PCI Express Ethernet SFP+ LP n/a
X2124A-N Buy 7326504 [C] 10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver n/a
X2129A-N Buy 530-4449 [C] 10Gb/Sec Short Wave SFP+ Transceiver n/a
X5562A-Z Buy 135-1205 [C] 10Gb/Sec Long Wave SFP+ Transceiver n/a
n/a 7070006 [C] Dual 10-Gigabit Base-T PCI Express Gen2 n/a
n/a 7070202 [C] Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF n/a
Fan
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7334158 [C] Fan Module n/a
  • 7334155
  • Dual Counterrotating Fan, 80x80x86mm, 13000/12300 RPM
 n/a
Fibre Channel
Option # Manufacturing
Part #		 Description Previous
Part #
7101674 Buy 7023303 [C] Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic n/a
7101676 Buy 7023325 [C] Pair of 16Gbps Short Wave SFP+ n/a
  • 16Gb/Sec Short Wave SFP+ Transceiver, QLogic
 n/a
7101678 Buy 7023315 [C] Pair of 10Gbps Short Wave SFP+ n/a
  • 10Gb/Sec Short Wave SFP+ Transceiver, QLogic
 n/a
7101684 Buy 7023036 [C] Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex n/a
7101686 Buy 7023059 [C] Pair of 16Gbps Short Wave SFP+ n/a
  • 16Gb/Sec Short Wave SFP+ Transceiver, Emulex
 n/a
7115461 7335907 1 [C] Dual 32Gbps Fibre Channel Host Adapter n/a
  • 7335907a
  • Emulex Dual Port 32Gbps Fibre HBA
 n/a
  • 7335907b
  • Pair of Emulex 32Gbps Short Wave SFP+ Transceivers
 n/a
    • 7335907c
    • Emulex 32Gbps Short Wave SFP+ Transceiver
 n/a
7115462 7335902 2 [C] QLogic Dual Port 32Gbps Fibre HBA n/a
  • 7335902a
  • QLogic Dual Port 32Gbps Fibre HBA
 n/a
  • 7340777 [C]
  • Pair of QLogic 32Gbps Short Wave SFP+ Transceivers
 n/a
    • 7340776
    • QLogic 32Gbps Short Wave SFP+ Transceiver
 n/a
1 7335907a-c are not a real Oracle part numbers. These physical parts do not have an Oracle part number. 7335907a-c are being used to help relate this non-part numbered part to the parent part that has a real Oracle part number.
2 7335902a is not a real Oracle part number. This physical part does not have an Oracle part number. 7335902a is being used to help relate this non-part numbered part to its parent part that has a real Oracle part number.
I/O
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7045172 Front I/O Assembly n/a
  • 7018190
  • I/O Board
 n/a
  • 7020653
  • VGA Board
 n/a
  • 7024616
  • Front I/O Cable
 n/a
n/a 7064634 [C] 8-Port PCI Express Switch n/a
  • PCI Express Switch w/o Bracket or Heatsink
 n/a
n/a 7089613 [C] x16 PCI Express Carrier Assembly n/a
  • 7092099
  • x16 PCI Express Carrier Board
 n/a
  • 7318752
  • PCI Express Carrier Enclosure
 n/a
n/a 7348781 [C] Rear I/O Assembly n/a
  • 2GB Embedded USB
 n/a
  • 7092877
  • USB T10 Torx Thumbscrew, M3 0.5 x 6mm
 n/a
  • 7347429
  • Rear I/O Board (fruid 7347429)
 n/a
n/a 7360352 [F] x16 PCI Express Carrier Assembly with Bumper n/a
  • 7318752
  • PCI Express Carrier Enclosure
 n/a
  • 7360345
  • x16 PCI Express Carrier Board
n/a
Memory
Option # Manufacturing
Part #		 Description Previous
Part #
7118205 7325772 [C] 32GB DDR4-2400 Registered DIMM n/a
7118206 7325773 [C] 64GB DDR4-2400 Load Reduced DIMM n/a
n/a 7074618 [C] 2GB Embedded USB n/a
n/a 7092877 USB T10 Torx Thumbscrew, M3 0.5 x 6mm n/a
Power
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7336222 [C] Type A265 3000W AC Input Power Supply n/a
n/a 7350778 [C] Type A265 3000W AC Input Power Supply n/a
Rack
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7069793 [C] Cable Management Assembly n/a
  • 7063313
  • Cable Management Adapter Bracket
 n/a
  • 7068001
  • Cable Management Assembly
 n/a
n/a 7096048 [F] Rack Mount Kit n/a
  • 240-6579
  • M6 Cage Nut (x6)
 n/a
  • 240-7665
  • 10-32 x 1/4" Shoulder Screw (x12)
 n/a
  • 240-7667
  • 10-32 x 7/16" SEMS Screw (x12)
 n/a
  • 341-6433
  • Rack Mount Bracket, Tapped Holes
 n/a
  • 7069238
  • Shipping Bracket Shear Pin (x2)
 n/a
  • 7069536
  • Right Top Rear Shipping Bracket
 n/a
  • 7069537
  • Left Top Rear Shipping Bracket
 n/a
  • 7069538
  • Shipping Bracket Assembly
 n/a
  • 7075759
  • Shipping Bracket Top Guide Pin (x2)
 n/a
  • 7097157
  • M6 x 1.0 x 16mm T-30 Pan Head Double Washer Screw (x16)
 n/a
  • 7097158
  • M6 x 1.0 x 12mm T-30 Pan Head Double Washer Screw (x16)
 n/a
  • 7303117
  • Rail Kit
 n/a
    • 341-6410
    • Universal Rack Mount Bracket, M6 Holes
 n/a
    • 7088801
    • Right Rail
 n/a
    • 7088805
    • Left Rail
 n/a
Removable Media
Option # Manufacturing
Part #		 Description Previous
Part #
7111911 3 Buy 7093727 External USB DVD Assembly n/a
  • 7093729 [C]
  • USB DVD w/o AC adapter, USB cable, power cable,V2
 n/a
7093728 USB DVD AC Adapter & Cable Kit n/a
  • 7075046
  • USB DVD Cable
 n/a
  • 7093730 [C]
  • USB DVD Adapter w/o Power Cable
 n/a
3 In Japan, order X-Option 7111912.
SCSI
Option # Manufacturing
Part #		 Description Previous
Part #
7110119 Buy 7085208 [C] 8-Port 12Gbps SAS-3 HBA (External) n/a
7115455 7335943 [C] 6.4TB Flash Accelerator F640 NVMe Card n/a
System Board
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7303515 8-Slot Disk Backplane n/a
n/a 7346957 32-Core 5.000HZ CPU Mezzanine (With CPU 7335419) n/a
n/a 7348960 [F] T8-4 Main Module Assembly n/a
  • 7045172
  • Front I/O Assembly
 n/a
    • 7018190
    • I/O Board
 n/a
    • 7020653
    • VGA Board
 n/a
    • 7024616
    • Front I/O Cable
 n/a
  • 7314591
  • Disk Backplane Assembly
 n/a
    • 530-4399
    • Backplane to System Board Power Cable, 208mm
 n/a
    • 7096396
    • 36-Pin 90° to 90° SFF-8643 Mini SAS HD Cable, 170mm
 n/a
    • 7096397
    • 36-Pin 90° to 90° SFF-8643 Mini SAS HD Cable, 100mm
 n/a
    • 7303515
    • 8-Slot Disk Backplane
 n/a
  • 7348959
  • System Board Assembly
 n/a
    • 7095596
    • Enclosure
 n/a
    • 7348958
    • System Board (fruid 7348958)
 n/a
      • 3V Lithium Coin Cell Battery
n/a
      • 525-2146 [C]
      • SSCC NVRAM
 n/a
System Service Processor
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7343771 [C] Service Processor Assembly n/a
  • 7338746
  • Cover
 n/a
  • 7343772
  • Service Processor (Fruid 7343772)
 n/a

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Exploded View

SPARC T8-4 Exploded View
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown

Code Manufacturing Part# Description
- 541-2629 2.5" Disk Drive Filler Panel
-
  • 330-4577
  • Disk Filler Bezel
  Copyright © 2018 Oracle and/or its affiliates.  All rights reserved.
 Feedback
