Sun SPARC Enterprise T1000 - Full Components List

Batteries
Cables
Communication
Disks
Ethernet
Fan
Fibre Channel

I/O
Memory
Power
Rack
SCSI
System Board
Whole System FRU
Exploded View
Wiring Diagram

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	150-1204 ¹ [C]	3V Lithium Coin Cell Battery	n/a

¹ Field Engineers should stock this part and not have them shipped from Oracle stocking locations. See Global Systems TSC communication dated 10/12/12

Cables
Option #	Manufacturing Part #	Description	Previous Part #
X311L [S]	Localized Power Cord Kit - North America/Asia
X311L [S]	180-1097 [C] Buy	IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black	n/a
X312E [S]	Localized Power Code Kit - China
X312E [S]	180-1982 [C]	IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M	n/a
X312F [S]	Localized Power Cord Kit - Argentina
X312F [S]	180-1999 [C]	IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black	n/a
X312G [S]	Localized Power Cord Kit - Korea
X312G [S]	180-1662 [C] Buy	IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black	n/a
X312L [S]	Localized Power Cord Kit - Continental Europe
X312L [S]	180-1993 [C]	IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black	n/a
X314L [S]	Localized Power Cord Kit - Swiss
X314L [S]	7049124 [C]	IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black	180-1994 [C]
X317L [S]	Localized Power Cord Kit - U.K.
X317L [S]	180-1997 [C] Buy	IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black	n/a
X332T [S]	International Power Cord Kit
X332T [S]	180-2071 [C]	Blue 16A IEC 309 to IEC 320 C13 International 4.0M	n/a
X333A-25-10-IL [S]	Localized Power Cord Kit Israel
X333A-25-10-IL [S]	180-2130 [C] Buy	IEC 320 C13 to SI-32, 10A/250V, 2.5M, Black	n/a
X333A-25-15-JP [S]	Localized Power Cord Kit Japan
X333A-25-15-JP [S]	180-2243 [C] Buy	IEC 320 C13 to PSE 5-15P, 10A/125V, 2.5M, Black	n/a
X333F-25-15-JP [S]	Localized Power Cord Kit Japan
X333F-25-15-JP [S]	180-2244 [C] Buy	IEC 320 C13 to PSE 6-15P, 15A/250V, 2.5M, Black	n/a
X340L [S]	Power Kit for North America, L6-20 20A Twist Lock Plug
X340L [S]	180-2070 [C]	NEMA L6-20P to IEC 320 C13 - 4.0M	n/a
X383L [S]	Localized Power Cord Kit - Danish
X383L [S]	180-1995 [C]	IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black	n/a
X384L [S]	Localized Power Cord Kit - Italian
X384L [S]	180-1996 [C]	IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black	n/a
X386L [S]	Localized Power Cord Kit - Australian
X386L [S]	180-1998 [C]	IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black	n/a
n/a	180-1994 [C]	IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black	n/a
n/a	530-3100	RJ45F to DB9F Adapter	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
X6000A ² [S]	375-3424 [C]	PCI Express Sun Crypto Accelerator 6000	n/a

² Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec acceleration

Disks
Option #	Manufacturing Part #	Description	Previous Part #
SEAX3B11Z [S]	Two 73GB SAS 10000 RPM Disk Assembly option with 1 bracket, 1 cable and 2 of the following disks:
	530-3810 [C]	Two Disk Cable	n/a
	541-1959 [C]	73GB SAS 10000 RPM Disk	n/a
	390-0213	Seagate ST973401SS [ST973401SSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0285	Fujitsu MAY2073RC [MAY2073RCSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0323	Seagate ST973402SS [ST973402SSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0374	Fujitsu MBB2073RC [MBB2073RCSUN72G] (73.4GB - 10000 RPM - SAS Disk)	n/a
	390-0376	Hitachi HUC101473CSS300 [H101473SCSUN72G] (73.4GB - 10000 RPM - SAS Disk)	n/a
	541-1995	Drive Mounting Bracket	n/a
	341-2929	Drive Mounting Bracket	n/a
SEAX3D11Z [S]	146GB - 10000 RPM SAS Disk Assembly option with 1 cable, 1 bracket and 1 (2 Disks) Assembly:
	530-3810 [C]	Two Disk Cable	n/a
	541-1995	Drive Mounting Bracket	n/a
	341-2929	Drive Mounting Bracket	n/a
	541-2291 [C]	146GB - 10000 RPM SAS Disk Assembly with 1 of the following disks:	n/a
	390-0324	Seagate ST9146802SS [ST914602SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0375	Fujitsu MBB2147RC [MBB2147RCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0377	Hitachi HUC101414CSS300 [H101414SCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
XRA-SS2CG-146G10KZ [S]	146GB - 10000 RPM SAS Disk Assembly option with 1 cable, 1 bracket and 1 (2 Disks) Assembly:
	341-2929	Drive Mounting Bracket	n/a
	530-3810 [C]	Two Disk Cable	n/a
	541-2291 [C]	146GB - 10000 RPM SAS Disk Assembly with 1 of the following disks:	n/a
	390-0324	Seagate ST9146802SS [ST914602SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0375	Fujitsu MBB2147RC [MBB2147RCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0377	Hitachi HUC101414CSS300 [H101414SCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
XRA-SS2CG-73G10KZ [S]	Two 73GB SAS 10000 RPM Disk Assembly with 1 bracket, 1 cable and 2 of the following disks:
	341-2929	Drive Mounting Bracket	n/a
	530-3810 [C]	Two Disk Cable	n/a
	541-1959 [C]	73GB SAS 10000 RPM Disk	n/a
	390-0213	Seagate ST973401SS [ST973401SSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0285	Fujitsu MAY2073RC [MAY2073RCSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0323	Seagate ST973402SS [ST973402SSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0374	Fujitsu MBB2073RC [MBB2073RCSUN72G] (73.4GB - 10000 RPM - SAS Disk)	n/a
	390-0376	Hitachi HUC101473CSS300 [H101473SCSUN72G] (73.4GB - 10000 RPM - SAS Disk)	n/a
XRA-ST1CG-160G7K [S]	541-2286 [C]	160GB SATA 7200 RPM Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0351	Hitachi HDT721616PLA380 [HDS7216SBSUN160G] (160GB - 7200 RPM - SATA Disk)	n/a
	341-1136	Drive Mounting Bracket	n/a
n/a	540-7727 [C]	250GB SATA 7200 RPM Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0411	Seagate ST3250310NS [ST32502NSSUN250G] (250GB - 7200 RPM - SATA Disk)	n/a
	530-3810 [C]	Two Disk Cable	n/a
	341-1136	Drive Mounting Bracket	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
X1027A-Z [S]	7054890 [C]	PCI Express Dual 10-Gigabit Ethernet Fiber	501-7283 [C]
X4447A-Z [S]	371-2348	Bracket Standard	n/a
	7055021 [C]	Quad Port GbE PCI Express, UTP	511-1422 [C] 501-7606 [C]
	371-2207	Bracket Low-Profile	n/a
X7280A-2 [S]	371-0905 [C]	PCI Express Dual Gigabit Ethernet UTP	n/a
X7281A-2 [S]	7056733 [C]	PCI Express Dual Gigabit Ethernet MMF	371-0904 [C]
n/a	371-0904 [C]	PCI Express Dual Gigabit Ethernet MMF	n/a
n/a	501-7283 [C]	PCI Express Dual 10-Gigabit Ethernet Fiber	n/a
n/a	501-7606 [C]	PCI Express Quad Gigabit Ethernet UTP	n/a
	371-2207	Bracket Low-Profile	n/a
	371-2348	Bracket Standard	n/a
n/a	511-1422 [C]	Quad Port GbE PCI Express, UTP	501-7606 [C]
n/a	371-2207	Bracket Low-Profile	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-0582 [C]	Fan Assembly	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCIE1FC-EM4 [S]	375-3396 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-EM4 [S]	7053428 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-QF4 [S]	375-3355 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE2FC-EM4 [S]	375-3397 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FC-EM4 [S]	7053427 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FC-EM8-Z [S]	7053434 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex	371-4306 [C]
SG-XPCIE2FC-QF4 [S]	375-3356 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
n/a	371-4306 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a

I/O
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-0584	PCI Express Riser Assembly	n/a
	341-1140	Riser Bracket	n/a
	501-7128	PCI Express Riser Board	n/a

NOTE:

SPARC Platforms (Sun Fire T1000/T2000) Device Path Information (article 1005907.1)

Memory
Option #	Manufacturing Part #	Description	Previous Part #
SEKX2A1Z [S]	1GB (2 x 512MB DDR2) Memory Expansion Kit
SEKX2A1Z [S]	370-6207 [C]	512MB DDR2 DIMM, 533 MHz	n/a
SEKX2B1Z [S]	2GB (2 x 1Gb DDR2) Memory Expansion Kit
SEKX2B1Z [S]	370-6208 [C]	1GB DDR2 DIMM, 533 MHz	n/a
SEKX2C1Z [S]	4GB (2 x 2GB DDR2) Memory Expansion Kit
SEKX2C1Z [S]	370-6209 [C]	2GB DDR2 DIMM, 533 MHz	n/a
SEKX2D1Z [S]	8GB (2 x 4GB DDR2) Memory Expansion Kit
SEKX2D1Z [S]	370-6210 [C]	4GB DDR2 DIMM	n/a
X7800A [S]	1GB (2 × 512MB DDR2) Memory Expansion Kit
X7800A [S]	370-6207 [C]	512MB DDR2 DIMM, 533 MHz	n/a
X7801A [S]	2GB (2 × 1GB DDR2) Memory Expansion Kit
X7801A [S]	370-6208 [C]	1GB DDR2 DIMM, 533 MHz	n/a
X7802A [S]	4GB (2 × 2GB DDR2) Memory Expansion Kit
X7802A [S]	370-6209 [C]	2GB DDR2 DIMM, 533 MHz	n/a
X7803A [S]	8GB (2 × 4GB DDR2) Memory Expansion Kit
X7803A [S]	370-6210 [C]	4GB DDR2 DIMM	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	300-1799 [C]	Type A207 300 Watt AC Input Power Supply	n/a

Rack
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-0098 [C]	Slide Rail Kit w/Spacing Tool	n/a
n/a	371-0722	Cable Management Bracket	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCIE2SCSIU320Z [S]	7050790 [C]	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	375-3357 [C]
SGXPCIESAS-R-EXT-Z [S]	371-3253 [C]	Lithium Ion Battery Module	n/a
SGXPCIESAS-R-EXT-Z [S]	375-3537 [C]	8-Port SAS RAID External HBA	n/a
n/a	375-3357 [C]	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	n/a

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-2143	6-Core UltraSPARC T1 0MB/1.0GHz System Board	n/a
	501-7754	System Board	n/a
	150-1204 ³ [C]	3V Lithium Coin Cell Battery	n/a
	525-2146 [F]	SSCC NVRAM	n/a
n/a	541-2144	8-Core UltraSPARC T1 0MB/1.0GHz System Board	n/a
	501-7754	System Board	n/a
	150-1204 ⁴ [C]	3V Lithium Coin Cell Battery	n/a
	525-2146 [F]	SSCC NVRAM	n/a

³ Field Engineers should stock this part and not have them shipped from Oracle stocking locations. See Global Systems TSC communication dated 10/12/12
⁴ Field Engineers should stock this part and not have them shipped from Oracle stocking locations. See Global Systems TSC communication dated 10/12/12

Whole System FRU
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-2501 [C]	6-Core 1.0GHz Chassis Assembly w/o Power Supply	n/a
	541-2143	6-Core UltraSPARC T1 0MB/1.0GHz System Board	n/a
	501-7754	System Board	n/a
	150-1204 ⁵ [C]	3V Lithium Coin Cell Battery	n/a
	525-2146 [F]	SSCC NVRAM	n/a
n/a	541-2502 [C]	8-Core 1.0GHz Chassis Assembly w/o Power Supply	n/a
	541-2144	8-Core UltraSPARC T1 0MB/1.0GHz System Board	n/a
	501-7754	System Board	n/a
	150-1204 ⁶ [C]	3V Lithium Coin Cell Battery	n/a
	525-2146 [F]	SSCC NVRAM	n/a

⁵ Field Engineers should stock this part and not have them shipped from Oracle stocking locations. See Global Systems TSC communication dated 10/12/12
⁶ Field Engineers should stock this part and not have them shipped from Oracle stocking locations. See Global Systems TSC communication dated 10/12/12

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

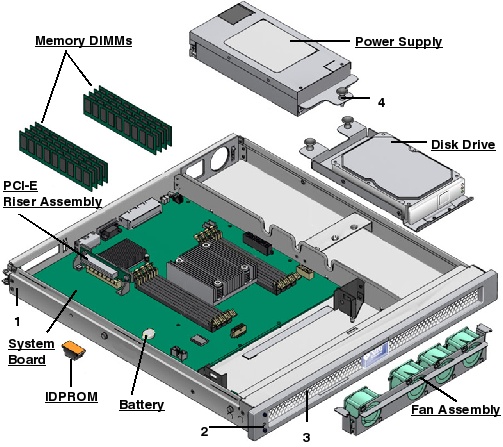

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
-	240-4674	PCI Express Filler Panel
1	541-0579	Chassis Subassembly
1	541-0581	Chassis
2	541-0927	Front LED Assembly
2	330-3968	Lightpipe
2	501-7304	LED Board
NS	530-3486	System Board to LED Board Cable
	541-0582 [C]	Fan Assembly
NS	541-1874 [C]	Top Cover w/Label
NS	263-2106	Service Label
NS	541-0606	Top Cover
3	541-0607	Front Bezel
4	341-1167	Rear Power Supply Bracket
NS	341-2304	Sun 72" Rack Adapter Bracket
NS	530-2889	RJ45 to DB25 Serial Port Adapter
NS	530-3623 [C]	Shielded RJ45 to RJ45 Cable, 4M
