SPARC Enterprise T1000

<a href="../../Systems/SupportHeaders/SYSBD_SP_Enter_T1000.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

501-7754 541-2143 541-2144 541-2501 541-2502

0MB w/o CPU
FAB 270-7014 0MB Assembly
UltraSPARC T1
6-Core 1.0GHz 0MB Assembly
UltraSPARC T1
8-Core 1.0GHz 0MB System FRU
6-Core 1.0GHz 0MB System FRU
8-Core 1.0GHz

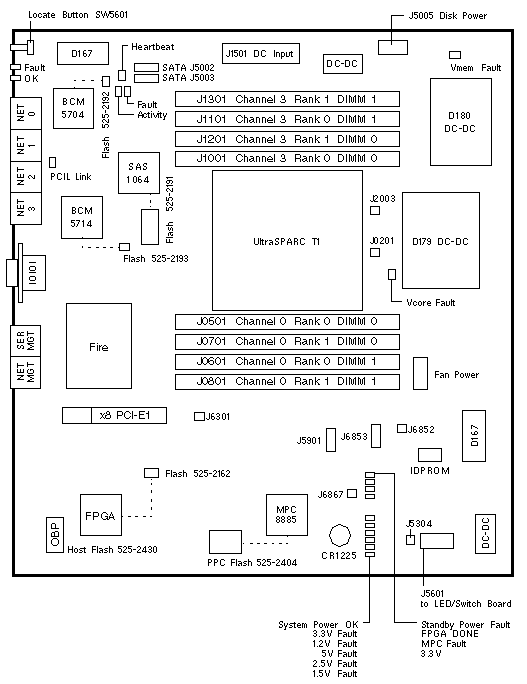

Headers and Jumpers

LOCATION	PINS	SETTING	DESCRIPTION
J0201	2	n/a	Unknown (header not installed)
J2003	2	n/a	Unknown (header not installed)
J5304	2	Out	Unknown
J5901	10	Out	Unknown
J6301	2	Out	Unknown
J6852	2	Out	Unknown
J6853	10	Out	Unknown
J6867	2	In	Unknown

SPARC Enterprise T1000 Codename: Erie APL

Notes

The Sun Fire T1000 was renamed SPARC Enterprise T1000 in April 2007.
The minimum operating system is Solaris 10 1/06.
The minimum T1000 memory requirement is four Rank 0 DIMMs.
An example error message from the DIMM in J1301 is MB/CMP0/CH3/R1/D1 .

References

Sun SPARC Enterprise T1000 Server Documentation.
