Oracle Server X6-2 for Communications - Full Components List

Batteries CPU Module Cables Chassis Disk Backplane Disks Ethernet Fan I/O Memory Power Rack Removable Media SCSI System Board Exploded View	Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	370-5621	3V Coin Cell Battery	n/a

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7067728 [F]	Pre-Greased 1U CPU Heatsink	n/a
n/a	7080240	CPU Installation/Removal Tool	n/a
n/a	7313670 [F]	22-Core 2.2GHz Intel E5-2699 v4, 145W	n/a
n/a	7313671 [F]	14-Core 2.6GHz Intel E5-2690 v4, 135W	n/a
n/a	7313672 [F]	6-Core 3.4GHz Intel E5-2643 v4, 135W	n/a
n/a	7313673 [F]	10-Core 2.2GHz Intel E5-2630 v4, 85W	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7014226 [C]	Interlock Cable, 125mm	n/a
n/a	7094264 [F]	Cable Kit	n/a
	7064123	Left Indicator Module Ribbon Cable, 368mm	n/a
	7064125	8-Pin Dc Power Cable, 394mm	n/a
	7064127	26-Pin Ribbon Data Cable, 280mm	n/a
	7064128	DVD Data and Power Cable, 600mm/75mm	n/a
	7076125	SFF-8643 to SFF-8087 to 90° SFF-8087 Cable, 550mm/770mm	n/a

Chassis
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7066885	Chassis Assembly	n/a
	7067539	Midwall Subassembly	n/a
	7082996	Top Cover	n/a
	150-4065	Interlock Switch Magnet	n/a
	7330666	Bottom Chassis Subassembly	n/a
n/a	7090250	1U Air Baffle	n/a

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7323221	8-Slot 2.5" Disk Cage Assembly	n/a
	7064123	Left Indicator Module Ribbon Cable, 368mm	n/a
	7066815	8-Slot Disk Cage	n/a
	7310474	Right Indicator Assembly	n/a
	7097205 [F]	8-Slot Backplane	n/a
	7300399 [F]	Left Indicator Assembly	n/a
	7096183	Left Indicator w/o Button or Lightpipe	n/a
	7323220	Fan Door Cover without Spacer 7300151	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7093015 [C]	600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7093013	Hitachi HUC101860CSS200 [H101860SFSUN600G] (600.0GB - 10000 RPM SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
n/a	7093037 [C]	1.2TB - 10000 RPM SAS SFF Disk Assembly w 1 bracket and 1 of the following disks:	n/a
	7093035	Hitachi HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB - 10000 RPM - SAS DISK)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
n/a	7094132 [C]	400GB Solid State SAS Drive Assembly	n/a
	7093645	400GB SAS Solid State Drive [HSCAC2DA4SUN400G]	n/a
	541-2123	Marlin 2.5" Bracket	n/a
n/a	7330686 [C]	800GB SAS3 Solid State Drive Assembly	n/a
	7330684	HGST HUSMM3280ASS20 [HBCAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS3 Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
n/a	7350749 [C]	800GB SAS3 Solid State Disk Assembly without Encryption (EAEU part - see note below)	n/a
	7350742	HGST HUSMM3280ASS204 [HBSAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS3 Disk without Encryption) (EAEU part - see note below)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
n/a	7350766 [C]	1.2TB - 10000 RPM SAS Disk Assembly without Encryption (EAEU part - see note below)	n/a
	7350764	HGST HUC101812CSS204 [H1018124FSUN1.2T] (1.2TB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
n/a	7352257 [C]	600GB - 10000 RPM SAS Disk Drive Assembly without Encryption (EAEU part - see note below)	n/a
	7352258	HGST HUC101860CSS204 [H1018604FSUN600G] (600GB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below)	n/a
	541-2123	Marlin 2.5" Bracket	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
n/a	135-1205 [C]	10Gb/Sec Long Wave SFP+ Transceiver	n/a
n/a	530-4449 [C] Buy	10Gb/Sec Short Wave SFP+ Transceiver	n/a
n/a	7051223 [C]	Dual 10-Gigabit PCI Express Ethernet SFP+ LP	n/a
n/a	7070006 [C]	Dual 10-Gigabit Base-T PCI Express Gen2	n/a
n/a	7326504 [C]	10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7089073 [C]	Fan Module	n/a
	7089072	40×56mm Dual Counter Rotating Fan	n/a

I/O
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7083430 [C]	1-Slot PCI Express Riser Assembly	n/a
	7081071	1-Slot PCI Express Riser	n/a
	7083428	1-Slot Riser Bracket	n/a
n/a	7083433 [C]	2-Slot PCI Express Riser Assembly	n/a
	7077680	2-Slot PCI Express Riser	n/a
	7083434	2-Slot Riser Bracket	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7310210 [C]	32GB DDR4-2400 DIMM	n/a
n/a	7310244 [C]	16GB DDR4-2400 Registered DIMM	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7079395 [C]	Type A256 600 Watt AC Input Power Supply	n/a
n/a	7335841 [C]	Type A256 600 Watt AC Input Power Supply	7079395 [C]
n/a	7352197 [C]	Type A256 600 Watt AC Input Power Supply	n/a

Rack
Option #	Manufacturing Part #	Description	Previous Part #
n/a	350-1719 [C]	1U/2U Snap-In Slide Rail Rackmount Kit	n/a
n/a	7042273 [C]	1U/2U Cable Management Arm (Snap-in)	n/a

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7096422	DVD Filler Panel	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7085211	Internal RAID HBA Assembly	n/a
	7070402	Double Sided Fastener, 1"x5"	n/a
	7085209 [F]	8-Port 12Gbps SAS3 Internal RAID HBA	n/a
	7086345 [F]	13.5V 6.4F Super Capacitor	n/a
	7086346 [F]	Super Capacitor Cable	n/a

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7306774 [F]	System Board Assembly	n/a
	7014226 [C]	Interlock Cable, 125mm	n/a
	7077529	System Board Tray	n/a
	7317945	System Board	n/a
	370-5621	3V Coin Cell Battery	n/a
	7345178	System Board	n/a
	370-5621	3V Coin Cell Battery	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

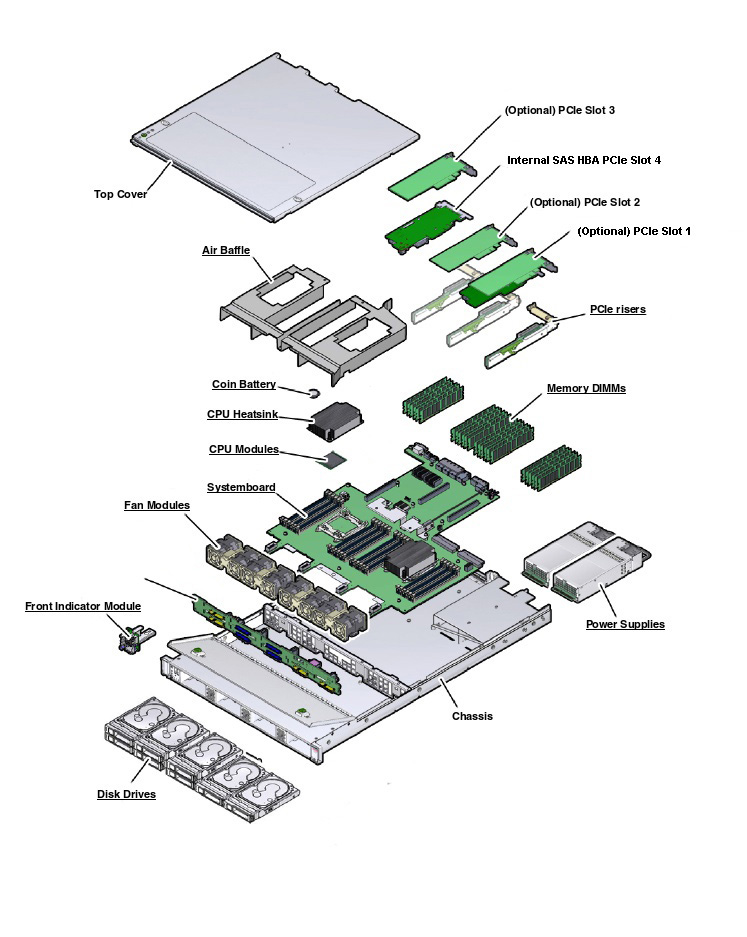

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
-	240-4674	PCI Express Filler Panel
NS	150-4065	Interlock Switch Magnet
NS	541-2629	2.5" Disk Drive Filler Panel
NS	330-4577	Disk Filler Bezel
