Sun Ultra 40 Workstation - Full Components List
|
|
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
|
|
|
|
CPU Module
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| X4171A |
594-3285 |
3.0GHz Single Core Opteron 256 Option |
n/a |
|
- 3.0GHz Single Core CPU AMD Opteron 256, E4 Stepping, 95W
|
n/a |
| X7253A |
594-2656 |
2.4GHz Dual Core Opteron 280 Option |
n/a |
|
- 2.4GHz Dual Core CPU AMD Opteron 280, E6 Stepping, 95W
|
n/a |
| X7254A |
594-2657 |
2.2GHz Dual Core Opteron 275 Option |
n/a |
|
- 2.2GHz Dual Core CPU, AMD Opteron 275, E6 Stepping, 95W
|
n/a |
| X7255A |
594-2658 |
2.8GHz Opteron 254 Option |
n/a |
|
- 2.8GHz CPU, AMD Opteron 254, E4 Stepping
|
n/a |
| X7256A |
594-2659 |
2.4GHz Opteron 250 Option |
n/a |
|
- 2.4GHz CPU, AMD Opteron 250, E4 Stepping
|
n/a |
| X7258A |
594-3820 |
2.2GHz Single Core Opteron 248 Option |
n/a |
|
- 2.2GHz CPU, AMD Opteron 248, E4 Stepping
|
n/a |
| X7290A |
594-2655 |
2.6GHz Dual Core Opteron 285 Option |
n/a |
|
- 2.6GHz Dual Core CPU, AMD Opteron 285, E6 Stepping, 95W
|
n/a |
|
X7257A
[S]
|
594-2660 |
2.0GHz Opteron 246 Option |
n/a |
|
- 2.0GHz CPU, AMD Opteron 246, E4 Stepping
|
n/a |
| n/a |
371-0824 1
[F]
|
Hypertransport Jumper Module |
n/a |
1 This component is inserted in CPU1 at the factory in single CPU systems.
|
|
Cables
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
371-1588 [C]
|
SLI Flexible Cable for nVIDIA Graphics Accelerator Cards |
n/a |
| n/a |
371-2271 [C]
|
SAS Cable Kit |
n/a |
| n/a |
n/a |
Ultra 40 M2 Disk Backplane SATA Data Cable 422755900001 (155mm) |
n/a |
|
Communication
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X6000A 2
[S]
|
375-3424
[C]
|
PCI Express Sun Crypto Accelerator 6000 |
n/a |
2 Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec acceleration
|
|
Disk Backplane
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
F373-0020 |
Disk Backplane |
n/a |
|
|
n/a |
|
- Ultra 40 M2 Disk Backplane SATA Data Cable 422755900001 (155mm)
|
n/a |
|
- Ultra 25/45 Disk Backplane SAS/SATA Data Cable 422739300001 (75mm)
|
n/a |
|
- Ultra 40 Disk Backplane SATA Data Cable 422740700002 (230 mm)
|
n/a |
|
Disks
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| XRB-ST1CE-500G7K |
540-6645 [C]
|
500GB - 7200RPM SATA, Disk Assembly with 1 bracket and 1 of the following disks: |
n/a |
|
- Hitachi HDS725050KLA360 [HDS7250SASUN500G]
(500GB - 7200 RPM - SATA Disk)
|
n/a |
|
- Seagate ST3500630NS [ST35000NSSUN500G]
(500GB - 7200 RPM - SATA Disk)
|
n/a |
|
- Hitachi HUA721050KLA330 [HUA7250SBSUN500G]
(500GB - 7200 RPM - SATA Disk)
|
n/a |
|
|
n/a |
| XRB-ST1CE-80G7K |
540-6644 [C]
|
80GB - 7200 RPM SATA, Disk Assembly with 1 bracket and 1 of the following disks: |
n/a |
|
- Hitachi HDS728080PLA380 [HDS7280SASUN82G]
(80GB - 7200 RPM - SATA Disk)
|
n/a |
|
- Hitachi HDS728080PLA380 [HDS7280SASUN80G]
(80GB - 7200 RPM - SATA Drive)
|
n/a |
|
|
n/a |
|
XRB-SS1CE-146G15KZ
[S]
|
540-7088 [C]
|
146GB - 15000RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks: |
n/a |
|
- Seagate ST3146855SS [ST314655SSUN146G]
(146GB - 15000 RPM - SAS Disk)
|
n/a |
|
- Seagate ST3146854SS [ST314654SSUN146G]
(146GB - 15000 RPM - SAS Disk)
|
n/a |
|
- Hitachi HUS153014VLS300 [HUS1514SBSUN146G]
(146GB - 15000 RPM - SAS Disk)
|
n/a |
|
|
n/a |
|
XRB-ST1CE-250G7K
[S]
|
540-6485 [C]
|
250GB - 7200 RPM SATA, Disk Assembly with 1 bracket and 1 of the following disks: |
n/a |
|
- Seagate ST3250824AS [STN7225SASUN250G]
(250GB - 7200 RPM - SATA Disk)
|
n/a |
|
- Hitachi HDT722525DLA380 [HDS7225SBSUN250G]
(250GB - 7200 RPM - SATA Disk)
|
n/a |
|
- Hitachi HDT725025VLA380 [HDS7225SCSUN250G]
(250GB - 7200 RPM - SATA Disk)
|
n/a |
|
- Seagate ST3250820NS [ST32500NSSUN250G]
(250GB - 7200 RPM - SATA Disk)
|
n/a |
|
|
n/a |
|
Ethernet
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X7280A-2
[S]
|
371-0905
[C]
|
PCI Express Dual Gigabit Ethernet UTP |
n/a |
|
X7281A-2
[S]
|
7056733
[C]
|
PCI Express Dual Gigabit Ethernet MMF |
371-0904
[C]
|
|
X7285A
[S]
|
371-0911 3
[C]
|
Low Profile PCI-X Dual Gigabit Ethernet UTP |
n/a |
|
X7286A
[S]
|
371-0912 4
[C]
|
Low Profile PCI-X Single Gigabit Ethernet MMF |
n/a |
| n/a |
371-0904
[C]
|
PCI Express Dual Gigabit Ethernet MMF |
n/a |
3 Only fits in slot PCI 0.
4 Only fits in slot PCI 0.
|
|
Fan
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
310-0063 [C]
|
CPU Fan/Heatsink |
n/a |
| n/a |
371-0703 [C]
|
3-Fan Tray |
n/a |
| n/a |
F373-0019 |
Fan Board |
n/a |
|
|
n/a |
|
- Motherboard J16 to Fan Board Cable 422739300002
|
n/a |
|
Graphics
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| X4173A |
371-1778
[C]
|
NVIDIA Quadro G-Sync |
n/a |
| X7266A |
371-0750
[C]
|
NVIDIA Quadro NVS285 2D Graphics Accelerator |
n/a |
|
X4172A
[S]
|
371-1777
[C]
|
Quadro FX5500 High-end 3D Graphics Accelerator |
n/a |
|
X4183A-Z
[S]
|
371-1803
[C]
|
NVIDIA Quadro NVS285 DDR2 Professional 2D Graphics Accelerator |
n/a |
|
X4184A-Z
[S]
|
371-1802
[C]
|
NVIDIA Quadro FX560 Entry 3D Graphics Accelerator |
n/a |
|
X4185A-Z
[S]
|
371-1801
[C]
|
NVIDIA Quadro FX1500 Midrange 3D Graphics Accelerator |
n/a |
|
X4186A-Z
[S]
|
371-1800
[C]
|
NVIDIA Quadro FX3500 Ultra High-end 3D Graphics Accelerator |
n/a |
|
X7263A
[S]
|
371-0752
[C]
|
NVIDIA Quadro FX4500 3D Graphics Accelerator |
n/a |
|
X7264A
[S]
|
370-7988
[C]
|
NVIDIA Quadro FX3450 3D Graphics Accelerator |
n/a |
|
X7265A
[S]
|
371-0751
[C]
|
NVIDIA Quadro FX1400 3D Graphics Accelerator |
n/a |
|
X7298A
[S]
|
371-0854
[C]
|
NVIDIA Quadro FX540 3D Graphics Accelerator |
n/a |
|
Memory
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| X7260A |
540-6617 [C]
|
Qty 2 - 2GB DIMMs (4GB Memory Assembly) |
n/a |
|
|
n/a |
| X7261A |
540-6618 [C]
|
Qty 2 - 1GB DIMMs (2GB Memory Assembly) |
n/a |
|
|
n/a |
| X7262A |
540-6619 [C]
[S]
|
Qty 2 - 512MB DIMMs (1GB Memory Assembly) |
n/a |
|
|
n/a |
| X7267A |
540-7070 [C]
|
Qty 2 - 4GB DIMMs (8GB Memory Assembly) |
n/a |
|
|
n/a |
|
Power
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
300-1800
[F]
|
1000 Watt AC Input Power Supply |
n/a |
|
Removable Media
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| X8019A 6
|
F370-7970 5
[C]
|
8x DVD-Writer/24x CD-Writer |
n/a |
|
- 8x DVD-Writer/24x CD-Writer
|
n/a |
|
|
373-0026 |
|
- Motherboard J29 to DVD Cable, 422740700003
|
n/a |
| F373-0024 [F]
|
Front I/O Board |
n/a |
|
|
n/a |
|
- Motherboard J27/GFX1 Power Cable, 422740700006
|
n/a |
|
- Motherboard J12/GFX2 to PSU P4 Y Power Cable, 422740700007
|
n/a |
|
- Motherboard J7/FP1 to I/O J2 Audio/Power Cable, 26-Pin, 422739300005
|
n/a |
|
- Motherboard J34/FP2 to I/O J1 1394 Cable, 14-Pin, 422740700005
|
n/a |
|
- Motherboard J47/FP3 to I/O J3 USB Cable, 6-Pin, 422740700004
|
n/a |
| X8060A |
330-4269 |
DVD Front Bezel |
n/a |
| 371-2213 [C]
|
24x DVD-ROM Drive [SKU] |
n/a |
|
X7276A
[S]
|
F370-7970 7
[C]
|
8x DVD-Writer/24x CD-Writer |
n/a |
|
- 8x DVD-Writer/24x CD-Writer
|
n/a |
|
|
373-0026 |
|
- Motherboard J29 to DVD Cable, 422740700003
|
n/a |
| n/a |
371-1355 |
DVD Filler Panel |
n/a |
| n/a |
373-0026 |
DVD Paddleboard |
n/a |
5 373-0018 replaced 373-0026 in October 2006. The two parts are identical.
6 DVD upgrade option kit for customers who previously purchased a non-DVD configuration for Sun Ultra 40 workstations.
7 373-0018 replaced 373-0026 in October 2006. The two parts are identical.
|
|
SCSI
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
SG-XPCIE4SAS-Z
[S]
|
371-2094
[C]
|
4 Port SAS PCI Express Internal HBA |
n/a |
|
SGXPCI1SCSILM320-Z
[S]
|
375-3366 10
[C]
|
PCI/PCI-X Single Ultra320 SCSI Adapter |
n/a |
|
SGXPCI2SCSILM320-Z
[S]
|
7050788
[C]
|
PCI/PCI-X Dual Ultra320 SCSI Adapter |
375-3365
11
12
[C]
|
| n/a |
375-3365
8
9
[C]
|
PCI/PCI-X Dual Ultra320 SCSI Adapter |
n/a |
8 Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50.
See Problem article 1013105.1.
9 Only fits in slot PCI 0.
10 Only fits in slot PCI 0.
11 Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50.
See Problem article 1013105.1.
12 Only fits in slot PCI 0.
|
|
System Board
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
375-3343 13
[F]
|
Motherboard |
n/a |
13 Motherboard FRU includes alcohol cleaner and thermal grease.
|
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
|

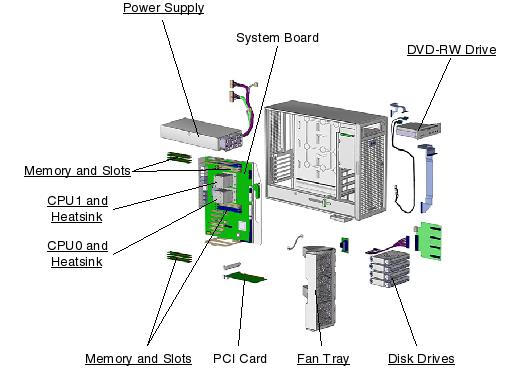

| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
|
| Code |
Manufacturing Part# |
Description |
| NS |
530-3459 [C]
|
DMS-59 to Dual DVI-I Cable, 215mm |
|
