Options 7260 / 7261 / 7262 / 7267

371-0867	371-0866	371-0865	371-2088

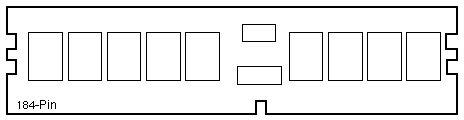

DDR1-400/PC3200 Registered DIMM 512MB ECC 1GB FRU F540-6619 1GB Option 7262A	DDR1-400/PC3200 Registered DIMM 1GB ECC 2GB FRU F540-6618 2GB Option 7261A	DDR1-400/PC3200 Registered DIMM 2GB ECC 4GB FRU F540-6617 4GB Option 7260A	DDR1-400/PC3200 Registered DIMM 4GB ECC 8GB FRU F540-7070 8GB Option 7267A

Ultra 40 Codename: Sirius

Notes

1. Install the first CPU 0 memory pair in black slots DIMM 0 and DIMM 1.
2. Install the first CPU 1 memory pair in black slots DIMM 4 and DIMM 5.
3. Install the second CPU 0 memory pair in blue slots DIMM 2 and DIMM 3.
4. Install the second CPU 1 memory pair in blue slots DIMM 6 and DIMM 7.
5. The minimum requirement is one memory pair in black slots DIMM 0 and DIMM 1.

References

1. Sun Ultra 40 Workstation Documentation.
2. Ultra 40 Service, Diagnostics, and Troubleshooting Manual, 819-3952.
