Oracle Server X7-2L for Communications - Full Components List

Batteries CPU Module Cables Chassis Disk Backplane Disks Ethernet Fan Memory Power Rack SCSI System Board Exploded View	Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	370-5621	3V Coin Cell Battery	n/a

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7322160 [F]	Pre-Greased 2U CPU Heatsink	n/a
n/a	7339550	CPU Clip, Intel H72851-002	n/a
n/a	7346820 [F]	24-Core 2.1GHz Xeon P-8160, 150W, SR3B0	n/a
n/a	7347511 [F]	10-Core 2.2GHz Xeon S-4114, 85W, SR3GK	n/a
n/a	7352219	CPU Heatsink Torque Tool	n/a
	7352217 [F]	12 in/lb Torque Driver	n/a
	7353594	5mm Drive x T30 Torx Bit x 6" Shank	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
n/a	530-4444 [C] Buy	10Gbps QSFP to QSFP Cable, 1m	n/a
n/a	530-4445 [C] Buy	10Gbps QSFP to QSFP Cable, 3m	n/a
n/a	530-4446 [C] Buy	10Gbps QSFP to QSFP Cable, 5m	n/a
n/a	530-4567 [C]	10Gbps QSFP to QSFP Cable, 2m	n/a
n/a	7039990 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 10M	n/a
n/a	7039999 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 20M	n/a
n/a	7040001 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 50M	n/a
n/a	7063849 [C]	InfiniBand Cable, QSFP, Optical, MPO to MPO, 5M	n/a
n/a	7063852 [C]	InfiniBand Cable, QSFP, Optical, MPO to MPO, 100M	n/a
n/a	7315464 [F]	SAS-3 Data Cable Assembly	n/a
	7315464a	36-Pin SFF-8643 to 1x 90° 42-Pin SFF-8612, 580mm, Port 3	n/a
	7315464b	72-Pin SFF-8643 to 2x 90° 42-Pin SFF_8612, 580mm, Port 1/2	n/a
n/a	7344289 [F]	Cable Kit	n/a
	7315469	11-Pin Front Interface Module Cable, 600mm	n/a
	7315471	10-Pin DC Power Cable, 420mm	n/a
	7315475	6-Pin PCI Express Power Cable, 150mm	n/a
	7315479	3-Pin Temperature Sensor Cable, 170mm	n/a
	7344627	34-Pin Backplane Data Cable, 445mm	n/a
	7348058	Serial Management Cable	n/a

Chassis
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7326026	X7-2L Base Chassis Assembly	n/a
	7325611	Chassis Assembly	n/a
	7315469	11-Pin Front Interface Module Cable, 600mm	n/a
	7315471	10-Pin DC Power Cable, 420mm	n/a
	7315479	3-Pin Temperature Sensor Cable, 170mm	n/a
	7322102	Rear Top Cover	n/a
	7322171 [F]	Left Front Indicator Module	n/a
	7334318	Internal Service Label	n/a
	7336033	Chassis Subassembly	n/a
	7310026	Left Ear Assembly	n/a
	7322147	Disk Cage	n/a
	7322150	Front Cover	n/a
	7335122	Right Ear	n/a
	7337358	Temperature Sensor Cover	n/a
	7341141 [F]	12-Slot Disk Backplane	n/a
	7344627	34-Pin Backplane Data Cable, 445mm	n/a
	7335813	Cat6 RJ45 Panel Mount Coupler	n/a
	7338269	Air Flow Director	n/a
	7348058	Serial Management Cable	n/a
n/a	7348066	Super Capacitor Bracket Assembly	n/a

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7341141 [F]	12-Slot Disk Backplane	n/a
n/a	7341466 [C]	M.2 Form Factor Riser Assembly	n/a
	7341610	M.2 Round Snap-Fit Clip	n/a
	7347335	M.2 Form Factor Carrier	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7309455	3.5" Coral Disk Filler Panel	n/a
n/a	7332759 [C]	10TB - 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7332753	HGST HUH721010AL5200 [H7210A520SUN010T](10TB - 7200 RPM - SAS Disk Drive)	n/a
	7308501	Coral 3.5" Disk Drive Bracket	n/a
	7343235	3.5" Coral Disk Drive Bracket	n/a
n/a	7341590 [C]	480GB Intel SSDSCKJB480G7 [SSDSCKJB480G7] (480GB M.2 SATA-3 Solid State Drive)	n/a
n/a	7350775 [C]	10TB - 7200 RPM SAS-3 Drive without Encryption X-Option (EAEU part - see note below)	n/a
	7350773	HGST HUH721010AL5201 [H7210A524SUN010T] (10TB - 7200 RPM - SAS-3 Disk without Encryption) (EAEU part - see note below)	n/a
	7308501	Coral 3.5" Disk Drive Bracket	n/a
	7343235	3.5" Drive Bracket (Coral)	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7319817 [C]	Quad 10-Gigabit or Dual 40-Gigabit Ethernet QSFP+	n/a
n/a	7326504 [C]	10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7322166 [C]	Fan Module	n/a
	7327202	80x80mm Dual Counter Rotating Fan	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7330697 [C]	16GB DDR4-2666 Registered DIMM	n/a
n/a	7330698 [C]	32GB DDR4-2666 Registered DIMM	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7326818	Power Distribution Board Assembly	n/a
	7331877	Power Distribution Board	n/a
	7335936	PDB Mezzanine Bridge	n/a
	7345672	PDB Connector Cover	n/a
n/a	7333459 [C]	Type A266 800/1200 Watt AC Input Power Supply - India ISI Mark	n/a
n/a	7350780 [C]	Type A266 800/1200 Watt AC Input Power Supply	7333459 [C]

Rack
Option #	Manufacturing Part #	Description	Previous Part #
n/a	350-1719 [C]	1U/2U Snap-In Slide Rail Rackmount Kit	n/a
n/a	7042273 [C]	1U/2U Cable Management Arm (Snap-in)	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7085207 [C]	8-Port 12Gbps SAS-3 HBA (Internal)	n/a
n/a	7085208 [C]	8-Port 12Gbps SAS-3 HBA (External)	n/a
n/a	7332897	Internal SAS-3 RAID HBA Assembly	n/a
	7332895 [F]	16-Port 12Gbps SAS-3 Internal RAID HBA	n/a
	7341122 [C]	Cable and Super Capacitor Assembly	n/a
	7070402	Double Sided Fastener, 1"x5"	n/a
	7086345 [C]	13.5V 6.4F Super Capacitor	n/a
	7332901	Super Capacitor Cable	n/a

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	330-4300	Locate Button Lightpipe	n/a
n/a	7335280 [F]	System Board Assembly	n/a
	7326818	Power Distribution Board Assembly	n/a
	7331877	Power Distribution Board	n/a
	7335936	PDB Mezzanine Bridge	n/a
	7345672	PDB Connector Cover	n/a
	7336120	System Board Tray	n/a
	7347231	System Board Subassembly	n/a
	370-5621	3V Coin Cell Battery	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

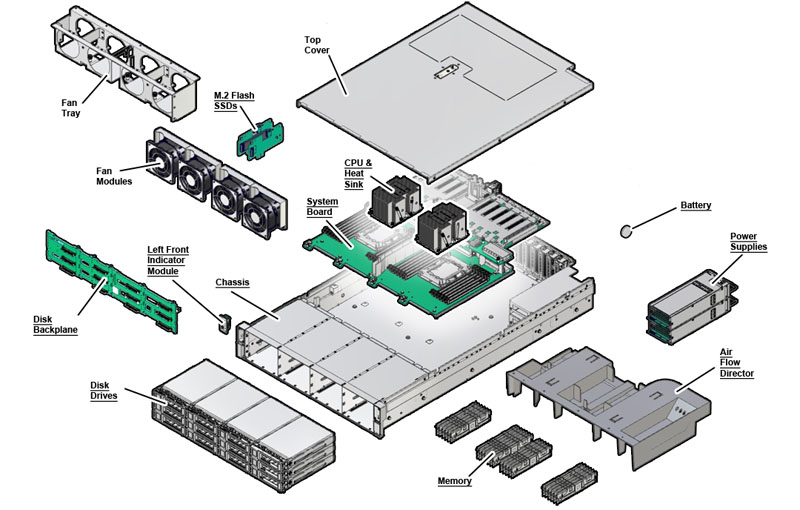

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
NS	240-4674	PCI Express Filler Panel
