Oracle System Handbook - ISO 7.0 May 2018 Internal/Partner Edition

Notes

Drive 7350773 was released in July 2017. (E0035607)
Drive 7350773 is formatted to T10 Device Protection Type 1 (byte 12 = 1).
Assembly 7350775 with drive 7350773 was released in July 2017. (E0035607)

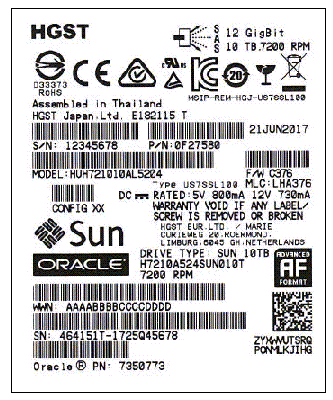

The manufacturers model number on the serial number label is HUH721010AL5204.
The Oracle Model Number on the serial number label is H7210A524SUN010T.
The Product Identification in SCSI Inquiry bytes 16-31 is H7210A524SUN010T.

HGST HUH721010AL5204 (10.0TB)

3 1/2" 7200 RPM Serial Attached SCSI

<a href="../../Systems/SupportHeaders/DISK_HGST_HUH721010AL5204_Erase.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

7350773 7350775

1" Height
HGST Libra
T10 PI Type 1
Specification 7350774
Secure Erase Over-Write Only
Non-Encrypted for EAEU Countries Coral Bracket Assy
3.5" Bracket 7308501
or 3.5" Bracket 7343235
PTO 7118707
