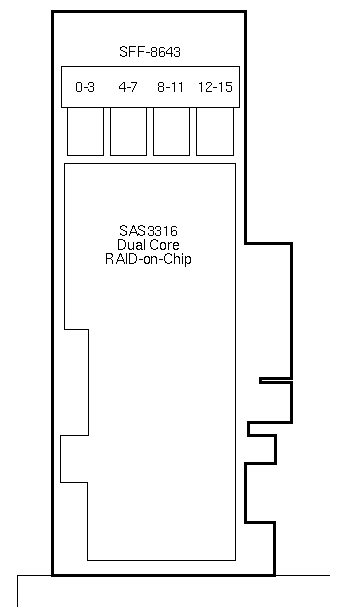

16-Port 12Gbps SAS PCIe Host Bus Adapter

Codename: Vail

PTO Option 7332906

7332895	7341122
Broadcom MegaRAID SAS 9361-16i PCI Express x8 Gen3	Cable 7332091 Fastener 7070402 Super Cap 7086345
7086345	7332901
Super Capacitor 13.5V, 6.4F Tecate TPL-34/12X46F	620mm SuperCap Cable Tecate 11-0010-4483 Same as Cable 7086346

Notes

1. Low Profile Bracket 240-7514 is included.
2. PCI Identifiers are Vendor ID 0x1000, Device ID 0x00ce, Subsystem Vendor ID 0x9371.
3. Vital Product Data VPD=PN is 7332895.
4. Some 16-Port 12Gbps SAS-3 Internal RAID PCIe Host Bus Adapters (part number 7332895) were mislabeled as part number 7332903.
   Refer to document 2375691.1
