Netra Server X5-2 for Communications - Full Components List
|
|
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
|
|
|
|

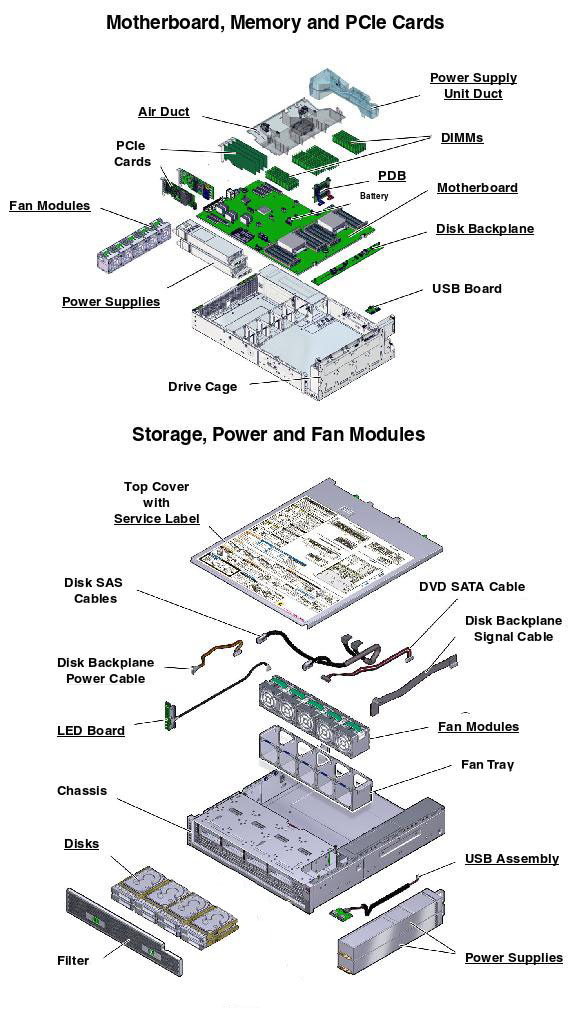

CPU Module
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
7026486 [F]
|
CPU Heatsink |
n/a |
| n/a |
7095106
[F]
|
18-Core 2.3GHz Intel E5-2699 v3, 145W |
n/a |
|
Cables
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
530-3100
|
RJ45F to DB9F Adapter |
n/a |
| n/a |
530-3623 |
Shielded RJ45 to RJ45 Cable, 4M |
n/a |
| n/a |
530-4441 [C]  Buy
|
10Gbps SFP+ TwinX Cable, 1m |
n/a |
| n/a |
530-4442 [C] Buy
|
10Gbps SFP+ TwinX Cable, 3m |
n/a |
| n/a |
530-4443 [C] Buy
|
10Gbps SFP+ TwinX Cable, 5m |
n/a |
| n/a |
7040692 [C]
|
IEC 320 Sheet E to IEC 320 C13, 10A/250V, 2M |
n/a |
| n/a |
7040693 [C]
|
IEC 320 Sheet E to IEC 320 C13, 10A/250V, 3M |
n/a |
| n/a |
7082455 |
10-Pin USB to System Board Cable, 385mm |
n/a |
| n/a |
7087613 |
34-Pin PDB to System Board Cable, 80mm |
n/a |
| n/a |
7087616 [F]
|
36-Pin SFF-8643 to 68-Pin SFF-8087 Cable, 0-3, 460mm |
n/a |
| n/a |
7087617 [F]
|
36-Pin SFF-8643 to 68-Pin SFF-8087 Cable 4-7, 615mm
|
n/a |
|
Chassis
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
7082761
[F]
|
LED Alarm Assembly |
n/a |
|
- 14-Pin LED Alarm to System Board Cable, 280mm
|
n/a |
| n/a |
7097723 |
Power Supply Air Duct |
n/a |
| n/a |
7301504 |
System Air Duct |
n/a |
|
Disk Backplane
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
7082453 [F]
|
26-Pin System Board to Disk Backplane Signal Cable, 286mm |
n/a |
| n/a |
7082456 [F]
|
System Board to Disk Backplane SAS 0-3 Cable, 320mm |
n/a |
| n/a |
7082457 [F]
|
System Board to Disk Backplane SAS 4-7 Cable, 500mm |
n/a |
| n/a |
7082793
|
8-Slot Disk Cage Assembly |
n/a |
|
|
n/a |
|
- 8-Disk Backplane Air Filter Assembly
|
n/a |
|
- 8-Disk Backplane Air Filter Frame
|
n/a |
|
- 8-Disk Backplane Air Filter
|
n/a |
| n/a |
7087610 [F]
|
8-Pin System Board to Disk Backplane Power Cable, 230mm |
n/a |
|
Disks
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
7093015 [C]
|
600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: |
n/a |
|
- Hitachi HUC101860CSS200 [H101860SFSUN600G] (600.0GB - 10000 RPM SAS Disk)
|
n/a |
|
|
n/a |
| n/a |
7093037 [C]
|
1.2TB - 10000 RPM SAS SFF Disk Assembly w 1 bracket and 1 of the following disks: |
n/a |
|
- Hitachi HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB - 10000 RPM - SAS DISK)
|
n/a |
|
|
n/a |
| n/a |
7094132 [C]
|
400GB Solid State SAS Drive Assembly |
n/a |
|
- 400GB SAS Solid State Drive [HSCAC2DA4SUN400G]
|
n/a |
|
|
n/a |
| n/a |
7330686 [C]
|
800GB SAS3 Solid State Drive Assembly |
n/a |
|
- HGST HUSMM3280ASS20 [HBCAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS3 Disk)
|
n/a |
|
|
n/a |
| n/a |
7350749 [C]
|
800GB SAS3 Solid State Disk Assembly without Encryption (EAEU part - see note below) |
n/a |
|
- HGST HUSMM3280ASS204 [HBSAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS3 Disk without Encryption) (EAEU part - see note below)
|
n/a |
|
|
n/a |
| n/a |
7350766 [C]
|
1.2TB - 10000 RPM SAS Disk Assembly without Encryption (EAEU part - see note below) |
n/a |
|
- HGST HUC101812CSS204 [H1018124FSUN1.2T] (1.2TB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below)
|
n/a |
|
|
n/a |
| n/a |
7352257 [C]
|
600GB - 10000 RPM SAS Disk Drive Assembly without Encryption (EAEU part - see note below) |
n/a |
|
- HGST HUC101860CSS204 [H1018604FSUN600G] (600GB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below)
|
n/a |
|
|
n/a |
|
Ethernet
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| 7111181 |
7096675
[C]
|
Quad 10-Gigabit Base-T Ethernet |
n/a |
| n/a |
135-1205
[C]
|
10Gb/Sec Long Wave SFP+ Transceiver |
n/a |
| n/a |
530-4449
[C] Buy
|
10Gb/Sec Short Wave SFP+ Transceiver |
n/a |
| n/a |
7051223
[C]
|
Dual 10-Gigabit PCI Express Ethernet SFP+ LP |
n/a |
| n/a |
7070006
[C]
|
Dual 10-Gigabit Base-T PCI Express Gen2 |
n/a |
| n/a |
7070195
[C]
|
Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP |
n/a |
|
Fan
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
7019706 [C]
|
Single Fan Module |
n/a |
|
I/O
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
7082759
[F]
|
USB Assembly |
n/a |
|
- 10-Pin USB to System Board Cable, 385mm
|
n/a |
|
Memory
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
7090170
[C]
|
8GB USB Stick |
n/a |
| n/a |
7097801
[C]
|
16GB DDR4-2133 Registered DIMM |
n/a |
| n/a |
7318217
[C]
|
8GB USB Stick |
7090170
[C]
|
|
Power
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
565-1962 [F]
|
Wago DC Connector Set |
n/a |
|
|
n/a |
|
- Wago DC Connector Clamp Tool
|
n/a |
| n/a |
7081590
[C]
|
Type A249A 1100/1200 Watt AC Input Power Supply |
n/a |
| n/a |
7082760
[F]
|
Power Distribution Assembly |
n/a |
|
|
n/a |
|
- 34-Pin PDB to System Board Cable, 80mm
|
n/a |
| n/a |
7087767
[C]
|
Type D204A 1200 Watt DC Input Power Supply |
n/a |
| n/a |
7093598
[C]
|
Type A249B 1200 Watt AC Input Power Supply |
n/a |
| n/a |
7307199
[C]
|
D204A 1200 Watt DC Input Power Supply |
n/a |
| n/a |
7335755
[C]
|
D204A 1200 Watt DC Input Power Supply |
n/a |
| n/a |
7336327
[C]
|
Type A249B 1200 Watt AC Input Power Supply |
n/a |
| n/a |
7350539 [C]
|
Type A249B 1200 Watt AC Input Power Supply (Taiwan) |
n/a |
|
Rack
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
371-1478 |
19" 2-post Rackmount Kit |
n/a |
| n/a |
7015399 [C]
|
10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M |
n/a |
| n/a |
7015400 [C]
|
10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M |
n/a |
|
SCSI
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
7085209
[F]
|
8-Port 12Gbps SAS3 Internal RAID HBA |
n/a |
| n/a |
7086345
[F]
|
13.5V 6.4F Super Capacitor |
n/a |
| n/a |
7086346
[F]
|
Super Capacitor Cable |
n/a |
|
System Board
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
7316666
[F]
|
Motherboard Assembly |
n/a |
|
|
n/a |
|
|
n/a |
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
|
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
|
| Code |
Manufacturing Part# |
Description |
| NS |
341-2610 |
PCI Filler Panel |
| NS |
530-4001 |
RJ45M to RJ45F Extender, 30mm |
| NS |
541-2629 |
2.5" Disk Drive Filler Panel |
| NS |
7079618 |
DDR4 Memory Filler Panel |
|
