Sun StorageTek 2530 - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Array Controller
Option # Manufacturing
Part #		 Description Previous
Part #
XTA-2500-1GBMEM 1 [S] 371-4592 [C] 1GB Memory DIMM for STK 25xx Controller Cache Upgrade n/a
XTA-2501-IOM [S] 375-3502 [C] SAS Expansion Tray I/O Module (IOM) n/a
XTA-2530-CTRL-1GB [S] 540-7738 StorageTek 2530 SAS 1GB Controller Assembly n/a
  • Battery
 n/a
  • SAS RAID Controller with 1GB DIMM
 n/a
XTA-2530-CTRL-512M [S] 540-7292 StorageTek 2530 SAS 512MB Controller Assembly n/a
  • Battery
 n/a
  • SAS RAID Controller with 512MB DIMM
 n/a
1 Sun StorageTek 2500 Series DIMM Upgrade Guide (820-7178)
2 The part # of an installed controller is not a reliable indicator of its cache size. Verify cache size before ordering a replacement controller. Refer to KM document 1546658.1 for details.
Backplane/Centerplane
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 540-7198 [C] Chassis/Midplane Assembly n/a
  • 375-3505
  • Midplane
 n/a
  • 540-7261
  • Chassis Assembly
 n/a
  • 540-7262
  • Rear Cage Assembly
 n/a
Cables
Option # Manufacturing
Part #		 Description Previous
Part #
XTA-0.5M-SAS [S] 530-3886 [C] 4X Mini SAS Cable, SFF-8088 to SFF-8088, 0.5M n/a
XTA-1.0M-SAS [S] 530-3882 [C] Buy 4X Mini SAS Cable, SFF-8088 to SFF-8088, 1M n/a
XTA-2.0M-SAS [S] 530-3883 [C] Buy 4X Mini SAS Cable, SFF-8088 to SFF-8088, 2M n/a
XTA-3.0M-SAS [S] 530-3884 [C] Buy 4X Mini SAS Cable, SFF-8088 to SFF-8088, 3M n/a
XTA-6.0M-SAS [S] 530-3887 [C] 4X Mini SAS Cable, SFF-8088 to SFF-8088, 6M n/a
XTA25X0-0.5M-SAS-Z [S] 530-3886 [C] 4X Mini SAS Cable, SFF-8088 to SFF-8088, 0.5M n/a
XTA25X0-1.0M-SAS-Z [S] 530-3882 [C] Buy 4X Mini SAS Cable, SFF-8088 to SFF-8088, 1M n/a
XTA25X0-2.0M-SAS-Z [S] 530-3883 [C] Buy 4X Mini SAS Cable, SFF-8088 to SFF-8088, 2M n/a
XTA25X0-3.0M-SAS-Z [S] 530-3884 [C] Buy 4X Mini SAS Cable, SFF-8088 to SFF-8088, 3M n/a
XTA25X0-6.0M-SAS-Z [S] 530-3887 [C] 4X Mini SAS Cable, SFF-8088 to SFF-8088, 6M n/a
n/a 530-3100 RJ45F to DB9F Adapter n/a
n/a 530-3544 [C] PS2 6-pin DIN to RJ-45 Cable (2M) n/a
n/a 530-3880 [C] RJ45 to RJ45 Shielded Ethernet Cable, CAT5, 6M n/a
Disks
Option # Manufacturing
Part #		 Description Previous
Part #
7100414 [S] 7010626 [C] 300GB - 15000 RPM, Disk Assembly with 1 bracket and 1 disk: n/a
  • Seagate ST3300657SS [ST330057SSUN300G]
    (300GB - 15000 RPM - SAS Disk)
 n/a
  • Hitachi HUS156030VLS600 [HUS1530SCSUN300G]
    (300GB - 15000 RPM - SAS Disk)
 n/a
  • 7077829
  • Bracket
 540-7216
7100415 [S] 7012636 [C] 600GB - 15000 RPM, Disk Assembly with 1 bracket and 1 disk: 542-0143 [C]
  • Seagate ST3600057SS [ST360057SSUN600G]
    (600GB - 15000 RPM - SAS Disk)
 n/a
  • Hitachi HUS156060VLS600 [HUS1560SCSUN600G]
    (600GB - 15000 RPM - SAS Disk)
 n/a
  • 7077829
  • Bracket
 540-7216
XTA-SS1NG-146G15K [S] 540-7197 [C] 146GB - 15000 RPM, Disk Assembly with 1 bracket and 1 disk: n/a
  • Seagate ST3146855SS [ST314655SSUN146G]
    (146GB - 15000 RPM - SAS Disk)
 n/a
  • Hitachi HUS153014VLS300 [HUS1514SBSUN146G]
    (146GB - 15000 RPM - SAS Disk)
 n/a
  • Seagate ST3146356SS [ST314656SSUN146G]
    (146GB - 15000 RPM - SAS Disk)
 n/a
  • Bracket
 n/a
XTA-SS1NG-300G15K [S] 540-7219 [C] 300GB - 15000 RPM, Disk Assembly with 1 bracket and 1 disk: n/a
  • Seagate ST3300655SS [ST330055SSUN300G]
    (300GB - 15K RPM - SAS Disk)
 n/a
  • Hitachi HUS153030VLS300 [HUS1530SBSUN300G]
    (300GB - 15000 RPM - SAS Disk)
 n/a
  • Seagate ST3300656SS [ST330056SSUN300G]
    (300GB - 15000 RPM - SAS Disk)
 n/a
  • Seagate ST3300657SS [ST330057SSUN300G]
    (300GB - 15000 RPM - SAS Disk)
 n/a
  • Hitachi HUS156030VLS600 [HUS1530SCSUN300G]
    (300GB - 15000 RPM - SAS Disk)
 n/a
  • Bracket
 n/a
XTA-SS1NG-400G10K [S] 540-7380 [C] 400GB - 10000 RPM, Disk Assembly with 1 bracket and 1 disk: n/a
  • Seagate ST3400755SS [ST340008SSUN0.4T]
    (400GB - 10000 RPM - SAS Disk)
 n/a
  • Bracket
 n/a
XTA-SS1NG-450GB15K [S] 540-7675 [C] 450GB - 15000 RPM, Disk Assembly with 1 bracket and 1 disk: n/a
  • Seagate ST3450856SS [ST345056SSUN450G]
    (450GB - 15000 RPM - SAS Disk)
 n/a
  • Bracket
 n/a
XTA-SS1NG-600GB15K [S] 542-0143 [C] 600GB - 15000 RPM, Disk Assembly with 1 bracket and 1 disk: n/a
  • Seagate ST3600057SS [ST360057SSUN600G]
    (600GB - 15000 RPM - SAS Disk)
 n/a
  • Hitachi HUS156060VLS600 [HUS1560SCSUN600G]
    (600GB - 15000 RPM - SAS Disk)
 n/a
  • Bracket
 n/a
XTA-SS1NG-73G15K [S] 540-7196 [C] 73GB - 15000 RPM, Disk Assembly with 1 bracket and 1 disk: n/a
  • Seagate ST373455SS [ST373455SSUN72G]
    (73.4GB - 15000 RPM - SAS Disk)
 n/a
  • Hitachi HUS153073VLS300 [HUS1573SBSUN72G]
    (73GB - 15000 RPM - SAS Disk)
 n/a
  • Bracket
 n/a
XTA-ST1NG-1T7K [S] 540-7624 [C] 1TB - 7200 RPM, Disk Assembly with 1 bracket and 1 disk: n/a
  • Hitachi HUA721010KLA330 [HUA7210SASUN1.0T]
    (1TB - 7200 RPM - SATA Disk)
n/a
  • Seagate ST31000340NS [ST31000NSSUN1.0T]
    (1TB - 7200 RPM - SATA Disk)
 n/a
  • Seagate ST31000524NS [ST31001NSSUN1.0T]
    (1TB - 7200 RPM - SATA Disk)
 n/a
  • Bracket
 n/a
XTA-ST1NG-2T7K [S] 542-0183 [C] 2TB - 7200 RPM, Disk Assembly with 1 bracket and 1 disk: n/a
  • Hitachi H7220AA30 [H7220AA30SUN2.0T]
    (2TB - 7200 RPM - SATA Disk)
 n/a
  • Seagate ST32000644NS [ST32000NSSUN2.0T]
    (2TB - 7200 RPM - SATA Disk)
 n/a
  • Bracket
 n/a
XTA-ST1NG-500G7K [S] 540-7195 [C] 500GB - 7200 RPM, Disk Assembly with 1 bracket and 1 disk: n/a
  • Hitachi HDS725050KLA360 [HDS7250SASUN500G]
    (500GB - 7200 RPM - SATA Disk)
 n/a
  • Seagate ST3500630NS [ST35000NSSUN500G]
    (500GB - 7200 RPM - SATA Disk)
 n/a
  • Hitachi HUA721050KLA330 [HUA7250SBSUN500G]
    (500GB - 7200 RPM - SATA Disk)
 n/a
  • Bracket
 n/a
XTA-ST1NG-750G7K [S] 540-7561 [C] 750GB - 7200 RPM Disk Assembly with 1 bracket and 1 disk: n/a
  • Seagate ST3750640NS [ST37500NSSUN750G]
    (750GB - 7200 RPM - SATA Disk)
 n/a
  • Hitachi HUA721075KLA330 [HUA7275SASUN750G]
    (750GB - 7200 RPM - SATA Disk)
 n/a
  • Bracket
 n/a
n/a 570-1191 Disk Drive Filler Panel Assembly n/a
  • 540-7214
  • Disk Drive Filler Panel
 n/a
  • 541-3899 3
  • Disk Drive Filler Panel
n/a
3 replaces 540-7214 by wo_42461
NOTE: Refer to FAB article1001125.1 SATA drive support for 25xx Array requires 06.70.00.1 or later Controller Firmware.
Power
Option # Manufacturing
Part #		 Description Previous
Part #
XTA-2500-2UAC-KIT [S] 540-7295 [C] AC Input Power Supply Assembly n/a
  • 300-2051
  • 515 Watt AC Input Power Supply
 n/a
  • 371-2737
  • Plastic Latch
 n/a
XTA-2500-2UDC-KIT [S] 540-7302 [C] DC Input Power Supply Assembly n/a
  • 515 Watt DC Input Power Supply
 n/a
  • 371-2737
  • Plastic Latch
 n/a
XTA-25X0-CTRL-BATT [S] 371-2482 [C] Buy Battery n/a
n/a 180-2194 [C] DC Power Cable n/a
Rack
Option # Manufacturing
Part #		 Description Previous
Part #
XTA-2500-2URK-19U [S] 594-4405 StorageTek 2500 2U Universal Rack Mount Kit n/a
SCSI
Option # Manufacturing
Part #		 Description Previous
Part #
SG-XPCI8SAS-E-Z [S] 7050791 3Gb PCI-X SAS 8-Port Host Adapter 375-3488
SG-XPCIE8SAS-E-Z [S] 7050793 PCI Express 8-Port Host Adapter 375-3487
SG-XPCIE8SAS-EB-Z [S] 375-3486 Sun StorageTek SAS Host Bus Adapter PCI Express ExpressModule n/a
n/a 375-3487 PCI Express 8-Port Host Adapter n/a
n/a 375-3488 3Gb PCI-X SAS 8-Port Host Adapter n/a
NOTE: These Host Bus Adapters install in the host server. See the host server Full Components List for FRU/CRU status.

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Exploded View

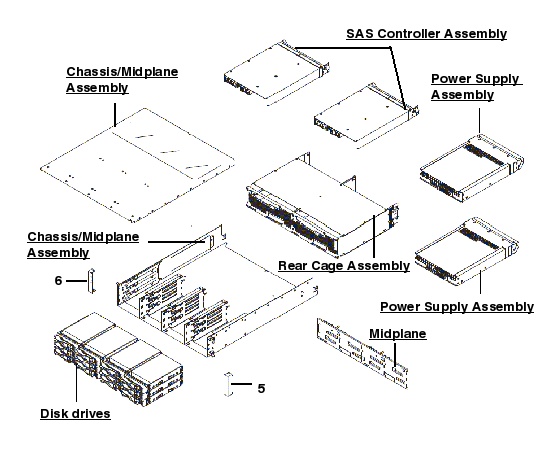

Sun StorageTek 2530 Exploded View
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown

Code Manufacturing Part# Description
5 371-2513 Sun StorageTek 2500 Front Right End Cap
6 371-2514 Sun StorageTek 2500 Front Left End Cap
NS 371-1107 [C] DB-9F / RJ-45 Serial Adapter
NS 371-2739 Controller Filler Panel
