Sun Fire X2100 - Full Components List

CPU Module Cables Communication Disk Backplane Disks Ethernet Fan Fibre Channel I/O Memory Power Removable Media SCSI System Board System Service Processor Exploded View Wiring Diagram	Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
8073A	310-0056	CPU Heatsink	n/a
	370-7941 [F]	2.6GHz Opteron 152 Socket 939 (E4 Stepping)	n/a
8071A [S]	310-0056	CPU Heatsink	n/a
	371-0734 [F]	2.0GHz Opteron 146 Socket 939 (E4 Stepping)	n/a
8071A-Z [S]	310-0098 [F]	CPU Heatsink	n/a
8072A [S]	310-0056	CPU Heatsink	n/a
	370-7940 [F]	2.2GHz Opteron 148 Socket 939 (E4 Stepping)	n/a
8072A-Z [S]	310-0098 [F]	CPU Heatsink	n/a
	370-7940 [F]	2.2GHz Opteron 148 Socket 939 (E4 Stepping)	n/a
8074A [S]	310-0056	CPU Heatsink	n/a
	371-0883 [F] [S]	2.8GHz Opteron 154 Socket 939 (E4 Stepping)	n/a
8074A-Z [S]	310-0098 [F]	CPU Heatsink	n/a
	371-0883 [F] [S]	2.8GHz Opteron 154 Socket 939 (E4 Stepping)	n/a
8075A-Z [S]	310-0098 [F]	CPU Heatsink	n/a
	371-0884 [F] [S]	3.0GHz Opteron 156 Socket 939 (E4 Stepping)	n/a
8076A-Z [S]	310-0098 [F]	CPU Heatsink	n/a
	371-0886 [F]	2.6GHz Dual Core Opteron 185 Socket 939 (E6 Stepping)	n/a
8084A [S]	310-0056	CPU Heatsink	n/a
	371-0885 [F]	2.4GHz Dual Core Opteron 180 Socket 939 (E6 Stepping)	n/a
8084A-Z [S]	310-0098 [F]	CPU Heatsink	n/a
	371-0885 [F]	2.4GHz Dual Core Opteron 180 Socket 939 (E6 Stepping)	n/a
8085A [S]	310-0056	CPU Heatsink	n/a
	371-0735 [F]	2.2GHz Dual Core Opteron 175 Socket 939 (E6 Stepping)	n/a
n/a	310-0065	X23-7783D Thermal Grease Syringe - 0.5gm (0.25 - 0.30cc)	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
X311L [S]	Localized Power Cord Kit - North America/Asia
	180-1097 [C] Buy	IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black	n/a
X312E [S]	Localized Power Code Kit - China
	180-1982 [C]	IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M	n/a
X312L [S]	Localized Power Cord Kit - Continental Europe
	180-1993 [C]	IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black	n/a
X314L [S]	Localized Power Cord Kit - Swiss
	7049124 [C]	IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black	180-1994 [C]
X317L [S]	Localized Power Cord Kit - U.K.
	180-1997 [C] Buy	IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black	n/a
X332A [S]	Localized Power Cord Kit - Taiwan
	180-2121 [C]	IEC 320 C13 to NEMA 5-15P - 10A/125V 2.5M Black	n/a
X384L [S]	Localized Power Cord Kit - Italian
	180-1996 [C]	IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black	n/a
X386L [S]	Localized Power Cord Kit - Australian
	180-1998 [C]	IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black	n/a
n/a	180-1994 [C]	IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black	n/a
n/a	180-1995 [C]	IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
X6000A 1 [S]	375-3424 [C]	PCI Express Sun Crypto Accelerator 6000	n/a

1 Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec acceleration

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-0733 2	2-Slot SATA Disk Backplane	n/a
n/a	371-1605 [C]	2-Slot SATA Disk Backplane	371-0733 3

2 Replace only with 317-1605-02. (FAB 201272) 3 Replace only with 317-1605-02. (FAB 201272)

Disks
Option #	Manufacturing Part #	Description	Previous Part #
X8078A	540-6596 [C]	250GB - 7200 RPM SATA, Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	370-7948	Seagate ST3250823AS (250GB - 7200 RPM - SATA Disk)	n/a
	371-0114	Hitachi HDS722525VLSA80 (250GB - 7200 RPM - SATA Disk)	n/a
	540-6562	1" SPUD Bracket	n/a
X8079A	540-6595 [C]	80GB - 7200 RPM SATA, Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	370-7947	Seagate ST380013AS (80GB - 7200 RPM - SATA Disk)	n/a
	371-0113	Hitachi HDS728080PLA380 (80GB - 7200RPM - SATA Disk)	n/a
	540-6562	1" SPUD Bracket	n/a

NOTE: A combination of 80GB and 250GB SATA drives is supported. RAID 1 mirroring requires identically-sized drives.

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
X7280A-2 [S]	371-0905 [C]	PCI Express Dual Gigabit Ethernet UTP	n/a
X7281A-2 [S]	7056733 [C]	PCI Express Dual Gigabit Ethernet MMF	371-0904 [C]
n/a	371-0904 [C]	PCI Express Dual Gigabit Ethernet MMF	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-0737 [C]	Single Fan Assembly	n/a
n/a	371-0770 [C]	Dual Fan Assembly	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCIE1FC-EM4 [S]	375-3396 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
	7053428 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-QF4 [S]	375-3355 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE2FC-EM4 [S]	375-3397 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
	7053427 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FC-QF4 [S]	375-3356 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a

I/O
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-0732 [C]	PCI Express Riser with Bracket	n/a
n/a	371-0738 [C]	Front I/O Board	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
X4211A-Z [S]	4GB (2 × 2GB DDR266/PC2100 ECC DIMM) Option
	540-7077 [C]	2GB Memory	n/a
	371-2102	2GB DDR266/PC2100 ECC Unbuffered DIMM	n/a
X8006A [S]	2GB (2 × 1GB DDR400/PC3200 ECC DIMM) Option
	540-6465 [C]	Qty 2 - 1GB DIMMs (2GB Memory Assembly)	n/a
	370-7944	1GB DDR400/PC3200 ECC Unbuffered DIMM	n/a
X8007A [S]	1GB (2 × 512MB DDR400/PC3200 ECC DIMM) Option
	540-6464 [C]	Qty 2 - 512MB DIMMs (1GB Memory Assembly)	n/a
	370-7943	512MB DDR400/PC3200 ECC Unbuffered DIMM	n/a

NOTE: Pairs of different densities may be mixed, e.g. 2×512MB and 2×1GB.

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	300-1835 [C]	300 Watt AC Input Power Supply	n/a

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
X8082A [S]	371-0736 [C]	8x DVD-ROM/24x CD-ROM Drive	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCIE2SCSIU320Z [S]	7050790 [C]	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	375-3357 [C]
SG-XPCIE8SAS-E-Z [S]	7050793 [C]	PCI Express 8-Port Host Adapter	375-3487 [C]
n/a	375-3357 [C]	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	n/a
n/a	375-3487 [C]	PCI Express 8-Port Host Adapter	n/a

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	375-3342 [F]	System Board	n/a

NOTE: The System Battery is a common CR2032 calculator battery.

System Service Processor
Option #	Manufacturing Part #	Description	Previous Part #
X8081A [S]	371-0743 [C]	Service Processor	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

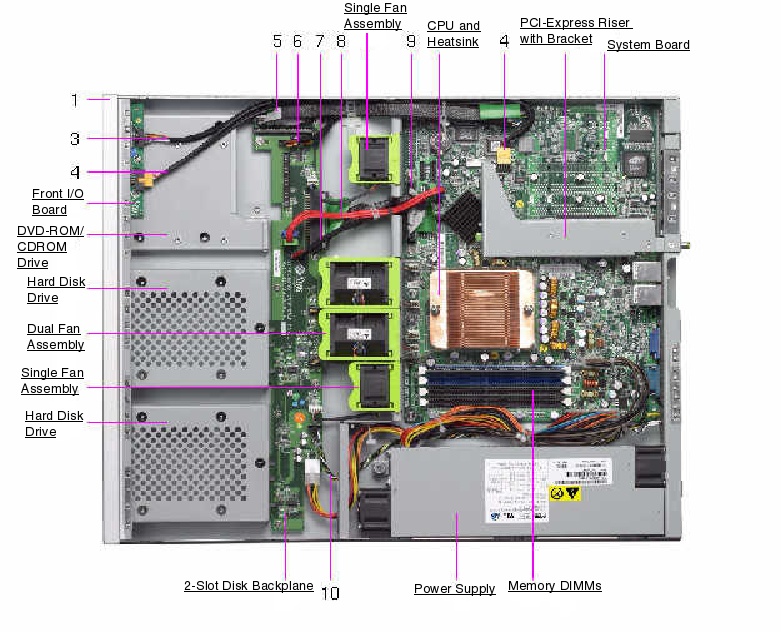

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
1	380-1319	A75 Base Chassis Assembly
	300-1835 [C]	300 Watt AC Input Power Supply
NS	330-4200	Sun Logo
NS	371-0731 [C]	Cable Kit
3	n/a	Backplane to I/O Board LED/Power Cable (422743500010)
4	n/a	I/O Board to System Board USB Cable, Yellow Connectors (422743500002)
5	n/a	Backplane to Service Processor Cable (422743500008)
6	n/a	Backplane to System Board LED/Power Cable (422743500009)
7	n/a	Backplane to System Board SATA Cable, Blue (422743500005)
7	n/a	Backplane to System Board Fan Connectors Cable (422743500011)
8	n/a	Backplane to System Board SATA Cable, Green (422743500006)
9	n/a	Backplane to System Board IDE Cable (422743500004)
10	n/a	Backplane to Rear Panel LED Cable (422743500001)
NS	n/a	Backplane to System Board Service Processor Cable (422743500007)
NS	n/a	Backplane to DVD Cable (422743500003)
	371-0732 [C]	PCI Express Riser with Bracket
	371-0733 4	2-Slot SATA Disk Backplane
	371-0737 [C]	Single Fan Assembly
	371-0738 [C]	Front I/O Board
	371-0770 [C]	Dual Fan Assembly
	375-3342 [F]	System Board
NS	n/a	PCI Express Filler Panel
NS	n/a	CPU Air Baffle
NS	n/a	Top Cover
NS	n/a	Chassis
NS	371-0841	Disk Drive Filler Panel
NS	371-0842	DVD-ROM/CD-ROM Filler Panel

4 Replace only with 317-1605-02. (FAB 201272)
