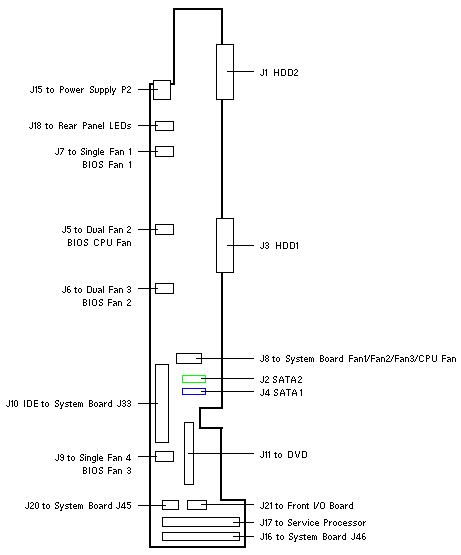

2-Slot SATA Disk Backplane

<a href="../../Systems/SupportHeaders/SCSI_X2100_SATA_Bkpln.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

371-0733 371-1605

PCB 411743500006 PCB 411743500007

Sun Fire X2100 Codename: Aquarius

Notes

Physical fan locations and the BIOS fan locations are different.
Fan failures are reported by the BIOS fan location.

References

Sun Fire X2100 Server Documentation.
