Oracle Server X7-8 - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
System Notes:
Oracle Server X7-8 - Home Page

Backplane/Centerplane
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7309735 [F] Busbar/Midplane Assembly n/a
  • 7309736
  • Busbar Subassembly
 n/a
    • 7309737
    • Busbar
 n/a
  • 7309745
  • 8-Slot Midplane Subassembly
 n/a
    • 7316714
    • 8-Slot Midplane (fruid 7316714)
 n/a
    • 7323901
    • Bus Bar to Midplane Cable, 150mm
 n/a
Batteries
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 150-3993 [C] Buy 3V Lithium Coin Cell Battery n/a
CPU Module
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7328735 [F] Pre-Greased 1U CPU Heatsink n/a
n/a 7339550 CPU Clip, Intel H72851-002 n/a
n/a 7339736 [F] CPU/Memory Module n/a
  • 7309760
  • Enclosure
 n/a
    • 7077536
    • Top Cover
 n/a
  • 7319335
  • Fan Board Cable
 n/a
  • 7320195
  • Fan Board
 n/a
  • 7339735
  • CPU/Memory Board Assembly
 n/a
    • 7337186
    • CPU/Memory Board (fruid 7337186)
 n/a
n/a 7346820 [F] 24-Core 2.1GHz Xeon P-8160, 150W, SR3B0 n/a
n/a 7347508 [F] 24-Core 2.7GHz Xeon P-8168, 205W, SR37J n/a
n/a 7347509 [F] 18-Core 2.3GHz Xeon G-6140, 140W, SR3AX n/a
n/a 7347512 [F] 6-Core 3.4GHz Xeon G-6128, 115W, SR3J4 n/a
n/a 7352219 CPU Heatsink Torque Tool n/a
  • 7352217 [F]
  • 12 in/lb Torque Driver
 n/a
  • 7353594
  • 5mm Drive x T30 Torx Bit x 6" Shank
 n/a
Cables
Option # Manufacturing
Part #		 Description Previous
Part #
7102869 Buy 7039990 [C] MPO to MPO High Bandwidth QSFP Optical Cable, 10M n/a
7102870 Buy 7039999 [C] MPO to MPO High Bandwidth QSFP Optical Cable, 20M n/a
7102871 Buy 7040001 [C] MPO to MPO High Bandwidth QSFP Optical Cable, 50M n/a
7105199 Buy 7063849 [C] InfiniBand Cable, QSFP, Optical, MPO to MPO, 5M n/a
7105206 Buy 7063852 [C] InfiniBand Cable, QSFP, Optical, MPO to MPO, 100M n/a
7116364 7348895 [C] QSFP28 to 4x SFP28 Copper Splitter Cable, 2M n/a
7118363 7348892 [C] QSFP28 to 4x SFP28 Copper Splitter Cable, 1M n/a
7118364 7348895 [C] QSFP28 to 4x SFP28 Copper Splitter Cable, 2M n/a
7118365 7348898 [C] QSFP28 to 4x SFP28 Copper Splitter Cable, 3M n/a
7118366 7348901 [C] QSFP28 to 4x SFP28 Copper Splitter Cable, 5M n/a
7118367 7348904 [C] SFP28 Twinaxial Passive Copper Cable, 1M n/a
7118368 7348907 [C] SFP28 Twinaxial Passive Copper Cable, 2M n/a
7118369 7348910 [C] SFP28 Twinaxial Passive Copper Cable, 3M n/a
7118370 7348913 [C] SFP28 Twinaxial Passive Copper Cable, 5M n/a
X2121A-1M-N Buy 530-4444 [C] 10Gbps QSFP to QSFP Cable, 1m n/a
X2121A-2M Buy 530-4567 [C] 10Gbps QSFP to QSFP Cable, 2m n/a
X2121A-3M-N Buy 530-4445 [C] 10Gbps QSFP to QSFP Cable, 3m n/a
X2121A-5M-N Buy 530-4446 [C] 10Gbps QSFP to QSFP Cable, 5m n/a
n/a 7084503 [F] Cable Kit n/a
  • 7064165
  • AC LED to Midplane Cable
 n/a
  • 7075257
  • AC LED Board
 n/a
    • 7073884
    • AC OK LED Board
 n/a
n/a 7337430 [C] 72-Pin SFF-8643 to 90° SFF-8643 SAS Cable, 250mm n/a
Chassis
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7309731 Chassis Assembly n/a
  • 7064165
  • AC LED to Midplane Cable
 n/a
  • 7075257
  • AC LED Board
 n/a
    • 7073884
    • AC OK LED Board
 n/a
  • 7309734
  • Chassis Subassembly
 n/a
    • 7025969
    • 20A AC Input Line Filter
n/a
    • 7060153
    • AC Ground Cable
 n/a
    • 7075285
    • Top Cover
 n/a
    • 7076576
    • Side Access Panel
 n/a
    • 7309733
    • Chassis
 n/a
    • 7330336
    • Power Supply Cable Assembly
 n/a
      • 7076663
      • Bracket
 n/a
      • 7329282
      • Internal AC Cable
 n/a
Communication
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7046442 [C] Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3 n/a
Disks
Option # Manufacturing
Part #		 Description Previous
Part #
7111103 Buy 7093015 [C] 600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Hitachi HUC101860CSS200 [H101860SFSUN600G] (600.0GB - 10000 RPM SAS Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
7111108 Buy 7093037 [C] 1.2TB - 10000 RPM SAS SFF Disk Assembly w 1 bracket and 1 of the following disks: n/a
  • Hitachi HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB - 10000 RPM - SAS DISK)
n/a
  • Marlin 2.5" Bracket
 n/a
7115079 Buy 7330686 [C] 800GB SAS3 Solid State Drive Assembly n/a
  • HGST HUSMM3280ASS20 [HBCAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS3 Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
7118670 7350766 [C] 1.2TB - 10000 RPM SAS Disk Assembly without Encryption (EAEU part - see note below) n/a
  • HGST HUC101812CSS204 [H1018124FSUN1.2T] (1.2TB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below)
 n/a
  • Marlin 2.5" Bracket
 n/a
7118672 7352257 [C] 600GB - 10000 RPM SAS Disk Drive Assembly without Encryption (EAEU part - see note below) n/a
  • HGST HUC101860CSS204 [H1018604FSUN600G] (600GB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below)
 n/a
  • Marlin 2.5" Bracket
 n/a
7118709 7350749 [C] 800GB SAS3 Solid State Disk Assembly without Encryption (EAEU part - see note below) n/a
  • HGST HUSMM3280ASS204 [HBSAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS3 Disk without Encryption) (EAEU part - see note below)
 n/a
  • Marlin 2.5" Bracket
 n/a
Ethernet
Option # Manufacturing
Part #		 Description Previous
Part #
7111181 7096675 [C] Quad 10-Gigabit Base-T Ethernet n/a
7114134 Buy 7319817 [C] Quad 10-Gigabit or Dual 40-Gigabit Ethernet QSFP+ n/a
7118016 7339763 [C] Dual 10/25-Gigabit SFP28 Ethernet n/a
7118019 7331433 [C] 25Gbps Short Wave SFP+ Transceiver n/a
7118021 7347691 [C] 25Gbps Long Wave SFP+ Transceiver n/a
X2124A-N Buy 7326504 [C] 10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver n/a
X2129A-N Buy 530-4449 [C] 10Gb/Sec Short Wave SFP+ Transceiver n/a
n/a 7341433 [C] 25GBASE-SR SFP+ Transceiver n/a
Fan
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7091709 Fan Frame n/a
n/a 7091860 [C] Fan Module, 80x76mm, 13000 RPM n/a
  • 7083743
  • 80x76mm Dual Counter Rotating Fan, 13500/11600 RPM
 n/a
Fibre Channel
Option # Manufacturing
Part #		 Description Previous
Part #
7115461 7335907 2 [C] Dual 32Gbps Fibre Channel Host Adapter n/a
  • 7335907a
  • Emulex Dual Port 32Gbps Fibre HBA
 n/a
  • 7335907b
  • Pair of Emulex 32Gbps Short Wave SFP+ Transceivers
 n/a
    • 7335907c
    • Emulex 32Gbps Short Wave SFP+ Transceiver
 n/a
7115462 7335902 3 [C] QLogic Dual Port 32Gbps Fibre HBA n/a
  • 7335902a
  • QLogic Dual Port 32Gbps Fibre HBA
 n/a
  • 7340777 [C]
  • Pair of QLogic 32Gbps Short Wave SFP+ Transceivers
 n/a
    • 7340776
    • QLogic 32Gbps Short Wave SFP+ Transceiver
 n/a
2 7335907a-c are not a real Oracle part numbers. These physical parts do not have an Oracle part number. 7335907a-c are being used to help relate this non-part numbered part to the parent part that has a real Oracle part number.
3 7335902a is not a real Oracle part number. This physical part does not have an Oracle part number. 7335902a is being used to help relate this non-part numbered part to its parent part that has a real Oracle part number.
I/O
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 351-0009 PCI Express Filler Panel, Low Profile n/a
n/a 7319341 [F] Front Interface Module n/a
  • 7074700
  • Ribbon Cable, 460mm
 n/a
  • 7319343
  • LED Board
 n/a
  • 7349079
  • FIM2 Board
 n/a
n/a 7345163 [C] Dual PCI Express Card Carrier (DPCC) n/a
  • 7094765
  • DPCC Chassis
 n/a
  • 7347808
  • Dual PCI Express Board (fruid 7347808)
 n/a
Memory
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7330697 [C] 16GB DDR4-2666 Registered DIMM n/a
n/a 7330698 [C] 32GB DDR4-2666 Registered DIMM n/a
n/a 7330699 [C] 64GB DDR4-2666 Load Reduced DIMM n/a
Power
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7331378 [C] Type A265D 3000 Watt AC Input Power Supply n/a
n/a 7352334 [C] Type A265D 3000 Watt AC Input Power Supply n/a
Rack
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7090552 [C] Rackmount Kit n/a
  • 7090551
  • Spacer Kit
 n/a
  • 7090644
  • Rail Kit
 n/a
SCSI
Option # Manufacturing
Part #		 Description Previous
Part #
7115455 7335943 [C] 6.4TB Flash Accelerator F640 NVMe Card n/a
n/a 7332897 Internal SAS-3 RAID HBA Assembly n/a
  • 16-Port 12Gbps SAS-3 Internal RAID HBA
 n/a
  • 7341122 [C]
  • Cable and Super Capacitor Assembly
 n/a
    • 7070402
    • Double Sided Fastener, 1"x5"
 n/a
    • 13.5V 6.4F Super Capacitor
 n/a
    • 7332901
    • Super Capacitor Cable
 n/a
System Board
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7339666 [F] System Module Assembly (SMOD) n/a
  • 7309747
  • Chassis Assembly
 n/a
  • 7337424
  • 4-Slot Disk Cage Assembly
 n/a
    • 7064572
    • 4-Slot Disk Cage
 n/a
    • 7337345
    • 4-Slot Disk Backplane (fruid 7337345)
 n/a
  • 7339665
  • System Module Controller Subassembly
 n/a
    • 7347803
    • System Module Controller
 n/a
      • 3V Lithium Coin Cell Battery
n/a

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Exploded View

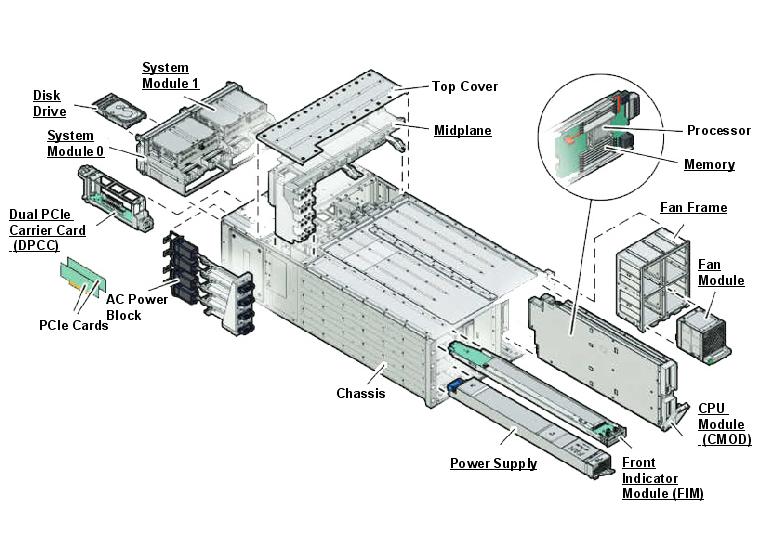

Oracle Server X7-8 Exploded View
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown

Code Manufacturing Part# Description
- 541-2629 2.5" Disk Drive Filler Panel
-
  • 330-4577
  • Disk Filler Bezel
