Oracle Netra Modular System - Components

Netra Modular System Home Page Service Views Components Full Components List Batteries CPU Module Cables Chassis Communication Disk Backplane Disks Ethernet Fan Fibre Channel I/O Memory Power Rack Removable Media SCSI Switch/Hub System Board System Controller Whole System FRU System Breakdown Exploded View

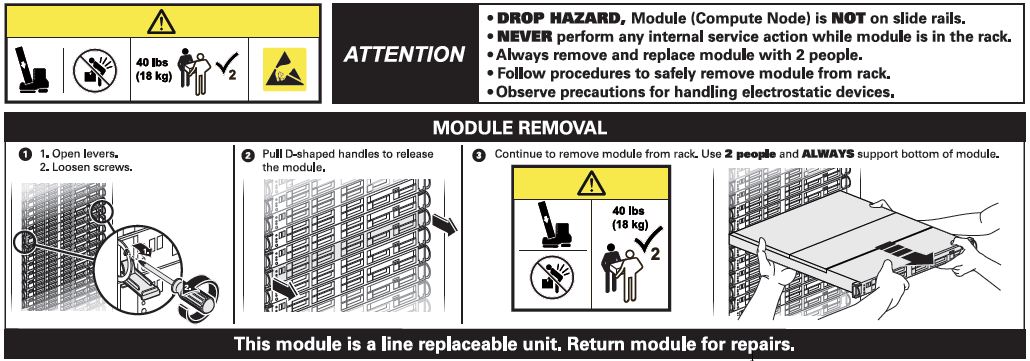

Whole System FRU Option # Manufacturing Part # Description Previous Part # n/a 7312121 [C] X5-2M Server with FBA, Rails, and Quad 10GbE QSFP+ n/a 7084764 [C] Frame Backplane Adapter Fibre Cable, 225mm n/a 7093631 MBLX 3-Pole C13 AC Power Cable, 450mm n/a 7096636 7 Server Rack Mount Slide Assembly, Non-Locking n/a 7096873 X5-2 Server Assembly n/a 7078071 [C] 16GB DDR4-2133 Registered DIMM n/a 7079395 Type A256 600 Watt AC Input Power Supply n/a 7089073 [C] Fan Module n/a 7089072 40×56mm Dual Counter Rotating Fan n/a 7090170 [C] 8GB USB Stick n/a 7094132 [C] 400GB Solid State SAS Drive Assembly n/a 7093645 400GB SAS Solid State Drive [HSCAC2DA4SUN400G] n/a 541-2123 Marlin 2.5" Bracket n/a 7095106 18-Core 2.3GHz Intel E5-2699 v3, 145W n/a 7096437 Quad 10-Gigabit Ethernet QSFP+ n/a 7098505 System Board Assembly n/a 7014226 [C] Interlock Cable, 125mm n/a 7077529 System Board Tray n/a 7096933 Frame Backplane Adapter (FBA) n/a 7098098 Frame Backplane Adapter Ethernet Cable, Black, 152mm n/a n/a 7312122 [C] X5-2M Server with FBA and Rails n/a 7093631 MBLX 3-Pole C13 AC Power Cable, 450mm n/a 7096636 8 Server Rack Mount Slide Assembly, Non-Locking n/a 7096872 X5-2M Server Assembly n/a 7078071 [C] 16GB DDR4-2133 Registered DIMM n/a 7079395 Type A256 600 Watt AC Input Power Supply n/a 7085211 Internal RAID HBA Assembly n/a 7070402 Double Sided Fastener, 1"x5" n/a 7085209 [F] 8-Port 12Gbps SAS3 Internal RAID HBA n/a 7086345 [F] 13.5V 6.4F Super Capacitor n/a 7086346 [F] Super Capacitor Cable n/a 7089073 [C] Fan Module n/a 7089072 40×56mm Dual Counter Rotating Fan n/a 7090170 [C] 8GB USB Stick n/a 7094132 [C] 400GB Solid State SAS Drive Assembly n/a 7093645 400GB SAS Solid State Drive [HSCAC2DA4SUN400G] n/a 541-2123 Marlin 2.5" Bracket n/a 7095106 18-Core 2.3GHz Intel E5-2699 v3, 145W n/a 7098505 System Board Assembly n/a 7014226 [C] Interlock Cable, 125mm n/a 7077529 System Board Tray n/a 7096933 Frame Backplane Adapter (FBA) n/a 7098098 Frame Backplane Adapter Ethernet Cable, Black, 152mm n/a 7 Drop Hazard: The X5-2M Server is NOT on locking slide rails. Reference the Exterior Service Label - X5-2M Compute Node: Removal Guide. 8 Drop Hazard: The X5-2M Server is NOT on locking slide rails. Reference the Exterior Service Label - X5-2M Compute Node: Removal Guide. NOTE: Oracle X5-2M Server node part numbers 7312121 "X5-2M Server with FBA, Rails, and 40GbE QSFP (part # " 7096437) and 7312122 "X5-2M Server with FBA and Rails" are not compatible parts. Reference the Netra Modular System Service Manual Supplement: "Note - When ordering additional or replacement nodes, it is critical that the correct node configuration (with or without an Oracle Quad 10Gb Ethernet Adapter) be obtained. Incompatible nodes will not operate correctly in your modular system. Oracle uses data from the original modular system order to assist in the correct node configuration." Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part
