Sun Blade 8000 - Full Components List
|
|
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
|
|
| System Notes: |
|
Memory, CPU and Disk part information are found on the Blade Server Module Components page.
Blade references.
|
|
|
Blade
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Cables
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X5042A-Z
[S]
|
Sun Rack 1000-42 Cable Management Basket |
| 371-1915 |
Sun Blade 8400 Cable Management Basket |
n/a |
|
X5043A-Z
[S]
|
530-3813
|
DB9F to RJ45F, DCE Adapter |
n/a |
|
X5044A-Z
[S]
|
6 AC Input Power Cords, 20A, Americas Domestic, NEMA L6-20P to IEC320-C19, 4m |
180-2005 [C]  Buy
|
AC Input Power Cord, 16A, Americas, NEMA L6-20P to IEC320-C19, 4M |
n/a |
|
X5045A-Z
[S]
|
4 AC Input Power Cords, 16A, International, IEC309 to IEC320-C19, 4m |
| 180-2004 [C]
|
AC Input Power Cord, 16A, International, IEC309 to IEC320-C19, 4M |
n/a |
|
X5046A-Z
[S]
|
6 Power Cords, 20A, (IEC 320-C19 to IEC 320, 1.5 M)
|
| 180-2095 |
Power Cord, 16A, (IEC 320-C19 to IEC 320, 1.5 M) |
n/a |
|
X5047A-Z
[S]
|
6 Power Cords, 20A, (IEC 320-C19 to IEC 320, 2.0 M)
|
| 180-2096 [C]
|
Power Cord, 20A, (IEC 320-C19 to IEC 320, 2.0 M) |
n/a |
|
X5915A
[S]
|
2 AC Power Cords and Adapters, 30A, NEMA L6-20R to L6-30P, 4M |
| 7055057 [C]
|
Cable Assembly, Americas, NEMA L6-20R to L6-30P, 4M |
375-3493 [C]
|
| n/a |
375-3493 [C]
|
Cable Assembly, Americas, NEMA L6-20R to L6-30P, 4M
|
n/a |
| n/a |
7040686 [C]
|
Power Cord, 16A, (IEC 320-C19 to IEC 320, 1.5 M) |
180-2095 |
| n/a |
7040688 [C]
|
Power Cord, 16A, (IEC 320-C19 to IEC 320, 2.0 M) |
180-2096 [C]
|
| n/a |
7040702 [C]
|
AC Input Power Cord, 16A, International, IEC309 to IEC320-C19, 4m |
180-2004 [C]
|
NOTE: If the system is to be installed in the top of the rack and is to be connected to an
MPS you should use the 2.0m power cord (X5047A-Z). America domestic installations
should use the MPS-60 (9247A-2) Modular Power System. International installations
should use the MPS-32 Modular Power System.
|
|
Communication
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X1288A-Z
[S]
|
375-3439
[C]
|
Dual Port 20Gb/sec 4x InfiniBand Host Channel Adapter PCI Express ExpressModule |
n/a |
|
X1289A-Z
[S]
|
541-1376
[C]
|
Sun 10-Port 4x DDR InfiniBand Network Express (NEM) Module Assembly
|
n/a |
|
X4216A-Z
[S]
|
375-3548
[C]
|
Dual Port 20Gb/sec 4x InfiniBand Host Channel Adapter PCI Express ExpressModule |
n/a |
|
Ethernet
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X1028A-Z
[S]
|
541-2400
[C]
|
x8 PCI Express Dual 10-Gigabit Ethernet ExpressModule |
n/a |
|
X1108A-Z
[S]
|
375-3591
[C]
|
x8 PCI Express Dual 10-Gigabit SFP+ Ethernet ExpressModule |
n/a |
|
X5040A-Z
[S]
|
541-0389
[C]
|
20-port Gigabit Ethernet Network Express Module (NEM) |
n/a |
|
X7282A-Z
[S]
|
541-0924
[C]
|
x4 PCI Express Dual Gigabit Ethernet UTP ExpressModule |
n/a |
|
X7283A-Z
[S]
|
541-1206
[C]
|
x4 PCI Express Dual Gigabit Ethernet MMF ExpressModule |
n/a |
|
X7284A-Z
[S]
|
7055026
[C]
|
x4 PCI Express Quad Gigabit Ethernet UTP ExpressModule |
375-3498
[C]
|
|
X7287A-Z
[S]
|
541-2487
[C]
|
x8 PCI Express Quad Gigabit Ethernet UTP ExpressModule |
n/a |
| n/a |
375-3498
[C]
|
x4 PCI Express Quad Gigabit Ethernet UTP ExpressModule |
n/a |
|
Fan
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
541-0385 [C]
|
Rear Fan Module (RFM) |
n/a |
| n/a |
541-0496 [C]
|
Front Fan Module (FFM) |
n/a |
| n/a |
541-0784
[C]
|
Front Fan Tray Assembly |
n/a |
|
- Front Indicator Module (FIM)
|
n/a |
|
|
n/a |
|
|
n/a |
|
|
n/a |
| n/a |
541-0824
[F]
|
Rear Fan Cage Assembly |
n/a |
|
- Rear Fan Board/Module with three RFMs
|
n/a |
|
|
n/a |
|
Fibre Channel
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
SG-XPCIE20FC-NEM-Z
[S]
|
375-3385
[C]
|
Sun StorageTek 4Gb 20-Port FC Network Express Module (NEM) Host Bus Adapter |
n/a |
|
SG-XPCIE2FC-EB4-Z
[S]
|
375-3386
[C]
|
4Gb/sec PCI Express Dual Fibre Channel ExpressModule Host Adapter, Emulex |
n/a |
|
SG-XPCIE2FC-QB4-Z
[S]
|
375-3384
[C]
|
4Gb/sec PCI Express Dual Fibre Channel ExpressModule Host Adapter, QLogic |
n/a |
|
SG-XPCIE2FCGBE-E-Z
[S]
|
371-4018
[C]
|
4Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet ExpressModule Host Adapter, Emulex |
n/a |
|
SG-XPCIE2FCGBE-Q-Z
[S]
|
371-4017
[C]
|
4Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet ExpressModule Host Adapter, QLogic |
n/a |
|
I/O
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
541-0821 2
[F]
|
I/O Chassis Assembly |
n/a |
|
|
n/a |
|
|
n/a |
|
|
n/a |
|
|
n/a |
|
|
n/a |
|
|
n/a |
|
|
n/a |
|
- AC Line Filter to 530-3393 Power Cable
|
n/a |
|
|
n/a |
|
- Rear Interface Module (RIM)
|
n/a |
2 I/O Chassis Assembly FRU 541-0821 includes Centerplane Assembly 541-0823.
|
|
Power
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
300-1774
[C]
|
Type A215 3048 Watt AC Input Power Supply |
n/a |
|
SCSI
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
SG-XPCIE8SAS-EB-Z
[S]
|
375-3486
[C]
|
Sun StorageTek SAS Host Bus Adapter PCI Express ExpressModule |
n/a |
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
|
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
|

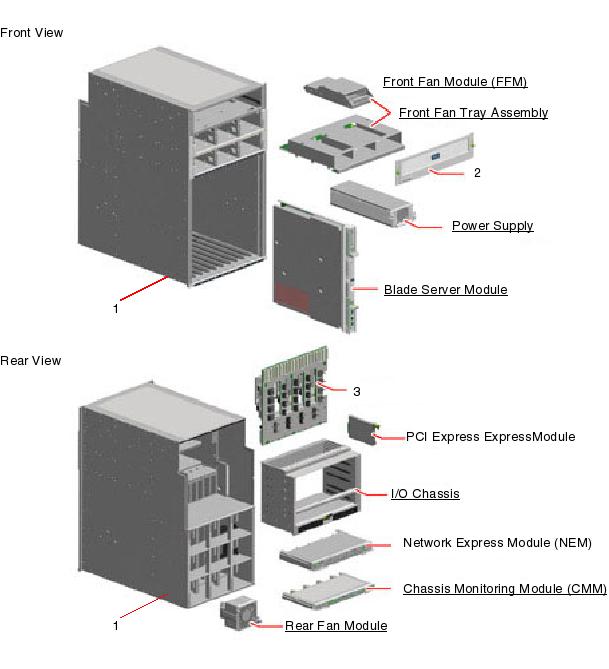

| Code |
Manufacturing Part# |
Description |
| 1 |
541-0825 |
Base Chassis Assembly |
| 2 |
541-0758 |
Front Fan Cover |
| 3 |
541-0823
|
Centerplane Assembly |
|
|
|
|
|
|
| NS |
|
|
| NS |
|
|
| NS |
541-0374 |
Front Fan Tray |
| NS |
541-0605 [F]
|
Blank Disk Drive Filler |
| NS |
541-0726 |
NEM Filler Panel |
| NS |
541-0727 |
CMM Filler Panel |
| NS |
541-0728 |
Blade Filler Panel |
| NS |
541-0729 |
PCI Express Express Module Filler Panel |
| NS |
|
|
| NS |
541-0783 |
Chassis Subassembly |
| NS |
|
- PCI Express ExpressModule Door
|
| NS |
|
|
| NS |
|
|
| NS |
541-1326 |
Left Slide Rail |
| NS |
541-1327 |
Right Slide Rail |
|
