Sun Blade 6048 - Full Components List
|
|
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
|
|
| System Notes: |
|
Memory, CPU and Disk part information are found on the Blade Server Module Components page. Blade references.
|
|
|
Backplane/Centerplane
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
B22-B-MP-UPGKIT
[S]
|
541-4236 [F]
|
PCI Express Gen 2 Midplane Assembly |
541-3542 [F]
|
|
|
n/a |
|
|
n/a |
|
|
n/a |
|
|
n/a |
|
- PCI Express Gen 2 Midplane
|
511-1212 |
| n/a |
541-2445 [F]
|
PCI Express 1.1 Midplane Assembly |
n/a |
|
|
n/a |
|
|
n/a |
|
|
n/a |
|
|
n/a |
|
|
n/a |
| n/a |
541-3542 [F]
|
PCI Express Gen 2 Midplane Assembly |
n/a |
|
|
n/a |
|
|
n/a |
|
|
n/a |
|
|
n/a |
|
- PCI Express Gen 2 Midplane
|
n/a |
|
Blade
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Cables
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X2880-10M
[S]
|
530-4343
[F]
|
10 Meter Optical QDR 12x InfiniBand cable |
n/a |
|
X2880-20M
[S]
|
530-4344
[F]
|
20 Meter Optical QDR 12x InfiniBand cable |
n/a |
|
X2881-20M
[S]
|
530-4347
[F]
|
20 Meter QDR 12x InfiniBand splitter cable |
n/a |
|
X2882-0.4M
[S]
|
530-4346
[C]
|
0.4m Copper QDR 12x InfiniBand jumper cable |
n/a |
|
X4621A
[S]
|
Dongle Cable Assembly for Universal Connector Port (UCP) with four connectors: 1 VGA HD15, 1 RJ45, 2USB, 1 DB9 Serial and 1 DB9 to RJ45 Adapter
|
|
530-3813
|
DB9F to RJ45F, DCE Adapter |
n/a |
|
530-3934
[C]
|
USB/VGA/DB-9/RJ45 Dongle Cable Adapter |
n/a |
|
X4622A
[S]
|
Dongle II Cable Assembly for Universal Connector Port (UCP) with three connectors: 1 VGA HD15, 1 RJ45, 2×USB, and 1 DB9 to RJ45 Adapter |
|
530-3100
|
RJ45F to DB9F Adapter |
n/a |
|
7046680
[C]
|
USB/VGA/RJ45 Dongle Cable Adapter |
530-3936
[C]
|
|
X5044A-Z
[S]
|
6 AC Input Power Cords, 20A, Americas Domestic, NEMA L6-20P to IEC320-C19, 4m |
180-2005 [C]  Buy
|
AC Input Power Cord, 16A, Americas, NEMA L6-20P to IEC320-C19, 4M |
n/a |
|
X5045A-Z
[S]
|
4 AC Input Power Cords, 16A, International, IEC309 to IEC320-C19, 4m |
| 180-2004 [C]
|
AC Input Power Cord, 16A, International, IEC309 to IEC320-C19, 4M |
n/a |
|
X5915A
[S]
|
2 AC Power Cords and Adapters, 30A, NEMA L6-20R to L6-30P, 4M |
| 7055057 [C]
|
Cable Assembly, Americas, NEMA L6-20R to L6-30P, 4M |
375-3493 [C]
|
| n/a |
375-3493 [C]
|
Cable Assembly, Americas, NEMA L6-20R to L6-30P, 4M
|
n/a |
| n/a |
530-3936
[C]
|
USB/VGA/RJ45 Dongle Cable Adapter |
n/a |
| n/a |
7040702 [C]
|
AC Input Power Cord, 16A, International, IEC309 to IEC320-C19, 4m |
180-2004 [C]
|
|
Communication
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X1288A-Z
[S]
|
375-3439
[C]
|
Dual Port 20Gb/sec 4x InfiniBand Host Channel Adapter PCI Express ExpressModule |
n/a |
|
X4216A-Z
[S]
|
375-3548
[C]
|
Dual Port 20Gb/sec 4x InfiniBand Host Channel Adapter PCI Express ExpressModule |
n/a |
|
X4219A-Z
[S]
|
375-3605
[C]
|
Dual Port 40Gb/sec 4x Infiniband QDR Host Channel Adapter PCI Express ExpressModule |
n/a |
|
X5196A-Z
[S]
|
375-3551
[C]
|
24-port 4x DDR InfiniBand Network Express Module (NEM) |
n/a |
|
X5500A
[S]
|
541-3378
[C]
|
InfiniBand QDR Switched Network Express Module (NEM) |
n/a |
|
Ethernet
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
SG-XEMFCOE2-Q-SR
[S]
|
7053425
[C]
|
Dual 10-Gigabit Ethernet PCI Express ExpressModule SFP+ FCoE CNA - SR |
375-3684
[C]
|
|
SG-XEMFCOE2-Q-TA
[S]
|
7053426
[C]
|
Dual 10-Gigabit Ethernet PCI Express ExpressModule FCoE CNA - TA |
375-3685
[C]
|
|
X1028A-Z
[S]
|
541-2400
[C]
|
x8 PCI Express Dual 10-Gigabit Ethernet ExpressModule |
n/a |
|
X1108A-Z
[S]
|
375-3591
[C]
|
x8 PCI Express Dual 10-Gigabit SFP+ Ethernet ExpressModule |
n/a |
|
X1110A-Z
[S]
|
7051227
[C]
|
Dual 10-Gigabit SFP+ Ethernet ExpressModule |
375-3616
[C]
|
|
X4731A
[S]
|
540-7544
[C]
|
12-port, GbE, Pass-Thru Network Express Module (NEM) |
n/a |
|
X7282A-Z
[S]
|
541-0924
[C]
|
x4 PCI Express Dual Gigabit Ethernet UTP ExpressModule |
n/a |
|
X7283A-Z
[S]
|
541-1206
[C]
|
x4 PCI Express Dual Gigabit Ethernet MMF ExpressModule |
n/a |
|
X7284A-Z
[S]
|
7055026
[C]
|
x4 PCI Express Quad Gigabit Ethernet UTP ExpressModule |
375-3498
[C]
|
|
X7287A-Z
[S]
|
541-2487
[C]
|
x8 PCI Express Quad Gigabit Ethernet UTP ExpressModule |
n/a |
| n/a |
135-1196
[C]
|
10Gb/Sec Short Wave SFP+ Transceiver |
n/a |
| n/a |
375-3498
[C]
|
x4 PCI Express Quad Gigabit Ethernet UTP ExpressModule |
n/a |
| n/a |
375-3616
[C]
|
Dual 10-Gigabit SFP+ Ethernet ExpressModule |
n/a |
| n/a |
375-3684
[C]
|
Dual 10-Gigabit Ethernet PCI Express ExpressModule SFP+ FCoE CNA - SR |
n/a |
| n/a |
375-3685
[C]
|
Dual 10-Gigabit Ethernet PCI Express ExpressModule FCoE CNA - TA |
n/a |
|
Fan
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
371-1446 [C]
|
Rear Fan Controller Assembly |
n/a |
|
- Rear Fan Controller Board
|
n/a |
| n/a |
371-1450 [C]
|
Rear Fan Module (RFM)
|
n/a |
|
Fibre Channel
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
SG-XPCIE2FC-EB4-Z
[S]
|
375-3386
[C]
|
4Gb/sec PCI Express Dual Fibre Channel ExpressModule Host Adapter, Emulex |
n/a |
|
SG-XPCIE2FC-QB4-Z
[S]
|
375-3384
[C]
|
4Gb/sec PCI Express Dual Fibre Channel ExpressModule Host Adapter, QLogic |
n/a |
|
SG-XPCIE2FCGBE-E-Z
[S]
|
371-4018
[C]
|
4Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet ExpressModule Host Adapter, Emulex |
n/a |
|
SG-XPCIE2FCGBE-Q-Z
[S]
|
371-4017
[C]
|
4Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet ExpressModule Host Adapter, QLogic |
n/a |
|
SG-XPCIEFCGBE-E8-Z
[S]
|
371-4666 2
[C]
|
8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, Emulex |
n/a |
|
SG-XPCIEFCGBE-Q8-Z
[S]
|
371-4522 3
[C]
|
8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, QLogic |
n/a |
| n/a |
7053435
[C]
|
8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, Emulex |
n/a |
|
Miscellaneous
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X5964-A
[S]
|
371-4555 4
|
Rear Refrigerant Gas Cooling Door 5600 |
n/a |
|
X5965-A
[S]
|
371-4556 5
[F]
|
Rear Water-Based Cooling Door 5200 |
n/a |
4 Option X5964-A/371-4555 requires a Liebert XDC or XDP refrigerant distribution unit.
Attachment of the Liebert unit is performed by Liebert-certified personnel.
A support agreement with Liebert is required.
Contact information for Liebert is located inside the refrigerant door.
5 Option X5965-A/371-4556 is supported by Rittal. Contact information for Rittal is located inside the water door.
NOTE: Cooling Door options are not compatible with Sun Blade 6048 B22-A or B22-B.
The PCI Express Gen 2 compatible mid-plane chassis is required: B22-C and B22-D.
|
|
Power
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X4760A-Z
[S]
|
300-2188
[C]
|
Type A231 8400 Watt AC Input Power Supply |
300-2057
[C]
|
|
|
371-2524 [C]
|
| n/a |
300-2057
[C]
|
Type A231 8400 Watt AC Input Power Supply |
n/a |
|
|
n/a |
NOTE: Fan Trays 371-2524 and 371-4197 are not mechanically interchangeable.
|
|
SCSI
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
SG-XPCIE8SAS-EB-Z
[S]
|
375-3486
[C]
|
Sun StorageTek SAS Host Bus Adapter PCI Express ExpressModule |
n/a |
|
System Service Processor
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X4627A
[S]
|
540-7545 [C]
|
Chassis Management Module (CMM) Assembly |
n/a |
|
- Chassis Management Module (CMM) Board
|
n/a |
|
|
n/a |
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
|
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
|

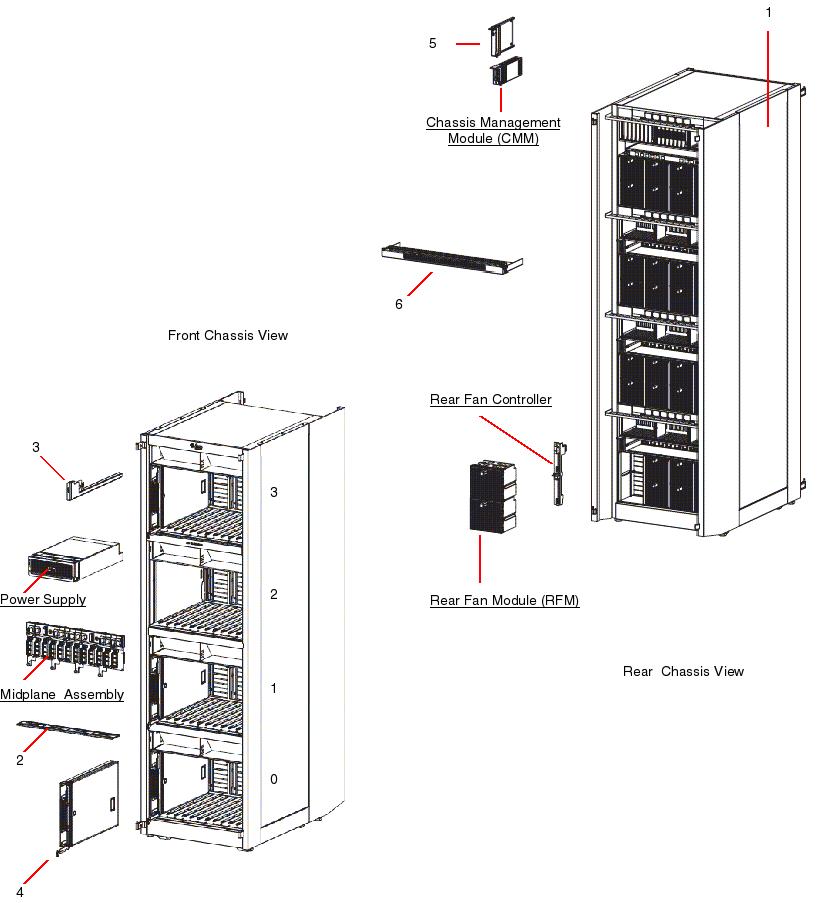

| Code |
Manufacturing Part# |
Description |
| 1 |
540-7543 |
System Assembly |
| 2 |
|
|
| 3 |
|
|
| NS |
|
|
| NS |
|
- Top Chassis Assembly (replaced by 371-4552 April 2009)
|
| NS |
|
|
| NS |
|
|
| 4 |
371-1738 |
Blade Filler Panel, [X4460A] [S] |
| 5 |
541-0729 |
PCI Express Express Module Filler Panel |
| NS |
|
|
| 6 |
371-3065 |
NEM Filler Panel [X4461A] [S] |
| NS |
371-4552 |
Top Chassis Assembly |
| NS |
|
|
| NS |
|
|
|
